1. Built-in computer chip, multi-channel ultrasonic protection system to ensure the safe and stable operation of the host;
2.Super power output, with three levels of power adjustable for large, medium and small, suitable for welding and cutting requirements of different materials and thicknesses;
3. The application of frequency automatic tracking system and ultrasonic soft start technology makes the performance of this machine reach the international level;
4. Diverse mold styles, design can be provided according to customer needs;
5. The running speed is four times that of ordinary sewing machines, and the operation is simple.
Product Name
ultrasonic lace machine
frequency
20khz
input voltage
AC220V
Power
1500w-2500w
horn journey
70mm
machine journey
275-455mm
oscillation time
0.01-0.99s
Air pressure
1-7bar
welding capability
φ300mm
size
1200*600*1200mm
weight
75kg
Details Images

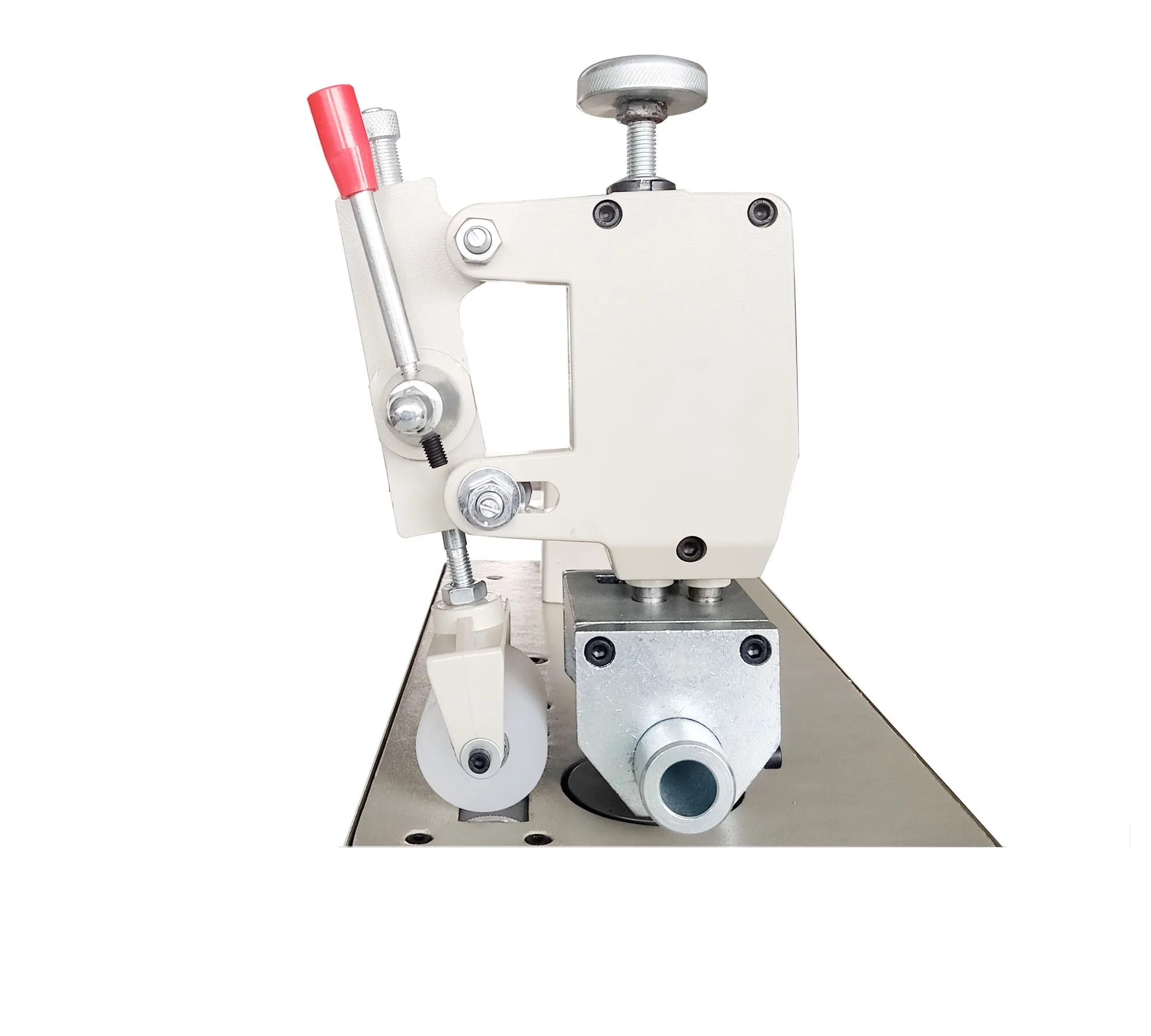

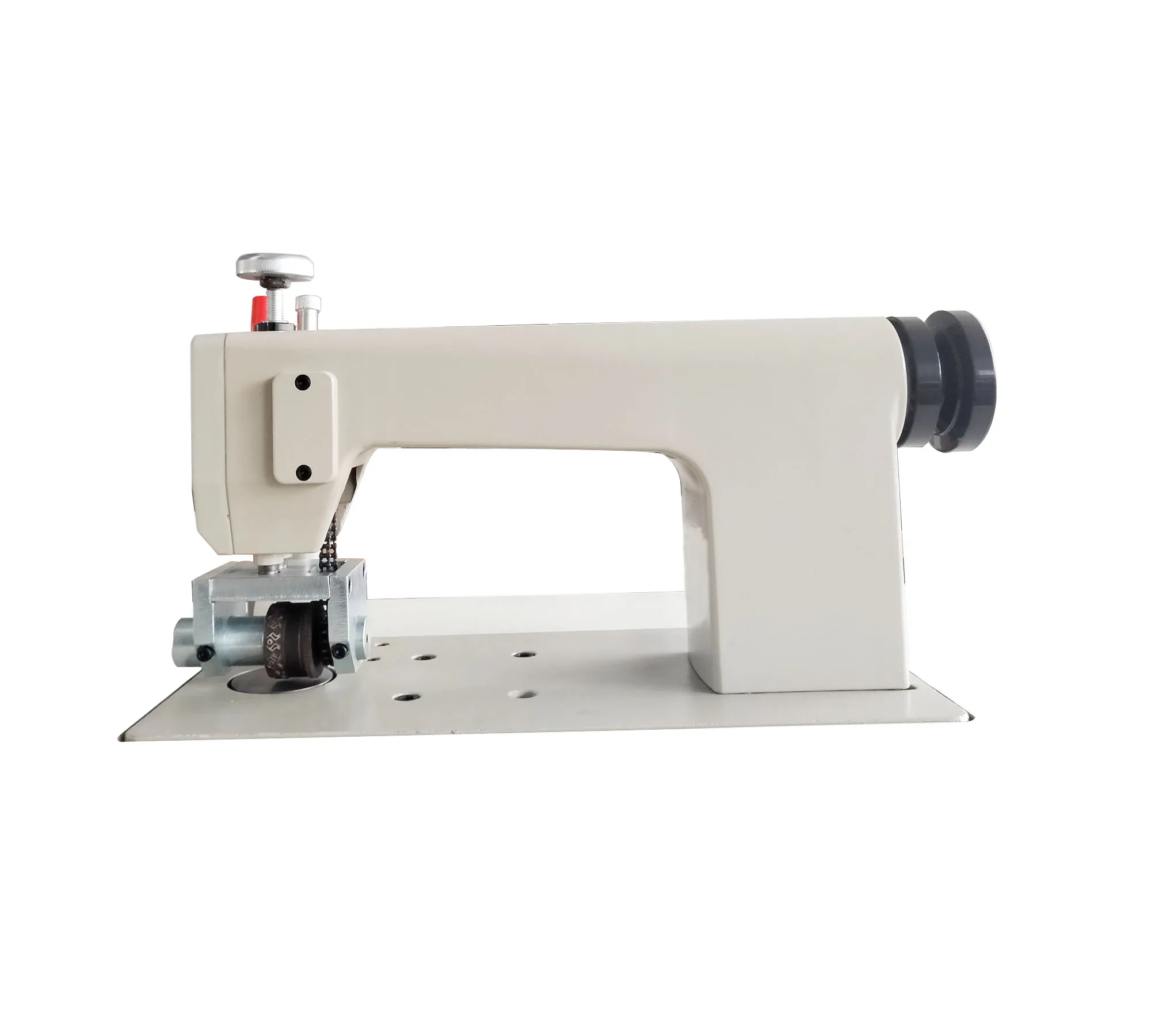

Machine head (flower wheel lifting handle, flower wheel turning hand wheel)
The flower wheel lifting handle can raise and lower the flower wheel, depending on the thickness of the fabric. Generally, thicker fabrics with low chemical fiber content require greater pressure.

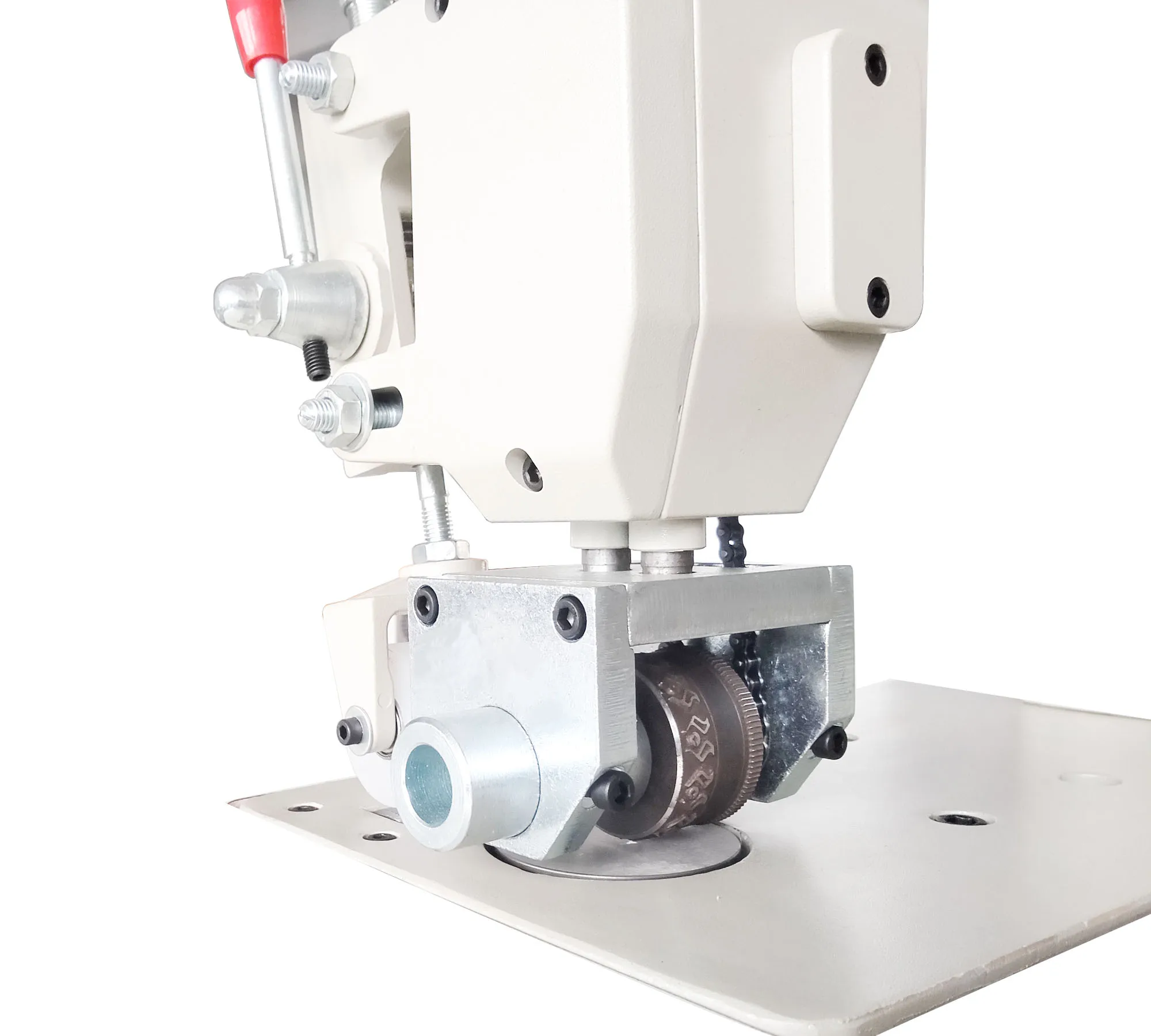

Sliding sleeve and flower wheel
When installing the flower wheel, the flower wheel holder should be in the raised position, turn the flower wheel, insert the sprocket pin into the flower wheel pin hole, and insert both ends of the flower wheel into the side plate bearing.There are various patterns and mold styles, which can be designed and provided according to customer needs
Flip the handle and the upper pressing wheel
The bottom mold rotation function makes the chassis wear evenly, prolong the service life and improve the processing quality; Single-sided straight or curved cutting, and edge melting treatment, so that the edge is smooth and not rough, without burrs;
Ultrasonic generator
1. New computer intelligent ultrasonic generator;
2. The six-chip combination of original technology makes the output stronger; 3.Multifunctional flower mold support and level fine-tuning mechanism;
Ultrasonic lace machine is suitable for making lace garments, ribbons, decorative products, handkerchiefs, tablecloths, curtains, bedspreads, duvet covers, tents, raincoats, non-woven masks, non-woven fabrics, etc.;
Ultrasonic lace machine is suitable for making lace garments, ribbons, decorative products, handkerchiefs, tablecloths, curtains, bedspreads, duvet covers, tents, raincoats, non-woven masks, non-woven fabrics, etc.;
Ultrasonic lace machine is suitable for making lace garments, ribbons, decorative products, handkerchiefs, tablecloths, curtains, bedspreads, duvet covers, tents, raincoats, non-woven masks, non-woven fabrics, etc.;
Ultrasonic lace machine is suitable for making lace garments, ribbons, decorative products, handkerchiefs, tablecloths, curtains, bedspreads, duvet covers, tents, raincoats, non-woven masks, non-woven fabrics, etc.;
