Hf миллиметр волна RF коаксиальный адаптер 3 5 гнездо до гнездовой

Hf миллиметр волна RF коаксиальный адаптер 3 5 гнездо до гнездовой

Категория: Coaxial Connectors (RF) >>>
Поставщик: Hangzhou,Doolink,Testing,Technology,Co.,Ltd.

Цена:10,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	12.11 $*	13.56 $*
Aug-17-2025	12.63 $*	13.22 $*
Jul-17-2025	10.57 $*	11.41 $*
Jun-17-2025	12.90 $*	13.80 $*
May-17-2025	10.46 $*	11.47 $*
Apr-17-2025	11.8 $*	12.49 $*
Mar-17-2025	11.17 $*	12.88 $*
Feb-17-2025	11.99 $*	12.58 $*
Jan-17-2025	11.36 $*	12.1 $*

Характеристики

Products Description

Configuration
Connector A Type	3.5mm female
Connector A Polarity	Standard
Connector B Type	3.5mm female
Connector B Polarity	Standard
Adaptor Body Style	Straight
Electrical Characteristics
Impedance	50Ω
Frequency Range	DC-26.5GHz
Insertion Loss	≤0.05*Sqt.(f_GHz)
VSWR / Return Loss	<1.15
Material & Mechanical Performance
Center Contact	Beryllium Copper
Outer Contact	Passivated Stainless Steel
Body / Shell / Housing	Passivated Stainless Steel
Insulator / Dielectric	ULTEM&PEEK
Durability	500 Cycles
Temperature	-55℃ ~ +125℃

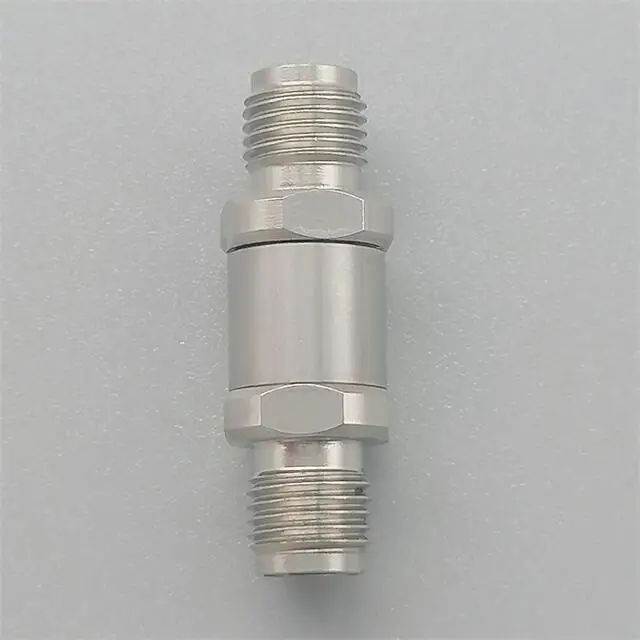

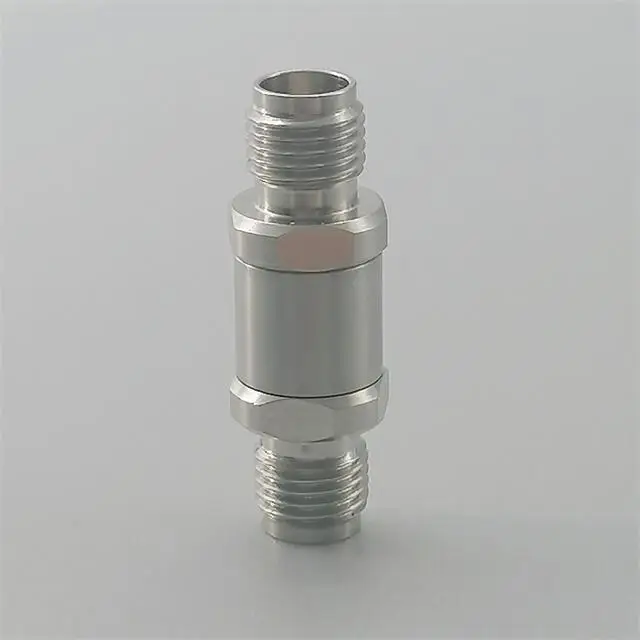

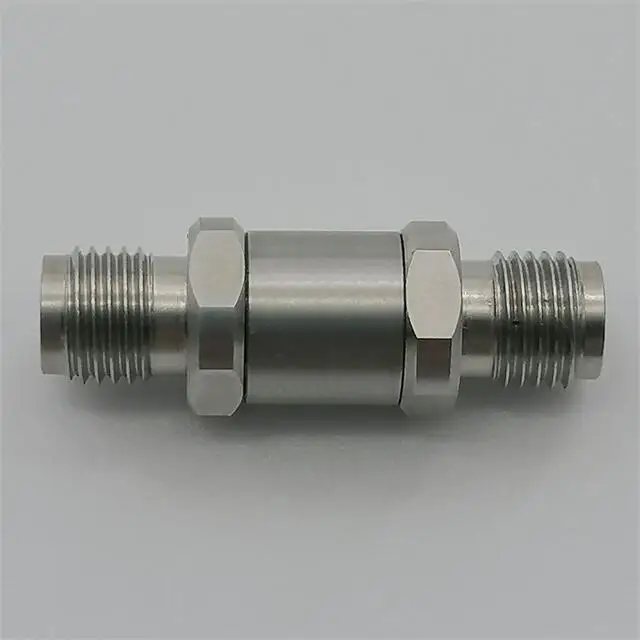

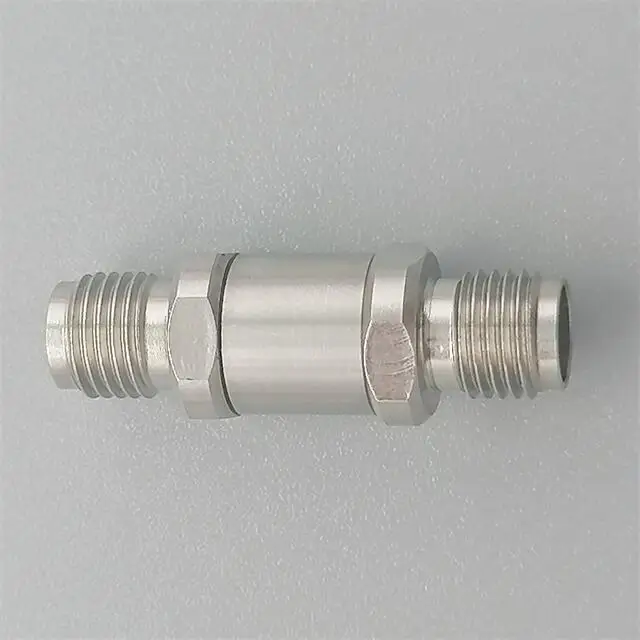

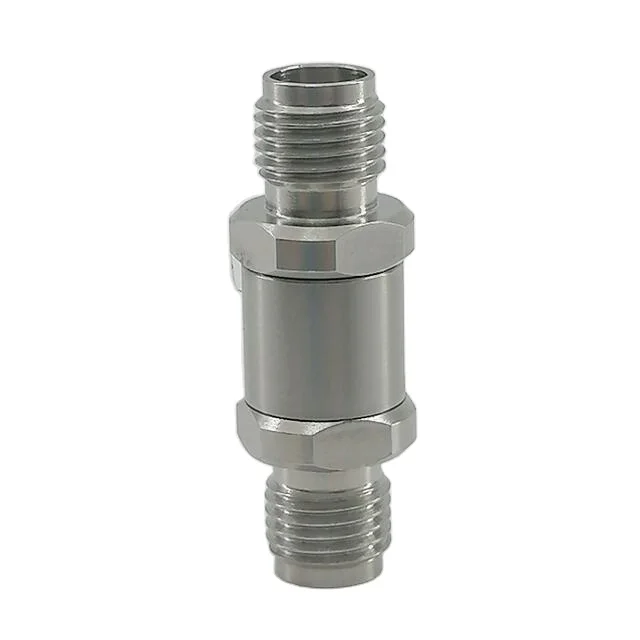

Detailed Images

Packaging & Delivery

Precision RF connectors we pack them via tray, or pack them by PE bags each piece per bag and cartons.
Mode of packing: Export standard package or as your detail request.
Delivery time: Stocks product we can ship them immediately after receipt payment, customized type should be 15 workdays after receipt of payment.
Mode of shipment: By Express like DHL, Fedex, UPS.
