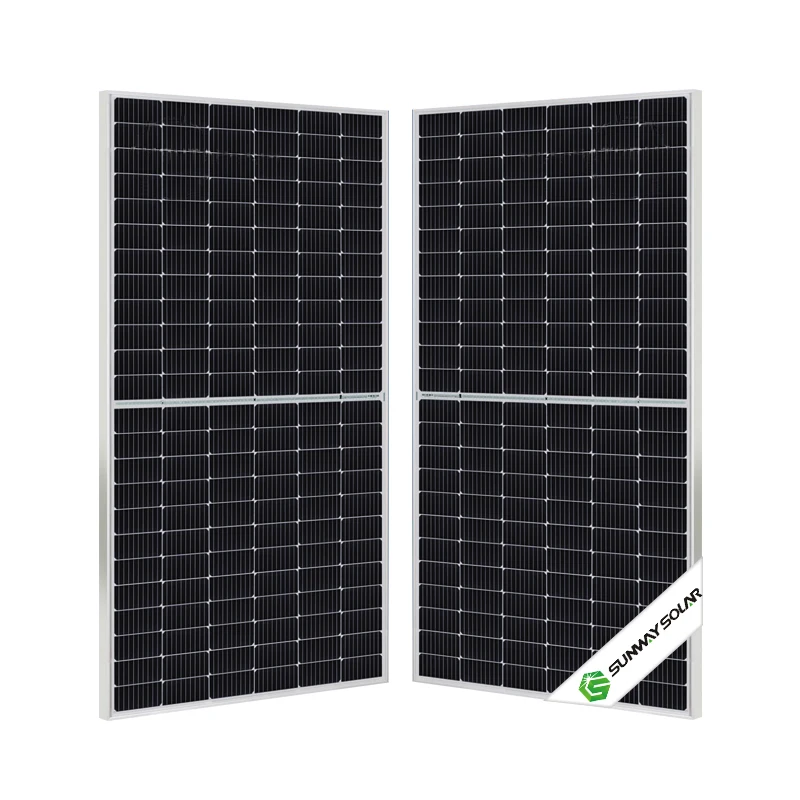

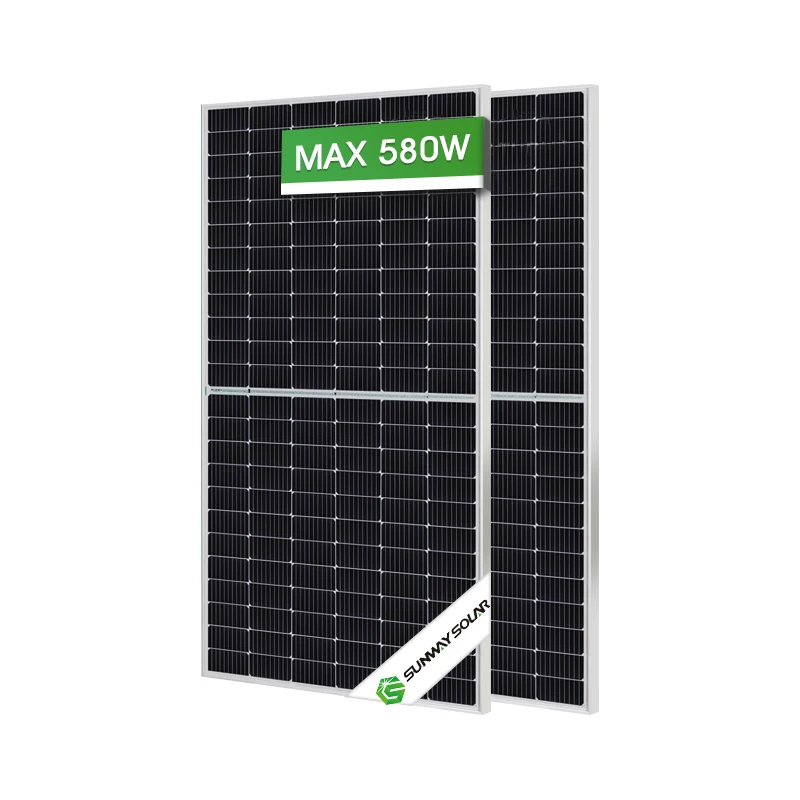

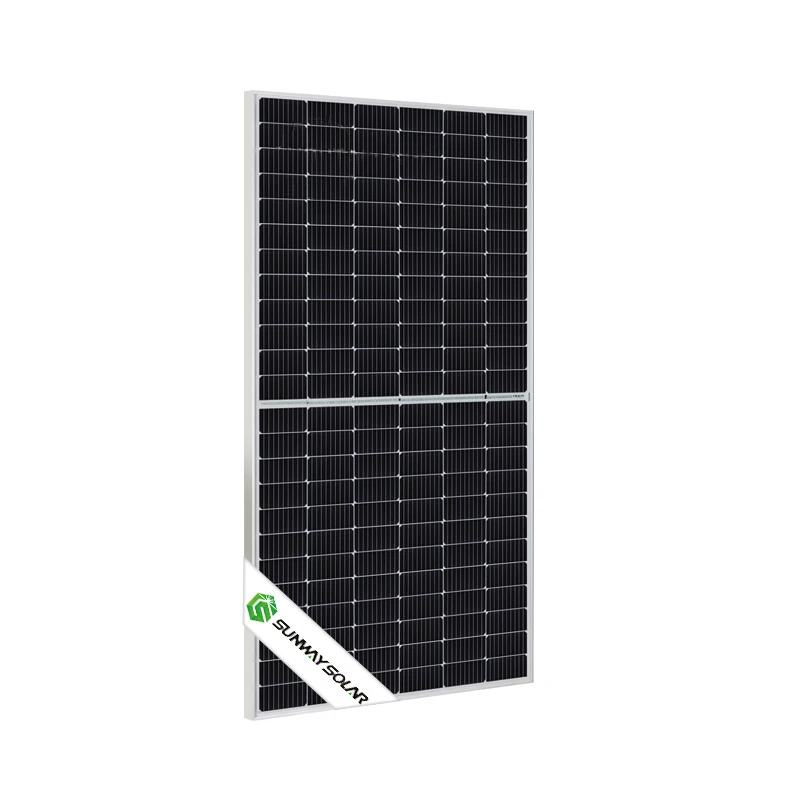

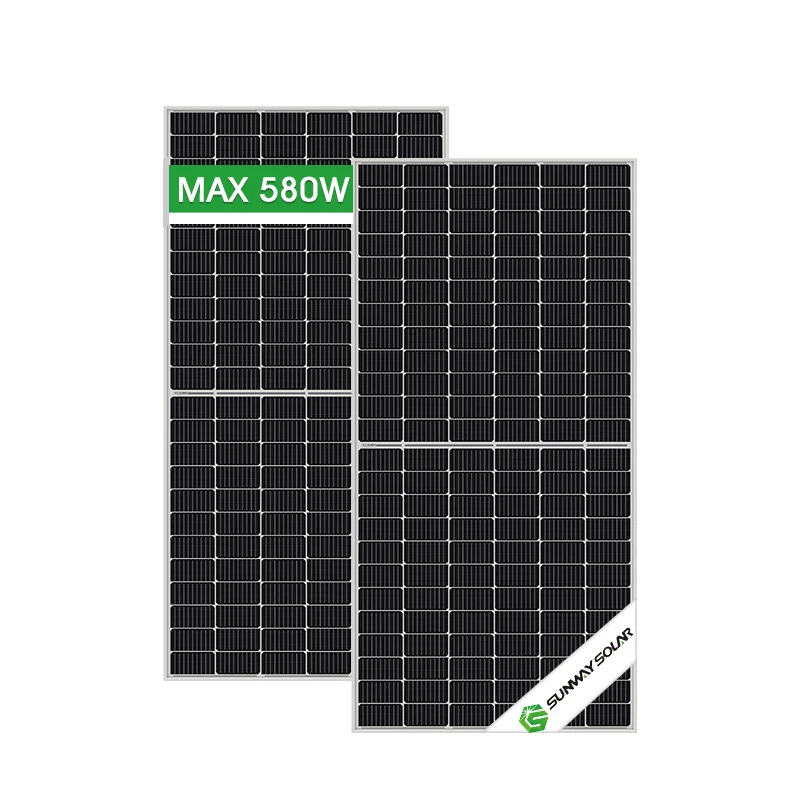

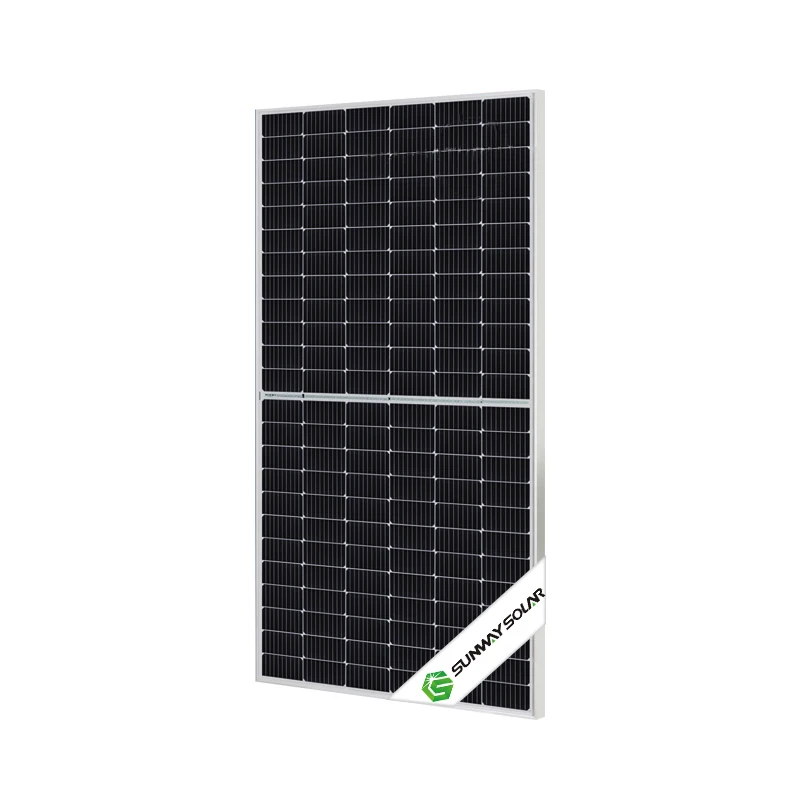

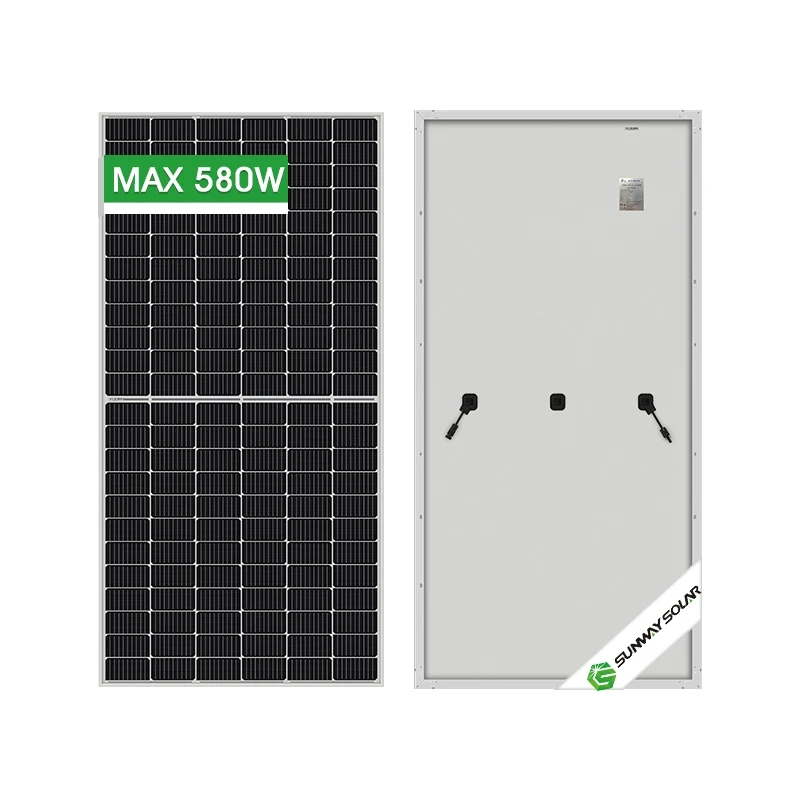

Солнечная батарея Sunway 560 570 580 Вт pv модуль jinko whcsolar panel 550w
- Категория: Solar Panels >>>
- Поставщик: Hefei,Sunway,Solar,Energy,Tech.Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.99 $* | 0.71 $* |
| Aug-19-2025 | 0.91 $* | 0.25 $* |
| Jul-19-2025 | 0.98 $* | 0.7 $* |
| Jun-19-2025 | 0.79 $* | 0.81 $* |
| May-19-2025 | 0.17 $* | 0.13 $* |
| Apr-19-2025 | 0.81 $* | 0.55 $* |
| Mar-19-2025 | 0.88 $* | 0.0 $* |
| Feb-19-2025 | 0.15 $* | 0.7 $* |
| Jan-19-2025 | 0.50 $* | 0.98 $* |
Характеристики
Electrical Parameters | ||||||||||||
Module | SW555M-144 ~ SW580M-144 | |||||||||||
Encapsulation | Class/Eva/Cell/Eva/Backsheet | |||||||||||
Maximum Power Pmax(W) | 555 | 560 | 565 | 570 | 575 | 580 | ||||||
Maximum Power Voltage(Vmp/V) | 41.8 | 42 | 42.2 | 42.4 | 42.6 | 42.8 | ||||||
Maximum Power Current(Imp/A) | 13.29 | 13.35 | 13.41 | 13.47 | 13.53 | 13.59 | ||||||
Open Circuit Voltage(Voc/V) | 50 | 50.2 | 50.4 | 50.6 | 50.8 | 51 | ||||||
Short Circuit Currrnt(Isc/A) | 14.05 | 14.11 | 14.17 | 14.23 | 14.29 | 14.35 | ||||||
Module Efficiency(%) | 21.7 | 21.9 | 22.1 | 22.3 | 22.5 | 22.7 | ||||||
Power Tolerance(W) | 0~+5W | |||||||||||
Temperature Coefficient of Isc(αIsc) | +0.059%/℃ | |||||||||||
Temperature Coefficient of Voc(βVoc) | -0.330%/℃ | |||||||||||
Temperature Coefficient of Pmax(γVoc) | -0.410%/℃ | |||||||||||
STC | Irradiance 1000w/㎡, Cell Temperature 25℃， Air Mass 1.5 | |||||||||||
Product Description
*Anti Reflective Glass
*Self-cleaning function
*Module efficiency is increased by 2%
*Service life is as long as25years(30years optional)
*Translucency of normal luminance is increased by 2%
* Anti-PID
* Appearance Consistency
* High Efficiency PV Cells
*Color sorting ensure consistent appearance on each module
* Appearance Consistency
* High Efficiency PV Cells
*Color sorting ensure consistent appearance on each module
* Conventional frame
* Seal-lip designglue injection
* Silver or black frames are optional
* Serrated-clip design tensile strength
*Boost bearing capability and prolong service life
* Seal-lip designglue injection
* Silver or black frames are optional
* Serrated-clip design tensile strength
*Boost bearing capability and prolong service life
*Heat dissipation
*Long service life
*IP67 protection level*Quality diode ensures module running safety
*Conventional standalone edition and engineering custom edition
Our Factory
Installation Instructions
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel.
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel.
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow
constantly.
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow
constantly.
Product packaging
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing
with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
Application
Company Profile
Certifications
