Product Description

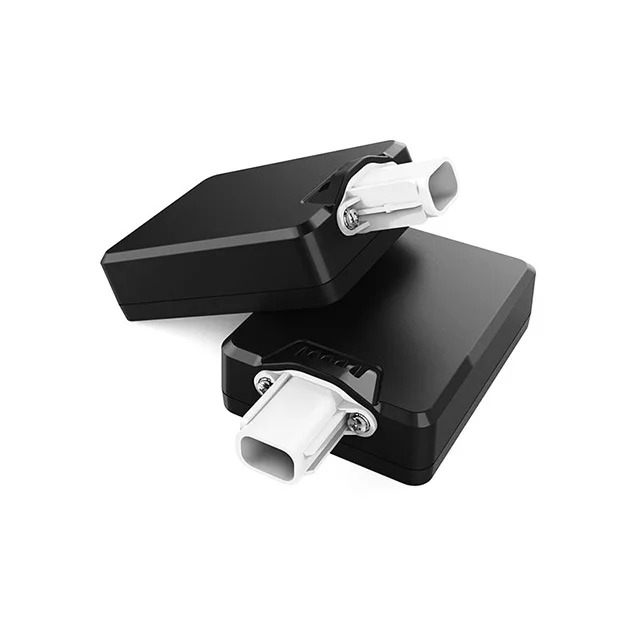

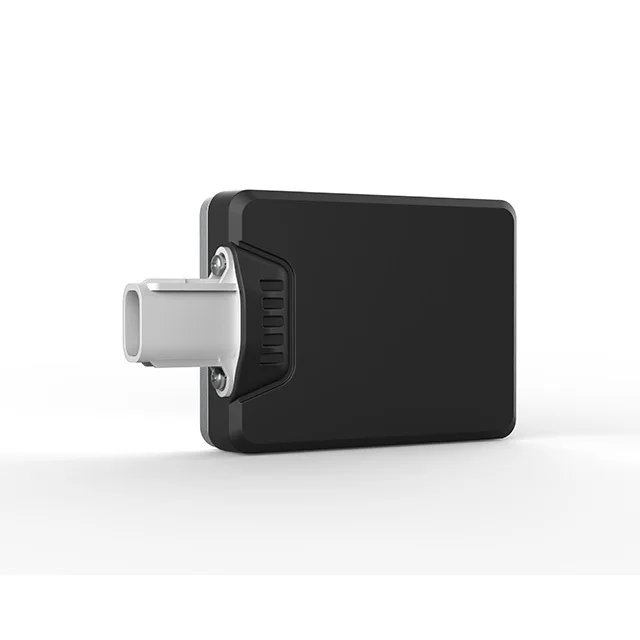

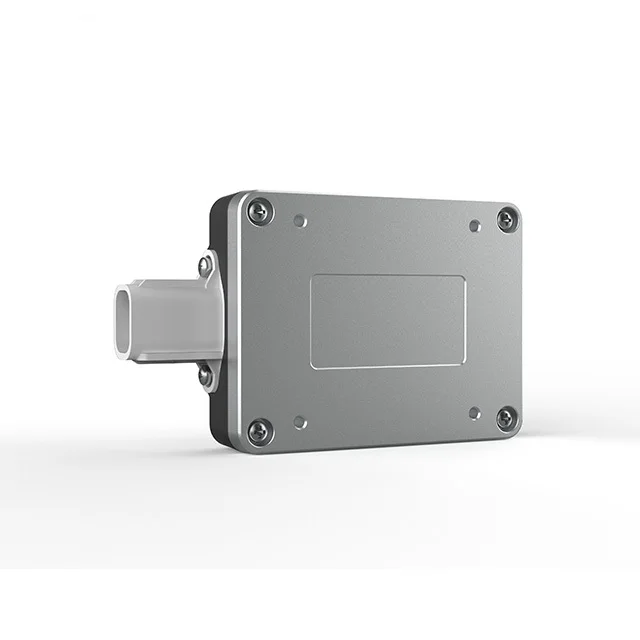

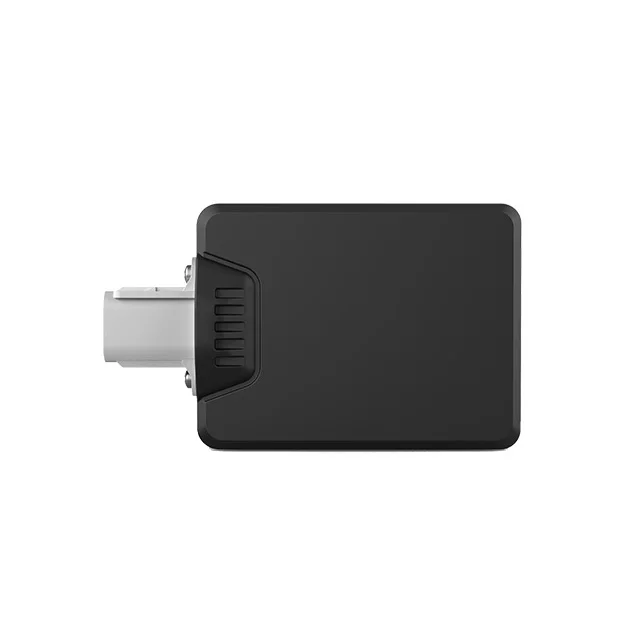

77GHz Radar Proximity Warning System for Heavy-duty Vehicles Safety

From seas to roads, from mines to harbors and from warehouse to construction sites, there are a large number of heavy-duty vehicles on the way to fulfill their tasks, however, continuous improvement of safety to those heavy-duty vehicles is getting quite important as those accidents are causing quite heavy losses. The traditional rear view camera system is getting challenged due to various environmental limitations. Now system with radar technology is helping to deliver a better & safer solution.

Radar features:

*Work in 77GHz-ISM-Band for the detection of moving objects

*Compact size (58x96x24mm)

*Accurately measure the direction, range, velocity of moving targets

*Protection class IP66 for outdoor use

*Hige detection rate

Specification:

Measuring performance to natural targets (non-reflector targets)
Modulation		FMCW
Detection Range		0.20~40m(120°)
Resolution	spot target, none tracking	0.2m
Accuracy	spot target, none tracking	±0.10m
FOV		120°
Angle Resolution	spot target, none tracking	±0.5°
Velocity Range		±18m/s(-leaving object, +approximation)
Velocity Resolution	spot target, none tracking	±0.58m
Velocity Accuracy	spot target, none tracking	±0.3 m
Antenna Channels		2TX/4RX=8 channels
Cycle Time		33
Elevation beam	-6dB	14°
Azimuth beam	-6dB	112°
SR73F Dual beams (mid-range and short-range) work simultaneously and can not be switched. The detected targets are output in order of distance or RCS. By default, they are output by distance from near to far.
Operation Conditions
Transmit frequency	ETSI&FCC	76…77GHz
Transmit capacity	average/peak EIRP	29.8dBm
Power		+6.0V~32VDC
Consumption		2.5W
Working Temperature		-40℃…+85℃
Storage Temperature		-40℃…+90℃
Protection class		IP66
Interface
Interface		1xCAN- High speed 500kbit/s
Cover
Dimension	WLH	589624mm
Weight		70g
Material	front/back	PBT+GF30

77GHz radar with 40 meters range and 120° wider detection angle

to reduce blind area, and reduce customer's cost.

SR73F collision warning system description:

The Safety Warning System for Heavy-duty Vehicles

(1)The 77Ghz radar with 120 degree large detection angle and 40 meters adjustable detection range.

(2)The LED display alarm unit is used for indicating the object distance.

(3) 3 modes optional, each mode is devided into 5 alarm zones

Detection modes:

Detection range	Alarm Level		Zone 1 Alarm	Zone 2 Alarm	Zone 3 Alarm	Zone 4 Alarm	Zone 5 Alarm
Horizontal *Vertical(m)	Alarm way	Lighting	Green	Yellow	Yellow	Red	Red
Horizontal *Vertical(m)	Alarm way	Audio	Long Di-di-di interval	Middle Di-di-di interval	Short Di-di-di interval	Hurried Di-di-di interval	Long ring
3.0*5.0 meters	Mode 1		5 meters	4 meters	3 meters	2 meters	1 meters
4.0*6.0 meters	Mode 2		6 meters	5 meters	3.5 meters	2 meters	1 meters
6.5*9.0 meters	Mode 3		9 meters	7 meters	5 meters	3.5 meters	1.5 meters

Installation cases

We have cases installed on:

ZOOMLION clearning vehicles;

SANTY Excavators;

Mining vehicles;

Crane;

Forklift etc.
