Детектор газа c2h4 для промышленного использования детектор быстрого и этилена короткого замыкания с CE SIL
- Категория: Gas Analyzers >>>
- Поставщик: Shenyang,Anshide,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 278.63 $* | 292.48 $* |
| Aug-18-2025 | 276.36 $* | 290.76 $* |
| Jul-18-2025 | 232.79 $* | 244.78 $* |
| Jun-18-2025 | 271.7 $* | 285.85 $* |
| May-18-2025 | 236.76 $* | 248.66 $* |
| Apr-18-2025 | 267.52 $* | 280.50 $* |
| Mar-18-2025 | 264.65 $* | 277.27 $* |
| Feb-18-2025 | 262.5 $* | 275.94 $* |
| Jan-18-2025 | 260.21 $* | 273.99 $* |
Характеристики
Product features&Advantage
●Enclosure：Aluminum alloy Explosion-proof enclosure & Thickened glass panel.
●BUS and Power :
Free from Adsorption Effect
●Panel:Bright and clear
LED backlit indicates the unit's status at a glance, even from a distance.
●BUS and Power :
Own Switch-output
Nonpolar Design
BUS have ESD Protection Circuit.High self rotection ability.
●Sensor：
Embedded import high precision&poison resistance sensor with overrange protection circuit. Stable sensitivity:
●Display：
2.1 inch Bright LED with 4 Bit Nixietube. 8-Segment Numeric +Graphical display:
●Sounds&light alarm

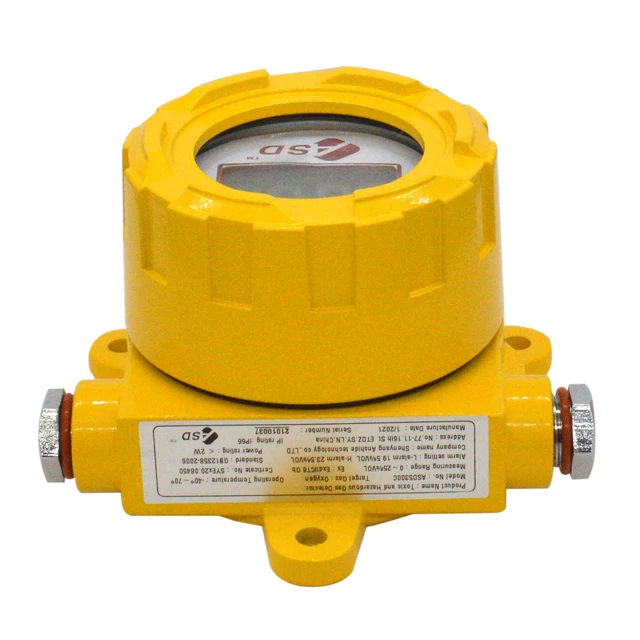

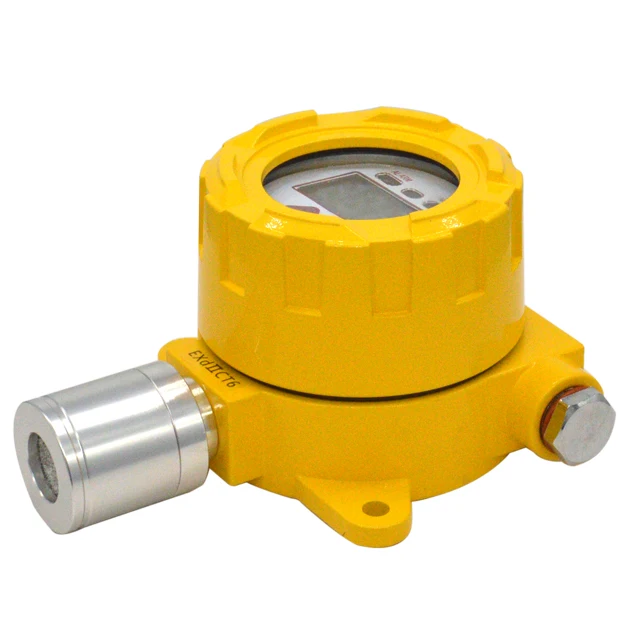

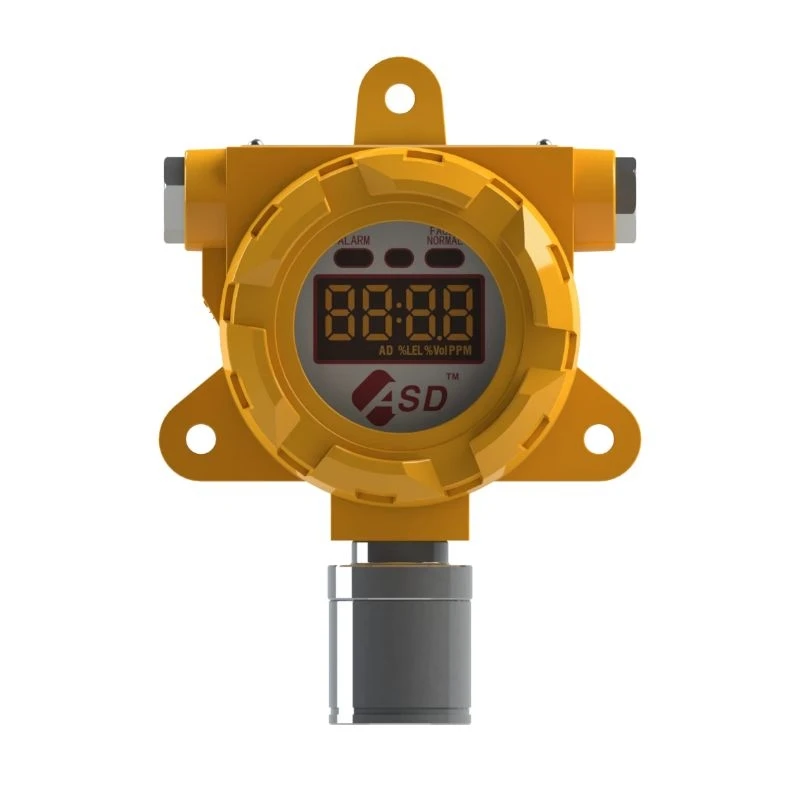

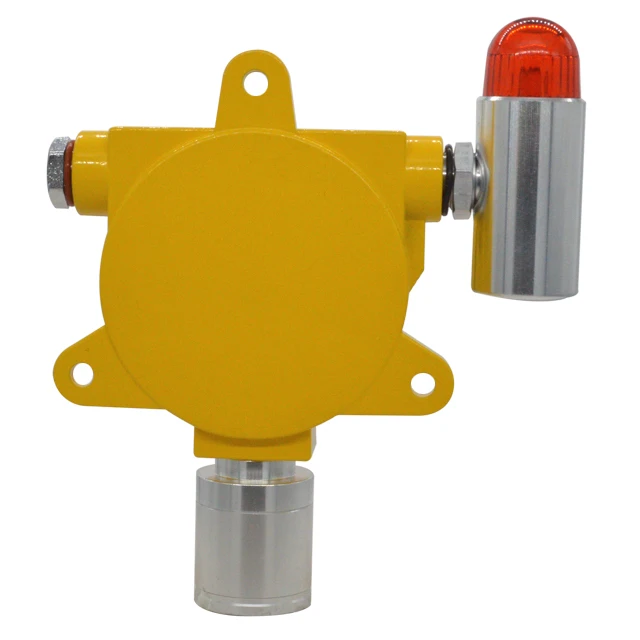

Product Details Show
Technical Parameters
Detecting type | Electrochemical | Detecting Gas | Toxic and Hazardous gases | ||
Measuring Range | 0~25%VOL | Voltage Range | DC24V±10V | ||
Sampling | Diffusion | Power Consumption | ≤1.5W (DC24V) | ||
Communication | 4ABUS/ 3Wire 4~20mA | Communication range | ≤1500 m(1.5mm2) | ||
Ex CERTIFICATION | Exd Ⅱ CT6 | IP Rating | IP66 | ||
Enclosure material | Aluminum alloy. 304 Stainless steel .Tempered glass | Cable entries | G1/2 Internal screw thread | ||
Temperature-Humidity Range | -40℃~+70℃，≤93%RH | Operating Pressure Range | 86kPa~106kPa | ||
Operating | IR remote control ＞8m | Expected Operating Life | 3 years(Typcial) | ||
Alarm accuracy | ±3%VOL | Display accuracy | ±5%VOL | ||
Low alarm | 19.5%VOL(Factory setting) | High alarm | 23.5%VOL(Factory setting) | ||
Response time | <30s(T90) | Output range | ≤30V，2A(maximum limiting current) | ||
Use | 4~20mA 3Wire Communication | ||||
Output | 1 Passive switch output, associated with First/Second Limit . Remain opening in normal state. Alarming will get it closed. | ||||
Display type | 2.1 inch LED.4 Bit Nixietube. 8-Segment Numeric +Graphical display | ||||
Dimension | H196mm×L140mm×D92mm | ||||
Installation method
Our Factory
Single package size
FAQ
1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6.Can you produce according to customers' design?
A: We are factory with our own R&D team. OEM & ODM are available.
7. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
d. Your other ideas about gas detection tools, we can help you design and put them into production.
e. Different language versions, such as English, Russian, Chinese, etc. according to customers requirement.
A: Yes, we welcome sample order to test and check quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
5. Do you accept drop shipping?
A: Yes, it’s available.
6.Can you produce according to customers' design?
A: We are factory with our own R&D team. OEM & ODM are available.
7. What will your ODM&OEM service cover?
A: a. Customer brand and logo print (law allowed) can be made on the sticker.
b. Customized color and special function of gas detection tools.
c. Customized box.
d. Your other ideas about gas detection tools, we can help you design and put them into production.
e. Different language versions, such as English, Russian, Chinese, etc. according to customers requirement.
Your recognition and appreciation is our growing power source and persevering goal. If you have any request, please contact us. We will be here 24/7.
