Цена агента 15030 деревообрабатывающий токарный станок с ЧПУ для деревянного шахматного
- Категория: Wood Lathe >>>
- Поставщик: Jinan,Firmcnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 6188.18 $* | 6497.4 $* |
| Aug-17-2025 | 6136.93 $* | 6443.81 $* |
| Jul-17-2025 | 5148.38 $* | 5405.0 $* |
| Jun-17-2025 | 6032.10 $* | 6334.75 $* |
| May-17-2025 | 5252.36 $* | 5515.65 $* |
| Apr-17-2025 | 5928.96 $* | 6224.9 $* |
| Mar-17-2025 | 5876.81 $* | 6170.51 $* |
| Feb-17-2025 | 5824.69 $* | 6115.32 $* |
| Jan-17-2025 | 5772.60 $* | 6061.84 $* |
Характеристики
Product Description
FIRMCNC Brand cnc wood lathe have different models, such as FM15016, FM15030, FM20030, FM30030 etc. the size can be customized, we offer 3 years warranty, the whole life technical support.
For first time coopeation, we will help to solve the below issues, such as to choose economic but high-performance machine, shipping cost, import custom tax fee, the after sale problems, technical support etc.
For first time coopeation, we will help to solve the below issues, such as to choose economic but high-performance machine, shipping cost, import custom tax fee, the after sale problems, technical support etc.
CNC wood lathe Main feature
Wood lathe is a device that can create items such as stairway posts,designs on wood,and more.
A CNC wood lathe is operated by a panel which is controlled by the user.
Lathe machine is designed for cylindrical or conoid workpieces, for example pillar, banister, chair legs,etc.
All lathes work the same way.USB access device,turning garland, a molding.single axis, double blades,2 pieces blade cutters.
A CNC wood lathe is operated by a panel which is controlled by the user.
Lathe machine is designed for cylindrical or conoid workpieces, for example pillar, banister, chair legs,etc.
All lathes work the same way.USB access device,turning garland, a molding.single axis, double blades,2 pieces blade cutters.
Specification
Description | Parameters | ||||||
Model | FM15016 | FM15030 | FM20030 | Customized | |||
Table Bed Size (mm) | 1500 *160mm | 1500 *300mm | 2000 *300mm | Customized | |||
Controller system | DSP / CNC Panel | ||||||
Cutting speed | 8-15m/min | ||||||
Inverter | Fuling Inverter | ||||||
Guide rail | Taiwan HIWIN guide rail | ||||||
Driving System | 5.5KW YAKO 2D811 driver | ||||||
Repeat positioning accuracy | ±0.05mm | ||||||
Process precision | ±0.35mm | ||||||
Transmission model | Gear rack drive | ||||||
Working Voltage | 110V/ 200V/ 380V | ||||||
Software supported | TYPE3/ARTCAM/UCANCAM/CAXA/MASTERCAM/ Other software output code | ||||||
CNC Wood Lathe main parts
#Cast iron bed

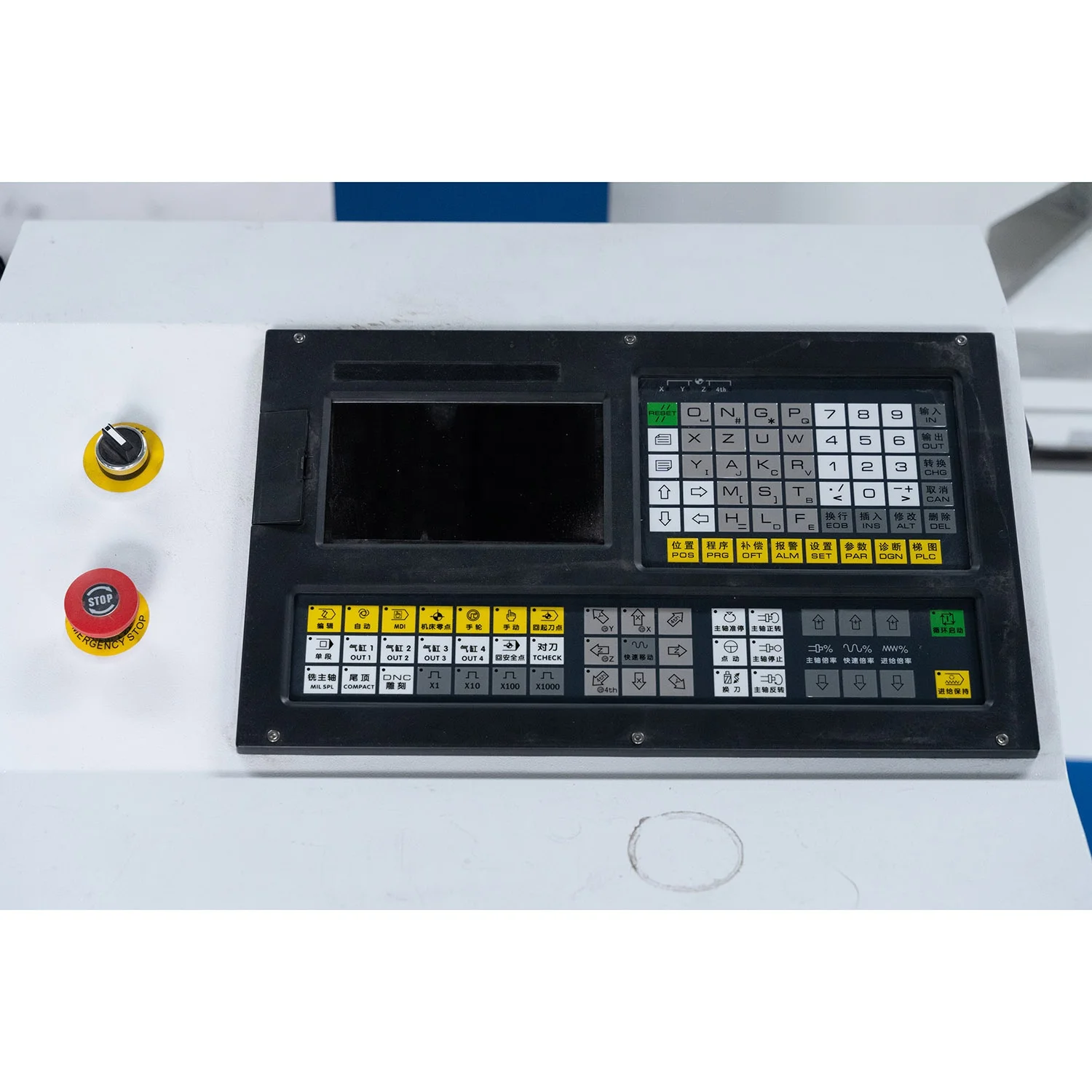

#CNC Panel contorller, optional DSP controller
#Taiwan HIWIN squral rails
#Taiwan TBI ball screw
#Fuling inverter
#5.5KW big motor
#Leadshine stepper motor
#YAKO 2D811 driver
#CAD software
Cast iron structure bed,very heavy and very stable
Control box,very tidy,neat and reasonable
#CNC Panel contorller, optional DSP controller
#Taiwan HIWIN squral rails
#Taiwan TBI ball screw
#Fuling inverter
#5.5KW big motor
#Leadshine stepper motor
#YAKO 2D811 driver
#CAD software
Cast iron structure bed,very heavy and very stable
Control box,very tidy,neat and reasonable
CNC Wood Lathe Application
For the production of solid wood furniture, solid wood staircase, wood columns, solid wood floor racks, wood decorative, wood crafts, such as rotating working pieces machining. Applies to furniture, staircases, decorative, wooden crafts manufacturing factory, etc.
The final products include various cylindrical working pieces, bowl shape, tubular shape and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
The final products include various cylindrical working pieces, bowl shape, tubular shape and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
Company Profile
Jinan FIRMCNC Equipment Co., Ltd. is a professional woodworking lathe manufacturer in Jinan.
We started selling CNC lathes in China in 2009, and started business abroad in 2013. Our lathes are sold throughout the country and all over the world.
Our machines include: single-spindle woodworking lathes, double-spindle woodworking lathes, three-axis woodworking lathes, single-spindle lathes with etched engraving, two-axes etched engraving lathes, etc.
So far, our machines have passed CE, ISO and SGS certifications. We have a mature production line, a complete and scientific quality management system, an excellent sales team and after-sales service team.
Friends from all walks of life are welcome to visit, guide and negotiate business.
We started selling CNC lathes in China in 2009, and started business abroad in 2013. Our lathes are sold throughout the country and all over the world.
Our machines include: single-spindle woodworking lathes, double-spindle woodworking lathes, three-axis woodworking lathes, single-spindle lathes with etched engraving, two-axes etched engraving lathes, etc.
So far, our machines have passed CE, ISO and SGS certifications. We have a mature production line, a complete and scientific quality management system, an excellent sales team and after-sales service team.
The integrity, strength and product quality of Jinan FIRMCNC Equipment Co.,Ltd have been recognized by the industry.
Friends from all walks of life are welcome to visit, guide and negotiate business.
Packaging & Shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like.
5) Outside: Marked packing size, model, weight and other information
Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
FAQ
1.Can you recommend a cnc wood lathe?
Yes, In order to give you a suitable cnc wood lathe, pls tell me your working area ? processing materials ?
Then perfect suitable machine will be recommend.
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts. usually for all parts can perfect working 5 years without any broken .
6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician.
Yes, In order to give you a suitable cnc wood lathe, pls tell me your working area ? processing materials ?
Then perfect suitable machine will be recommend.
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts. usually for all parts can perfect working 5 years without any broken .
6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician.
