Sanitary water treatment milk beverage liquid filtration single multiple stainless steel bag filter
- Категория: Other Filter Supplies >>>
- Поставщик: Hangzhou,Dute,Filter,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.72 $* | 0.21 $* |
| Aug-17-2025 | 0.44 $* | 0.78 $* |
| Jul-17-2025 | 0.91 $* | 0.0 $* |
| Jun-17-2025 | 0.32 $* | 0.98 $* |
| May-17-2025 | 0.35 $* | 0.80 $* |
| Apr-17-2025 | 0.61 $* | 0.41 $* |
| Mar-17-2025 | 0.64 $* | 0.57 $* |
| Feb-17-2025 | 0.90 $* | 0.98 $* |
| Jan-17-2025 | 0.2 $* | 0.79 $* |
Характеристики
Product Description
Stainless Steel Bag Filter Housing
Bag filter is a kind of multi-purpose filter equipment with novel structure, small volume, simple and flexible operation, energy saving, high efficiency, airtight work and strong applicability. Bag filter is a new type of filter system. The bag filter is supported by the metal mesh basket inside the filter bag, the liquid flows into the inlet, the filter bag is filtered out from the outlet, the impurities are intercepted in the filter bag, and can continue to be used after replacing the filter bag.
Product Name | Stainless Steel Bag Filter Housing |
Material | Stainless steel(ss304 ss316l) |
Designed Pressure | 10bar |
Max Temperature | 120℃ |
Inlet/Outlet | Tri-clamp/ Flanged |
Bag Model | 1# / 2# / 3# / 4# |
Filtration Area | 0.5m^2(2#) 0.3m^2(1#) |
Surface Treatment | Mechanical polishing /Sandblasting |
Polishing Type | Mirror polishing, electrolytic polishing |

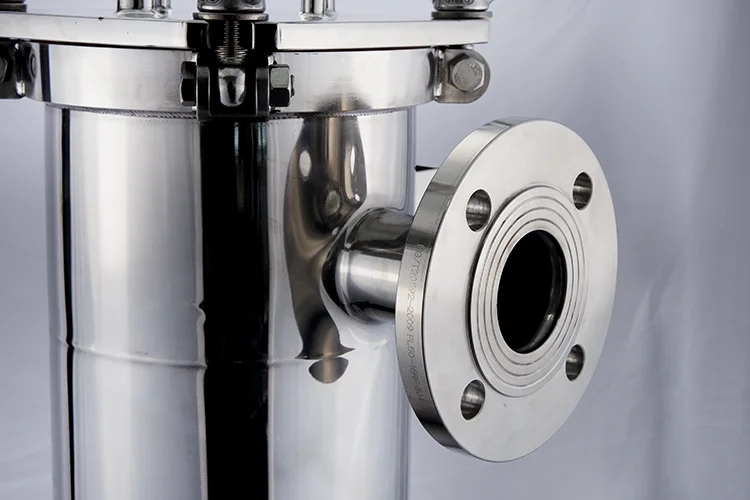

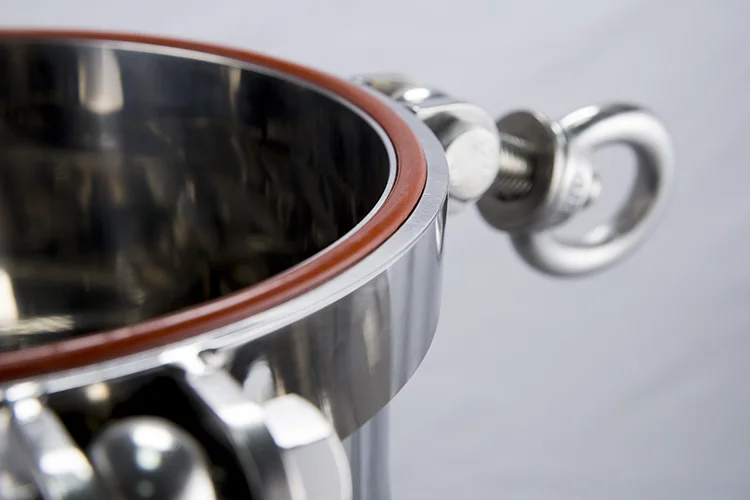

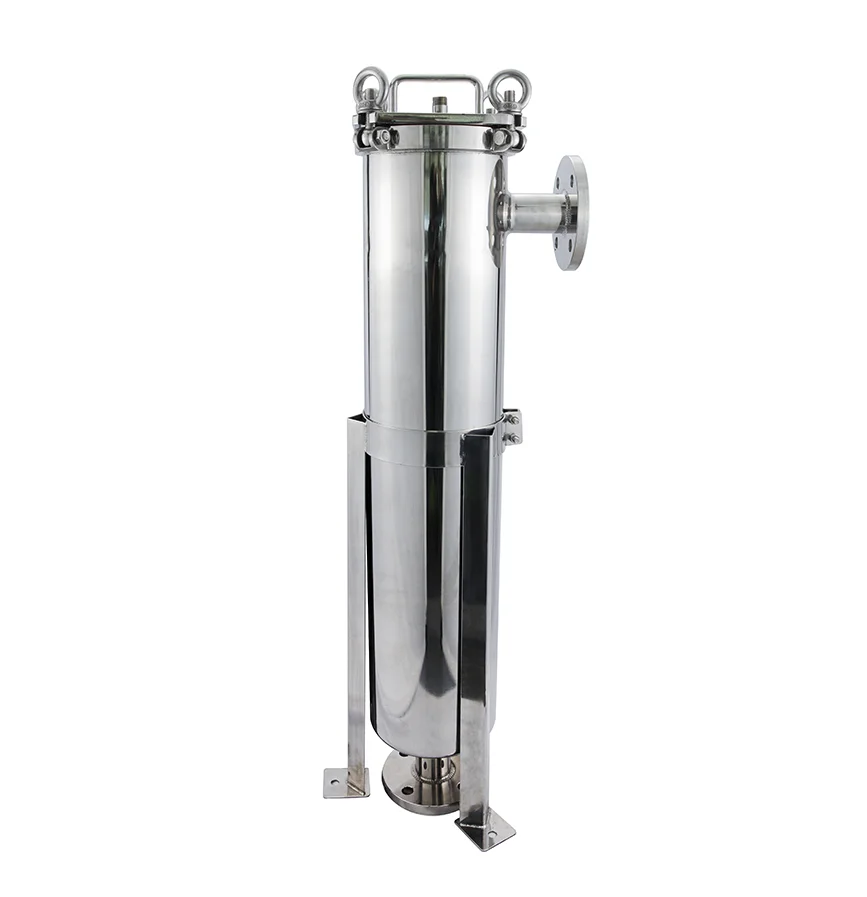

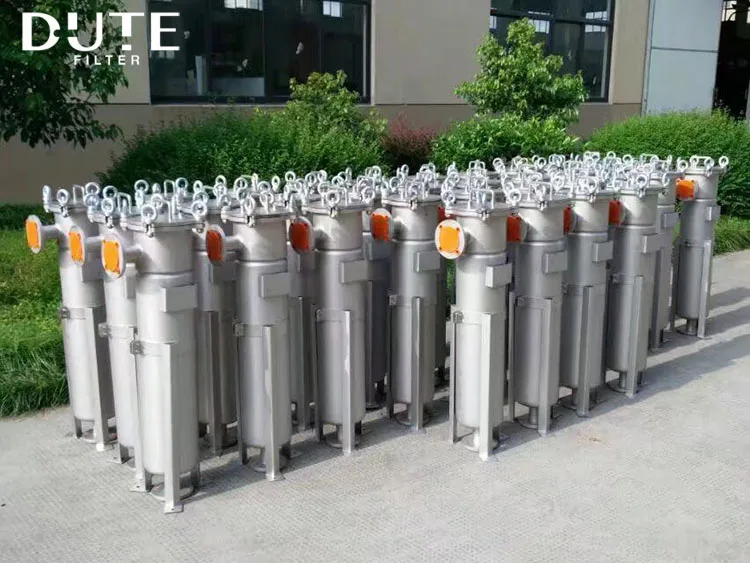

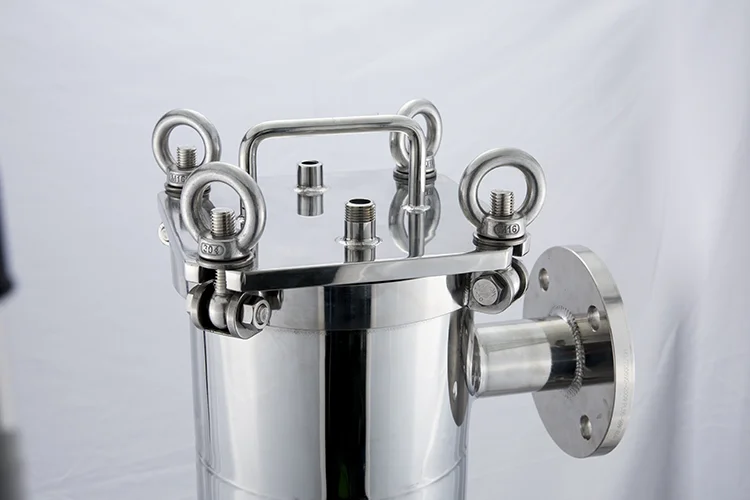

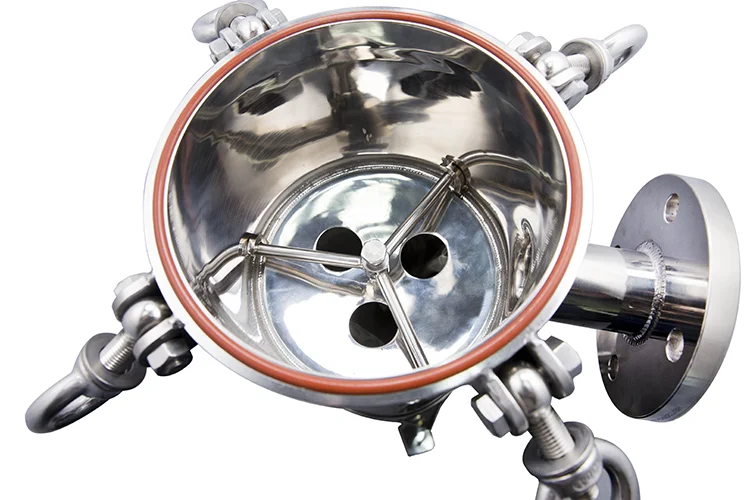

Products Show
Selection Table
Bag | Inlet/Outlet | ||||||
Model | Dimension | Material | Mode | Size | Steal Ring | ||
1# | 180*430mm | SUS304 | Tri-Clamp | DN25 | S-Silicone | ||
2# | 180*810mm | SUS316L | Clamp Flanged | DN32 | E-EPDM | ||
3# | 102*209mm | DN40 | F-Viton | ||||
4# | 102*355mm | DN50 | T-PTFE | ||||
... | other | ||||||
Our Company
Factory1
Our Factory
Factory2
Office Building
Factory3
Our Warehouse
Factory4
Our Team
Our Produces
1.Filter Cartridge
2. Air Filter Housing
3. Disc Filter
4. Bag Filter Housing
5. Corrosion Resistant Filter
6. Activated Carbon Filter
Application
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30-45 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
