Высокоточный катодный электрод с аккумулятором GMK LTO Катодная машина высоким качеством и

Высокоточный катодный электрод с аккумулятором GMK LTO Катодная машина высоким качеством и

Цена:*

Количество:

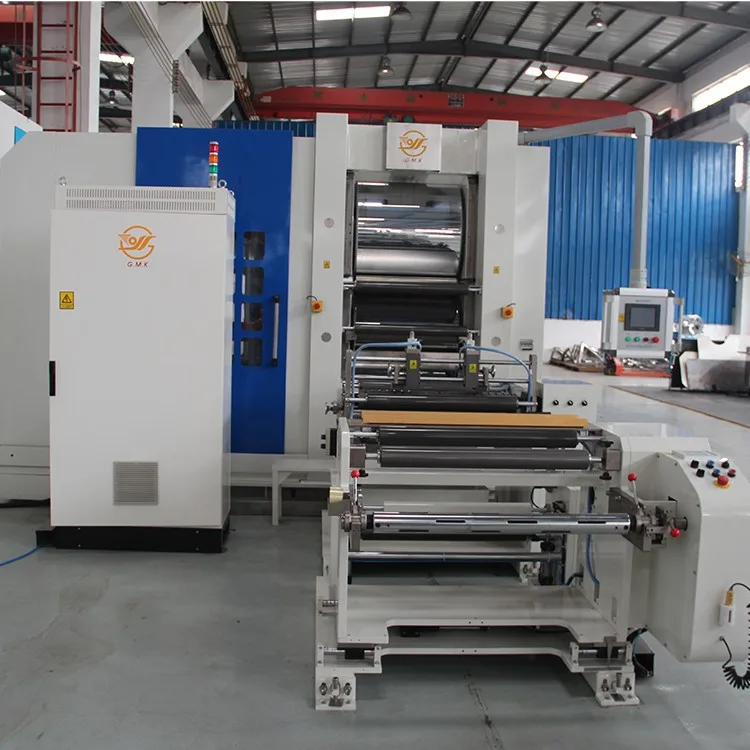

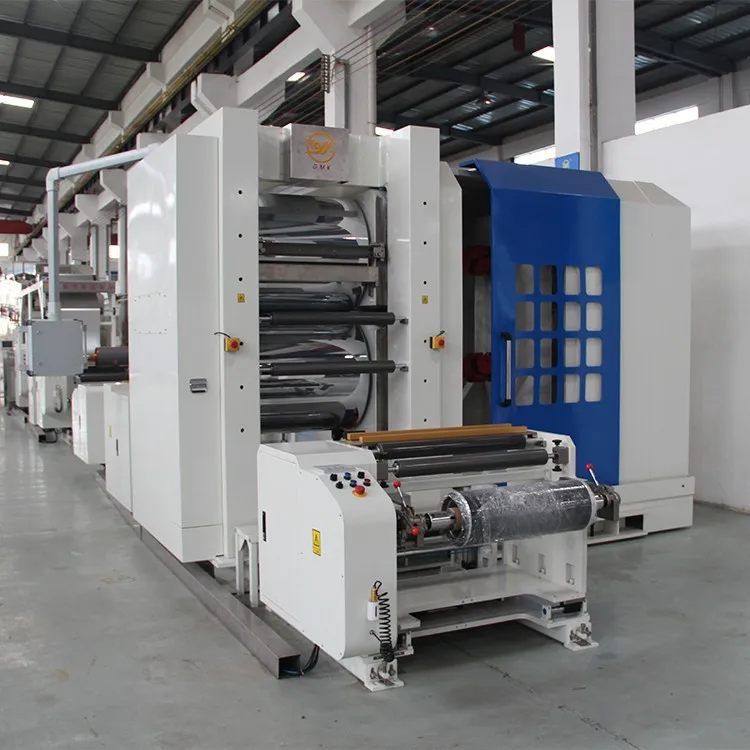

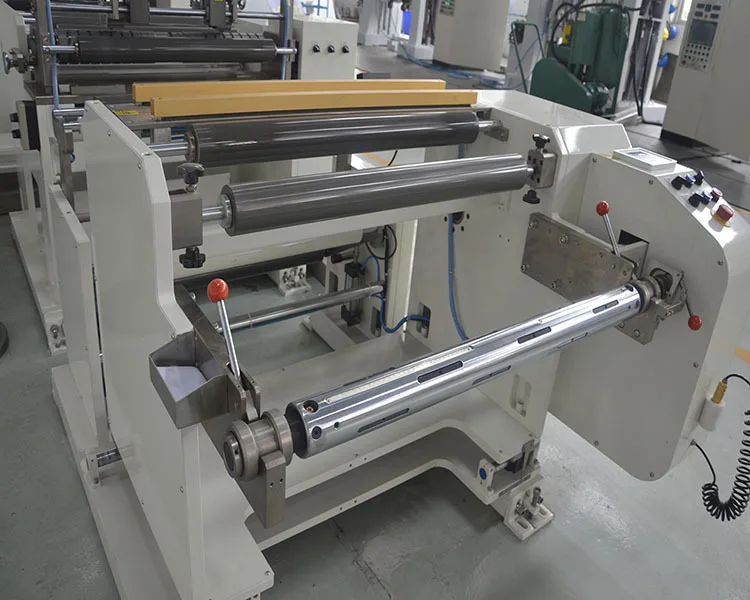

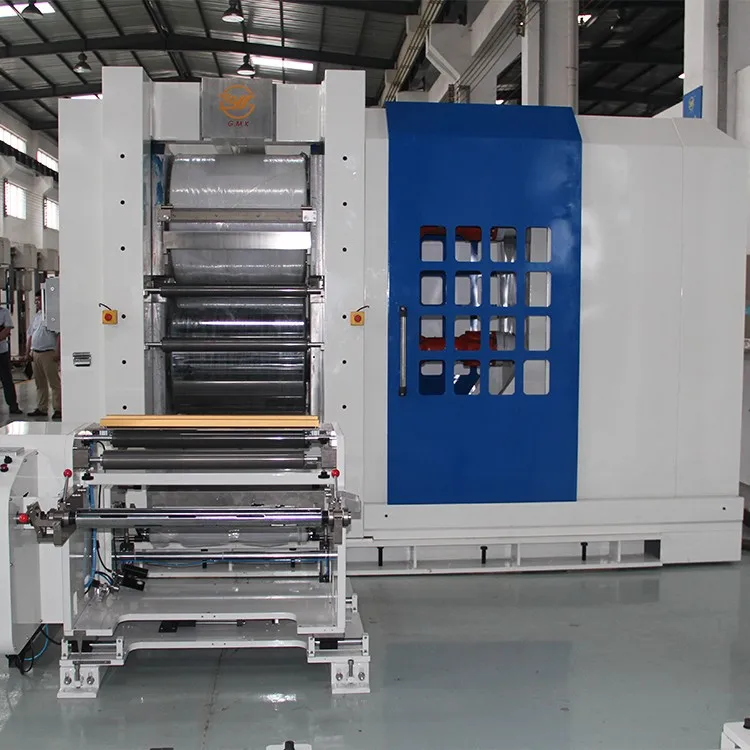

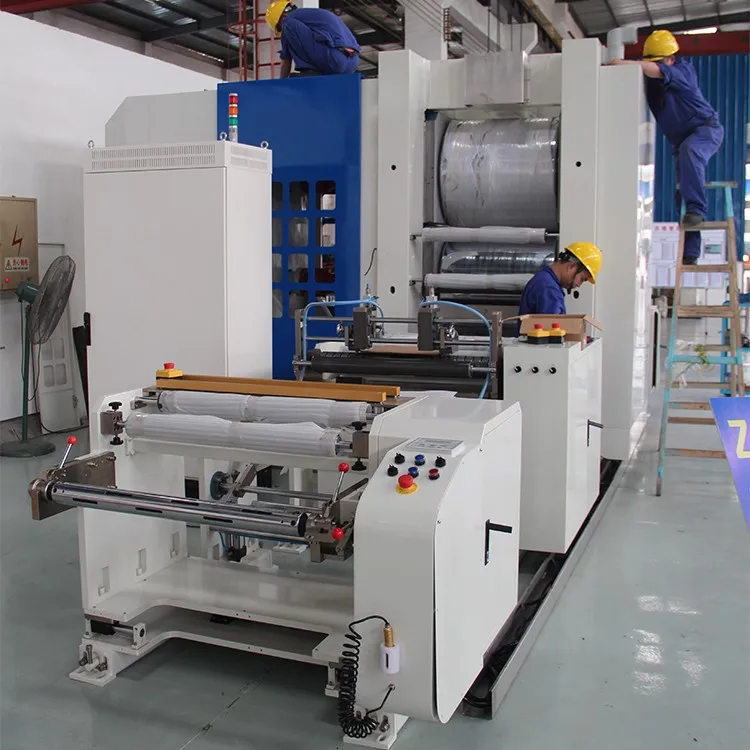

GMK LTO battery cathode electrode high precision rolling machine with high quality and efficiency

Product Description

LGY -8080 roller adapt to continuous rolling process for all kinds of lithium battery anode and cathode.

1. Rolling speed: 2~12r/pm, CVT adjustable.

2. Roller material: 9 Cr2Mo, Roller surface hardness: HRC 65~68

3. Gap adjustment method: Servo motor drive the middle wedge to adjust, mechanical self-locking.

4. Roller gap adjustment range: 0~2mm

5. Roller gap adjustment accuracy:1μm

6. Thickness uniformity of pole sheet after rolling: ≤±2μm. Maximum rolling form:3000 KN

Specifications of roller:

Item Type	LGY5055	LGY6060	LGY8080
Roller size	500*500mm	600*600mm	800*800mm
Pole sheet width	200~500mm	200~550mm	300~750mm
Output speed	2~11rpm	2~10rpm	3~12rpm
Roll straightness speed	4~17m/min	4~19m/min	6~30m/min
Roller surface roughness	Ra≤0.2	Ra≤0.2	Ra≤0.2
Roll cylindrical degree	≤2.0μm	≤2.0μm	≤2.0μm
Roll thickness accuracy	±2.0μm	±2.0μm	±2.0μm
Roll pressure range	100~300t	100~300t	100~300t
Roll gap adjustment range	0~2.0mm	0~2.0mm	0~2.0mm
Roll gap adjustment accuracy	1μm	1μm	1μm
Tension adjustment range	2.2~20kg	2.2~20kg	2.2~20kg
Orderly winding error	±0.5mm	±0.5mm	±0.5mm
Retractable roll diameter	Max:Ø550mm	Max:Ø550mm	Max:Ø550mm
Air pressure	0.5MPA above	0.5MPA above	0.5MPA above
Power	15KW	18KW	35KW
