Шнур для снятия напряжения под заказ с
- Категория: Cable Glands >>>
- Поставщик: Taizhou,Muyton,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.58 $* | 0.99 $* |
| Aug-18-2025 | 0.50 $* | 0.42 $* |
| Jul-18-2025 | 0.97 $* | 0.48 $* |
| Jun-18-2025 | 0.41 $* | 0.51 $* |
| May-18-2025 | 0.65 $* | 0.77 $* |
| Apr-18-2025 | 0.92 $* | 0.17 $* |
| Mar-18-2025 | 0.69 $* | 0.89 $* |
| Feb-18-2025 | 0.47 $* | 0.59 $* |
| Jan-18-2025 | 0.11 $* | 0.87 $* |
Характеристики
Products Description

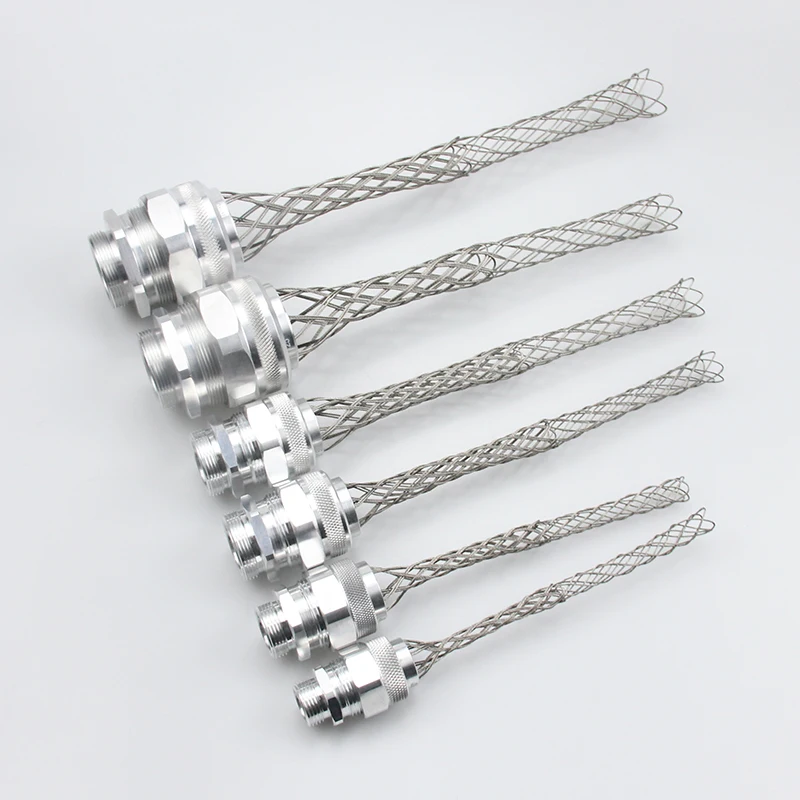

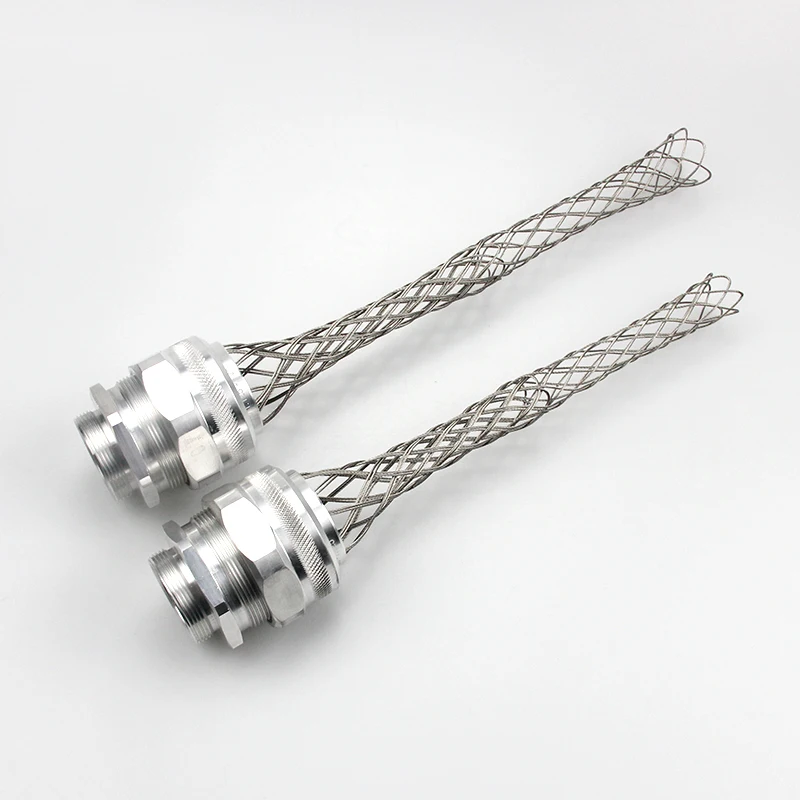

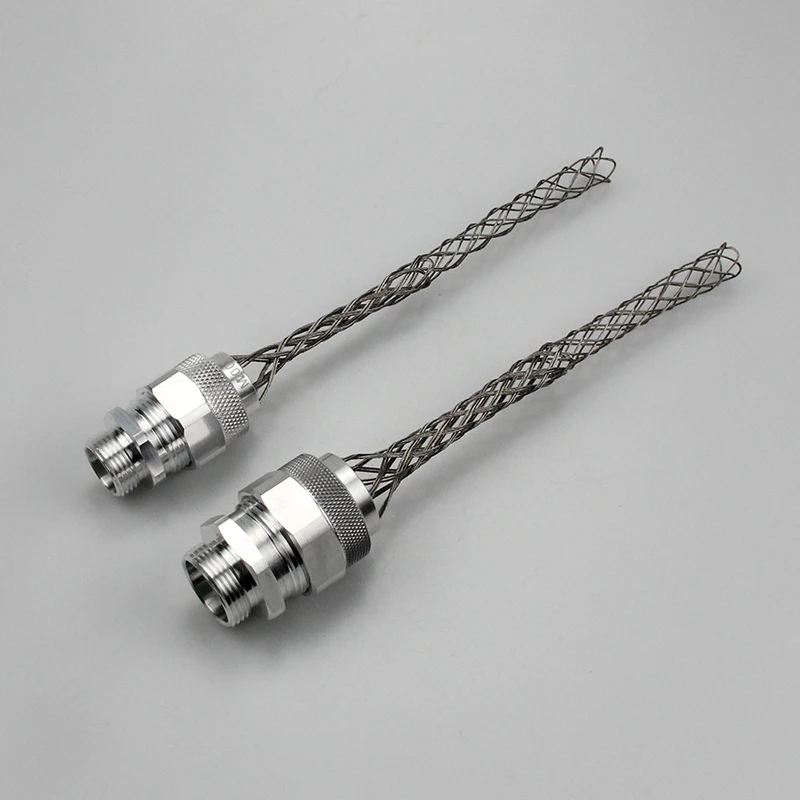

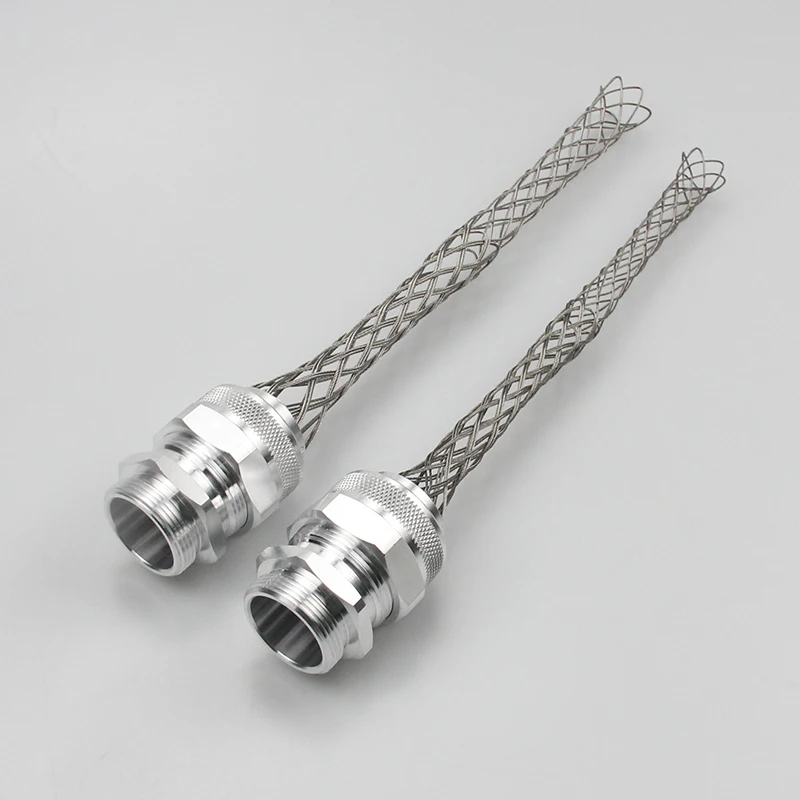

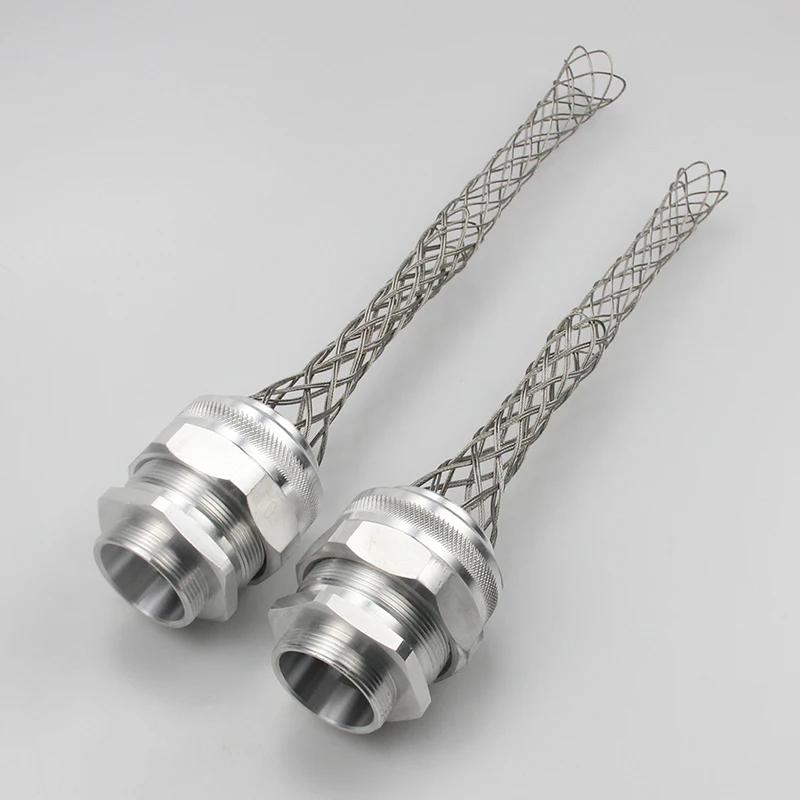

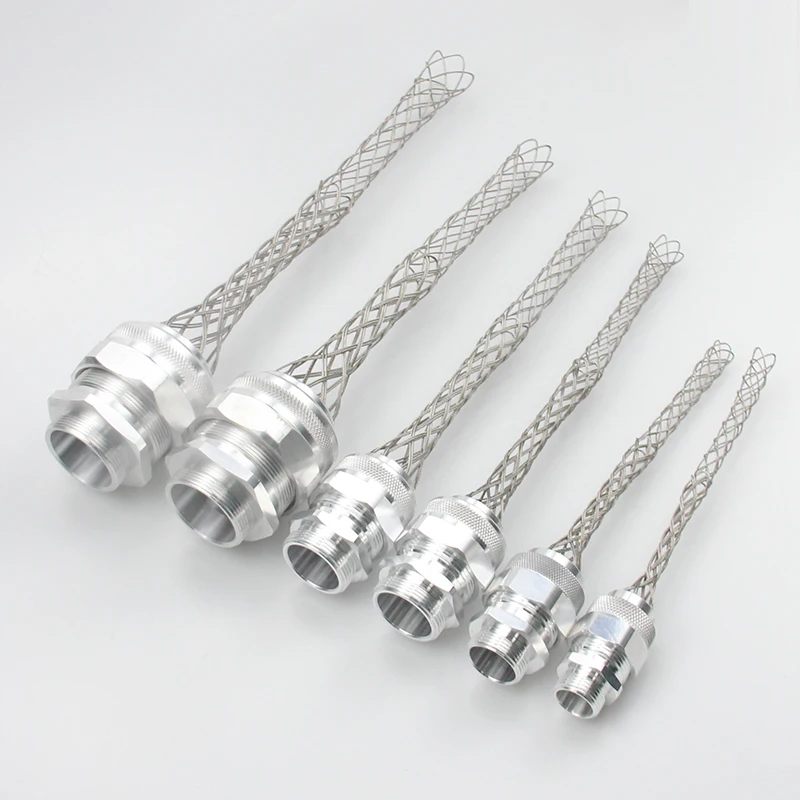

Strain Relief Grip--deluxe cord grip,straight male,PG thread
* The PG Series Cord Grips features a Pg thread so that it can mate with an internal Pg thread of an enclosure, machine or other equipment being connected.
* Features of these grips are identical to those of NPT Series Aluminum Cord Grips.
* These grips are offered in Pg 11-13.5-16-21-29-36-42 and 48 and can be ordered with or without mesh attachments.
* Features of these grips are identical to those of NPT Series Aluminum Cord Grips.
* These grips are offered in Pg 11-13.5-16-21-29-36-42 and 48 and can be ordered with or without mesh attachments.
ITEM | DESCRIPTION | MATERIAL |
1 | WIRE MESH | SS304 |
2 | INNER RING | ALUMINUM |
3 | OUTER RING | ALUMINUM |
4 | COMPRESSION NUT | ALUMINUM |
5 | FRICTION RING | ZINC PLATED STEEL |
6 | GROMMET | RUBBER |
7 | THREADED BODY | ALUMINUM |
Part Number | Cable Diameter Range | PG Thread | LENGTH "M" |
DCG 304P | 0.187-0.250" (4.75-6.35mm) | PG11 | 4.25" (108.0mm) |
DCG 305P | 0.250-0.312" (6.35-7.92mm) | PG11 | 4.25" (108.0mm) |
DCG 306P | 0.312-0.375" (7.92-9.53mm) | PG11 | 4.25" (108.0mm) |
DCG 307P | 0.375-0.500" (9.53-12.7mm) | PG11 | 6.0" (152.4mm) |
DCG 404P | 0.187-0.250" (4.75-6.35mm) | PG13.5 | 4.25" (108.0mm) |
DCG 406P | 0.250-0.375" (6.35-9.53mm) | PG13.5 | 4.25" (108.0mm) |
DCG 408P | 0.375-0.500" (9.53-12.70mm) | PG13.5 | 6.25" (158.75mm) |
DCG 410P | 0.500-0.625" (12.70-15.88mm) | PG13.5 | 6.50" (165.1mm) |
DCG 608P | 0.375-0.500" (9.53-12.70mm) | PG16 | 6.25" (158.75mm) |
DCG 610P | 0.500-0.625" (12.7-15.88mm) | PG16 | 6.50" (165.1mm) |
DCG 612P | 0.625-0.750" (15.88-19.05mm) | PG16 | 8.00" (203.2mm) |
DCG 614P | 0.750-0.875" (19.05-22.23mm) | PG16 | 9.0" (228.6mm) |
DCG 808P | 0.44-0.56" (11.2-14mm) | PG21 | 6.25" (158.75mm) |
DCG 810P | 0.56-0.69" (14.2-17.5mm) | PG21 | 7.50" (190.5mm) |
DCG 812P | 0.63-0.75" (16.0-19.1mm) | PG21 | 8.50" (209.5mm) |
DCG 814P | 0.75-0.88" (19.1-22.4mm) | PG21 | 8.50" (209.6mm) |
DCG 816P | 0.88-1.00" (22.4-25.4mm) | PG21 | 9.0" (228.6mm) |
DCG1008P | 0.44-0.56" (11.2-14mm) | PG29 | 6.25" (158.75mm) |
DCG 1010P | 0.56-0.69" (14.2-17.5mm) | PG29 | 7.50" (190.5mm) |
DCG 1012P | 0.63-0.75" (16.0-19.1mm) | PG29 | 8.50" (209.5mm) |
DCG 1014P | 0.75-0.88" (19.1-22.4mm) | PG29 | 8.50" (209.6mm) |
DCG 1016P | 0.88-1.00" (22.4-25.4mm) | PG29 | 9.0" (228.6mm) |
DCG 1018P | 1.00-1.125" (25.4-28.58mm) | PG29 | 9.0" (228.6mm) |
DCG 1020P | 1.125-1.250" (28.58-31.75mm) | PG29 | 10.0" (254.0mm) |
DCG 1022P | 1.250-1.375" (31.75-34.92mm) | PG29 | 12.0" (304.8mm) |
DCG 1214P | 0.75-0.88" (19.1-22.4mm) | PG36 | 9.0" (228.6mm) |
DCG 1216P | 0.88-1.00" (22.4-25.4mm) | PG36 | 8.50" (209.5mm) |
DCG 1218P | 1.00-1.125" (25.4-28.58mm) | PG36 | 9.0" (228.6mm) |
DCG 1220P | 1.125-1.250" (28.58-31.75mm) | PG36 | 10.0" (254.0mm) |
DCG 1222P | 1.250-1.375" (31.75-34.92mm) | PG36 | 12.0" (304.8mm) |
DCG 1420P | 1.125-1.250" (28.58-31.75mm) | PG42 | 10.0" (254.0mm) |
DCG 1422P | 1.250-1.375" (31.75-34.92mm) | PG42 | 12.0" (304.8mm) |
DCG 1423P | 1.312-1.437" (33.3-36.6mm) | PG42 | 12.0" (304.8mm) |
DCG 1425P | 1.438-1.562" (36.6-39.6mm) | PG42 | 13.0" (330.2mm) |
Types of Strain Relief Grips
Wire Mesh Grip Families
Muyton supplies a broad selection of strain relief, pulling and support grips in a wide range of styles and sizes to serve all of your cable protection needs.
Support Grips
Support Grips distribute the weight of vertical drops and sloping
runs over the length of the grip to protect the cable from damage.
A variety of hanging styles are available to service numerous cable
support installations.
runs over the length of the grip to protect the cable from damage.
A variety of hanging styles are available to service numerous cable
support installations.
Pulling Grips
Pulling Grips serve as reusable tools for pulling cables, wires and/or
rope in overhead and underground cable pulls. These grips protect
the cable from abrasion and ease the cable through bends and
rough surfaces.
rope in overhead and underground cable pulls. These grips protect
the cable from abrasion and ease the cable through bends and
rough surfaces.
Strain Relief Grip
Strain Relief Grips are used to connect cable enclosures and industrial
equipment. These grips prevent cable or conduit pull-out at the point
of termination due to tension. Strain Relief Grips also distribute strain
throughout the length of the mesh during bending, prolonging the life
of the cable.
equipment. These grips prevent cable or conduit pull-out at the point
of termination due to tension. Strain Relief Grips also distribute strain
throughout the length of the mesh during bending, prolonging the life
of the cable.
