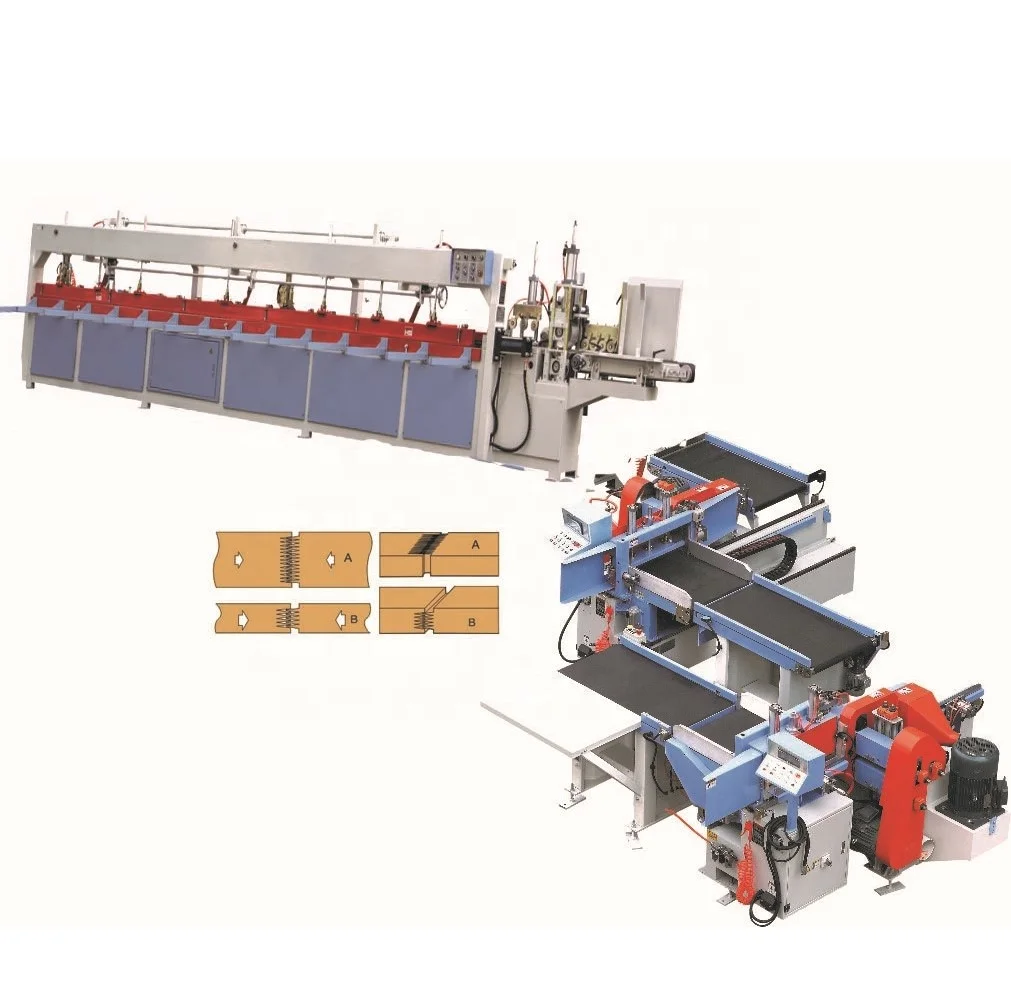

150mm Width Finger Joint Board Making Machine Finger Joint Shaper and Assembler

1. Finger joint shaper line using servo drive, the processing efficiency is 150% higher than normal hydraulic transmission drive.

2. Finger joint assembler use 6.2m double- unit type. First cut-off then Press. Oil system motor power reach 4KW. Oil cylinder size is Dia.80mm*stroke 130mm. have stronger press power processing Rubber wooden 80mm width *80mm thickness.(96kgs/cm2)

3. Finger Joint shaper line with high efficiency,usually need 1pcs Finger joint assemblers follow to work. Max. processing 40m/min. Pre day work 8hours can processing 300Pcs finger joint boards(Material size: 500*50*14mm)

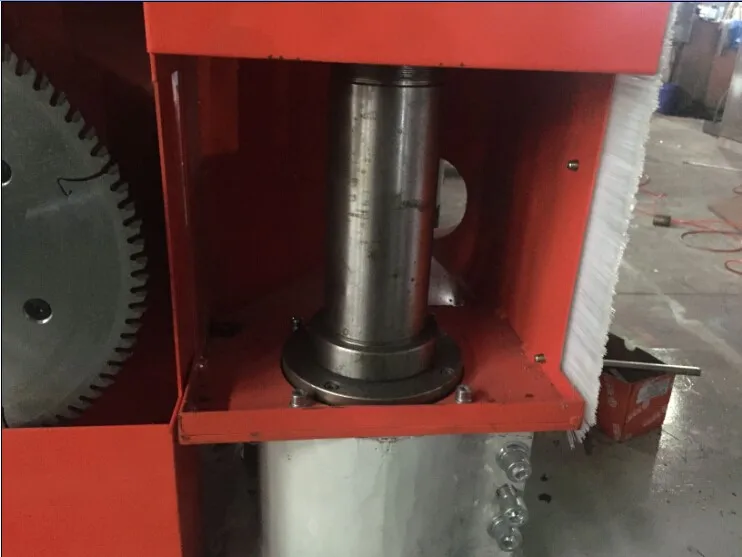

Spindle use the SKF bearing which from Switzerland, we will Force analysis basic on the Stress point use double bearing.Cutter install point will use the Dia. 70mm. make sure the spindle firm and stable during the High speed rotation

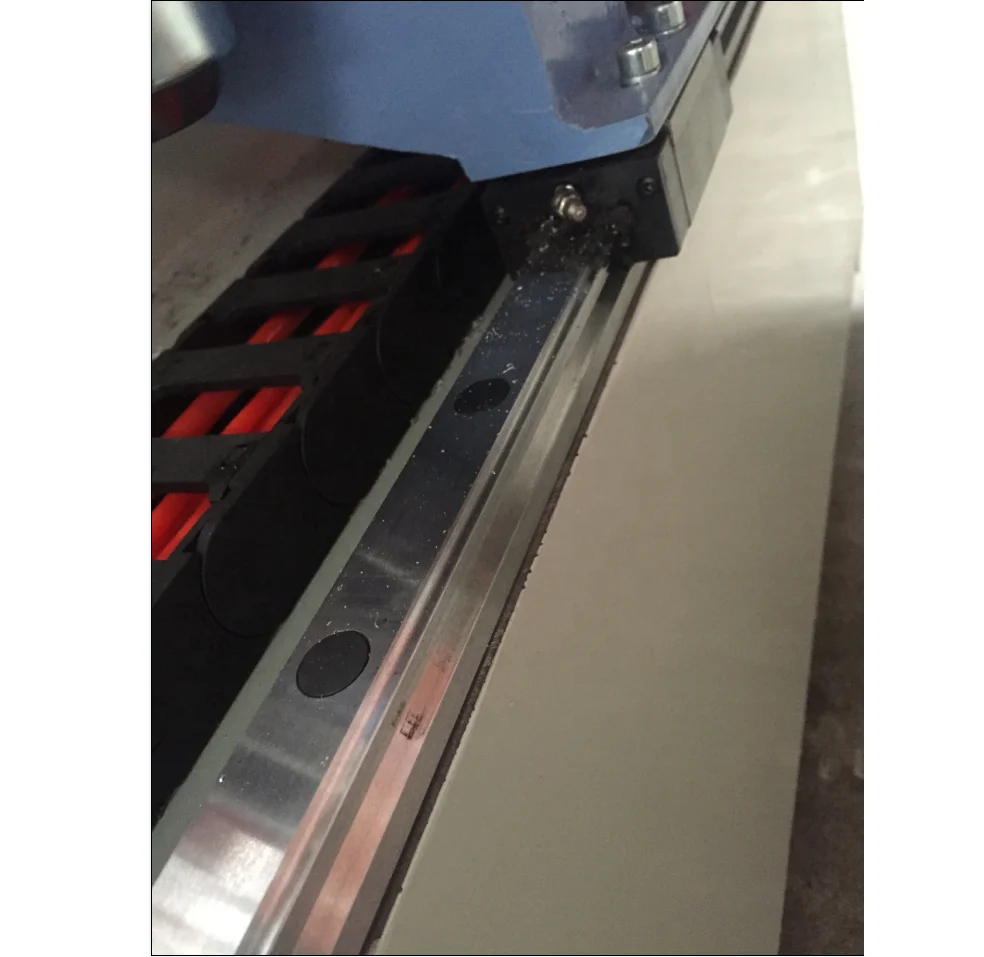

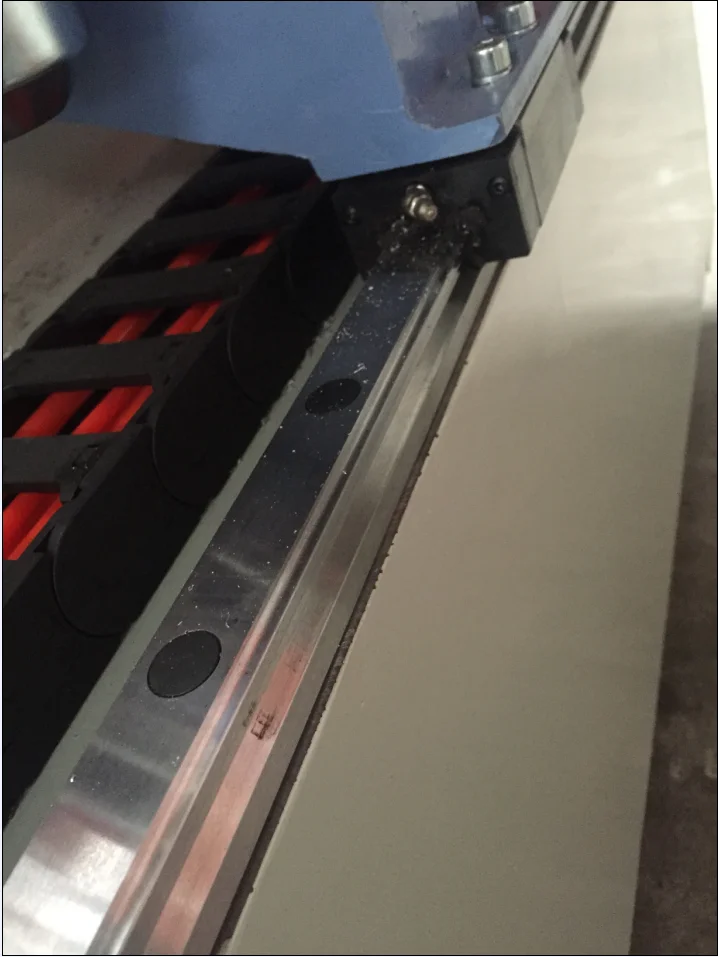

	using ROUST Precision Linear slide Which is Germany technical, Precision in 0.02mm.Middle pre-press Linear slide design. In that can improve its Stability & Durability
Feeding belt use the worm gear reducer transmission. Small volume can Resist big Torsion . Transmission high Efficient, with high range reduce speed .with special design reduce Noise.
	-DETAL PLC with high operation speed. Normal Instruction only cost 0.22US , mory storage 26K. -servo Dirver: DETAL. Servo motor: Detal With high transmission and speed. Motor Max. electric over load reach 300%, Large torque. 17 bi
High decomposition optical encoder, difference from normal encoder. -Photoelectric sensor: use Panasonic sensor from Japan. with Infrared visible light, easy adjust .with the Background suppression function .collect Distinguish wooden color and Wood scarring.
	Teeth protect system: can avoid damage the last wood stick was processed finger joint cutter processing
*Glue application system: use the profile teeth dip in type. make sure the glue can full of the wood. (Normal standard is 124mm, special can make fit for Customer request)**
	Oil-water separator: make sure the air compressor dry.
-hydraulic system use Clogging pump hydraulic valve . --Use air-cooled to cool the oil Temperature. avoid hydraulic system long time working.
	Inside boards use the Linear guide rail, make sure the board linear. In the same time avoid glue dry block feeding.

1.MXZ3515P Finger joint shaper

Max. working width	800mm
Max. working high	150mm
finger joint teeth length	12mm
main spindle speed	6000r/min
drawing knife saw speed	5600r/min
cut-off cutter speed	5000r/min
FJ cutter outside Dia.	160 mm
FJ cutter inside Dia.	70 mm
working table size	660×850mm
Main saw motor power	18.5KW
saw motor power	5.5KW
feeding motor power	0.375KW
servo motor power	1KW
air pressure request	0.5~0.8Mpa
Net weight	2000KG
overall dimension	2380×1700×1400mm

2.MXZ3518P-B finger joint shaper (with glue)

Max. working width	800mm
Max. working high	150mm
finger joint teeth length	12mm
drawing knife saw speed	6000r/min
drawing knife saw speed	5600r/min
cut-off cutter speed	5000r/min
finger joint cutter outside Dia.	160 mm
finger joint cutter inside Dia.	70 mm
working table side	760×1400mm
Main saw motor power	18.5KW
saw motor power	5.5KW
feeding motor power	0.375KW
servo motor power	1KW
air pressure request	0.5~0.8Mpa
Net Weight	2200KG
overall dimension	2580×1700×1400mm

3. MHZ1562P8 Finger Joint assembler

Max.press joint length	6200mm
Max.working width	150mm
Max. working thickness	80mm
Min. working length	100 mm
Min. working width	30mm(can make20mm)
Min. working thickness	15mm
Saw motor speed	3700r/min
saw outside Dia.	355 mm
Saw motor power	1.5kw
In-feed reducer motor power	*1.5KW2Pcs**
Oil pump motor power	4kw
working air pressure	0.5~0.8Mpa
Max. joint power	7800 Kg
Max. output	30m/min
Overall dimension	8300×1600×1560mm
