Устройство поиска DVB DVB-S2 Приемник DC 5V 1.5A BT03 спутниковый ТВ приемник 32MB последовательная вспышка VCM режим
- Категория: Satellite TV Receivers >>>
- Поставщик: Shenzhen,Xiangchuang,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 14.56 $* | 14.0 $* |
| Jul-15-2025 | 11.48 $* | 11.58 $* |
| Jun-15-2025 | 14.90 $* | 14.95 $* |
| May-15-2025 | 14.53 $* | 14.42 $* |
| Apr-15-2025 | 11.51 $* | 11.35 $* |
| Mar-15-2025 | 13.5 $* | 13.30 $* |
| Feb-15-2025 | 13.25 $* | 13.82 $* |
| Jan-15-2025 | 13.83 $* | 13.94 $* |
Характеристики
DVB Finder DVB-S2 Receiver DC 5V 1.5A BT03 satellite tv receiver 32MB Serial Flash VCM mode supported
Description
Specification
| Highlight | 1. DVB Finder DVB-S2 Multi standard demodulation & decoding | ||||||

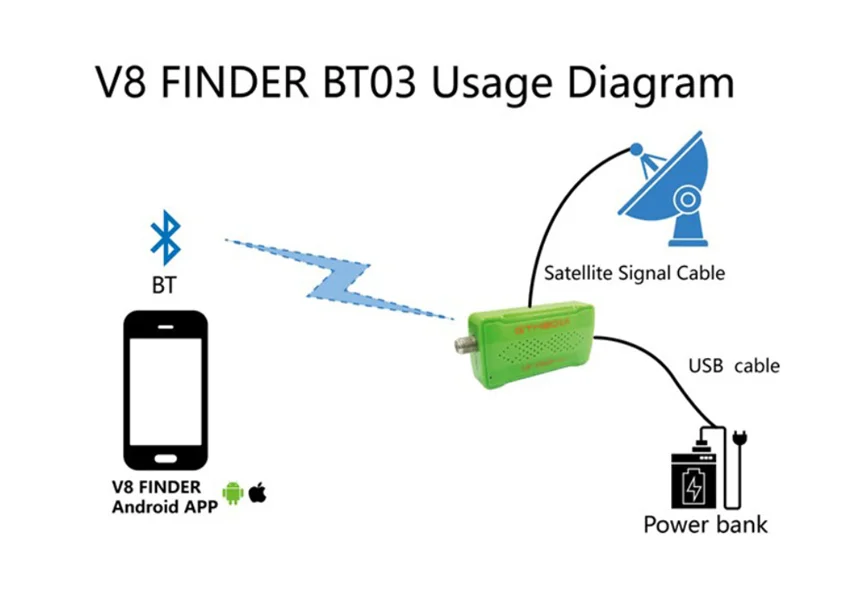

| 2.BT connection for Android APP and Apple APP | |||||||
| 3.Support full satellite selection. | |||||||
| 4.Technical support website:www.freesat.cn | |||||||
| Note: We reserve the right to change the design and OEM/ODM supported | |||||||
| Hardware | Flash Memory | 32MB Serial Flash | |||||
| DDR2 Memory | 512M Bits | ||||||
| LED Indicator | Blue(Flashing:Not connected, Normally on: connected) | ||||||
| Rear Panel | LNB IN (Frequency Range950MHz to 2150MHz DVB-S/S2) | ||||||
| micro USB : DC 5V 1.5A | |||||||
| System introduction | DVB-S2 | DVB-S/S2 system standard:ETS 302 307(SCPC and MCPC receivable from C/Ku band satellite) | |||||
DiSEqC1.0support, 13/18V DC @ 350mA MAX,Overload Protection, 0/22K | |||||||
| Multi standard demodulation & decoding | |||||||
| DVB-S2 CCM,QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK+2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK+3/4, 4/5, 5/6, 8/9, 9/10 Legacy DVB-S,QPSK+1/2, 2/3, 3/4, 5/6, 7/8 | |||||||
| VCM mode supported | |||||||
| Dummy frame insertion supported | |||||||
| Automatic standard recognition | |||||||
| Support 1 to 60Mbaud symbol rates | |||||||
| Fast channel blind scan for RF frequency & symbol rate acquisition | |||||||
| High performance equalizer, canceling echo introduced by front end | |||||||
| Simple AGC – Tuner interface | |||||||
| Build in DC cancellers to remove DC component | |||||||
| IQ imbalance compensator | |||||||
| Automatic roll-off factor (0.35/0.25/0.20) detection | |||||||
| Automatic spectrum inversion | |||||||
| Signal quality and statistic, allowing improved monitoring and debug | |||||||
| DiSEqCTM v2.2 modulation output for full control of LNB and satellite antenna | |||||||
Picture Show
Payment & Shipping
BT03 satellite tv receiver Shipping:
1. Immediate delivery for stock products after payment received ;
2. Express for small orders ,you can receive the goods fast ,like DHL ,Fedex,UPS;
3. Air way for bulk orders,more economic ,but you need to collect goods at airport .
Payment:
1. For small order ,we accept Paypal ;
2. For bulk order ,TT, Westeunion, Escrow ,Money Gram ;
3. For custom order ,30%--50% percent deposit in advance ,balance before delivery .
Company &Certificate
About us:
- Shenzhen Xiangchuang office is located in 702, Jinxinnong Buliding, No.,18, Guangdian North road, Dongzhou Community, Guangming Street, Shenzhen,with 200 square meters, and about 20 sales person.
- Xiangchuang production base is located inShuitian No. 4 Industrial Area, Baoan District, Shenzhen, with 3000 square meter of standard factory building, about 300 workers and ten R&D engineers.
