Высококачественный Мобильный модуль EYDFA для университетов и
- Категория: Amplifiers and Comparators >>>
- Поставщик: Shandong,Wanshuo,Optoelectronic,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.86 $* | 0.33 $* |
| Aug-19-2025 | 0.98 $* | 0.87 $* |
| Jul-19-2025 | 0.81 $* | 0.64 $* |
| Jun-19-2025 | 0.69 $* | 0.33 $* |
| May-19-2025 | 0.13 $* | 0.39 $* |
| Apr-19-2025 | 0.32 $* | 0.47 $* |
| Mar-19-2025 | 0.43 $* | 0.12 $* |
| Feb-19-2025 | 0.26 $* | 0.85 $* |
| Jan-19-2025 | 0.50 $* | 0.39 $* |
Характеристики

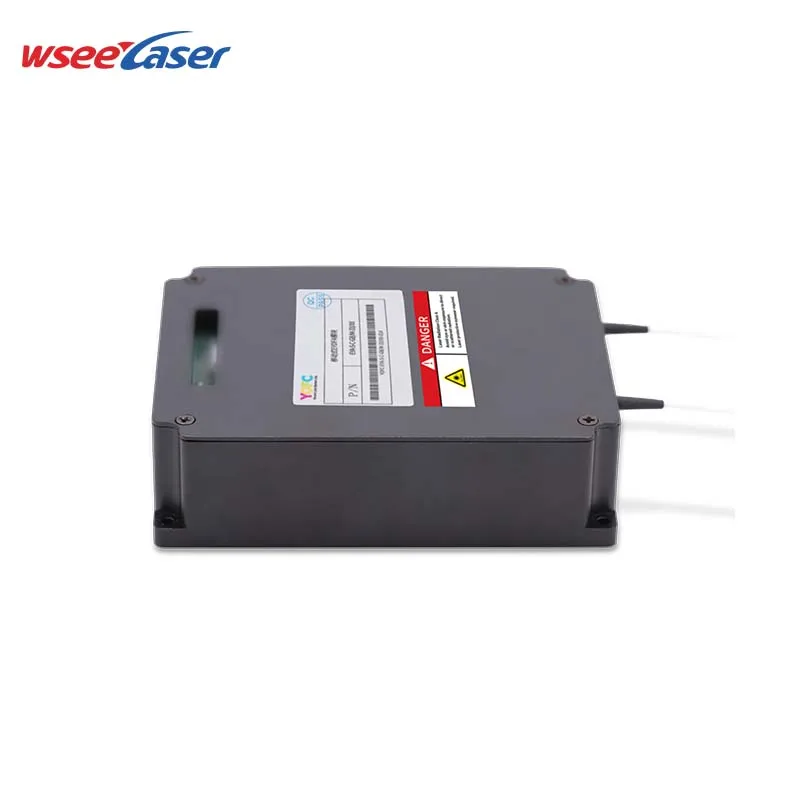

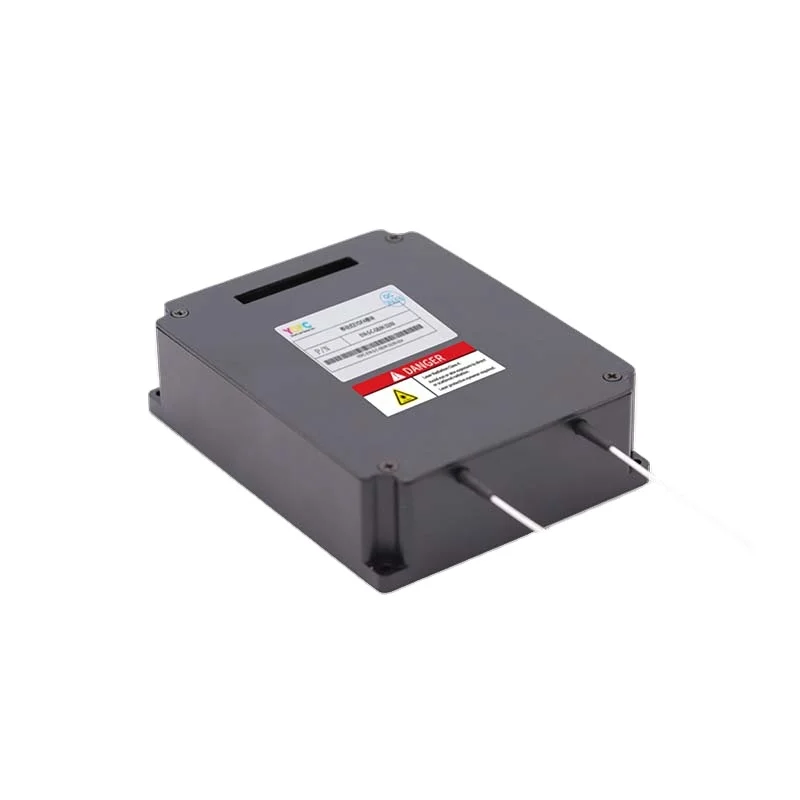

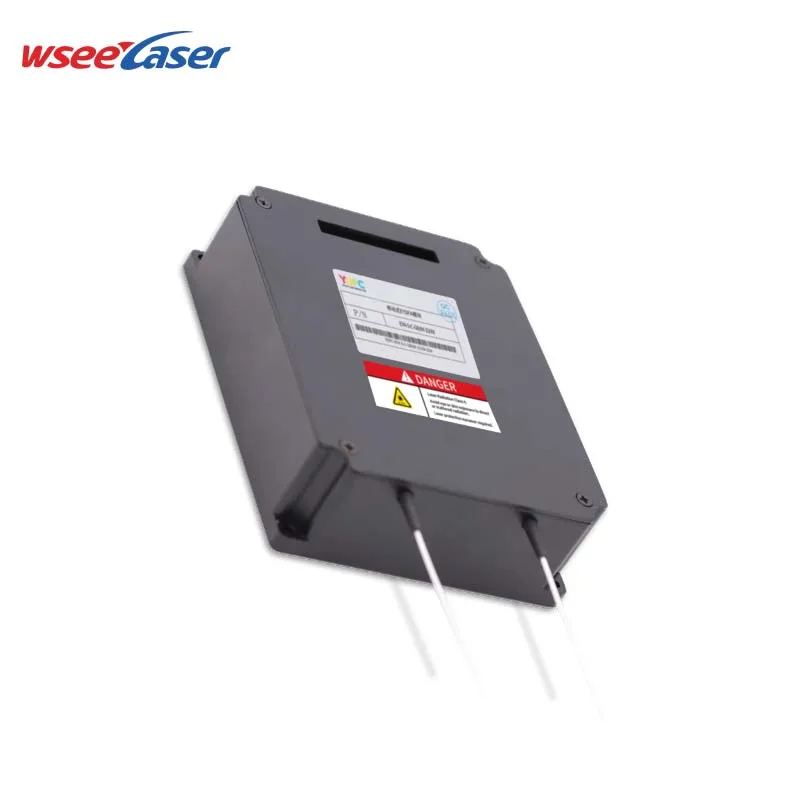

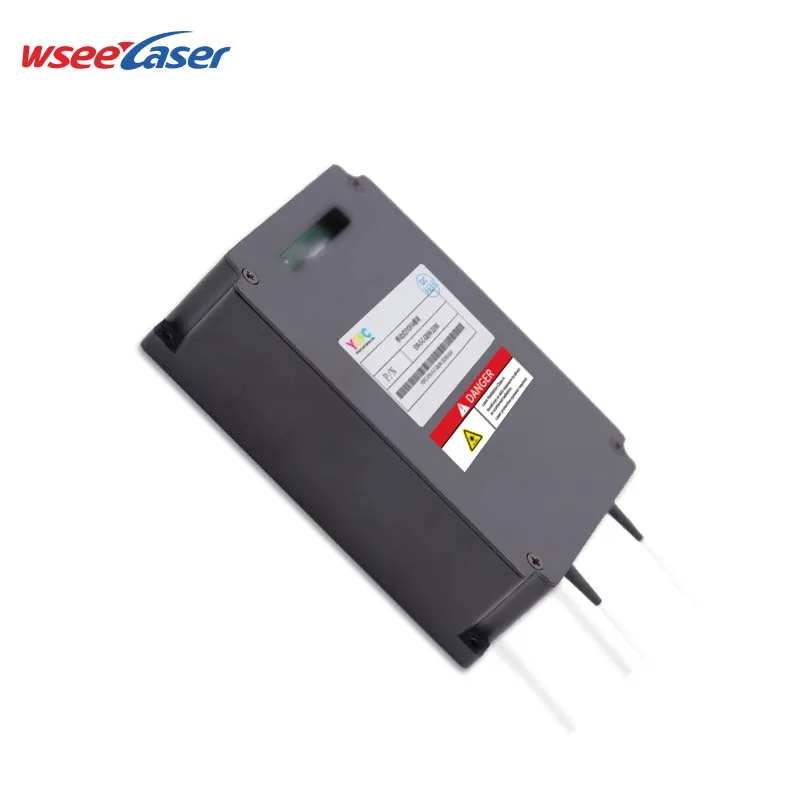

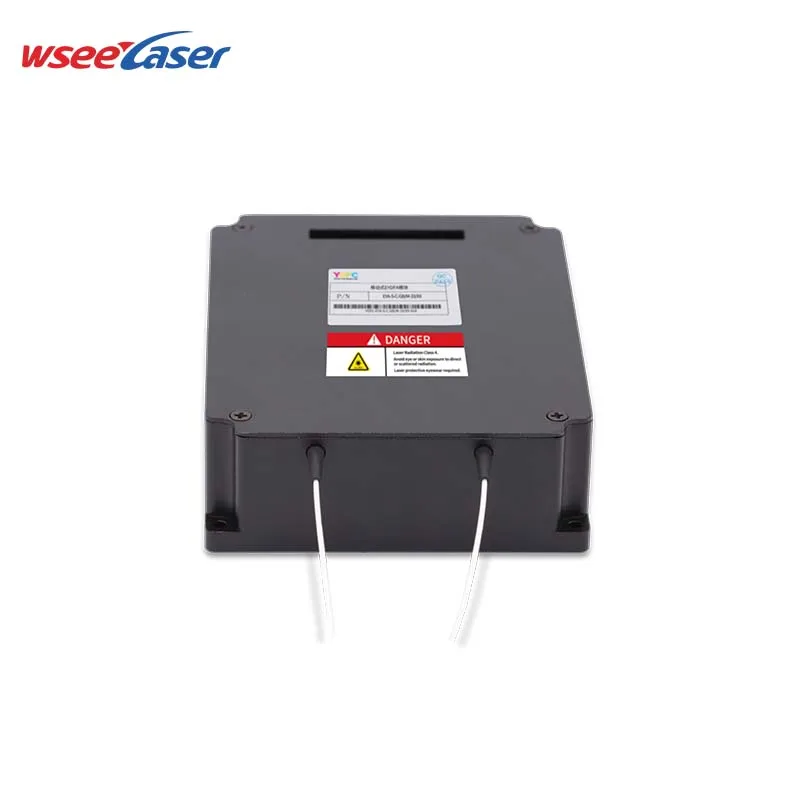

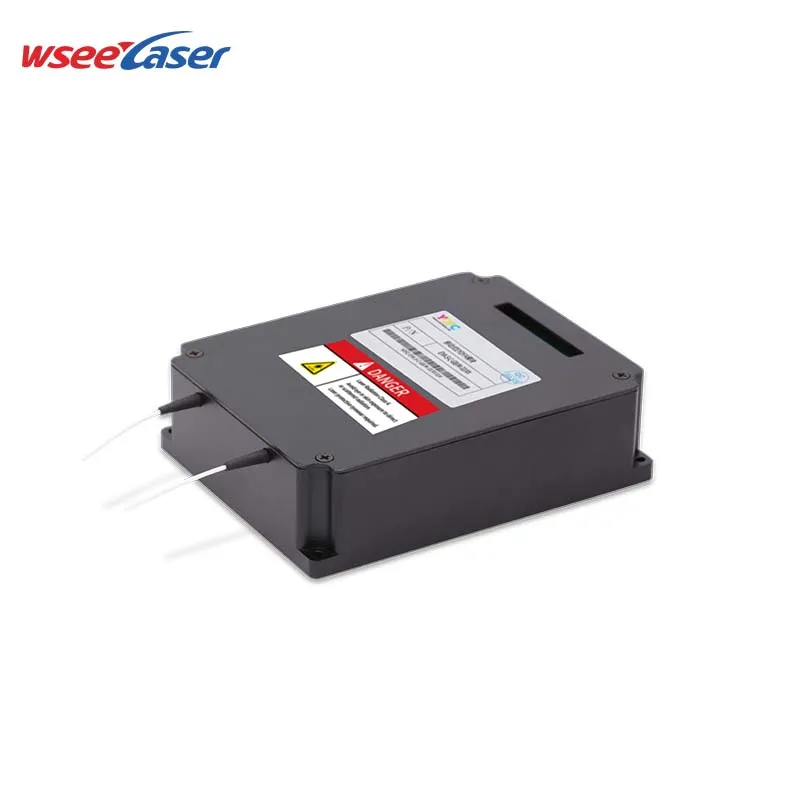

Mobile EYDFA module can realize low noise figure and high output power based on the optimized optical design. The maximum output power can approach 33 dBm. It has been widely utilized in Lidar and laser ranging system. The control mode is ACC/APC/AGC.The high reliability temperature controlling techniques ensures the product excellent thermal performance under a wide temperature range.
Product Type | EYA-S-CC-6-XX/XX-1-1/1* | ||
Parameters | Minimum | Typical | Maximum |
Wavelength (nm) | 1532 | 1550 | 1569 |
Input Power (dBm) | -10 | - | 10 |
Output Power (dBm) | 30 | - | 33 |
Output Power Stability (dB) | ±0.1 | ||
Gain (dB) | - | 37 | - |
Noise Figure (dB) | - | 5.5 | 6.0 |
Return Loss (dB) | W~45 | ||
Operating Temperature (°C) | -40 | - | 65 |
Storage Temperatyre (°C) | -40 | - | 85 |
Power Supply (V) | 4.75 | 5.00 | 5.25 |
Power Consumption (W) | - | - | 40 |
Comm un ication Protocol | RS232 | ||
Electrical Connector | TEM-115-02-03.0-FG-D-L1 or Customized | ||
Optical Connector | FC/^PC or Customized | ||
Pigtail Length (cm) | >50 | ||
Dimensions (mm) | 90(L)X70(W)X 25(H) | ||
*EYA-S-CC-6-XX/XX-1-1/1, the first XX means output gain, and the second XX means gain
