Зарядное устройство iocharger для дома и автомобиля тип 2 32 А 7 кВт OCPP smart Wallbox 22 зарядное
- Категория: Wall-mounted Charging Stations >>>
- Поставщик: Xiamen,Galaxy,Camphol,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 540.24 $* | 551.19 $* |
| Jul-19-2025 | 438.46 $* | 447.54 $* |
| Jun-19-2025 | 531.38 $* | 542.7 $* |
| May-19-2025 | 527.95 $* | 538.63 $* |
| Apr-19-2025 | 421.74 $* | 429.14 $* |
| Mar-19-2025 | 519.61 $* | 529.31 $* |
| Feb-19-2025 | 514.15 $* | 524.43 $* |
| Jan-19-2025 | 510.36 $* | 520.3 $* |
Характеристики

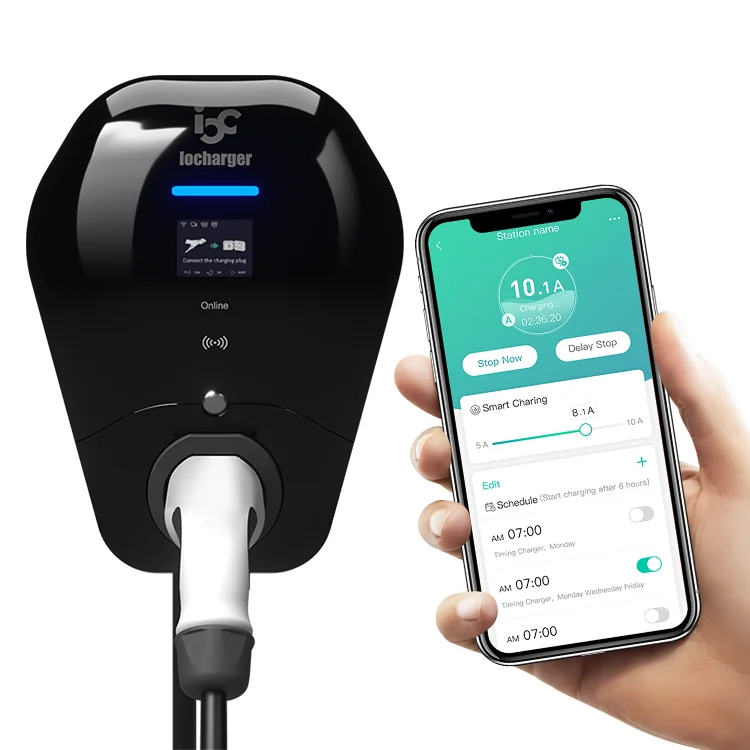

iocharger type 2 32A 7kW electric car home charger WiFi 4G OCPP smart Wallbox 22kw EV Charger Level 2 Fast Charging Station
Product Description
| Power Input | Input Voltage | 1-phase 230V±20%/ 3-phase 400V±20% |
| Input Current | 32A | |
| Input Frequency | 50/60Hz | |
| Power Output | Output Voltage | 1-phase 230V±20%/ 3-phase 400V±20% |
| Output Power | 7kW, 22KW | |
| Output Current | 32A | |
| Cold-Load Pickup | Randomized delay before charge resume after power failure | |
| Protection | RCD | 30mA AC & 6mA DC |
| Display | 2.8' LCD | |
| Electrical Protection | Over/under voltage protection, overload protection, short circuit protection, current leakage protection, grounding protection, over temp protection, lightning surge protection | |
| Plug-Out Protection | Power output is terminated upon detection of charging connector plug-out | |
| Emergency Stop Button | Yes | |
| Environment | Operating Temperature | -30 ° C ~ +50 ° C |
| Storage Temperature | -40 ° C ~ +70 ° C | |
| Working Humidity | 5%~95% without condensation | |
| Working Altitude | <2000m | |
| Mechanical | Charging Outlet | One connector type 2 or one type 2 socket |
| Cable Length | 5M | |
| Housing Material | Plastic | |
| Protection Grade | IP55 | |
| Mounting Type | Wall-mount(standard); Pedestal-mount, Pole-Mount(optional) | |
| Dimension(W x H x D) | 360 * 269 * 146 mm | |
| Net Weight | 6Kg |
Company Information
FAQ
Here are some customer’s common questions about our products :
Q1:Are you Trading Company or manufacturer?
A: We are professional design and manufacturer, our factory has been established for 7 years.
Q2:What are your main market?
A:Mostly Europe and America, then Asia.
Q3:How long time to make a sample?
A:3-7 days if we make a new sample for you.
If you just select our existing sample, we can send you sample the next day.
Q4:How long is the lead time:
A: The lead time is 7-30 days, it depends on the quantity and production scheduling.
Q5: How many kinds of payment?
A: We have T/T and L/C etc.
If you need the detailed terms of payment, pls contact us.
Q6: Why is new model expensive than other old models?
A: A new model needs large R&D and mould cost, and the depletion rate is bigger during mould and production. Besides, new model is low productive but labor costs keep same as old model.
Q7: What certifications do you have?
A: We have approved Chinese national standard, European IEC standard, American SAE standard and Japanese CHAdeMo standard etc certification.
Q8: How long is the warranty time?
A: The warranty time is 2 years.
Our Service
1. We will reply you for your inquiry in 24 hours.
2. T/T and L/C etc payment terms all accepted.
3. Shipment:By air,By sea,By International express (DHL,Fedex,).
4. Guarantee Period: Within 24 months after shipment.
5. Provide operating guide (instruction).
6. Customized design,sample and packing according to clients requirements.
