EN853 2SN гидравлический резиновый шланг высокого давления
- Категория: Rubber Hoses >>>
- Поставщик: Guangzhou,Passionco,Hose,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.3 $* | 0.33 $* |
| Aug-19-2025 | 0.29 $* | 0.4 $* |
| Jul-19-2025 | 0.89 $* | 0.16 $* |
| Jun-19-2025 | 0.50 $* | 0.14 $* |
| May-19-2025 | 0.38 $* | 0.3 $* |
| Apr-19-2025 | 0.84 $* | 0.48 $* |
| Mar-19-2025 | 0.3 $* | 0.29 $* |
| Feb-19-2025 | 0.32 $* | 0.35 $* |
| Jan-19-2025 | 0.40 $* | 0.77 $* |
Характеристики
Why Choose Us
* Various colors.
* Free hose sample available.
* Words and your logo can be printed. OEM accepted.
* Strict quality control. Test the products before shipping out with the complete line of test machines.
* Customized hose accepted.
* Factory sale with lower prices.
* Solid construction
* Good service lifetime
* Increased working pressure
* Very flexible and light
* Free hose sample available.
* Words and your logo can be printed. OEM accepted.
* Strict quality control. Test the products before shipping out with the complete line of test machines.
* Customized hose accepted.
* Factory sale with lower prices.
* Solid construction
* Good service lifetime
* Increased working pressure
* Very flexible and light
Products Description
Product Detail | ||
Name | Hydraulic Rubber Hose | |
Size | 1/4" ~ 2" | |
Reinforcement | 1 or 2 steel wire braid | |
Temperature Range | -40ºC ~ +100ºC (-40ºF~ +212 ºF) | |
Application | High pressure hydraulic oil lines used in construction, machine tool and agricultural applications using petroleum or water based hydraulic fluids. | |
Certification | CE and ISO approved | |
Printing Word | We can print LOGO or as your requirement. | |
Packaging Detail | By poly stripes or as your request. | |
Delivery | About 28 days for a 20' container. | |
Product Specification | ||||||||||||
SAE 100R1AT / EN853 1SN | ||||||||||||
Part No. | SIZE | ID | OD | WP | BP | WEIGHT | ||||||
inch | mm | mm | bar | bar | g/m | |||||||
P04-1SN | 1/4" | 6.4 | 13.4 | 225 | 900 | 225 | ||||||
P05-1SN | 5/16" | 8.0 | 15.2 | 215 | 860 | 260 | ||||||
P06-1SN | 3/8" | 9.5 | 17.3 | 180 | 720 | 340 | ||||||
P08-1SN | 1/2" | 12.7 | 20.3 | 160 | 640 | 415 | ||||||
P10-1SN | 5/8" | 16.0 | 23.7 | 130 | 520 | 475 | ||||||
P12-1SN | 3/4" | 19.0 | 28.0 | 105 | 420 | 590 | ||||||
P16-1SN | 1" | 25.4 | 36.2 | 87 | 348 | 875 | ||||||
P20-1SN | 1 1/4" | 31.8 | 43.0 | 62 | 248 | 1205 | ||||||
P24-1SN | 1 1/2" | 38.1 | 49.2 | 50 | 200 | 1405 | ||||||
P32-1SN | 2" | 50.8 | 62.6 | 40 | 160 | 1910 | ||||||

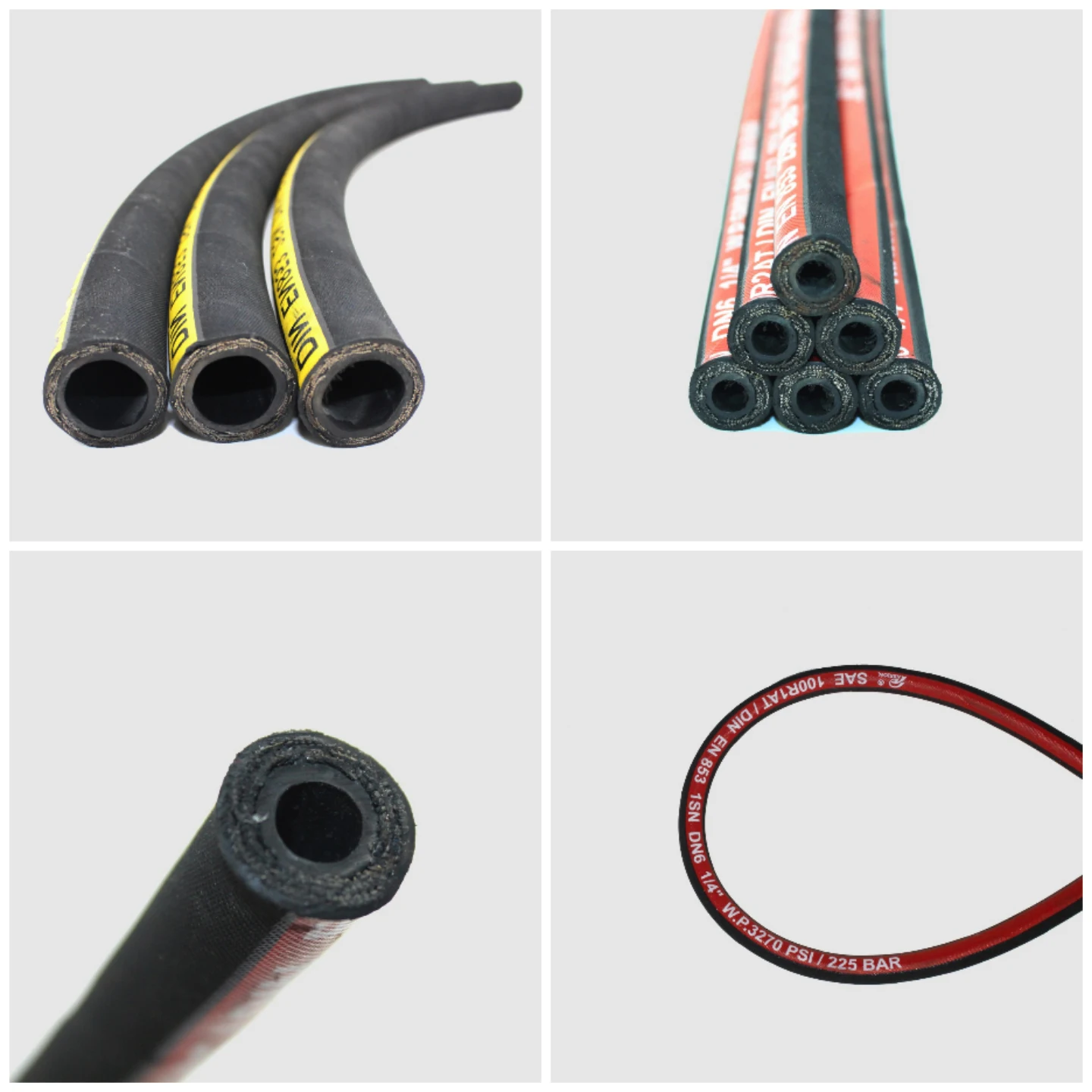

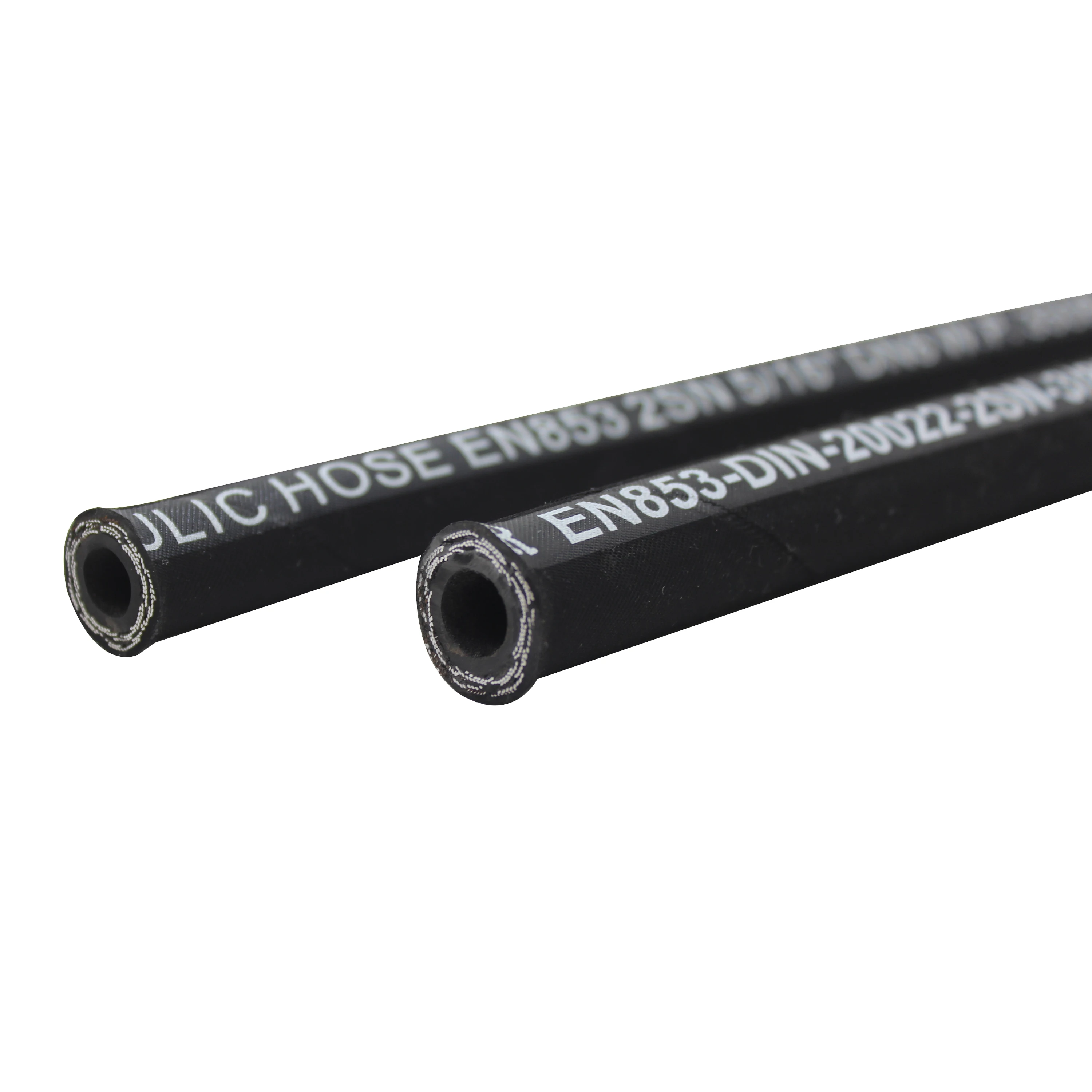

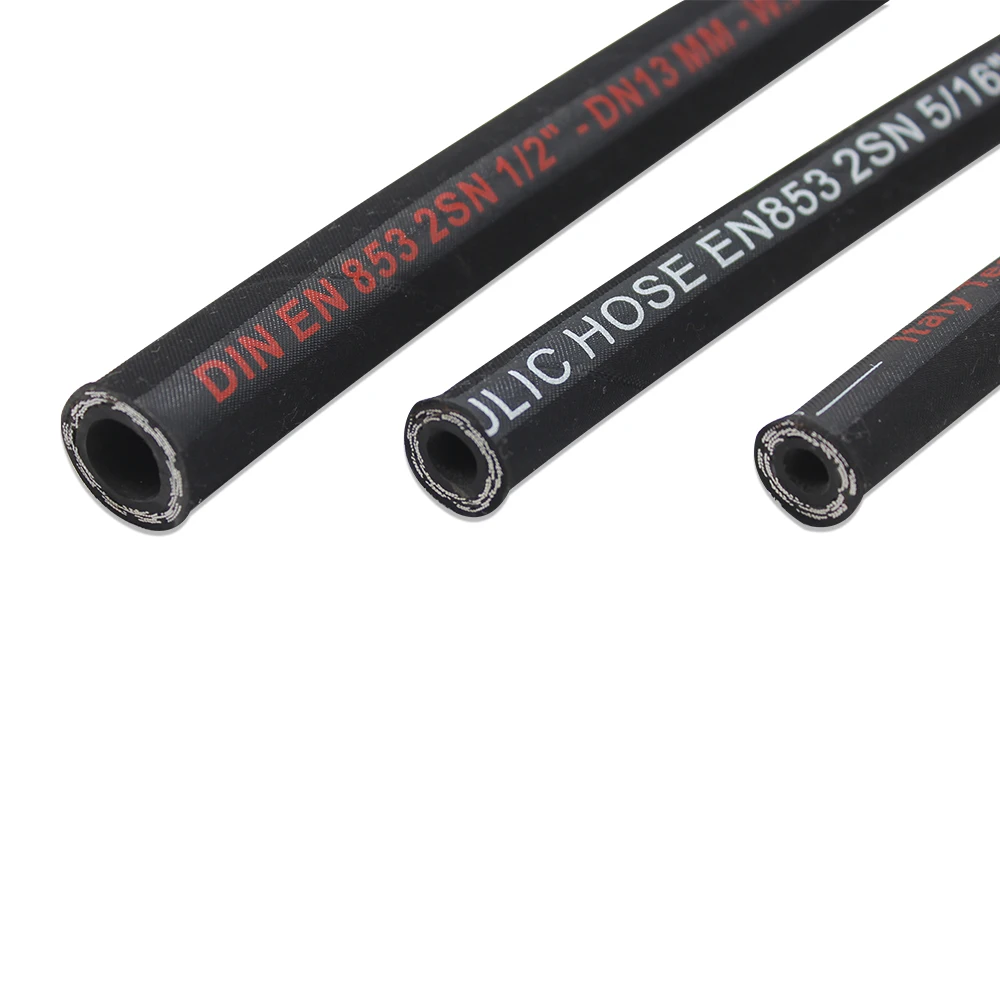

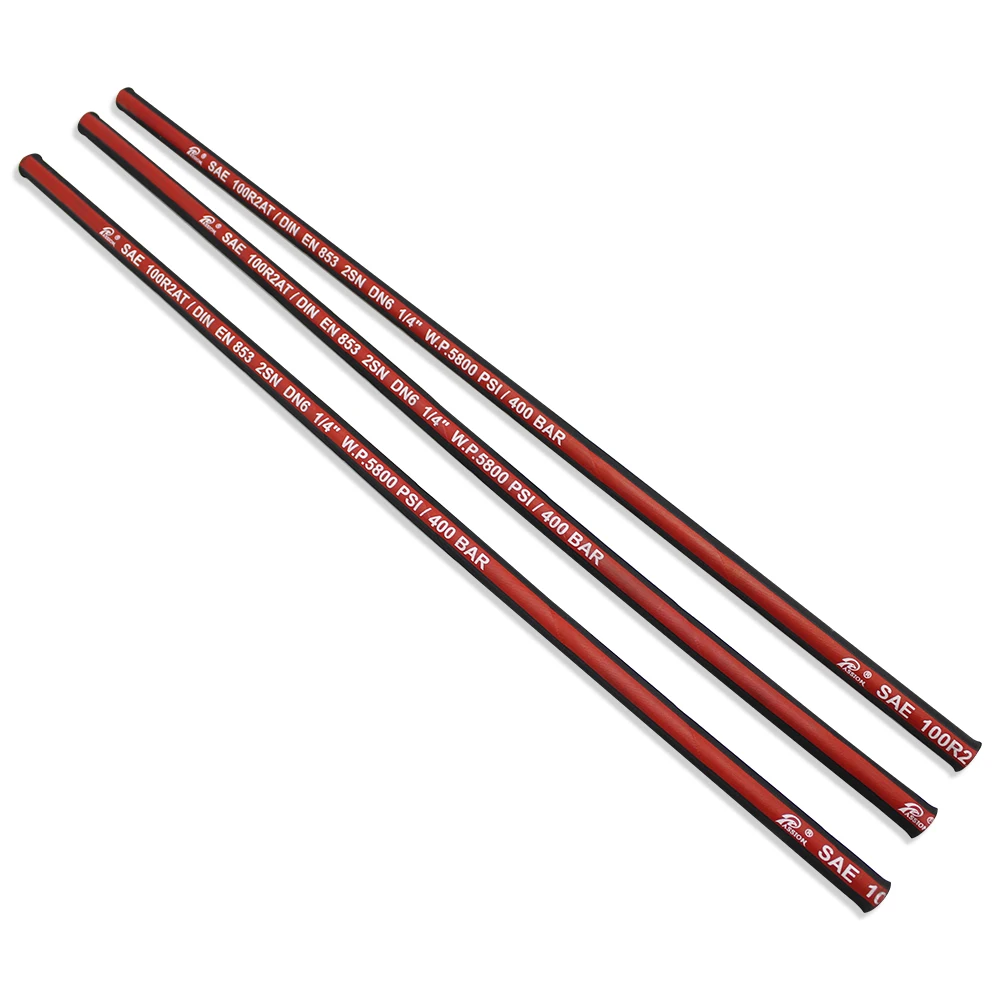

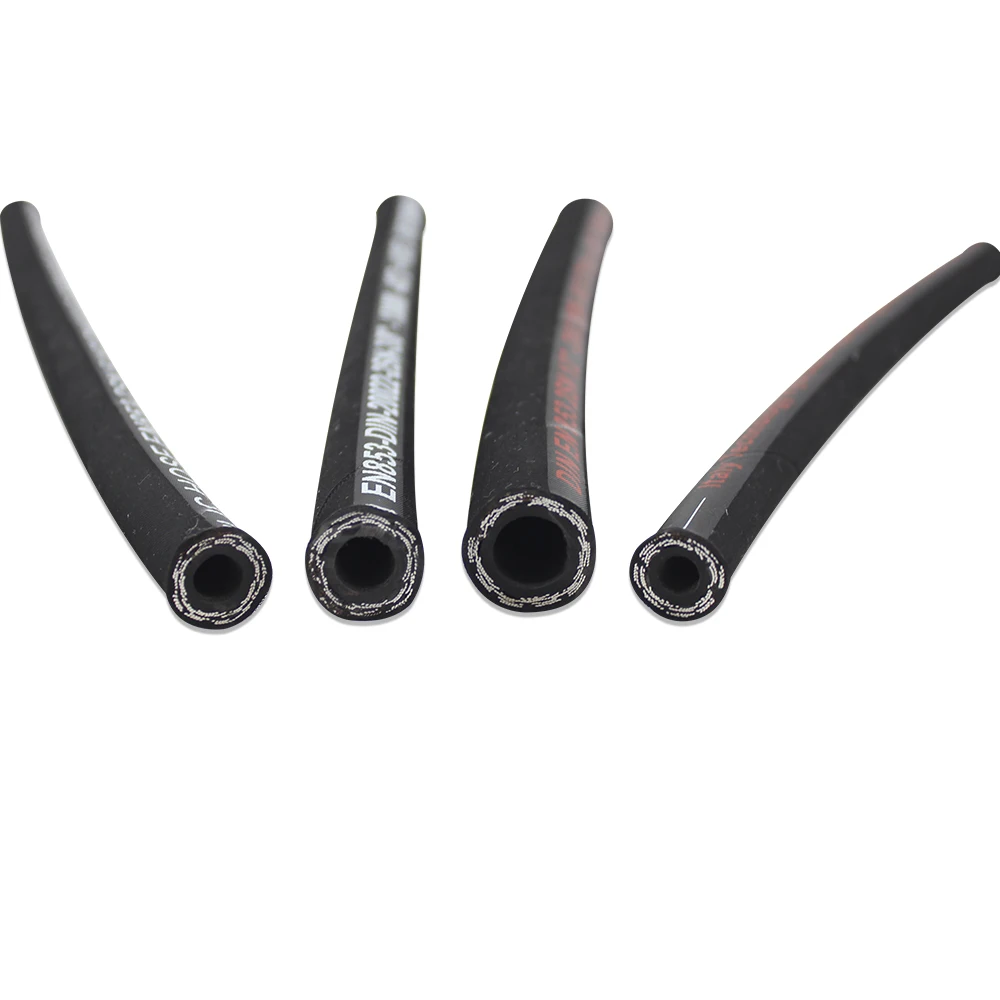

Product Photo | ||||||||||||
Workshop
Production Line | ||||||||
Raw Materials
We only use new raw materials, none recycled materials at all. The raw materials are bought from big group company such as China Petro and Sinopec.
Rubber Mixing Machines
We have our own rubber mixing machines, this makes us be able to do research and produce different types of hoses. And keep a constant rubber sheet supplying.
Steel Wire Braiding Machine
Valcanization
Braiding Machine
Spiral Machine
Test Machines | ||||||||
Exhibition
More of Paishun
RELATIONSHIPS
Long term business relationships are of upmost importance to us at Paishun. With our roots planted as a manufacturer, we take the time to learn about your business and your individual needs so we can provide better service to you. We pride ourselves on maintaining long term business relationships and understand that it takes time to build trust in new ones.
QUALITY
Paishun is ISO 9001:2015 certified for the manufacturing of rubber hoses. This certification encompassed with lean manufacturing allows us to ensure our products are safe, reliable and of superior quality.
Our workshop upholds strict cleanliness guidelines at all times. We maintain a clean and organized environment. This allows us to guarantee your hoses are produced promptly and efficiently.
Our workshop upholds strict cleanliness guidelines at all times. We maintain a clean and organized environment. This allows us to guarantee your hoses are produced promptly and efficiently.
SHORT LEAD TIMES
We have continually made improvements to our manufacturing process over 12+ years. We've implemented lean manufacturing and moved to a larger workshop. These changes have enabled us to support growth and streamlined our supply chain process in order to respond quickly to market change. All with the goal to decrease lead time and improve quality.
INVENTORY MANAGEMENT
A consistent unbroken supply chain allows us to produce rubber hoses at a steady pace. We understand how important production scheduling and inventory flow are to your business. We will work with you on an individual basis and will process blanket orders to assist with your inventory level. All of our materials are sourced from big group company such as China Petro and Sinopec, to adhere to our best quality standard.
