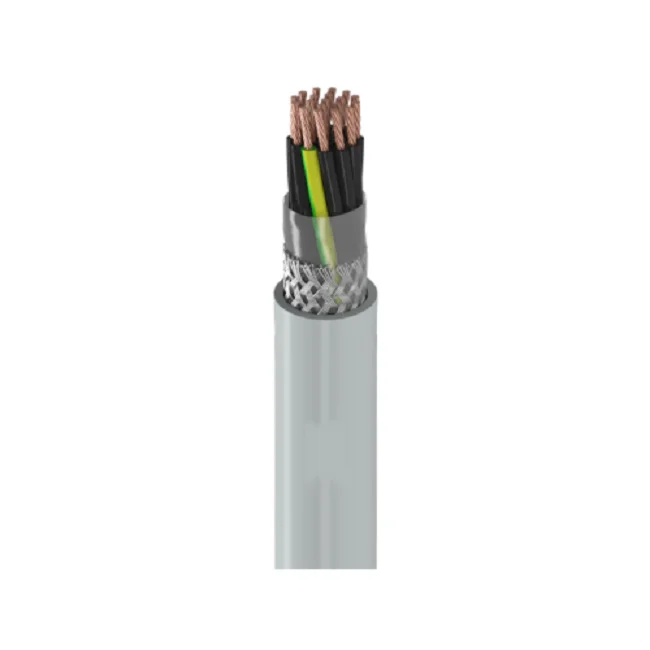

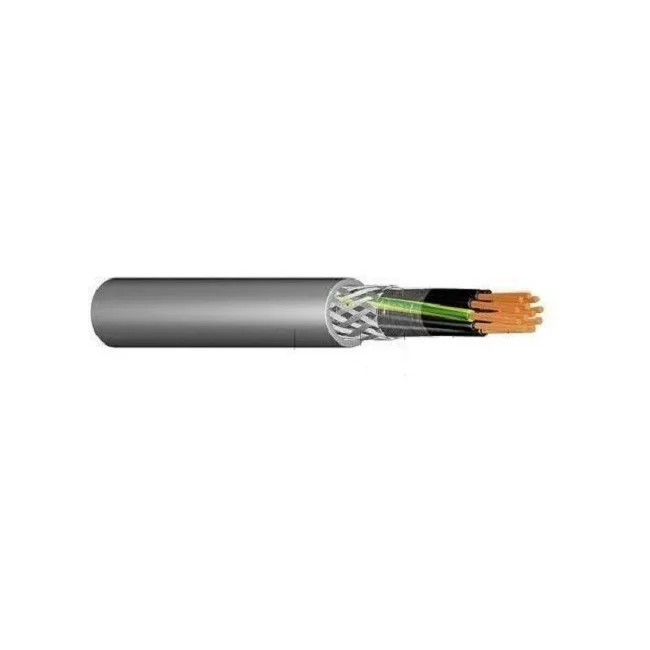

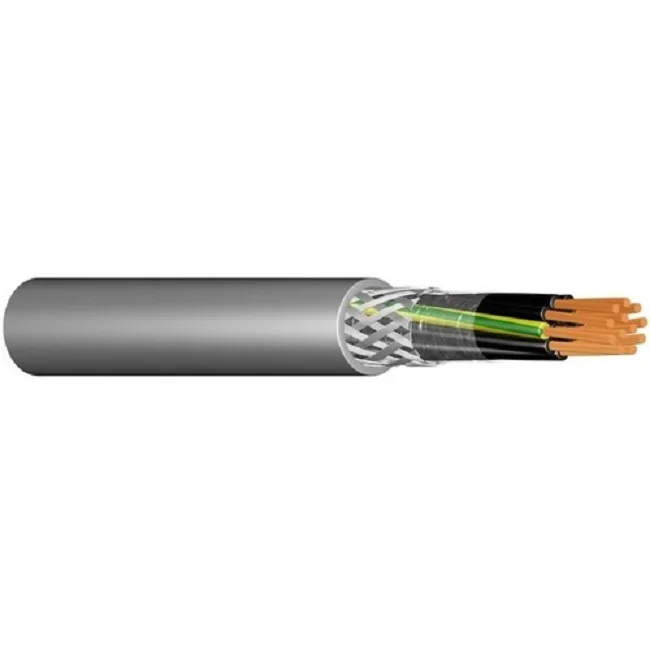

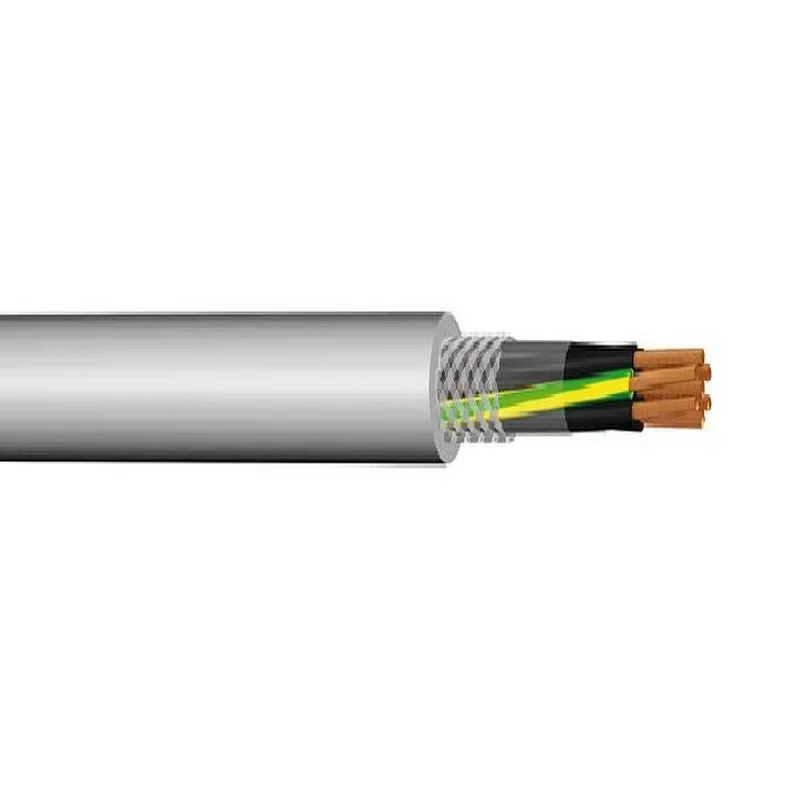

Yslcy кабель YSLCY-OZ 2x1 5 ПВХ Кабель Управления

Yslcy кабель YSLCY-OZ 2x1 5 ПВХ Кабель Управления

Категория: >>>
Поставщик: Zhengzhou,Sitong,Cable,Co.,Ltd.

Цена:0,80 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.28 $*	0.77 $*
Aug-15-2025	0.38 $*	0.98 $*
Jul-15-2025	0.12 $*	0.86 $*
Jun-15-2025	0.76 $*	0.52 $*
May-15-2025	0.8 $*	0.69 $*
Apr-15-2025	0.63 $*	0.19 $*
Mar-15-2025	0.28 $*	0.15 $*
Feb-15-2025	0.54 $*	0.10 $*
Jan-15-2025	0.2 $*	0.82 $*

Характеристики

Product description

Application:

Suitable as a signal and impulse cable in the control, measuring and signal technology. The copper braiding optimises protection against external interferences, like electromagnetic fields and stray frequencies.

SPECIFICATIONS:

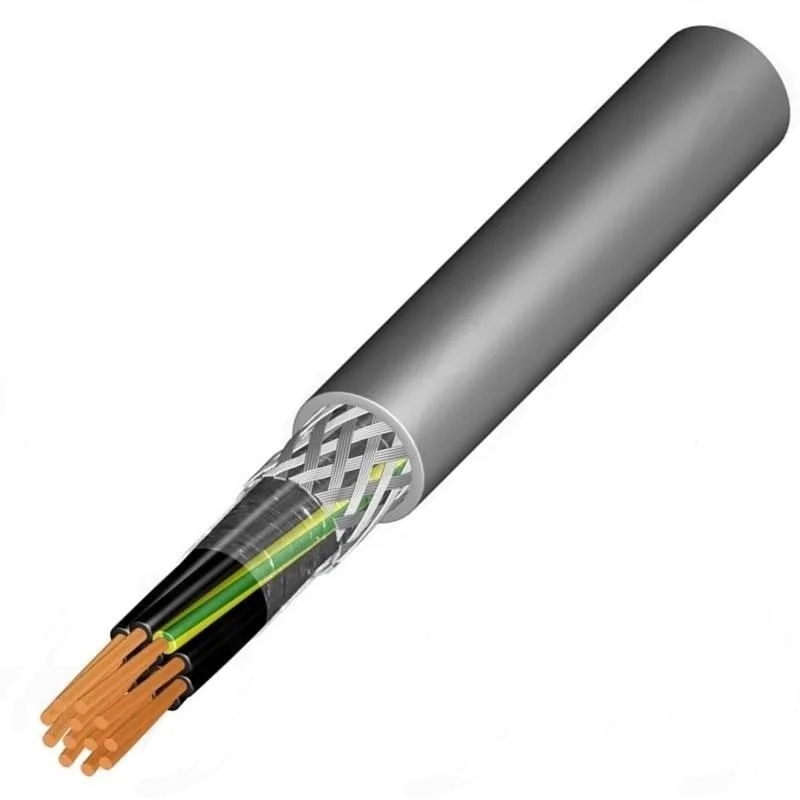

Construction:

1 ..... fine-stranded bare copper
2 ..... core insulation of polyvinylchloride (PVC)
3 ..... wrapped in a plastic foil
4 ..... braiding of tinned copper round wires
5 ..... outer sheath of polyvinylchloride (PVC), grey, increased oil resista

Technical Specification

Standards:

adapted to DIN VDE 0281
DIN EN 60228 class 5 (construction)
HD 308 S2 (core identification for coloured cores)
core identification JZ: 1 core green/yellow, other cores black with figures
core identification OZ: every core black with figures

Technical data:

Nominal voltage Uo/U		[V]	300 / 500 volt
Test voltage		[V]AC	2000
Temperature range	in motion		-5°C till +70°C
	one time / fixed		-30°C till +70°C
Operating temperature	short circuit	°C	150
Short circuit time	max.	[sec]	5
Bending radius	one time / fixed	x diameter	10
	in motion	x diameter	20
Flammability	standard		EN 60332-1-2

Number of cores and nominal cross section mm2	Copper figure kg/km	Overall diameter appr. mm	Weight appr. kg/km
2 x 0,5	36,0	16 x 0,21	5,6	45,0
3 x 0,5	43,0	16 x 0,21	5,9	55,0
4 x 0,5	49,0	16 x 0,21	6,4	73,0
5 x 0,5	57,0	16 x 0,21	7,0	91,0
12 x 0,5	104,0	16 x 0,21	9,8	208,0
25 x 0,5	211,0	16 x 0,21	13,7	354,0
2 x 0,75	43,0	24 x 0,21	6,2	56,0
3 x 0,75	52,0	24 x 0,21	6,5	70,0
4 x 0,75	61,0	24 x 0,21	7,0	96,0
5 x 0,75	72,0	24 x 0,21	7,8	157,0
7 x 0,75	89,0	24 x 0,21	8,4	168,0
10 x 0,75	121,0	24 x 0,21	10,4	217,0
12 x 0,75	138,0	24 x 0,21	10,9	231,0
18 x 0,75	211,0	24 x 0,21	12,8	314,0
25 x 0,75	280,0	24 x 0,21	15,2	434,0
34 x 0,75	346,0	24 x 0,21	17,1	529,0
2 x 1	51,0	32 x 0,21	6,5	83,0
3 x 1	62,0	32 x 0,21	6,7	111,0
4 x 1	74,0	32 x 0,21	7,4	131,0
5 x 1	88,0	32 x 0,21	8,1	155,0
7 x 1	112,0	32 x 0,21	8,8	190,0
12 x 1	185,0	32 x 0,21	11,5	286,0
18 x 1	268,0	32 x 0,21	13,8	393,0
25 x 1	354,0	32 x 0,21	16,0	658,0
34 x 1	458,0	32 x 0,21	18,4	759,0
50 x 1	671,0	32 x 0,21	22,0	994,0
2 x 1,5 *	65,0	30 x 0,26	7,1	97,0
3 x 1,5 *	82,0	30 x 0,26	7,6	124,0
4 x 1,5	100,0	30 x 0,26	8,2	166,0
5 x 1,5	119,0	30 x 0,26	9,0	192,0
7 x 1,5	154,0	30 x 0,26	9,8	245,0
12 x 1,5	268,0	30 x 0,26	13,0	365,0
18 x 1,5	373,0	30 x 0,26	15,5	556,0
25 x 1,5	530,0	30 x 0,26	18,0	737,0
27 x 1,5	560,0	30 x 0,26	20,0	750,0
34 x 1,5	686,0	30 x 0,26	20,9	966,0
50 x 1,5	1.001,0	30 x 0,26	24,8	1.342,0
2 x 2,5	92,0	50 x 0,26	8,5	161,0
3 x 2,5	118,0	50 x 0,26	9,0	187,0
4 x 2,5	147,0	50 x 0,26	9,9	241,0
5 x 2,5	176,0	50 x 0,26	11,0	274,0
7 x 2,5	253,0	50 x 0,26	12,0	344,0
12 x 2,5	408,0	50 x 0,26	15,9	407,0
4 x 4	248,0	56 x 0,31	11,6	307,0
5 x 4	288,0	50 x 0,26	12,8	370,0
2 x 6	170,0	84 x 0,31	12,5	180,0
4 x 6	343,0	84 x 0,31	14,0	402,0
5 x 6	403,0	84 x 0,31	15,5	506,0
4 x 10 *	535,0	80 x 0,41	17,2	747,0
5 x 10	635,0	80 x 0,41	19,3	861,0
4 x 16	800,0	128 x 0,41	20,0	1.041,0
5 x 16	960,0	128 x 0,41	22,2	1.289,0
4 x 25	1.280,0	200 x 0,41	24,7	1.460,0
5 x 25	1.530,0	200 x 0,41	27,5	1.840,0

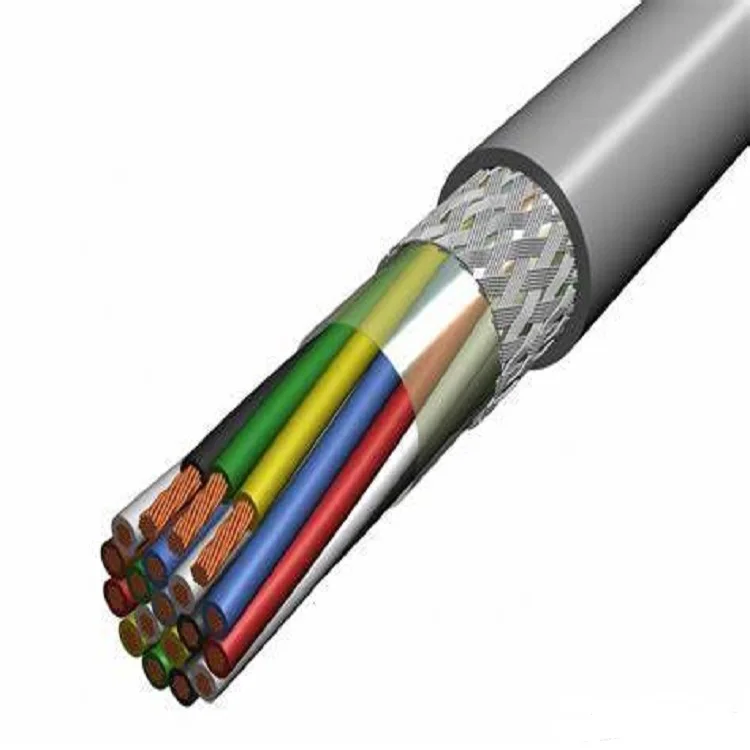

control cable 111 control cable 02

Packaging & Shipping

Packaging Details: The standard export wooden drum or as the requirements of clients

Delivery Details: Shipping will be 15days after advance payment

We have the professional lashing&packaging team to ensure the cargos tighted and secured when transporting

package cable wire

Payment and Logistic

Factory Show

Zhengzhou SITONG CABLE company is one of the most professional manufacturers in wire & cable industry,The factory located in ZhengZhou city of China

We specialize in producing and exporting all kinds of electric wires and power cables,We have advanced tech-staffs and advanced equipments.

Since we were founded , we have been built favorable business relationships with many customers from different markets all over the world.

factory show 02

Our Services

1:OEM service available based on official & legal authorization

2:Faster lead time than our competitors

3:Free sample is available with economic express fee

4:Sufficient support for our tendering representatives

Our Service_00

Contact me

FAQ

1.Q:Are you the factory or the trading company?

A: We are the factory

2.Q:Where is your factory ? How can I visit your factory?

A: Our factory located in Zhengzhou city, Henan Province. You could reach here by air and by train ,We can pick you up from the air port and the railway station.

3.Q: How can I get the samples?

A: After price confirmed, You can order the samples to check the quality,the sample is free ,but the freight charge should be paid

4.Q: What is the production capacity per week or per month?

A:For the care conductor , we can produce 3000tons per month, for the power cables that depends on the cable type, anyhow ,we will do our best to meet your requirement.
