Портативный лазерный сварочный аппарат RayTools из нержавеющей стали 2000
- Категория: Laser Welders >>>
- Поставщик: Shanghai,Empower,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.91 $* | 0.97 $* |
| Aug-20-2025 | 0.16 $* | 0.69 $* |
| Jul-20-2025 | 0.43 $* | 0.55 $* |
| Jun-20-2025 | 0.56 $* | 0.51 $* |
| May-20-2025 | 0.46 $* | 0.66 $* |
| Apr-20-2025 | 0.26 $* | 0.2 $* |
| Mar-20-2025 | 0.93 $* | 0.4 $* |
| Feb-20-2025 | 0.84 $* | 0.53 $* |
| Jan-20-2025 | 0.8 $* | 0.64 $* |
Характеристики
Product Overview

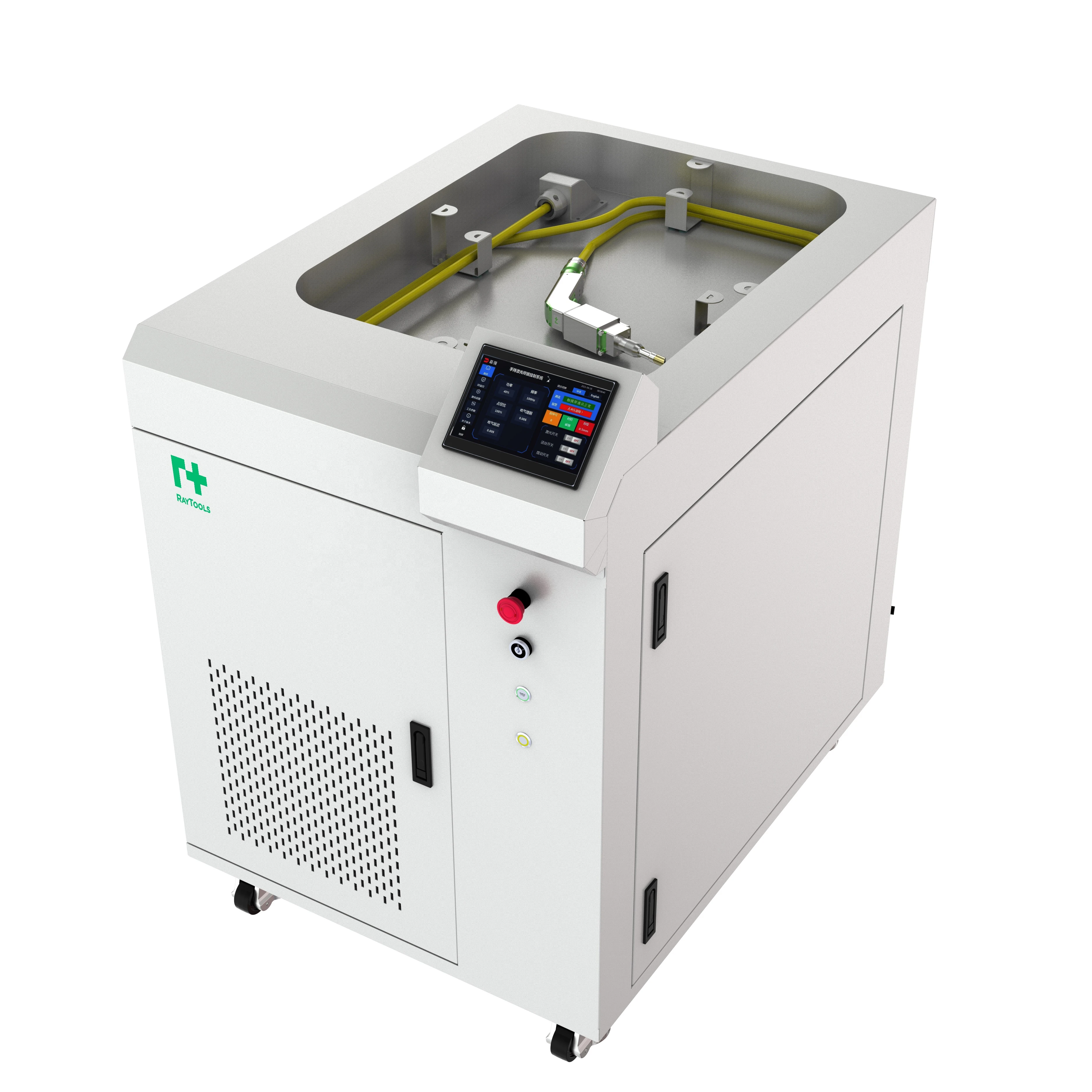

OLE-HW Series Handheld Laser Welding Machine
It gets fast welding speed and good seam finish in laser welding application. In the welding of thin stainless steel, mild steel and galvanized steel, it can replace most of traditional TIG/MIG welding. The handheld laser welding has been widely used in kitchen cabinet, staircase, elevator, shelf, stainless steel guardrail, power distribution panel and stainless steel furniture etc.
⚫Compact integrated design with easy operation.
⚫Compact integrated design with easy operation.
⚫ Wobble welding to improve welding capacity to seam.
⚫ Wire feeder as optional to expand application range.
⚫ Multiple safety protection with auto beam off function once the nozzle goes away from workpiece.
⚫Various welding nozzles included for option.
Details Images
Product Paramenters
Model | OLE-HW2000 | Cooling | Water Cooling |
Laser | Raycus (Reci optional) | Cover Glass | Φ20mm*3mm |
Laser Power | 2000W | Collimation Length | 60mm |
Laser Wavelength | 1080nm | Focus Length | 125mm/150mm |
Fiber Length | 10m | Power Supply | 380V/3-Phase/50 or 60Hz |
Fiber Core | 50um | Overall Dimension | 1053x800x1225mm (LxWxH) |
Welding Speed | 0-120mm/s | Weight | ~280kg |
Welding Style | Wobble | Wire Feeder | Optional |
Wobbling Diameter | 1.7mm/2.0mm | Wire Diameter | 0.8/1.0/1.2/1.6mm |
Welding Seam Width | 2mm | Wire Feeding Speed | 3-12m/min |
Welding Thickness | 3mm (MS/SS), 2mm (AL) based on 1500W laser | Wire Material | Copper/SS/AL |
Recommend Products
Company Profile
About Raytools
RayTools designs and produces laser beam delivery systems, commonly called beam tools or processing heads.
Founded in 2005, RayTools is headquartered at its design center in Switzerland. Its processing heads are used for macro- and micro-processing applications, which includes cutting, welding, cladding and heat treatment etc.
RayTools processing heads have built-in intelligence, incorporating real-time sensing, feedback control loop, and adjustment capabilities.
RayTools has grown to be one of the largest beam tool suppliers in the world. It sells more units, to more customers, than any other company in its category.
Founded in 2005, RayTools is headquartered at its design center in Switzerland. Its processing heads are used for macro- and micro-processing applications, which includes cutting, welding, cladding and heat treatment etc.
RayTools processing heads have built-in intelligence, incorporating real-time sensing, feedback control loop, and adjustment capabilities.
RayTools has grown to be one of the largest beam tool suppliers in the world. It sells more units, to more customers, than any other company in its category.
