WD6 118 6140 Быстросменные инструменты 44 кг горизонтальный электроинструмент
- Категория: Machine Tools Accessories >>>
- Поставщик: Changzhou,Drake,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1059.93 $* | 1112.61 $* |
| Aug-16-2025 | 1050.68 $* | 1103.95 $* |
| Jul-16-2025 | 881.6 $* | 925.38 $* |
| Jun-16-2025 | 1032.72 $* | 1084.79 $* |
| May-16-2025 | 899.44 $* | 944.31 $* |
| Apr-16-2025 | 1015.36 $* | 1066.31 $* |
| Mar-16-2025 | 1006.45 $* | 1056.78 $* |
| Feb-16-2025 | 997.2 $* | 1047.32 $* |
| Jan-16-2025 | 988.11 $* | 1037.41 $* |
Характеристики

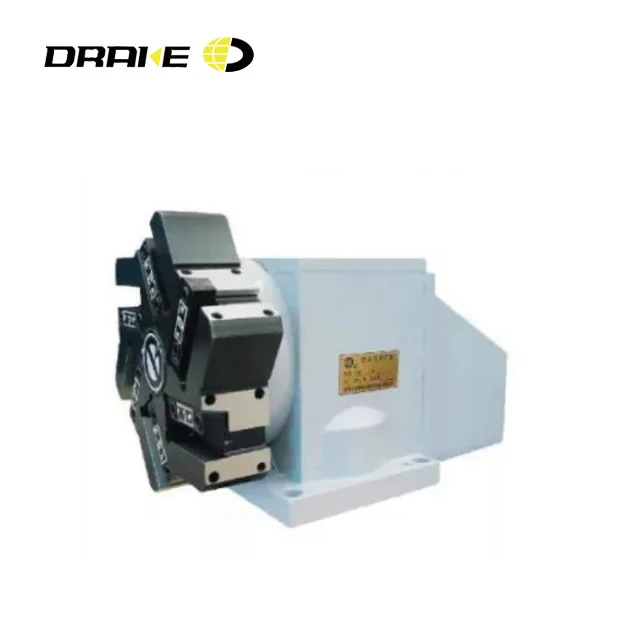

WD6 118 6140 quick change tools 44kg horizontal power tool turret
Product Description
Technical features:
Unidirectional choose tool, Non-Contact transmitter, gear teeth
Precise positioning, camlock-type, compact-conruct and reliable.
It suites for all kinds of lathes whose grades is higher than
C6140.
Parameters
Performance Parameters
| Model | Changing time(s) |
Max. allowable torque (Nm) |
The max bias torque (Nm) | Repeatability accuracy (mm) | Indexing accuracy | Motor power (w) | Motor speed (r/min) | Net weight (kg) | |||
| 60º | 120º | 300º | axial | tangential | |||||||
| WD**-100(0625) | 1.5 | 2 | 3.5 | 600 | 600 | 8 | <0.005 | ±7" | 60 | 1400 | 25 |
| WD**-118(6132) | 1.5 | 2 | 3.5 | 1200 | 1200 | 10 | <0.005 | ±7" | 120 | 1400 | 40 |
| WD**-118(6140) | 1.5 | 2 | 3.5 | 1200 | 1200 | 10 | <0.005 | ±7" | 120 | 1400 | 44 |
Size Parameters
| Model | Dimension | |||||||||||||||||||||||||
| H | A | B | C | D | E | F | G | 1 | J | K | L | M | N | 0 | P | Q | R | S | T | U | V | W | X | Y | Z | |
| WD6-100(0625) | 59 | 10 | 11 | 2 | 133 | 37 | 279 | 172 | 10 | 251 | 16 | 21 | 15 | 20 | 130 | 45 | 144 | 38 | 80 | 106 | 89 | 144 | 164 | 100 | 45 | 16 |
| WD6-118(6132) | 78 | 10 | 11 | 2 | 160 | 55 | 305 | 200 | 13 | 311 | 20 | 19 | 25 | 32 | 184 | 67 | 200 | 10 | 140 | 140 | 103 | 185 | 224 | 118 | 73 | 20 |
| WD6-118(6140) | 78 | 10 | 11 | 2 | 160 | 55 | 305 | 200 | 13 | 326 | 25 | 21 | 25 | 32 | 184 | 67 | 200 | 10 | 140 | 140 | 103 | 185 | 224 | 118 | 73 | 20 |
