Литий-ионный аккумулятор сырье алюминиевая ламинированная пленка для
- Категория: Composite Packaging Materials >>>
- Поставщик: Shandong,Gelon,Lib,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 21.12 $* | 22.35 $* |
| Aug-17-2025 | 21.70 $* | 22.32 $* |
| Jul-17-2025 | 18.84 $* | 19.71 $* |
| Jun-17-2025 | 21.12 $* | 22.42 $* |
| May-17-2025 | 18.62 $* | 19.94 $* |
| Apr-17-2025 | 21.26 $* | 22.39 $* |
| Mar-17-2025 | 20.15 $* | 21.52 $* |
| Feb-17-2025 | 20.56 $* | 21.18 $* |
| Jan-17-2025 | 20.36 $* | 21.61 $* |
Характеристики
Product Description

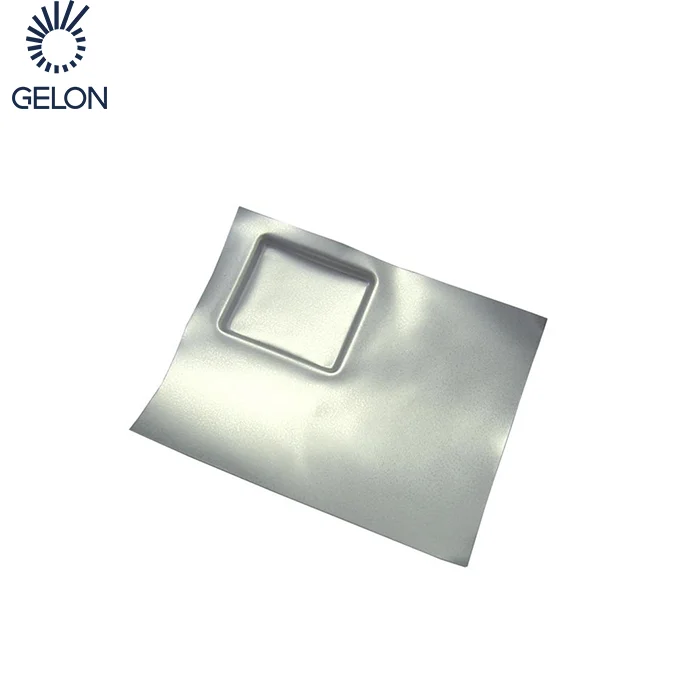

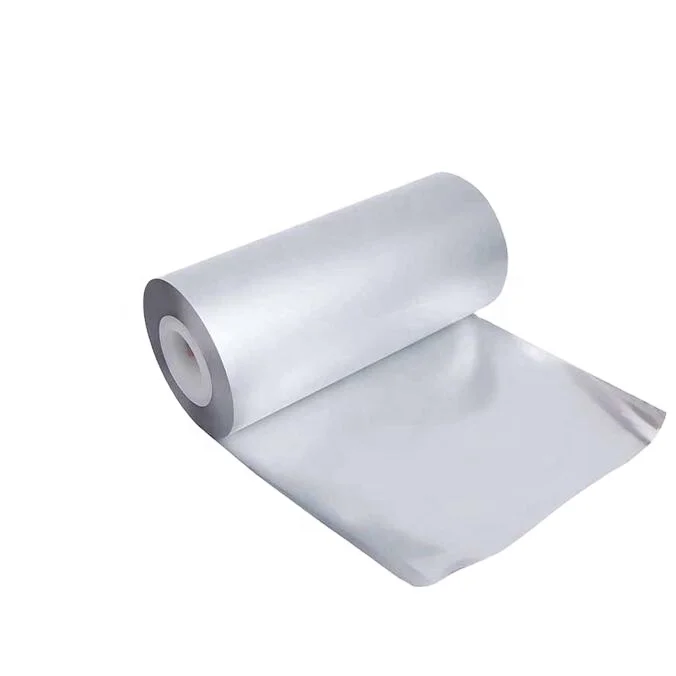

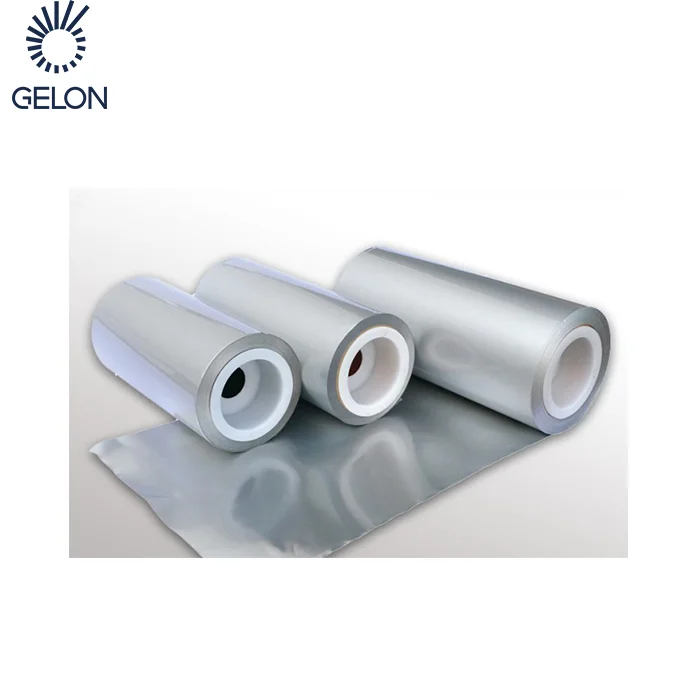

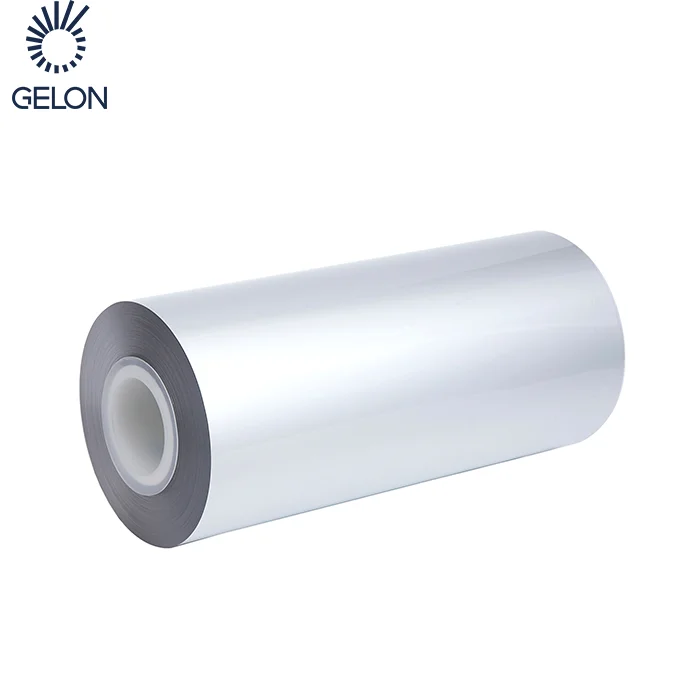

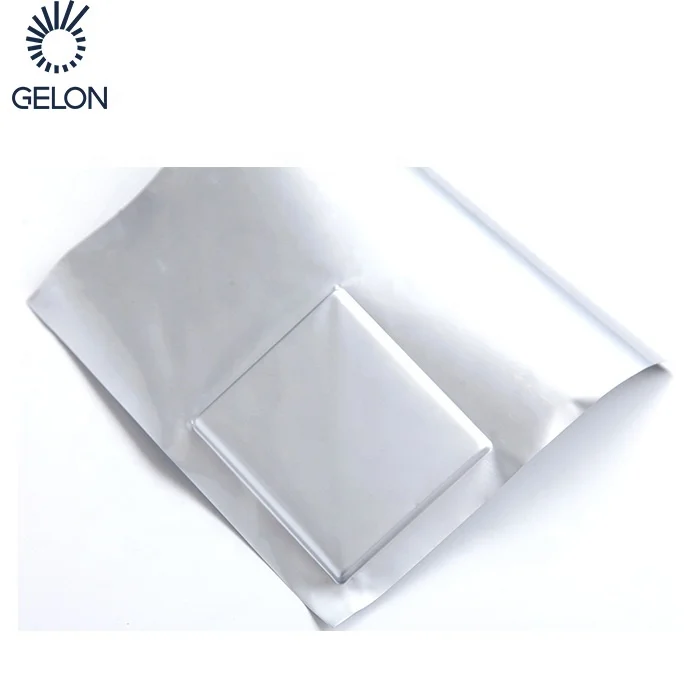

Lithium Pouch Cell Case Aluminum Laminated Film
Aluminum laminated film is one of the five major materials of lithium ion battery, and it is pouch lithium battery packaging materials. The aluminum laminated film consists of outer nylon layer/adhesive/intermediate aluminum foil/adhesive/internal heat seal layer.
product specifications | ||
Material | Aluminum Laminated Film ( Shodex) | |
Thickness | 113μm | |
Width | 400mm | |
Length | Length 7.5m 50m | |
Material & Composition | ||||||
Polyamide (JIS Z1714) | 0.025mm(+-0.0025mm) | |||||
Adhesive(Polyester-polyurethane) | 4-5g/ m² | |||||
Aluminum foil (JIS A8079,A8021) | 0.040mm(+-0.004mm) | |||||
Adhesive (Urethane-free Adhesive) | 2-3g/m² | |||||
Polypropylene | 0.040mm(+-0.004mm) | |||||
Quality inspection | ||||||
Surface quality | Mat finish | |||||
Pinholes | Subject to the applicable aluminum foil standard | |||||
Impurity | 1mm or less in diameter | |||||
Fish eye | 2mm or less in diameter(clear),1mm or less in diameter(coloured) | |||||
Molding Depth | ≥5.0mm | |||||
Electrical Insulating | Good | |||||
Heat Sealing Condition | 180-190°C | |||||
Related Products
Packing & Delivery

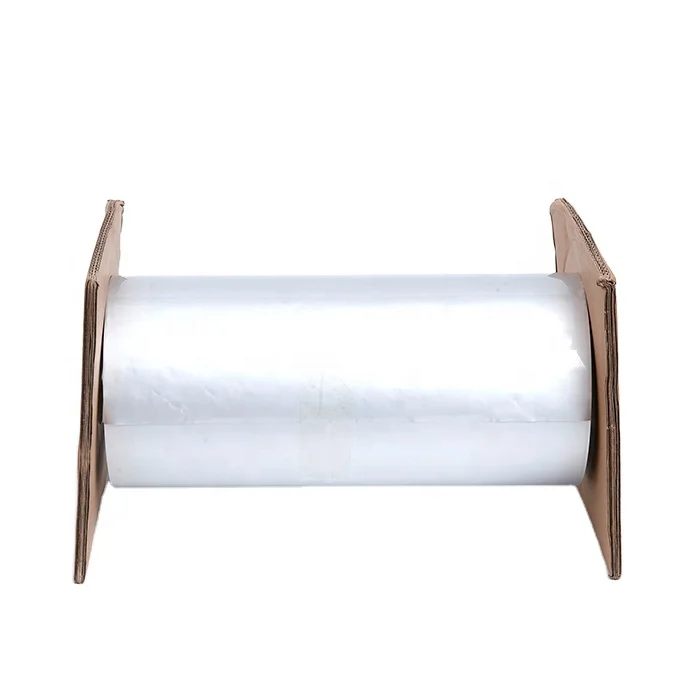

Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 5kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
