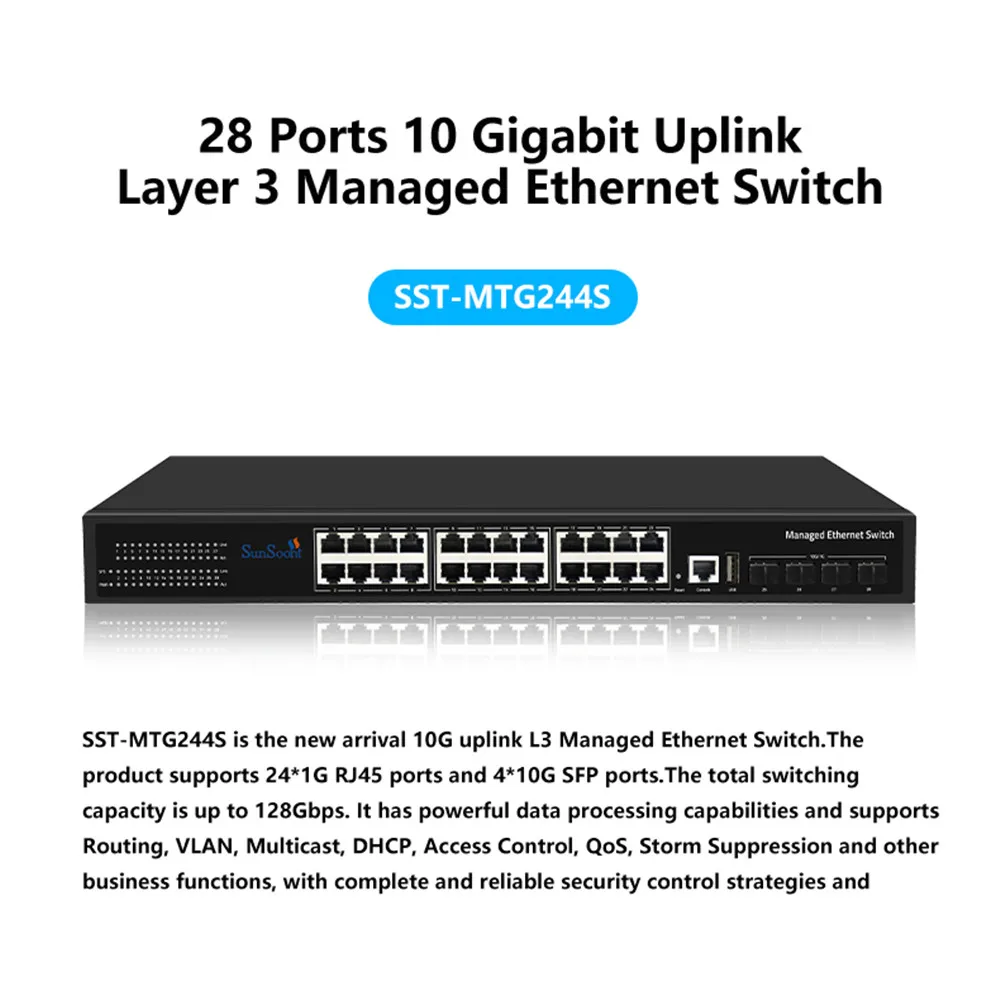

Layer 3 Managed 24 port 1000M Gigabit Switch with 10G SFP Port Network Switch 802.3af at
Sunsoont 28-port 10 Gigabit uplink 24-port Gigabit managed Ethernet switch. Support 24 * 10/100/1000 adaptive electrical ports, 4 * 10 Gb SFP+ ports, 1 console port, and 1 USB serial port. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection; The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. Advanced security functions and advanced quality of service (QoS), can be used as core layer, distribution layer or access layer switch with high density port, switch stacking and easy management, are ideal for various commercial network applications.
Feature
* Support IEEE 802.1d、IEEE 802.1w、IEEE 802.1s、IEEE 802.1p、IEEE 802.3、IEEE 802.3u、IEEE 802.3x、
IEEE 802.3z、IEEE 802.3ab、IEEE802.3ae standards;
* L3management, support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2； * Support STP/RSTP/MSTP(ERPS), Support loop detection and self-healing, support remote loopback monitoring and control（3ah OAM）; Support IPV4/IPV6 * Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN; * Support IP address+ MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;
Supports VLAN assignment based on port, protocol, MAC
Support GVRP dynamic VLAN registration
Voice VLAN
MAC
Support static add, delete
MAC address learning limit
Support for dynamic aging time settings
Spanning Tree
Support 802.1d (STP)
Support 802.1w (RSTP)
Support 802.1s (MSTP)
IGMP-snooping
Support static add, delete
Supports v1 / 2/3 dynamic multicast listening
L3 & Router
Interface configuration
Support SVI port
ARP
Support static ARP
Support setting ARP Aging time
VRRP
Supports VRRP route backup
ND
Support IPv6_ND configuration
Router
Static router
RIP(V1/V2)/ OSPF(V2) /BGP
RIP/OSPF/BGP Support route authentication function
RIP/OSPF/BGP Support route import, filter function
Extender function
ACL
Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number
Support time-range time period management
QOS
Based on 802.1p (COS) classification
Based on DSCP classification
Based on source IP, destination IP, port number classification
Support SP, WRR, DRR scheduling strategy
Support rate speed limit CAR
LLDP
Supports LLDP link discovery protocol
User setting
Add/Delete users
Log
User login, operation, status, event log
Anti-attack
DOS Defense
Support CPU protection, limit the rate of sending cpu packets
ARP Bind(IP,MAC,PORT Bind)
Network diagnosis
Support ping,telnet,trace
System management
Device reset, configuration save / restore, upgrade management, time setting, and so on
Management Function
CLI
Supports serial command line management
TELNET
Support telnet remote management
WEB
Support L2
Product Application
Packing & Delivery
Company Profile
Shenzhen Sunsoont Technology Co, . Ltd. was established in Shenzhen, China, is a professional optical fiber network communications equipment production, R&D and sales in one of the manufacturers, our main products include POE switches, industrial Ethernet switches, fiber switches, fiber media converter, wireless network devices and other communication products.
As a national high-tech enterprise, we have a number of scientific research patents, and strictly abide by ISO9001 and CE, ROHS international standards in the production process. The company has 4, 000 square meters of industrial plant and nearly technical team, 4 production lines, a complete set of testing aging equipment, perfect production process and strict inspection process, and a sufficient inventory, to ensure the product reliability and rapid market response.
The company not only owns its own brand "SUNSOONT", but also a large number of professional OEM/ODM production bases in the industry, providing all-round design and manufacturing solutions for customers at different levels of domestic and international demand, and providing cost-effective products and services!
