SP150VF Radar Video Perimeter Alarm System



Application background:

To avoid unexpected intrusion activities!





Why to use radar in perimeter surveillance?

Comparing with the traditional security technologies like video analytics, passive infared, and thermal etc, the radar is not affected by bad weather, and no false alarms by insects, shadows etc. It will save video record greatly, and guide camera to monitoring.

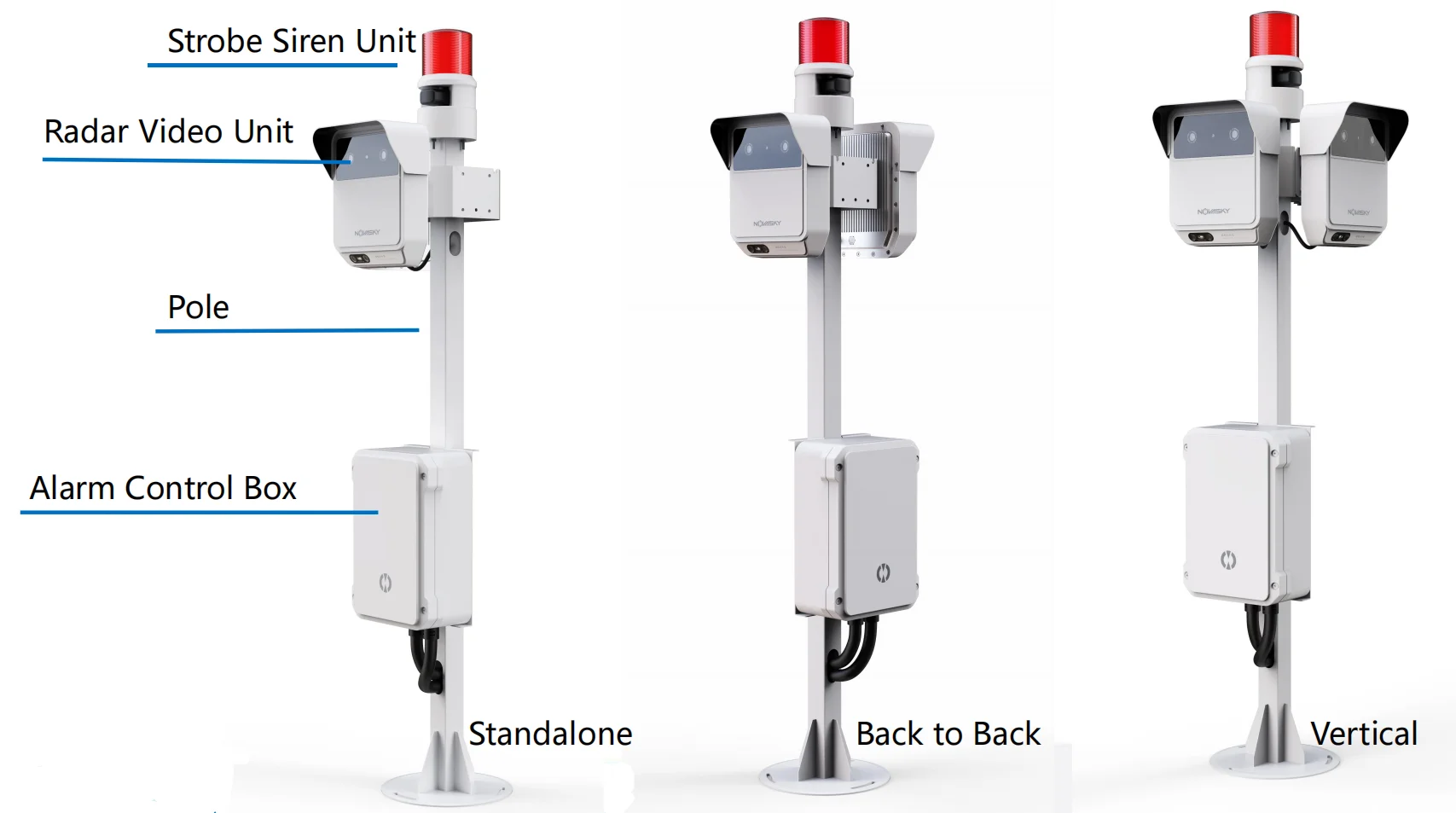

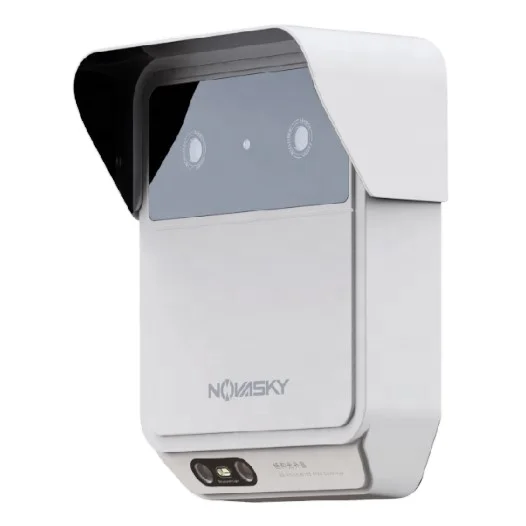

All-in-one Radar Camera Perimeter Alarm System Introduction

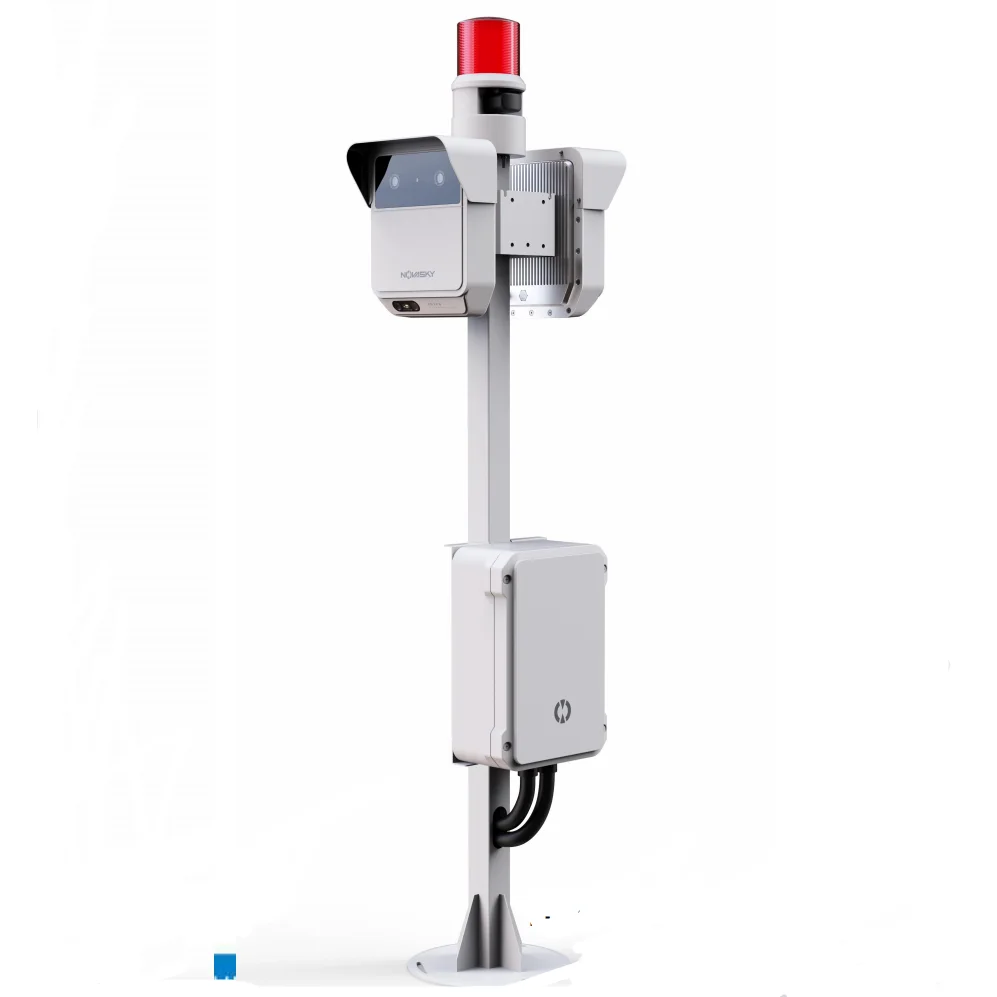

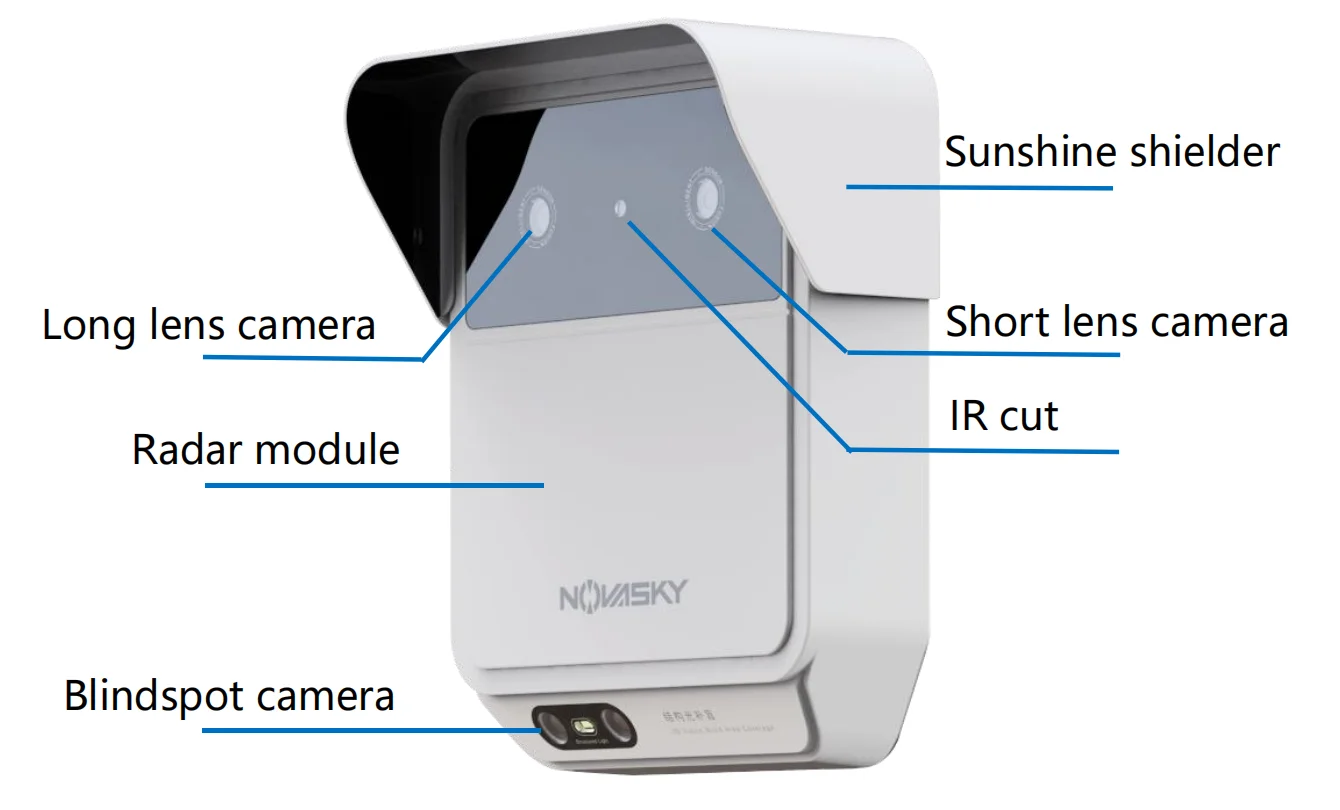

Intelligent multi sensor fusion perimeter security system SP150VF, is mainly consist of intelligent MMW detecting radar, long range IR camera and 3D vision blind area coverage module in an integrated structure. This system is working based on the MMW detecting radar’s continuously scanning of the protection area, integrating with edge AI deep learning algorithm, realized real time alarm and video tracking of the moving intrusion target and in the protection area. It is able to intelligently recognize different intrusion target like human and vehicle, filtering out false alarm like animal, trees, rain etc, and supporting unattended operation of perimeter control. It is widely used in high-end perimeter security area such as military, prison, power grid, railway, airport and so on.









Advantages of integrated radar camera detection

System Features:

1. Valid Protection Distance:0-150M(Human Cross)

2. Intrusion Responding Time:≤1s

3. Human Intrusion Detection Rate:≥99.9%

4. False Alarm Rate:≤1%

5. Case Detection:Perimeter Intrusion,Line Cross,In/Out Control

6. Interface:RJ45 Ethernet(100M/1000M/Fiber Optic); Alarm in-2CH; Alarm out-2CH (DC30V1A/AC110V500mA); RS845 CAN-BUS-1CH

7. Work Temperature:-40~70℃; Storage Temperature: -40~85℃

8. Humidity: ≤95%

9. Power:20W @220V AC Day; 45W @220V AC Night (IR); Max: ≤100W @220V AC Cold Night (Heating is ON)

10. IP67



Radar Features:

1. Radar Type:24GHz, MIMO, FMCW Radar

2. Detection Mode:Doppler moving object detection for both low & quick condition.

3. Detection Distance:≥150m(For Human Target)

4. Radar FOV: 20° Elevation: 13°

5. Max Detection Speed:30m/s;Min Detection Speed:0.1m/s

6. Distance Resolution:0.5m;Distance Accurancy:0.5m

7. Angle Accurancy:±1°;



Video Camera Feaures:

1. Camera FOV:≥120°; Camera Elevation:≥90°

2. Video Analysis: Differenciate moving target like human, vehicle and animal, filtering trees and rain false alarms.

3. Low light, IR cut, IR distance 150m;

4. 1080P/60fps; H264/H265

5. ONVF, GB28181, TCP/IP, HTTP, RTSP/RTP/RTCP



Other Features:

1. Strobe siren included, ≥110dB;

2. Siren audio self-definable; USB interface;

3. Cooling fan & Heating warming built inside;



System Features:





2. AI deep learning algrithm adopted to process front devices' information.

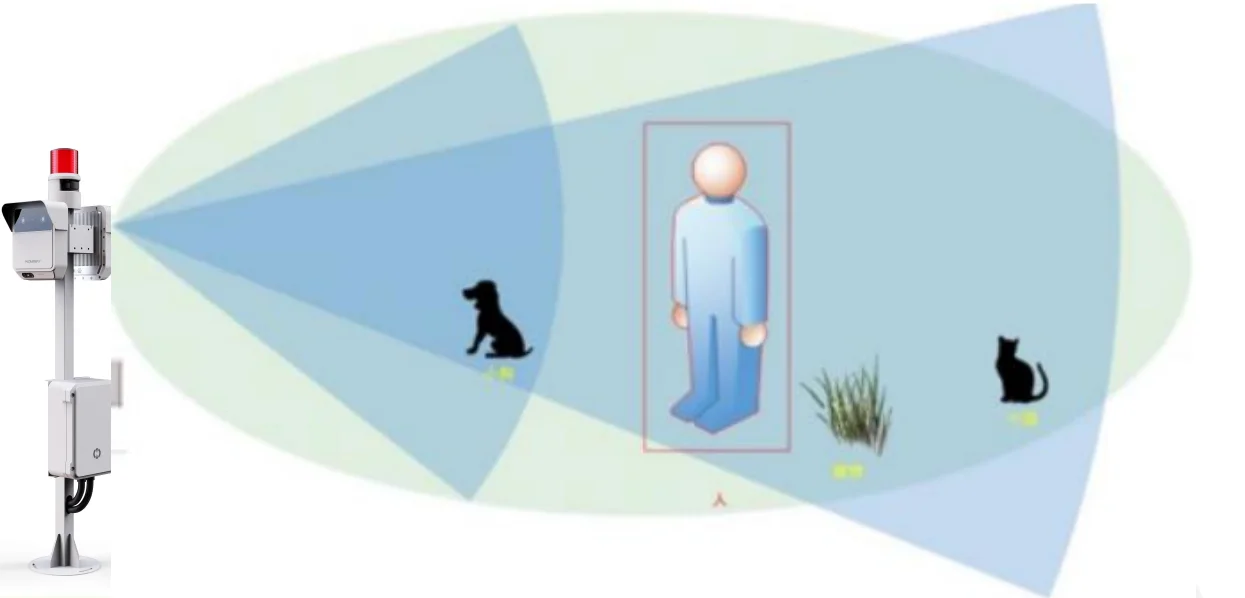

3. AI enhanced multiple targets classification: Differentiating human from animals, Filtering false alarm caused by grass & trees.

4. Integrated compact design; easy installation & deployment.







Radar test and use

(1) We are providing following tools for radar test:

No.	Device name	Qty
1	NSR150VF harddare	1
2	PC	1
3	12V DC power supply	1
4	PC test software	1



Nanoradar, established in 2012, is specialized in developing, producing and selling millimeter wave radar for security, UAV, automotive, smart traffic and other industrial application. Our products covers 24GHz, 77GHz, 79GHz frequency band. We have successfully developed 10+ models MMW radar products. Nanoradar’s radar detection range covers 30-450 meters. The accuracy is up to 85% for security radar to identify pedestrians. As a leading MMW radar manufacture in China, Nanoradar products also well accepted in overseas market like US, Korea, UK, and France etc.



Nanoradar is providing 24GHz / 77GHz Radar Sensors and Systems.

1. NRA24---24GHz 50~200 meters UAV Altimeter Radar.

2. MR72---77GHz 40-80 meters UAV collision avoidance radar
3. CAR28T / 28F---Vehicle BSD/LCA radar
Heavy-duty vehicle collision avoidance radar.
4. MR76---77GHz 160 meters Automotive ADAS radar ( ACC/AEB)
5. NSR60W/NSR100W/NSR300W---Security perimeter intruder detection



Professinal Nanoradar team produce professional radar products!





FAQ





1) Q: Why there is no response when the radar sensor is powered up?

A: There will be two buzzer beeps when the radar is powered on. If you do not hear the sound, check whether the power line is connected well, and whether the polarity of power cord is correct. The radar power supply voltage should be 12V DC and the operating current should be about 400mA.



2) Q: Why it couldn't normally detect targets even if the radar is correctly powered on?

A: Please check whether the radar installation direction is correct. Kindly refer to "The definition of structure direction" to check. And with a special FMCW simulator to check whether the radar output is normal.



3) Q: Why there is target signal output when there is actually no target?

A: Please check whether the radar installation is aimed at the target area, and whether there is vibration for the radar installation pole. Check whether the ground connection is correct.
