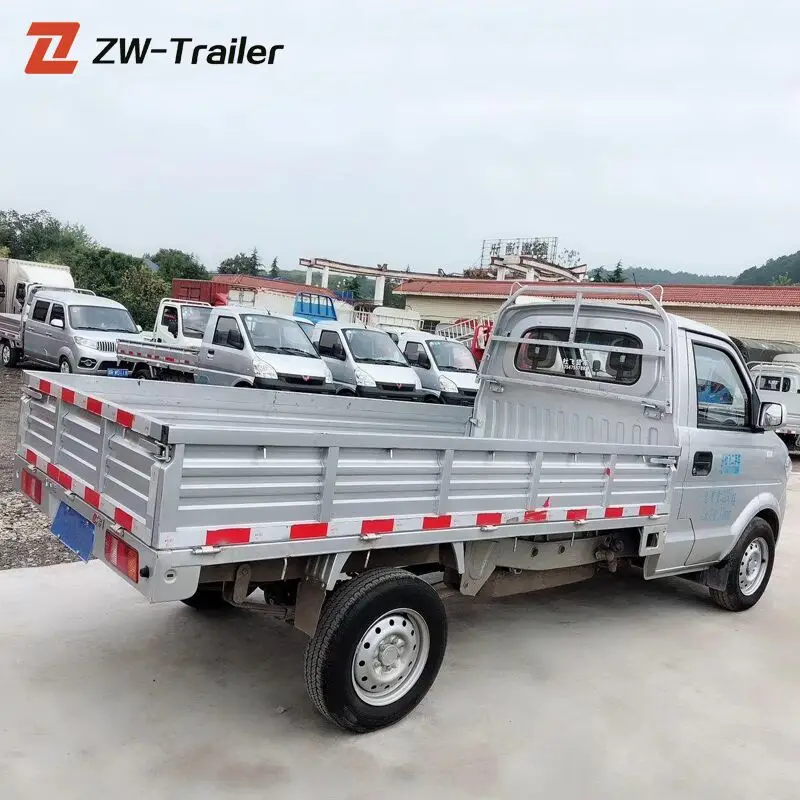

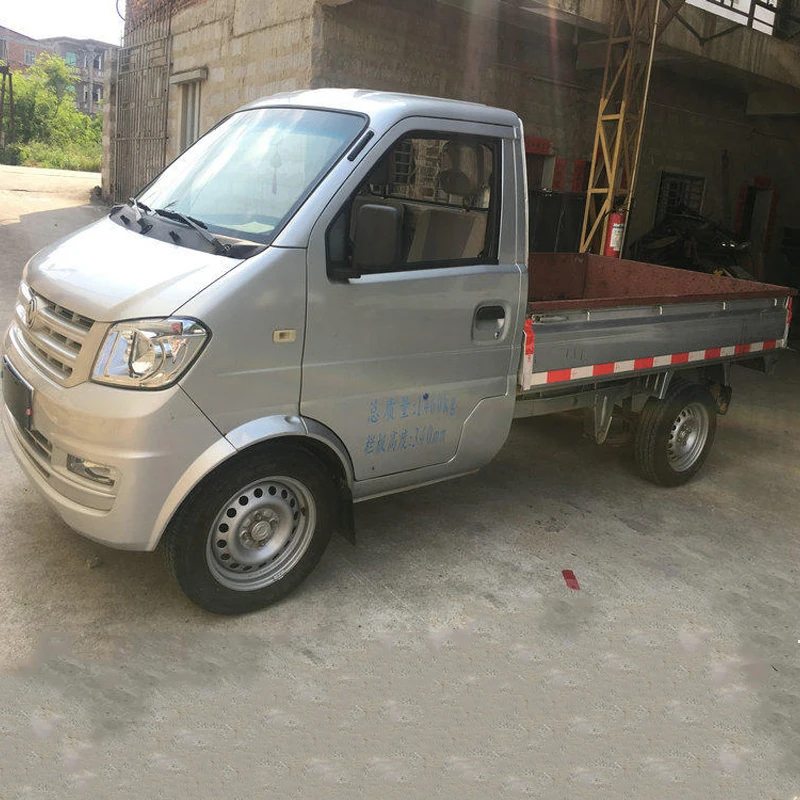

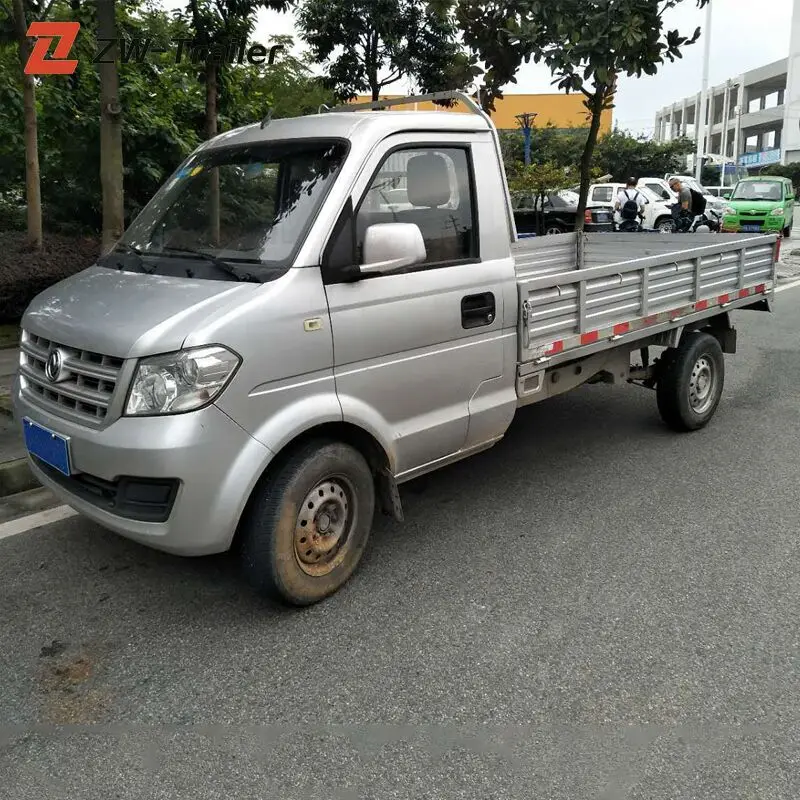

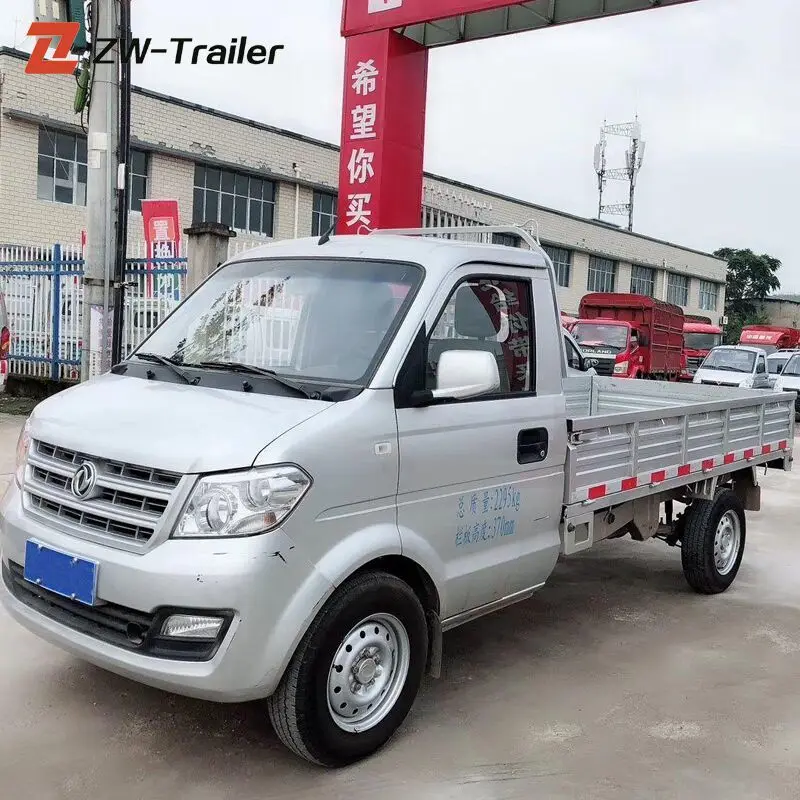

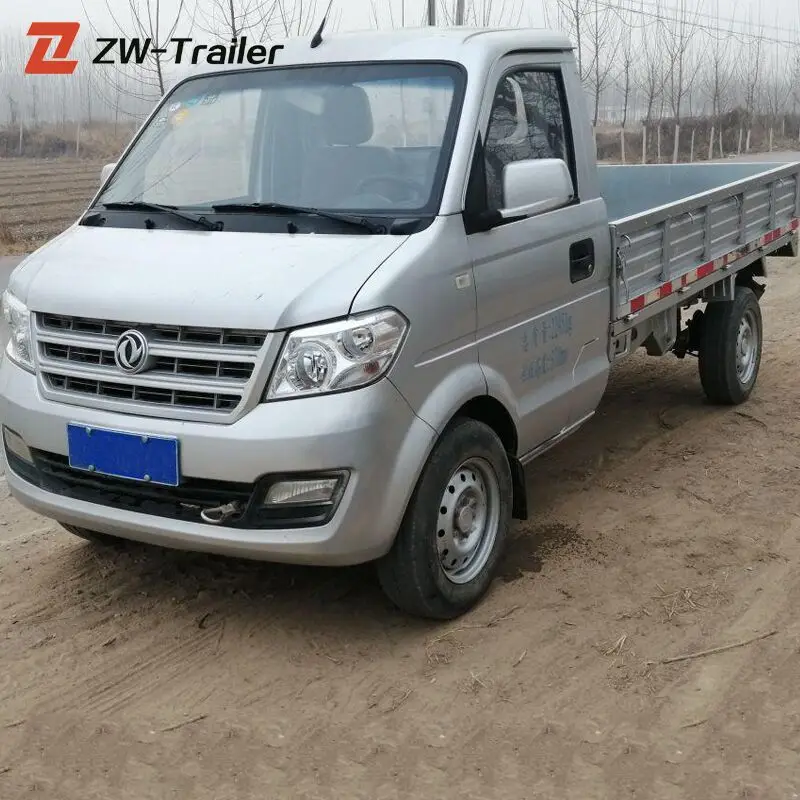

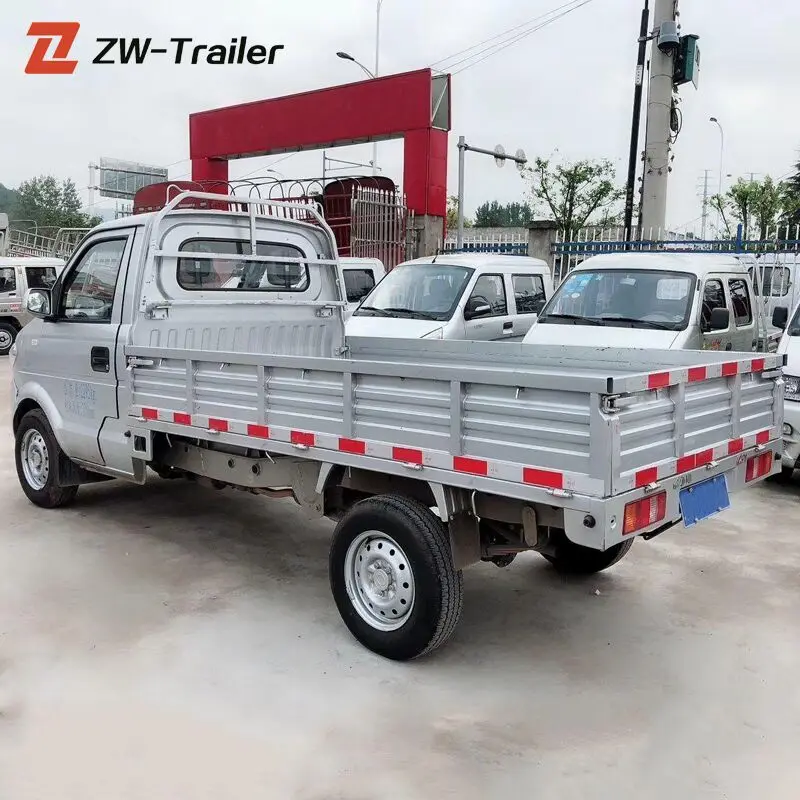

6 wheel 4x2 capacity LHD RHD 5T 8T 10T Light duty Mini truck with the latest technology designed according to end-user needs. It has changed the traditional concept of light truck design and use, but puts the popularity of people's care and use in an important position. In addition to the high performance and function requirements, the design brings joy and comfort in terms of appearance and driving space. Light weight, wide range of uses, mainly for short-distance freight transport, it is easy to operate, to meet the diverse needs of users.
Trailer Parameters
Vehicle parameters
Vehicle Model
HLW1031PBBNZ1
Vehicle Brand
YUEJIN
Overall dimensions
4955×1735×2060(mm)
Curb weight
1370kg
Van dimensions
3100×1615×320(mm)
Loading capacity
2000kg
Chassis parameters
Chassis model
NJ1031PBBNZ1
Chassis brand
YUEJIN
Overall dimensions
4780x1545x1950mm
Wheel base
2500mm
Front/rear wheel track
1270/1180mm
Front/rear suspension
1080/1200 mm
Approach/departure angle
17/14°
Maximum speed
85km/h
Chassis Manufacturer
Nanjing Automobile Group
Cab
Configuration
Single row cab
Color
white, other color is optional
Engine
Model
YZ4DC1-40
Emission
Euro 2
Type
4 cylinder, inline, water-cooled, four stroke, turbocharged, medium cooling
Rated power
60kW /82hp, rated power speed 3200rpm
Displacement
2160ml
Max.torque
200N.m
Bore x stroke
85X95mm
Manufacturer
Yangzhou Diesel Engine Co.,Ltd
Tire
Size
6.00-13Nylon tire
Number
6+1 nos
Drive form
4X2
Suspension
Multi leaf springs
Rated voltage
24V, DC
Transmissions
5 speed forward 1 reverse.
Steering device
Power assisted steering
Steering wheel
Left hand drive
If there is a slight change in the chassis parameters above, please take the actual product as the standard
