Характеристики
Products Description
Product Feature
■High efficiency
●Equipped with 60 kW quality motor and HST + 60A mechanical gearbox, the 1.9/2.2 m pickup unit has stronger powerful and better operation efficiency;
●Double down-beater straw conveying structure is designed for wet straws, which can efficiently avoid straw clogging at the conveying part and greatly improve operation efficiency;
●Double down-beater straw conveying structure is designed for wet straws, which can efficiently avoid straw clogging at the conveying part and greatly improve operation efficiency;
●37cc/r large displacement HST and short machine length facilitate control, flexible steering and faster operation speed;
●66 kW Yuchai motor is optional; ●Manipulator is optional, which can save labor and improve efficiency
●66 kW Yuchai motor is optional; ●Manipulator is optional, which can save labor and improve efficiency
■High reliability
●Double beam structure made of high strength manganese steel is adopted for the chassis, with higher bearing capability;

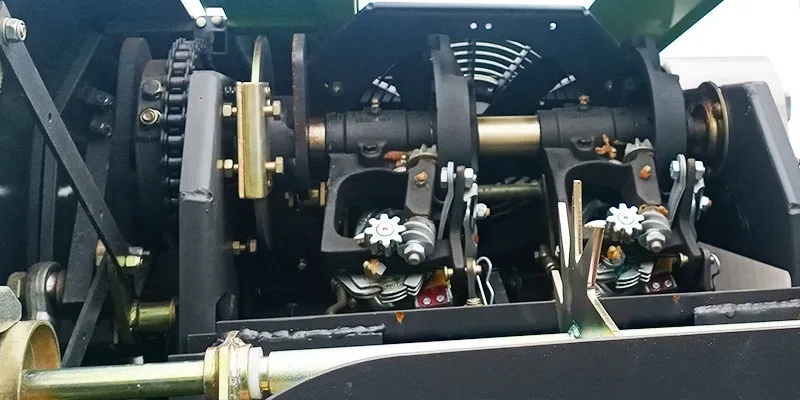

●High-end knot-tying device from Germany is adopted. The bale frame, piston parts and other key parts are made by ourselves, which
efficiently ensure the high reliability of the machine.
●High-end knot-tying device from Germany is adopted. The bale frame, piston parts and other key parts are made by ourselves, which
efficiently ensure the high reliability of the machine.
■High adaptability
●258 mm ground clearance and standard 450 / 400 mm wide crawler effectively reduce the ground pressure and brings strong paddy
field passing capability;

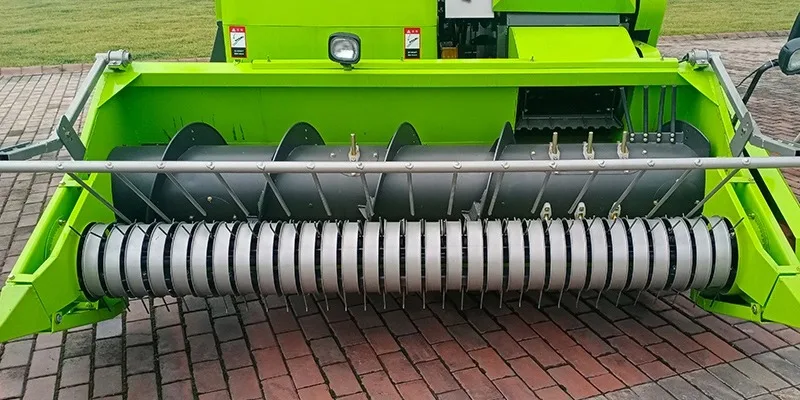

●The front-mounted pickup unit can avoid the crawler crushing, meet the operation needs of different pickup width; thoroughly
pickup;
field passing capability;
●The front-mounted pickup unit can avoid the crawler crushing, meet the operation needs of different pickup width; thoroughly
pickup;
●The 3.59/3.56m³ large mower rake can effectively reduce the intensity of the field pickup, so it is more suitable for paddy field
operation;
●To improve the adaptability of the pickup system, rubber belt is added to the spacing chassis at both sides of the pickup unit
and both sides of the drum to reduce clogging rates.
●To improve the adaptability of the pickup system, rubber belt is added to the spacing chassis at both sides of the pickup unit
and both sides of the drum to reduce clogging rates.
■Upgraded items of the product
●Upgraded front and rear feeding drum material and enlarged shaft diameter; cast self-aligning bearing seat is adopted for auxiliary support to resolve shaft bending and breaking failure.
●In case of dry straw and large feeding operation, straw pressing device can be mounted to improve operation efficiency.
●Optimized chassis structure: high strength manganese steel double beam is adopted at key parts to avoid cracking and deformation failure.
●Optimized pickup structure and pickup platform baseplate radian: smoother straw conveying.
●Feeding auger is upgraded to double belt drive: the driving power is increased by 30% and feeding clogging is resolved.
●Upgraded front and rear feeding drum material and enlarged shaft diameter; cast self-aligning bearing seat is adopted for auxiliary support to resolve shaft bending and breaking failure.
●In case of dry straw and large feeding operation, straw pressing device can be mounted to improve operation efficiency.
●Optimized chassis structure: high strength manganese steel double beam is adopted at key parts to avoid cracking and deformation failure.
●Optimized pickup structure and pickup platform baseplate radian: smoother straw conveying.
●Feeding auger is upgraded to double belt drive: the driving power is increased by 30% and feeding clogging is resolved.
Product Paramenters
Type | 9YZ-1900/2200FA |
Pickup width | 1900/2200mm |
Structural type | Crawler self-propelled |
Type of knot-tying device | Type D |
Number of knot-tying device | 2Pcs |
Compression chamber sectional dimension (width × height) | 480×360mm |
Reciprocating times of baling pistion | 100t/min |
Overall dimensions in operating state (L × W× H) | 5150×2500×2830mm |
Matched power | 60/66kw |
Bale length | 350～1200mm |
Capacity of mower rake | 3.5㎥ |
Crawler size | 450×90×51 section /400×90×51 section |
Wheat | 8～12Mu / hour |
Rice | 5～8Mu / hour |
Wheat (moisture content ≤20%) | ≥100 |
Rice (water content ≤30%) | ≥130 |
