Product Description

Slot Die Extrusion Roll to Roll Coating Coater Machine For Lithium ion Battery Electrode Production Line

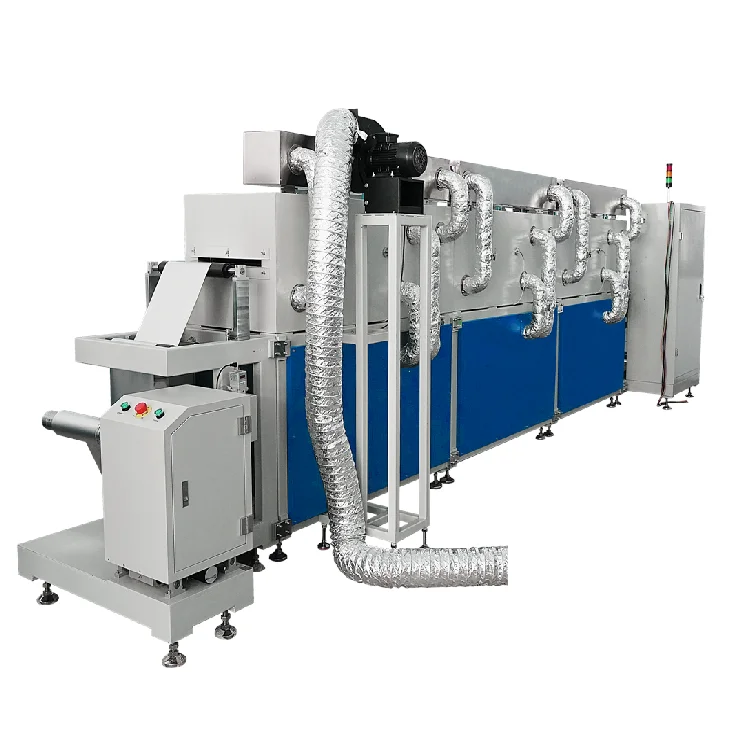

TMAX-AFA-MC400 is a versatile roll to roll coating system which can adapt various coating heads such as reverse comma blade, Doctor Blade, Slot Die and Micro Gravure and Tape Casting. A 4.5 meters long, three zone convection drying oven with independent temperature programming is implemented for efficient slurry curing. This is the most complete and universal pilot coating system that provides a broad adaptability to various coating slurries and film substrates (Cu, Al, PET, PP, PE).

Doctor Blade: Cost effective solution for 8~200 micron thick coatings (Continuous mode only)

Reverse Comma Blade (Transfer Coating): Cost effective solution for 30~200 micron thick coatings (Both continuous & intermittence mode)

Tape Cast Coating: Ideal for performing thicker coating up to 1000 microns with high viscosity slurry

Micro-Gravure: Perfectly suitable for precise thin coatings from 1~3 microns (dry film thickness)

Slot Die: Suitable for precision coatings as thin as 1 micron while providing a wide coverage for thicker coatings upto 200 microns

Specification

Working Voltage	110 - 240 VAC, 50/60 Hz, three Phase (380VAC three phase is available upon request)
Max. Power Consumption	30-35 KW ( 50A Air breaker required )
Compressed Air	0.5-0.9 MPa is required (Air compressor not included. Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
Reeling/Unreeling Diameter	350mm O.D Max. Reeling/Unreeling shaft diameter: 3 inches
Coating Width	350mm Max.
Coating Speed	Max.5000mm/min
Coating Heads Reverse Comma Blade Doctor Blade Tape Casting Slot Die Micro-Gravure	Doctor Blade Coating	Continuous coating mode only Coating thickness range: 10~200um ( dried film ) Typical slurry viscosity range: 500~10000 mPa.s Precision: ±5μm (gap adjustment solution 1um); Edge to center thickness tolerance +/-8um MSK-155 auto-slurry feeder with 2 liters tank is available at extra cost, please click underline to view details.

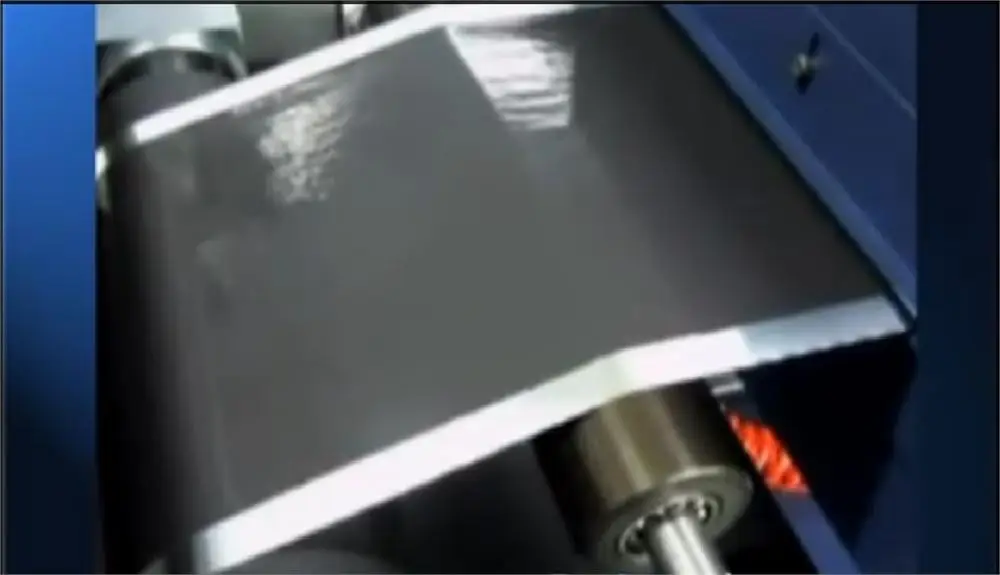

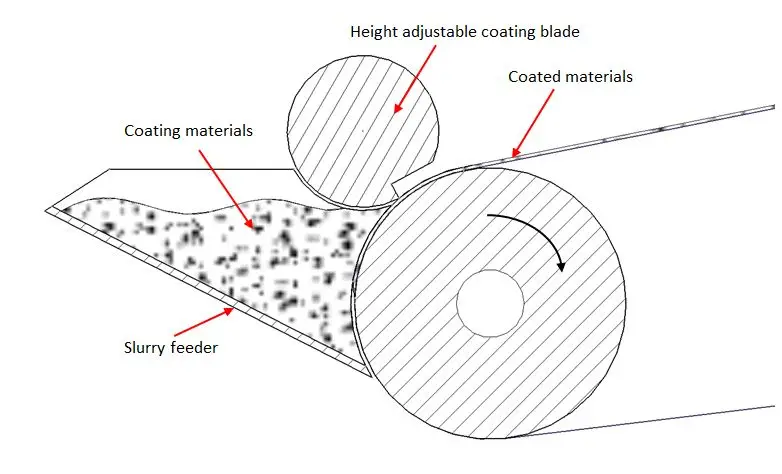

	Reverse Comma Blade (Transfer Coating)	Two available coating modes (continuous and intermittent) selectable on the control panel. Coating thickness range: 30~200um ( dried film ) Typical slurry viscosity range: 500~10000 mPa.s Precision: ±3μm; Edge to center thickness tolerance +/-5um MSK-155 auto-slurry feeder with 2 liters tank is available at extra cost, please click underline to view details.
	Cast Coating	Tape casting technique is ideal for handling thicker slurry 5000~20000 mPa.s and thus thicker film coating is achievable (up to 1000um) Continuous coating mode only Precision: ±5μm (gap adjustment solution 1um); Edge to center thickness tolerance +/-8um MSK-156 slurry feeding screw pump with 4 liters tank is included, please click underline to view details

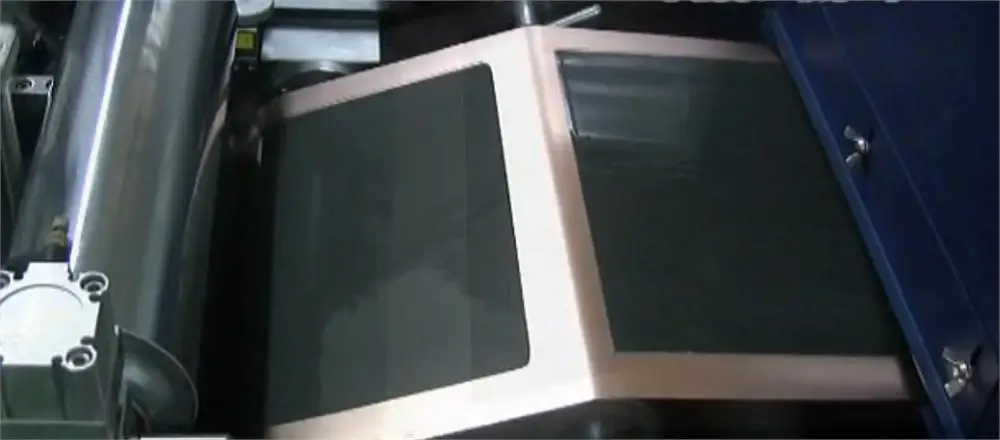

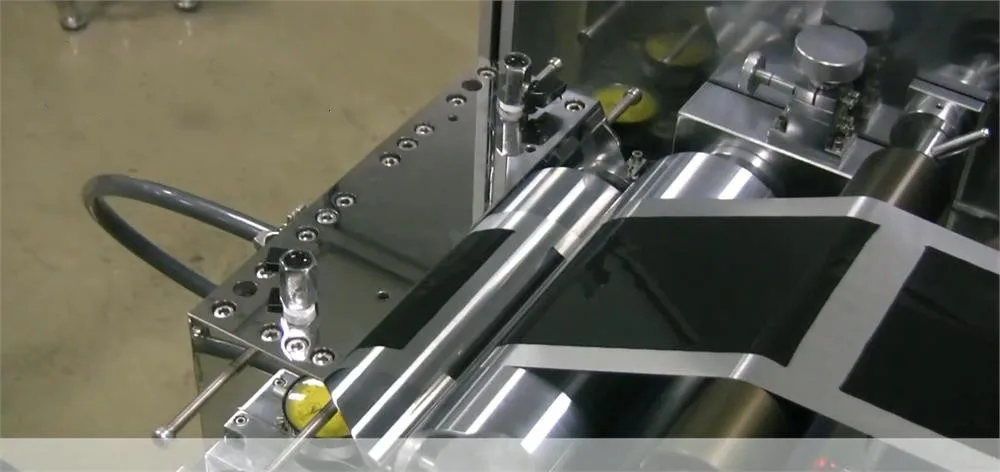

	Slot Die coating	The slot die is perfect for uniform film coating of 1 micron and up to 200-micron thickness. By changing the shim size with various patterns, you would be able to produce continuous, intermittent, or even grid coatings that match the shim patterns. Please refer to the pictures in below for more details: Slurry feeding screw pump with 4 liters tank is included, please click underline to view details Minimum thickness & precision: 1 µm ( dried film ), ±1% Typical slurry viscosity range: 200~10000 mPa.s Attention: The final coating thickness is dependent on a wide range of parameters such as slurry viscosity, solid particle size, solid content, shim thickness, foil rolling speed and slurry feeding rate. Therefore, we are not able to guarantee that 1-micron level film is achievable for all kinds of slurries. For further discussion, please let us know your slurry specs and coating thickness requirement.
	Micro-Gravure Coating	Continuous and intermittent coating modes are available for the user. Coating thickness range: 1~3um ( dried film ) Typical slurry viscosity range: 30~1000 mPa.s auto-slurry feeder with 2 liters tank is included

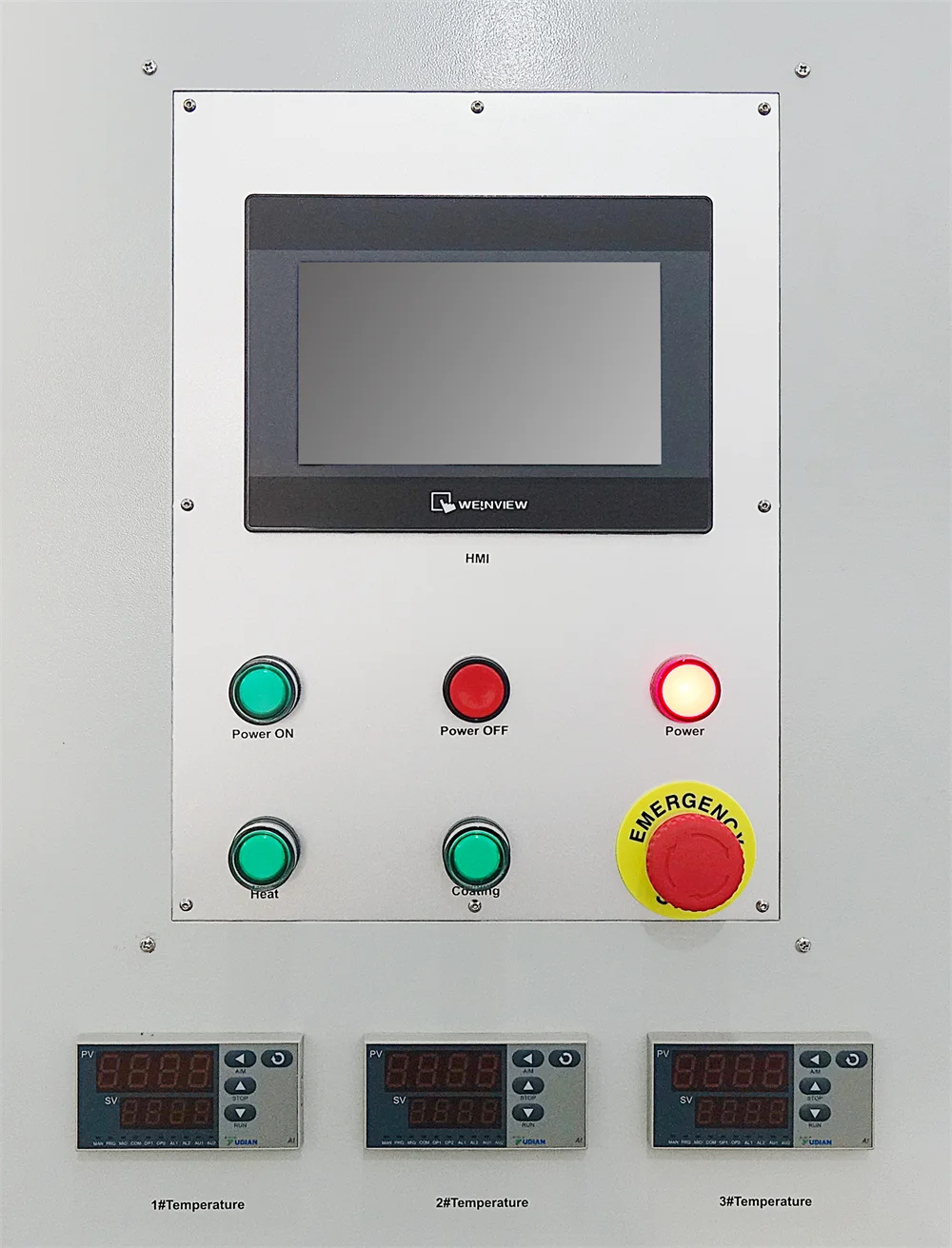

Convection Drying Oven	Three zone design with independent temperature controllers. Air flow rate:9.5/2800 ( cm³/RPM ) max. for a single zone, flow rate adjustable Drying temperature: 150°C max ±5℃ Power Consumption: 9KW for single zone (27KW total) Heater length: 1.5m for single zone (4.5m total)
Product Dimensions	L6800mm x W1200mm x H1900mm
Compliance	CE Certified
Warranty	Two Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty
Application Notes	Customers are welcome to visit our facility to receive technical training before shipping of equipment
Net Weight	13t
