TJ-40 машина для склеивания углов жесткой коробки
US $1300-$1400
Высокоскоростная полностью автоматическая машина для зачистки бумажных
- Категория: >>>
- Поставщик: Wenzhou,Qianding,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 33179.12 $* | 33843.0 $* |
| Jul-19-2025 | 26909.43 $* | 27447.52 $* |
| Jun-19-2025 | 32656.43 $* | 33309.48 $* |
| May-19-2025 | 32395.99 $* | 33043.48 $* |
| Apr-19-2025 | 25864.13 $* | 26381.61 $* |
| Mar-19-2025 | 31873.10 $* | 32510.9 $* |
| Feb-19-2025 | 31611.89 $* | 32243.85 $* |
| Jan-19-2025 | 31350.16 $* | 31977.81 $* |
Характеристики
Details Images

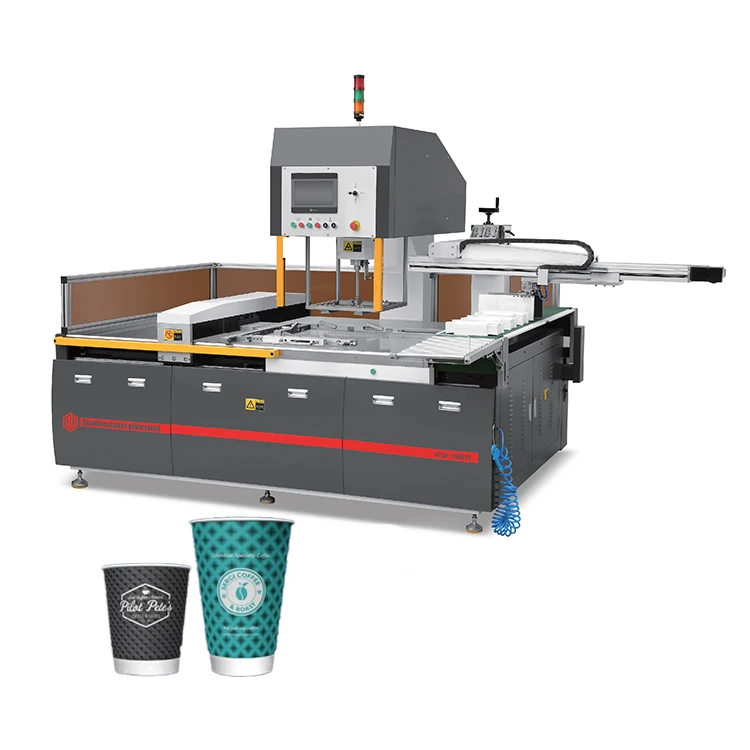

QDQF-1080TR
Automatic Stripping +Rotary Head+Manipulator
Main Function:
1. Taking out finished products after die cutting process,for waste stripping.
2. Applied for many die cutted products such as labels, hang tags, business cards,
gift boxes, food boxes, paper cups and other die cutting products in paper or plastic
or PU leather.
3. Rotary head of stripping to take out the opposite direction die cutting products
easily .
4. Automatically taking out product with manipulator arm and stack product onto
delivery belt.
5. PLC controlled with smart & easy operation.
6. Automatic lubrication system for machine better maintenance.
8. Different shapes can be custom-made as customer requirement.
2. Applied for many die cutted products such as labels, hang tags, business cards,
gift boxes, food boxes, paper cups and other die cutting products in paper or plastic
or PU leather.
3. Rotary head of stripping to take out the opposite direction die cutting products
easily .
4. Automatically taking out product with manipulator arm and stack product onto
delivery belt.
5. PLC controlled with smart & easy operation.
6. Automatic lubrication system for machine better maintenance.
8. Different shapes can be custom-made as customer requirement.
Adjustable hydraulic system
Safety fence
Centralized lubrication system
Paper gauge with hidden motor and ball screw
Model | QDQF-680TR | QDQF-920TR | QDQF-1080TR |
Machine Size | L2600xW1400xH1950 | L3100xW1800xH1950 | L3600xW2050xH1950 |
Max sheet size (X x Y) mm | 680 x 480 | 920 x 680 | 1080 x 780 |
Min sheet size (X x Y) mm | 400 x 300 | 550 x 400 | 650 x 450 |
Max pile height / mm | 100 | 100 | 100 |
Min pile height / mm | 40 | 40 | 40 |
Work table height mm | 850 | 850 | 850 |
Max product size to be punched out | 230 x 230 | 360 x 360 | 390 x 390 |
Min. product size to be punched out | 30*30 | 30*30 | 30*30 |
Stripping speed times/min | 15-22 | 15-22 | 15-22 |
Max. force (bar) | 70 | 70 | 70 |
Air consumption L/min | 4 | 4 | 4 |
Rotary Head Degree | 0-180◦ | 0-180◦ | 0-180◦ |
Manipulator Grip Range /mm | 30-180mm | 30-260mm | 30-300mm |
Manipulator Grip Weight | 50-1200g | 50-1500g | 50-1800g |
Max Power | 5.2kw 380V | 5.4kw 380V | 5.4kw 380V |
Net Weight | 1.8T | 2.2T | 2.6T |
Package Size | 2100x1500x2200 | 2700x1950x2250 | 3100x2250x2250 |
Gross Weight | 2.1T | 2.5T | 3T |
