Переносной радиографический аппарат с мобильным
- Категория: Other Radiology Equipment & Accessories >>>
- Поставщик: Medsinglong,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.67 $* | 0.67 $* |
| Aug-19-2025 | 0.37 $* | 0.98 $* |
| Jul-19-2025 | 0.54 $* | 0.38 $* |
| Jun-19-2025 | 0.18 $* | 0.20 $* |
| May-19-2025 | 0.28 $* | 0.37 $* |
| Apr-19-2025 | 0.34 $* | 0.58 $* |
| Mar-19-2025 | 0.55 $* | 0.77 $* |
| Feb-19-2025 | 0.77 $* | 0.45 $* |
| Jan-19-2025 | 0.83 $* | 0.83 $* |
Характеристики
Friendly Mobile Interface Mobile Dr Radiography Machine
Product Description

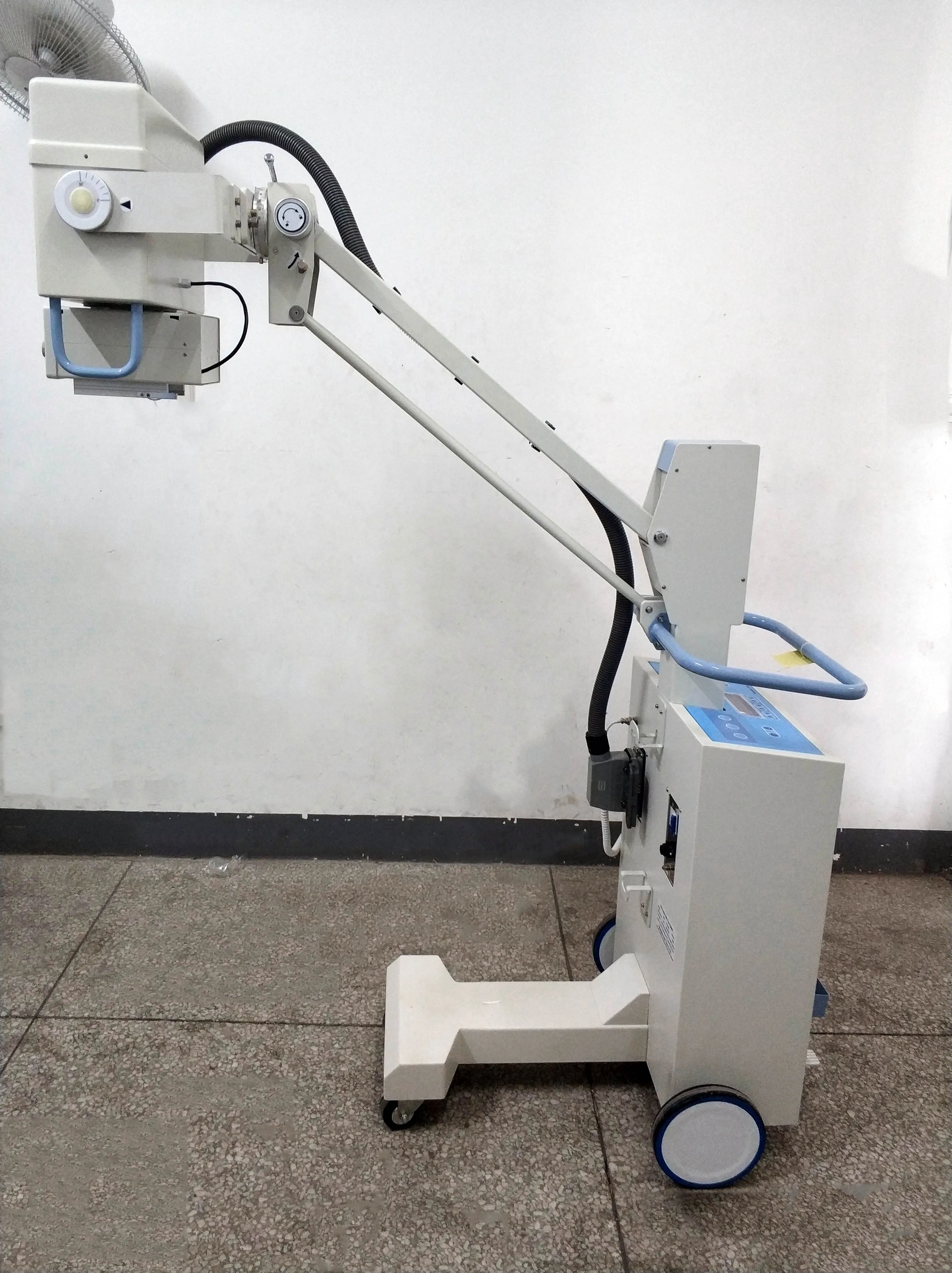

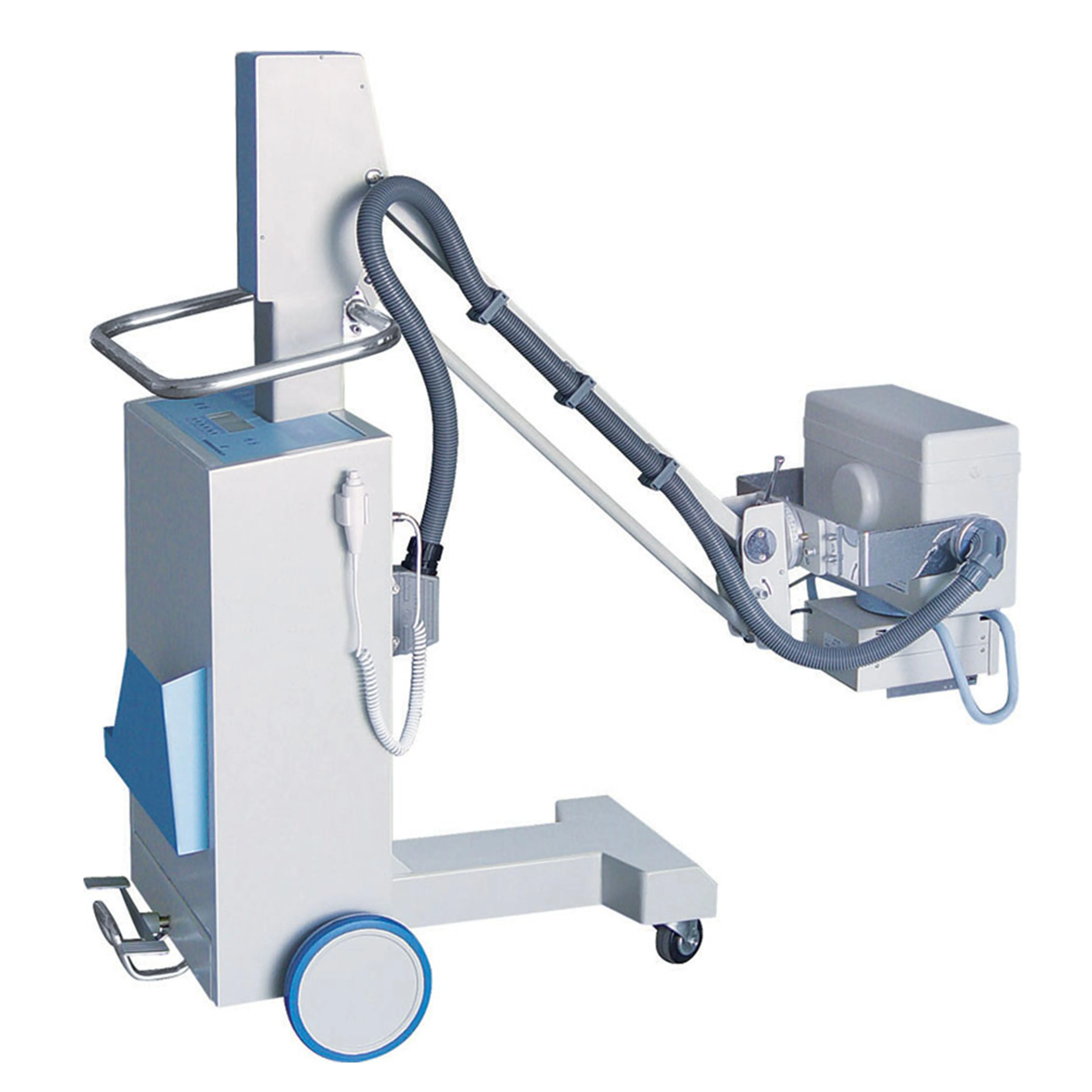

Model MSL70BY x-ray unit are mobile full-wave x -ray units. It can perform general radiography
and ward radiography.
This x-ray unit adopts high voltage silicon full wave commuting technic. Compared with half-wave commuting x-ray unit, it has higher efficiency of the x-ray tube lower power supply requirement and better resolution. Its electricity consumption is only 2/3 of the half-wave unit which had the shortcomings of high reverse peak voltage.

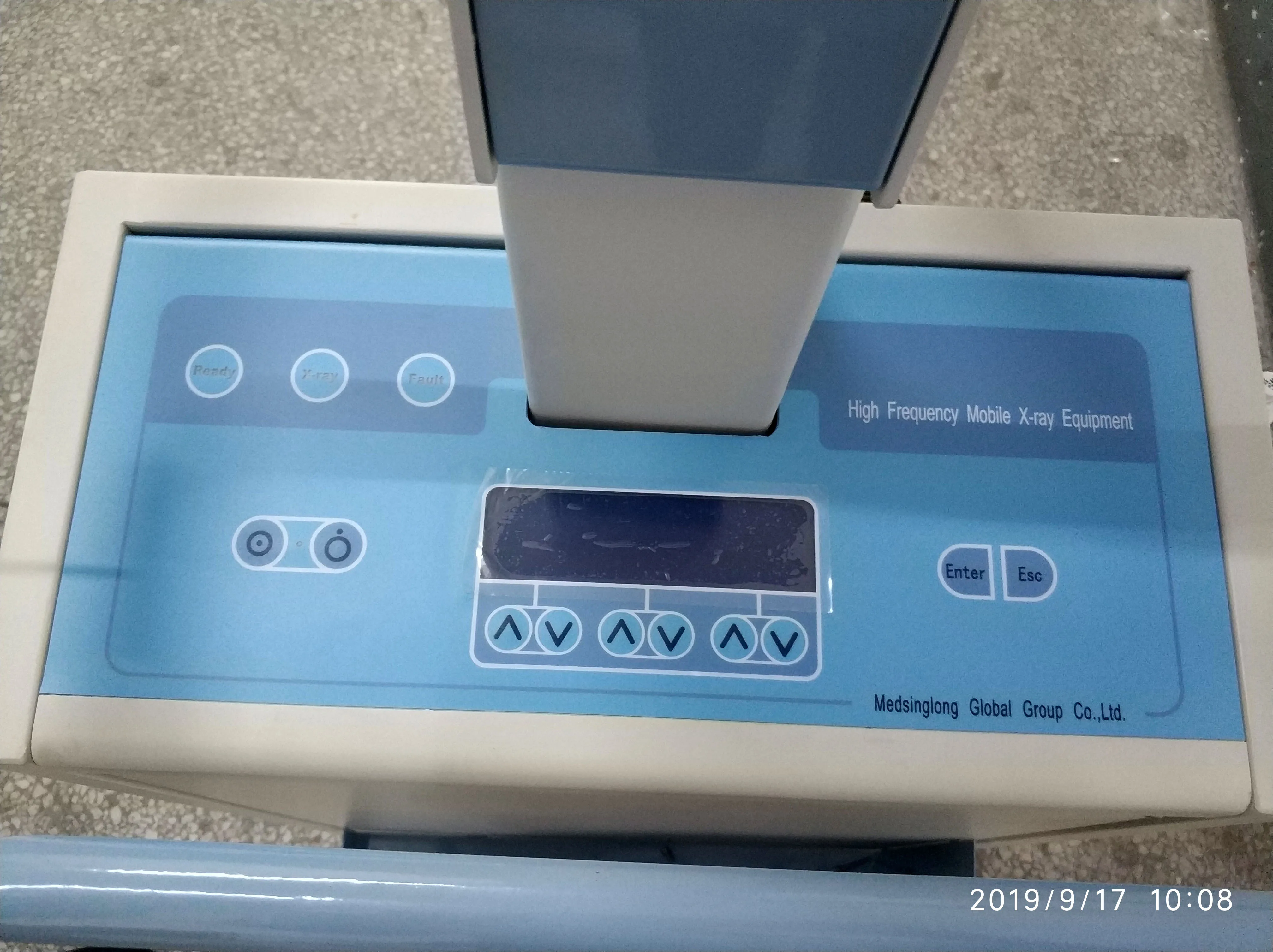

This x-ray unit process light and audio double indication systems for radiography, which gives the operators and patients more convenience and flexibility.

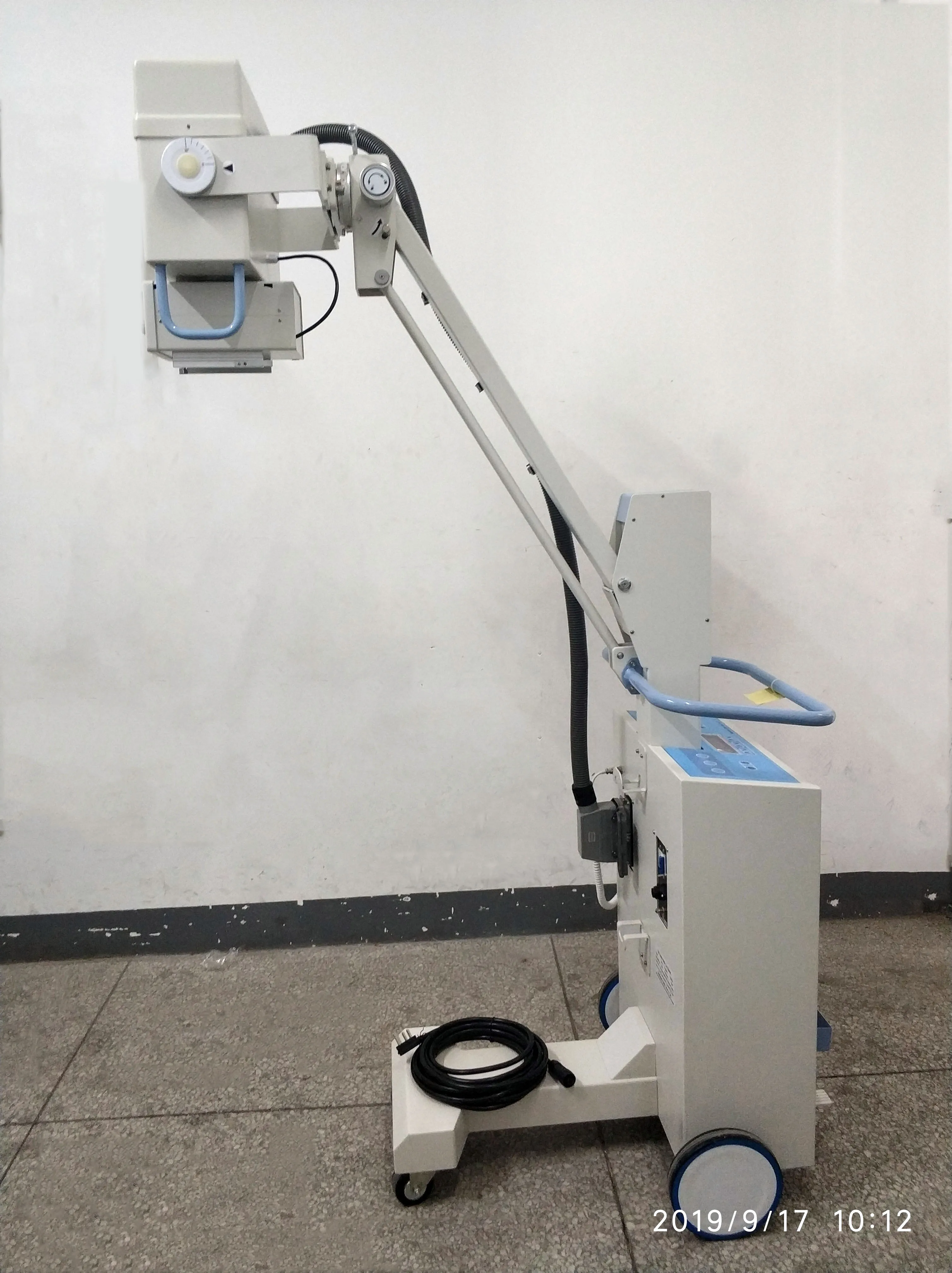

The x-ray unit had the x-ray tube capacity protective indicating devices. When the capacity is over the highest the exposure doesn' t take place so as to avoid the x-ray tube' s damages in case of the wrong operation during the radiography.While performing bedside radiography the arm of the x-ray tube can circumgyrate 90. This x- ray unit with a light mobile cart can be easily brought into wards by the operators for use.
and ward radiography.
This x-ray unit adopts high voltage silicon full wave commuting technic. Compared with half-wave commuting x-ray unit, it has higher efficiency of the x-ray tube lower power supply requirement and better resolution. Its electricity consumption is only 2/3 of the half-wave unit which had the shortcomings of high reverse peak voltage.
This x-ray unit process light and audio double indication systems for radiography, which gives the operators and patients more convenience and flexibility.
The x-ray unit had the x-ray tube capacity protective indicating devices. When the capacity is over the highest the exposure doesn' t take place so as to avoid the x-ray tube' s damages in case of the wrong operation during the radiography.While performing bedside radiography the arm of the x-ray tube can circumgyrate 90. This x- ray unit with a light mobile cart can be easily brought into wards by the operators for use.
Specification
item | value |
Brand Name | MSL |
Model Number | MSLPX09 |
Power Source | Electricity |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | metal, Steel |
Shelf Life | 1years |
Product name | X-ray Machine |
Power Output | 2.5KW |
Frequency | 50KHz |
X-ray Tube | Fixed anode,Focus 1.5 (X-ray tube for high frequency) |
Tube Voltage | 40~100KV （interval 1KV） |
Tube Current | 40~49KV 50mA 1~160 mAs 50~59KV 42mA 1~160 mAs 60~69KV 36mA 1~140 mAs 70~79KV 31mA 1~125 mAs |
mAs | 1.0~160 mAs （45steps） |
Power Supply | 220V±10% 50Hz inner-resistance≤1.0Ω |

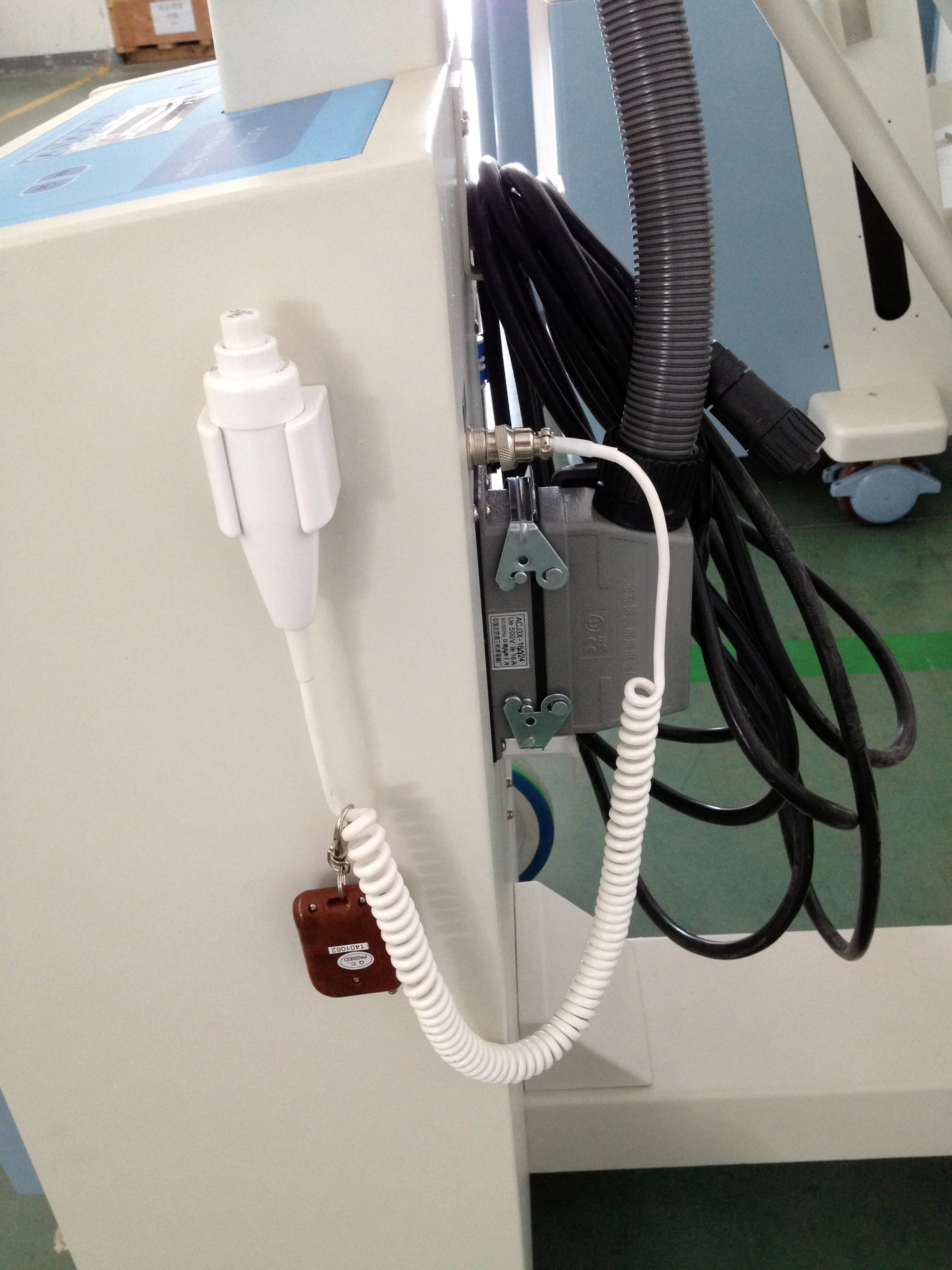

Operation Method | Wire/Wireless control |
N.W. | 200KG |
