Factory Prefabricated Cottage Little Tropical Modern Houses Homes Finishings Frame Tiny Glass Prefab House
Specifications: Installation/Loading Time: Each worker can assemble 20-30 square meters every day. 6 worker can finish 300sqm prefab house in 2 days. Loading: 320 square meters can be loaded in one 40 feet shipping(used 50mm wall panel,20mm roof tile)
For clients information: It will be very much helpful if clients can provide the following information: a. Design drawing or layout plan if you have. b. The dimension: length, width, height, windows and doors dimensions, etc. c. The function of building, and if need, the interior equipment etc. d. The class of building: one, two or three story. e. Special requirement on function: such as water system, electricity installation, or other requirements etc
Brief Description 1) All steel fabric parts and the size of prefab house can be made according to clients' requirement. 2) The prefab house is low cost, durable structure, convenient relocation , and environment-protection, 3) The material of prefab house is light and easily to installation. one 50 square meter house five workers 1-3days finished installation, save manpower and time. 4) All the materials of prefab house can cycle-use, Meeting the require of environment protection in the world. Special is in the large-scale house projects in the developed region. 5) We used the high quality galvanized sheet and foam as the materials of the wall and roof .So the prefab house is good for fire proofing, water proofing, etc 6) Support frame system of steel prefab house: Q235B China stander steel structural. Square tube, Channel steel, etc
Product Parameter
Size & color
Customized

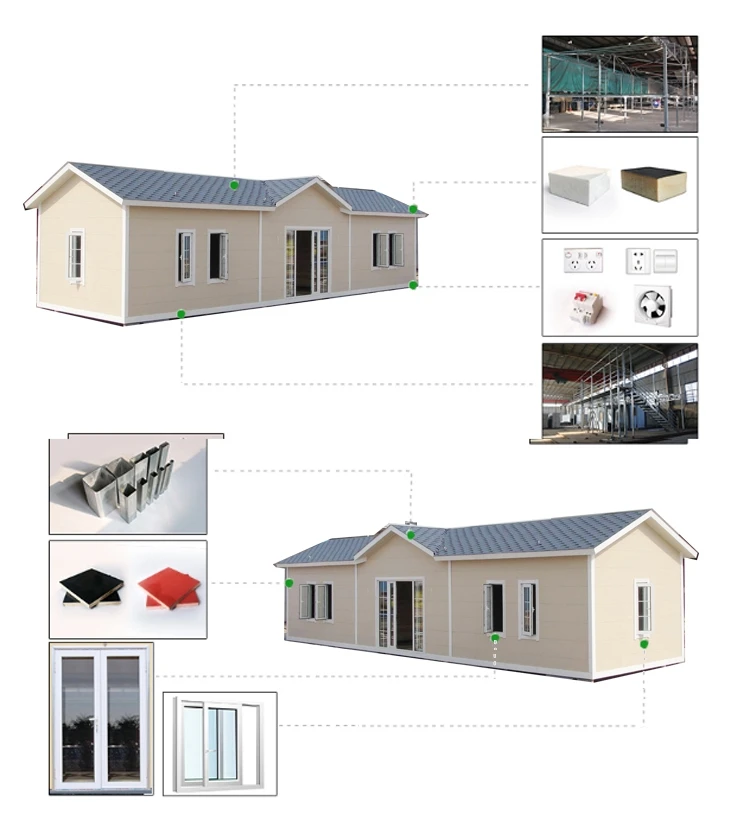

Structure
Steel base: Q235, hot galvanized. 2mm power coated steel as main beam and 1.5mm steel as second beam
Column: 3mm steel, Q235, hot galvanized, power coated
Steel corner with hole: Q235, hot galvanized, power coated
Roof system: Q235, hot galvanized. 3mm power coated steel as main beam and 1.5 mm steel as second beam.
Wall panel
50mm Glass wool sandwich panel/EPS
Roof
color steel sheet as roof sheet+40mm glass wool insulation+ ceiling
Furniture and appliance are customized-made to your requirements(additional cost)
Floor load
0.5KN/square meter
Roof load
1.5KN/square meter
Wind resistance
Grade 11(wind speed≤111.5km/h)
Overseas Cases
The Philippines 4-story apartment; size:15.44x7.92x13.2m; Quantity:10 sets

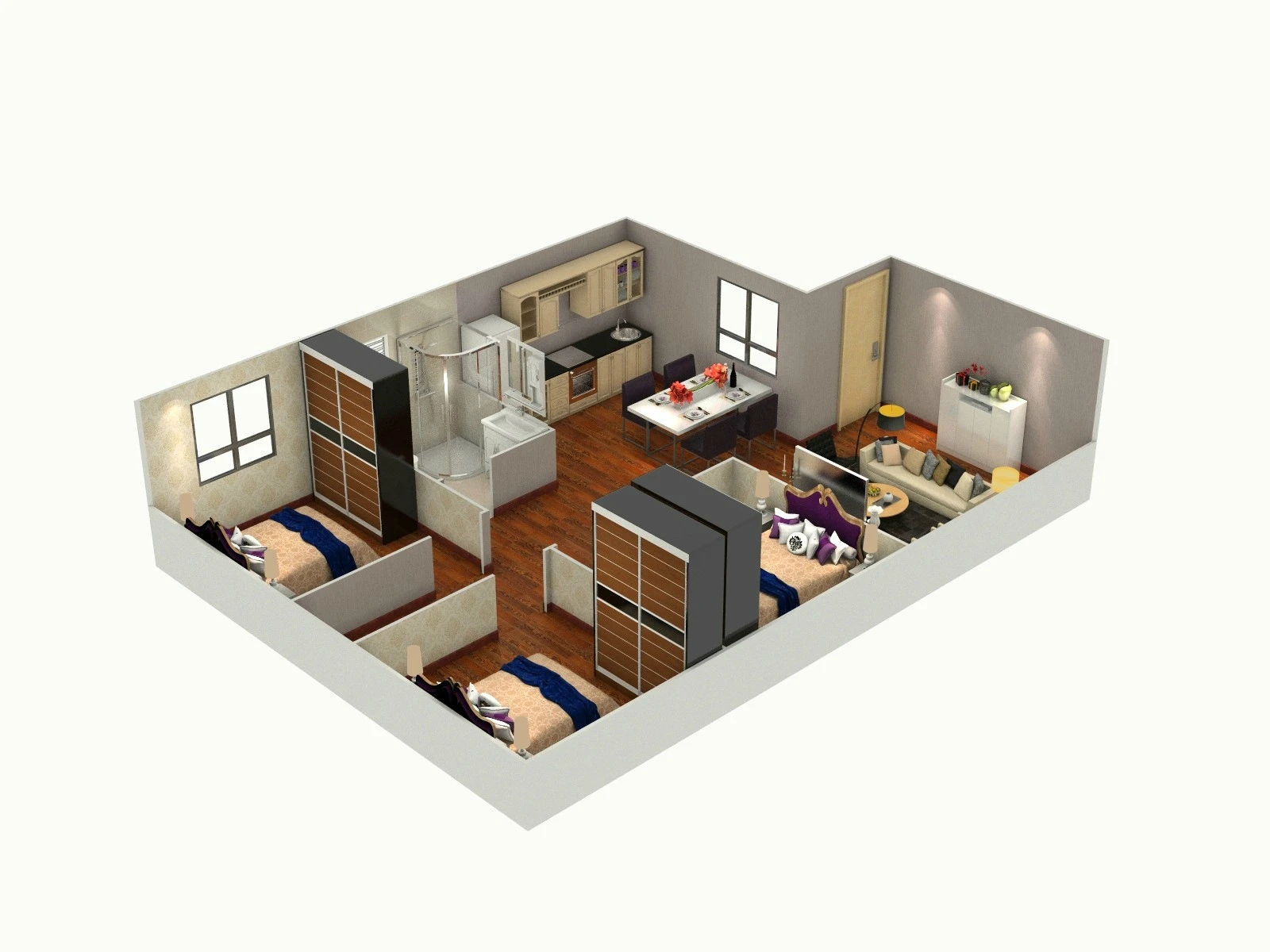

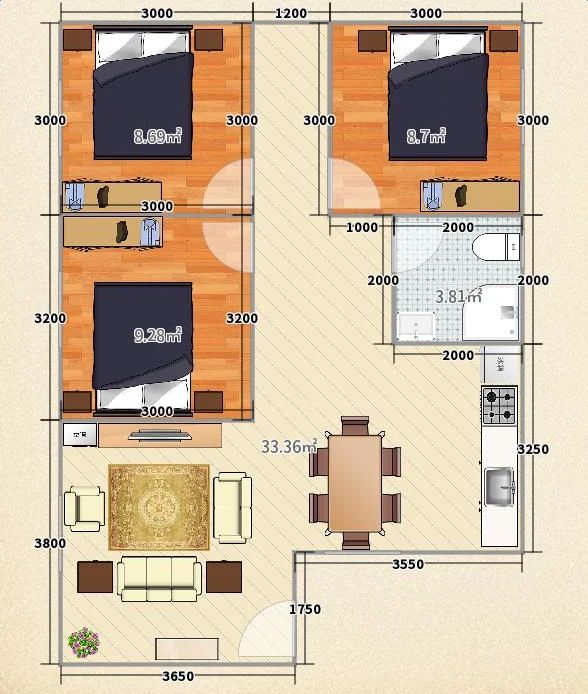

95 Square meter prefab home; Layout:3 bedrooms 1 living room 1 kitchen 1 bathroom
Two story prefab home; Layout:5 bedrooms 1 living room 1 kitchen 2 bathroom; Quantity: 20 sets
The Philippines Office and gas station; Gas station( box column,roof single sheet) :8m8m4.25m,Office ( square tube structure,sandwich panel roof and wall):7.5m4.55m2.4m
Cyprus steel Shed :
Size:40mx18mx4m+sky window; With Plastic film, open wall mesh

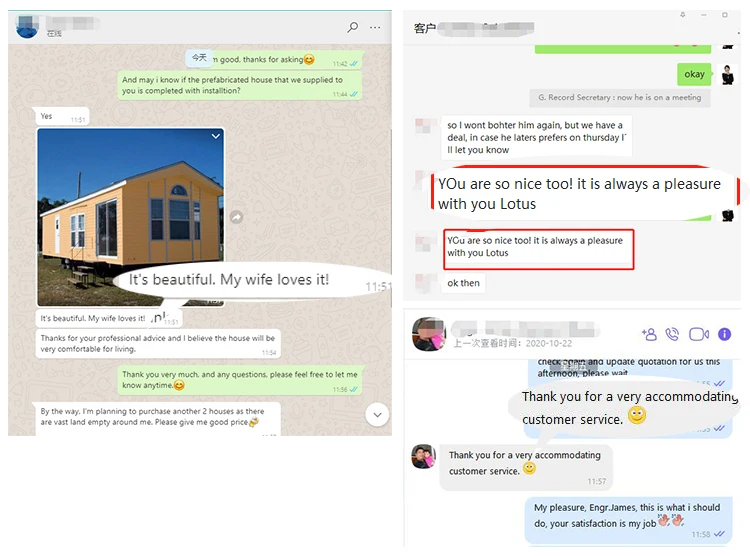

Customer Feedbacks
Factory Strength
Qingdao Ruigang Heavy Industry Co., Ltd. is a high-tech enterprise integrating steel structure design, generation and installation. It is located in the beautiful coastal city—Qingdao West Coast New District; it covers an area of over 50,000 square meters and has 115 employees; the factory currently has three A workshop and an office area.
Ruigang Heavy Industry has accumulated rich experience in exporting over the past ten years, with an annual export value of over 20 million U.S. dollars, and its products are sold in more than 70 countries and regions; it has three complete production lines and a professional design and production team, relying on science, Advanced technology highly guarantees the quality of products; at the same time, it has a number of qualification certificates such as quality management, environmental management, occupational health and safety management, etc.
