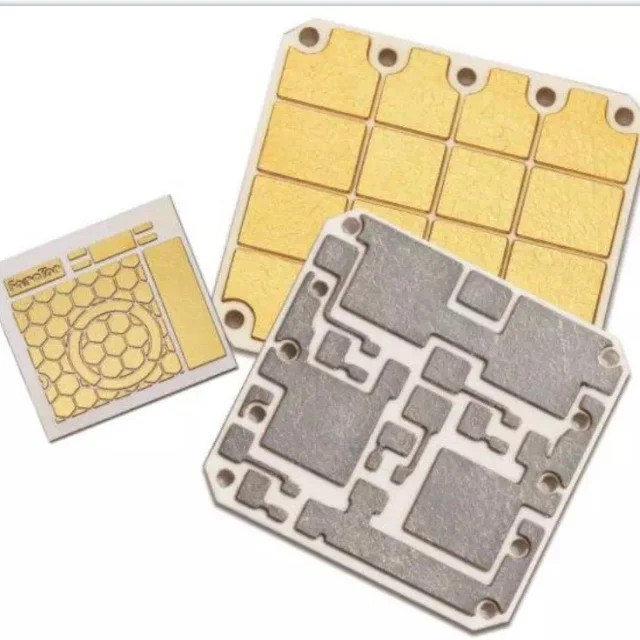

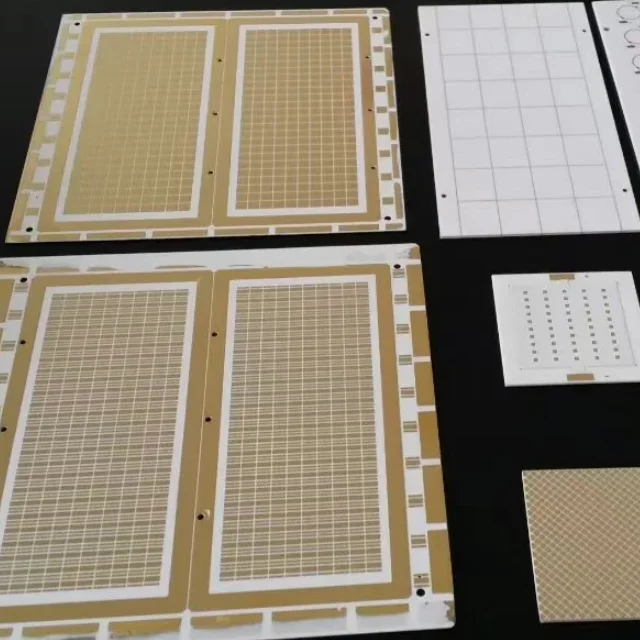

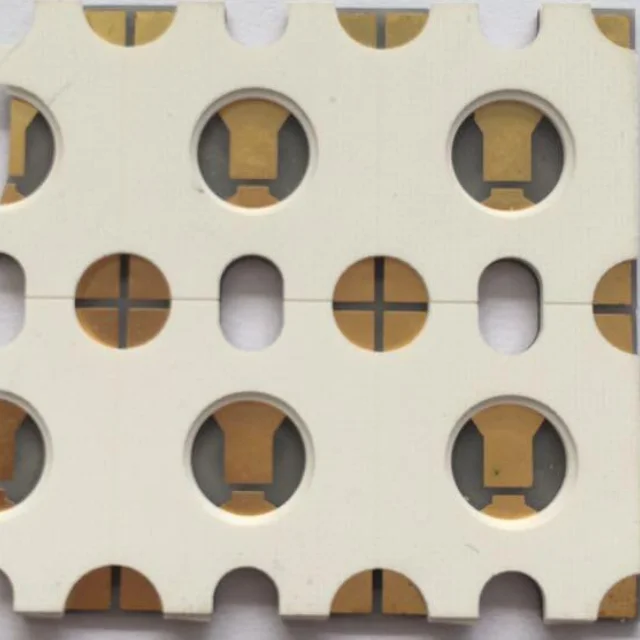

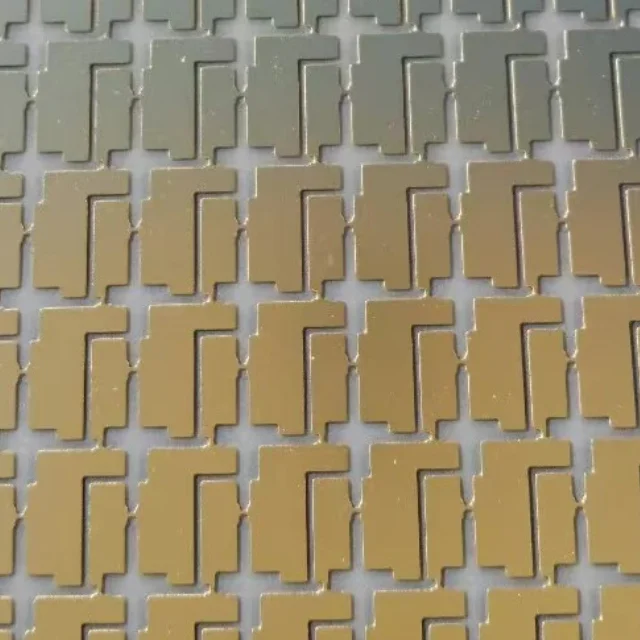

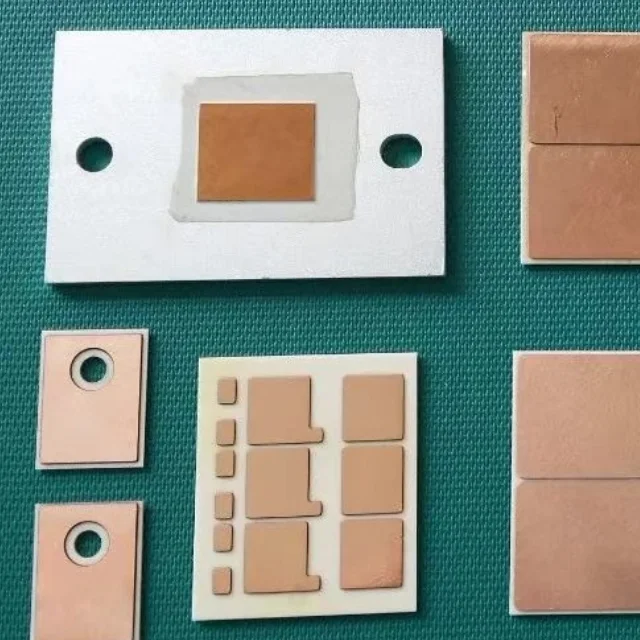

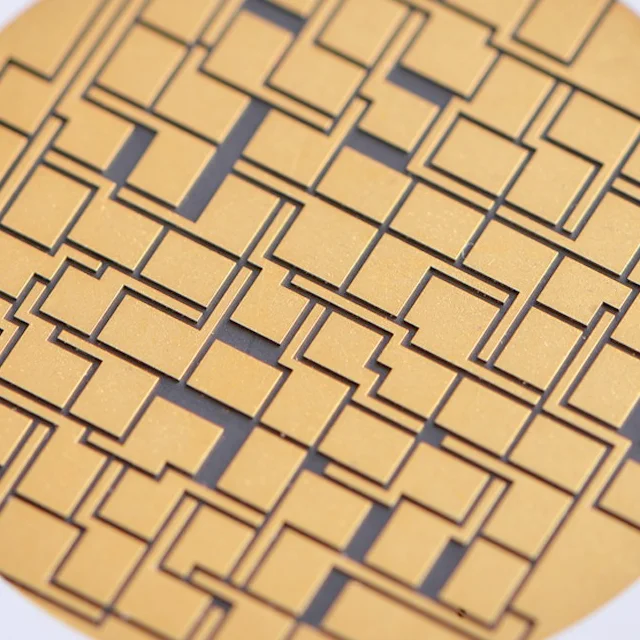

OEM/ODM керамические цепи boar позолоченные DPC светодиодный печатный

Цена:*

Количество:

Specification

Feature	Capability
PCB Type	Rigid PCB(CEM, FR4), Flexible PCB, Rigid-Flex PCB, MCPCB(Aluminum PCB), Ceramic PCB, RF PCB, etc.
Number of Layers	1 – 32layers
Order Quantity	1pc – 10,000,000 pcs
Build Time	2days – 5weeks (Expedited Service)
Material	FR-4 Standard Tg 150°C
		FR4-High Tg 170°C
		FR4-High-Tg 180°C
		FR4-Halogen-free
		FR4-Halogen-free & High-Tg
Board Size	Min 66mm \| Max 600700mm
Board size tolerance	±0.1mm – ±0.3mm
Board Thickness	0.4mm – 3.2mm
Board Thickness Tolerance	±0.1mm – ±10%
Copper Weight	0.5oz – 6.0oz
Inner Layer Copper Weight	0.5oz – 2.0oz
Copper Thickness Tolerance	+0μm +20μm
Min Tracing/Spacing	3mil/3mil
Solder Mask Sides	As per the file
Solder Mask Color	Green, White, Blue, Black, Red, Yellow
Silkscreen Sides	As per the file
Silkscreen Color	White, Blue, Black, Red, Yellow
Surface Finish	HASL – Hot Air Solder Leveling
		Lead Free HASL – RoHS
		ENIG – Electroless Nickle/Immersion Gold – RoHS
		ENEPIG – Electroless Nickel Electroless Palladium Immersion Gold – RoHS
		Immersion Silver – RoHS
		Immersion Tin – RoHS
		OSP -Organic Solderability Preservatives – RoHS
Min Annular Ring	3mil
Min Drilling Hole Diameter	6mil, 4mil-laser drill
Min Width of Cutout (NPTH)	0.8mm
NPTH Hole Size Tolerance	±.002″ (±0.05mm)
Min Width of Slot Hole (PTH)	0.6mm
PTH Hole Size Tolerance	±.003″ (±0.08mm) – ±.006″ (±0.15mm)
Surface/Hole Plating Thickness	20μm – 30μm
