Introduction Of Chip Permanent Self Cleaning Dry And Wet Magnetic Separator Overband Conveyor Machine

RCYD series permanent magnet self-unloading iron remover is composed of high-performance permanent magnet core, iron-dissipating belt, geared motor, frame, roller and other parts, and is used with various conveyors. Used to automatically remove 0.1-25 kg of ferromagnetic material from non-magnetic materials. The internal magnetic circuit adopts computer simulation design and perfect double magnetic pole structure to ensure the long-term operation of the whole machine in a harsh environment without trouble.

RCYD series permanent magnet self-unloading iron remover is widely used in garbage recycling, home appliance recycling, coal mines, docks, thermal power generation, cement, building materials and other industries.



Parameter Of Chip Permanent Self Cleaning Dry And Wet Magnetic Separator Overband Conveyor Machine

Model Parameter Project	Adapt Bandwidth mm	Rated Hang high h=mm	Material Thickness ≤mm	Magnetic Field Strength ≥mT	Drive Power ≤KW	Weight Kg	Dimensions
							A	B	C	E	D
RCYD(C)-5	500	150	80	60	1.5	750	1900	735	935	753	950
RCYD(C)-6	600	175	120	60	1.5	920	2050	780	1030	753	1100
RCYD(C)-6.5	650	200	150	70	2.2	1200	2165	780	1080	888	1200
RCYD(C)-8	800	250	200	70	2.2	1400	2350	786	1280	1088	1300
RCYD(C)-10	1000	300	250	70	3.0	2120	2660	920	1550	1335	1400
RCYD(C)-12	1200	350	300	70	4.0	3350	2900	970	1720	1515	1550

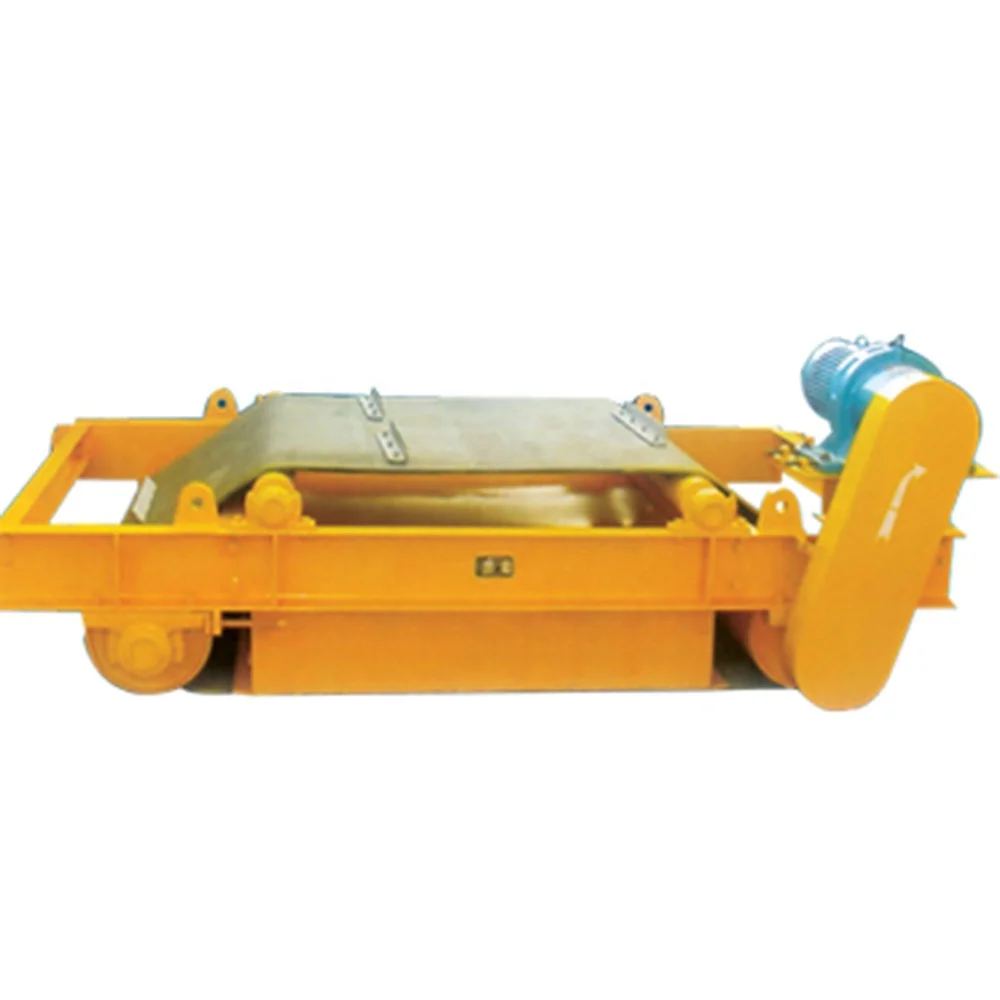

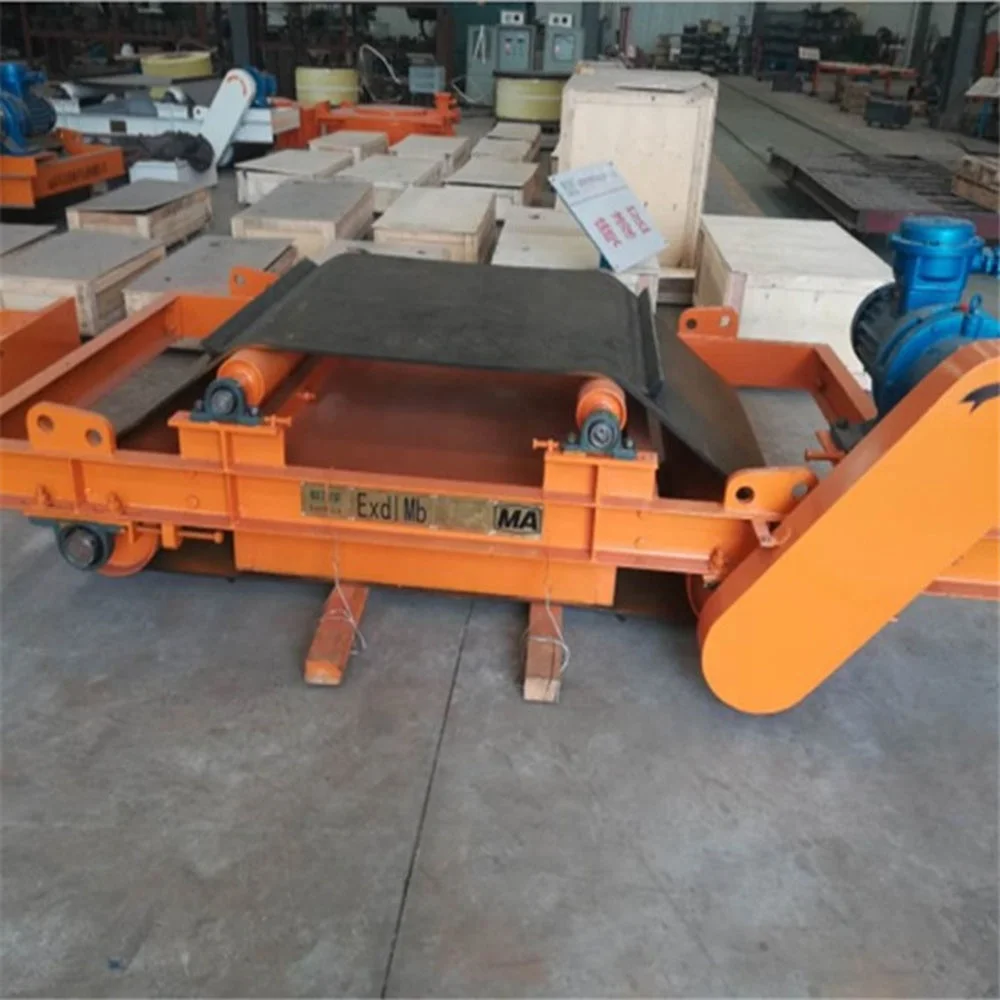

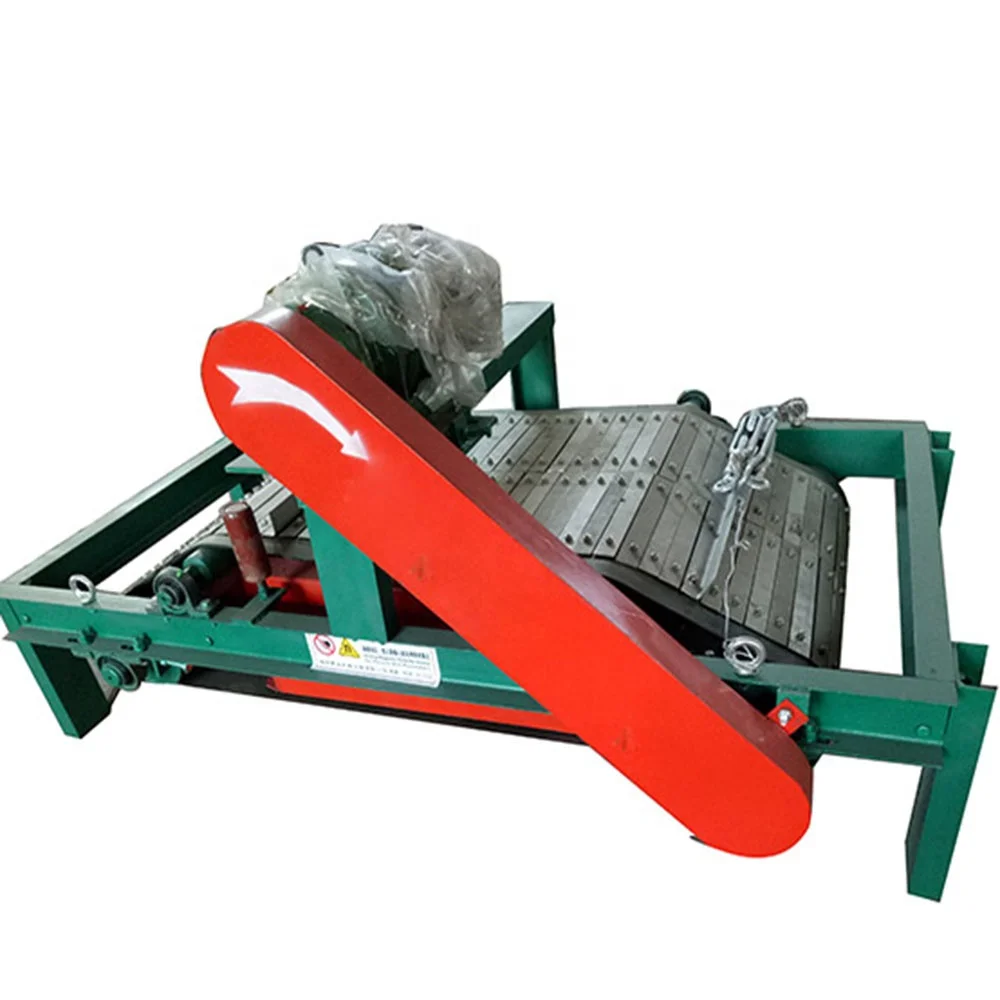

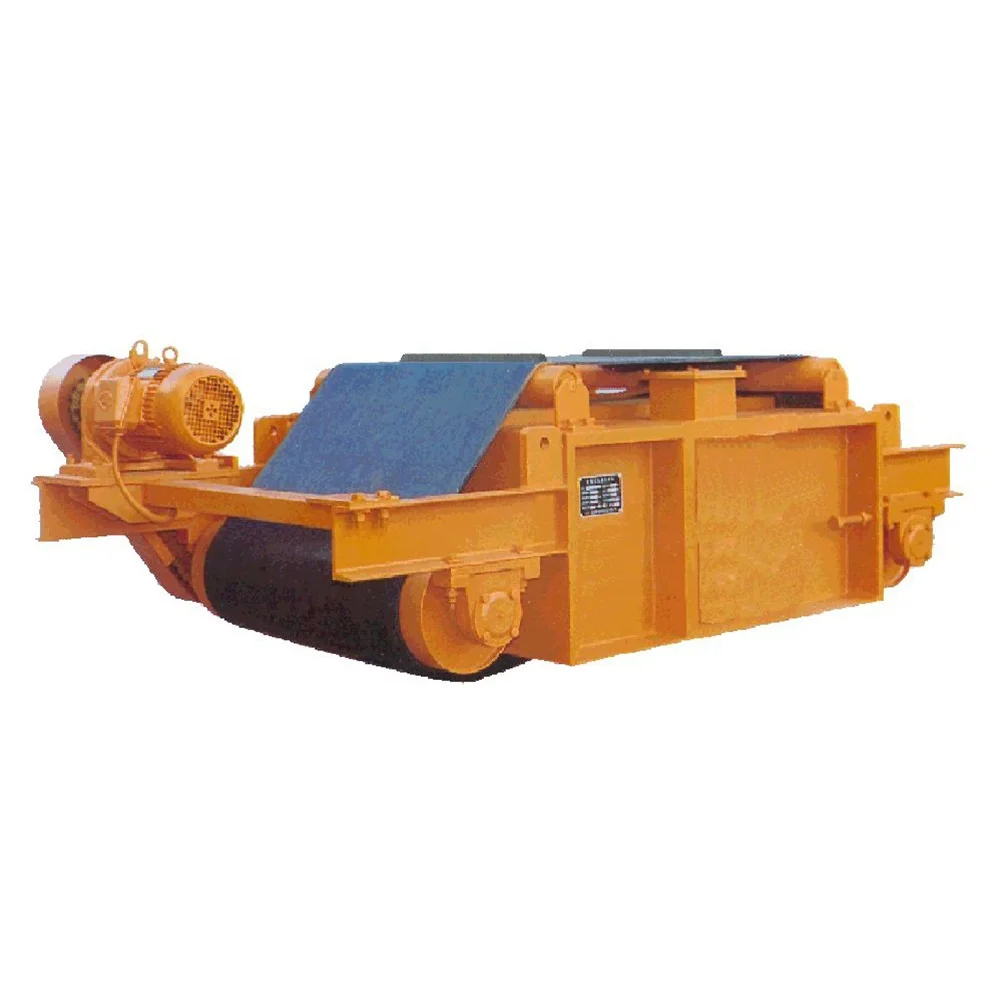

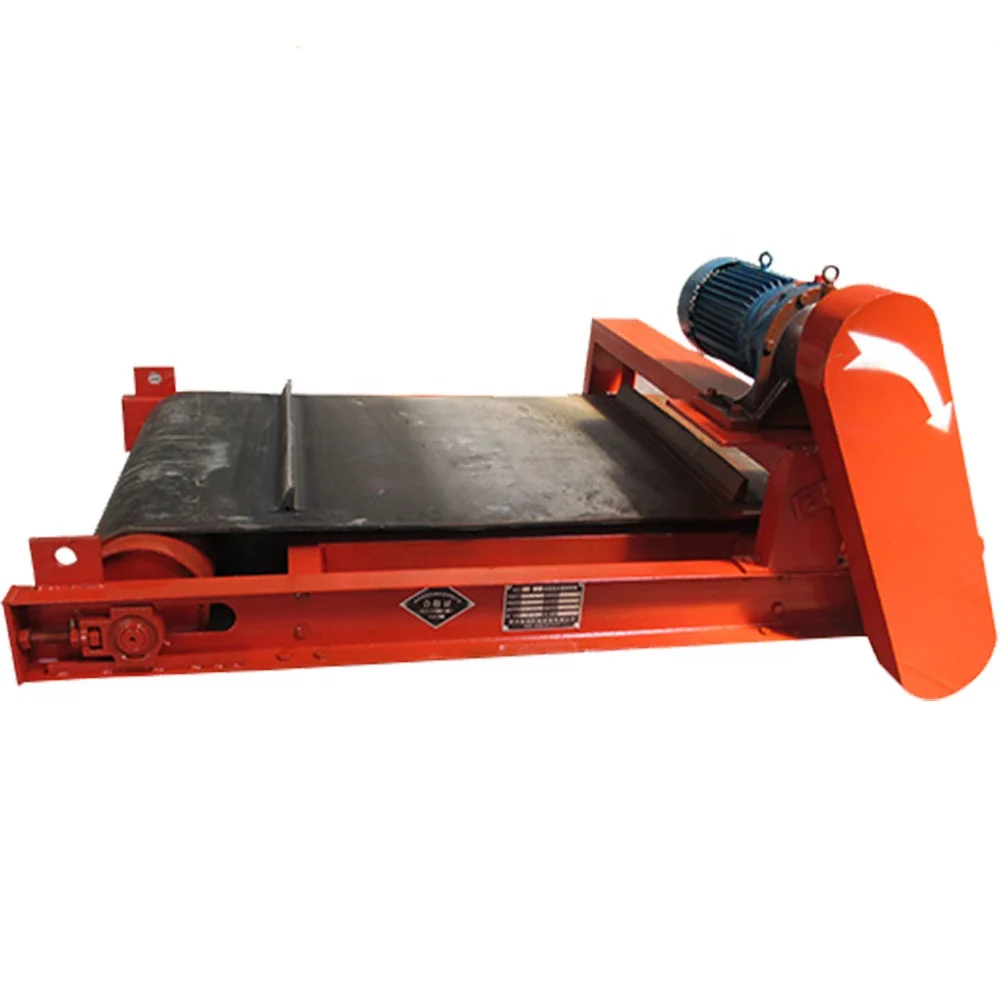

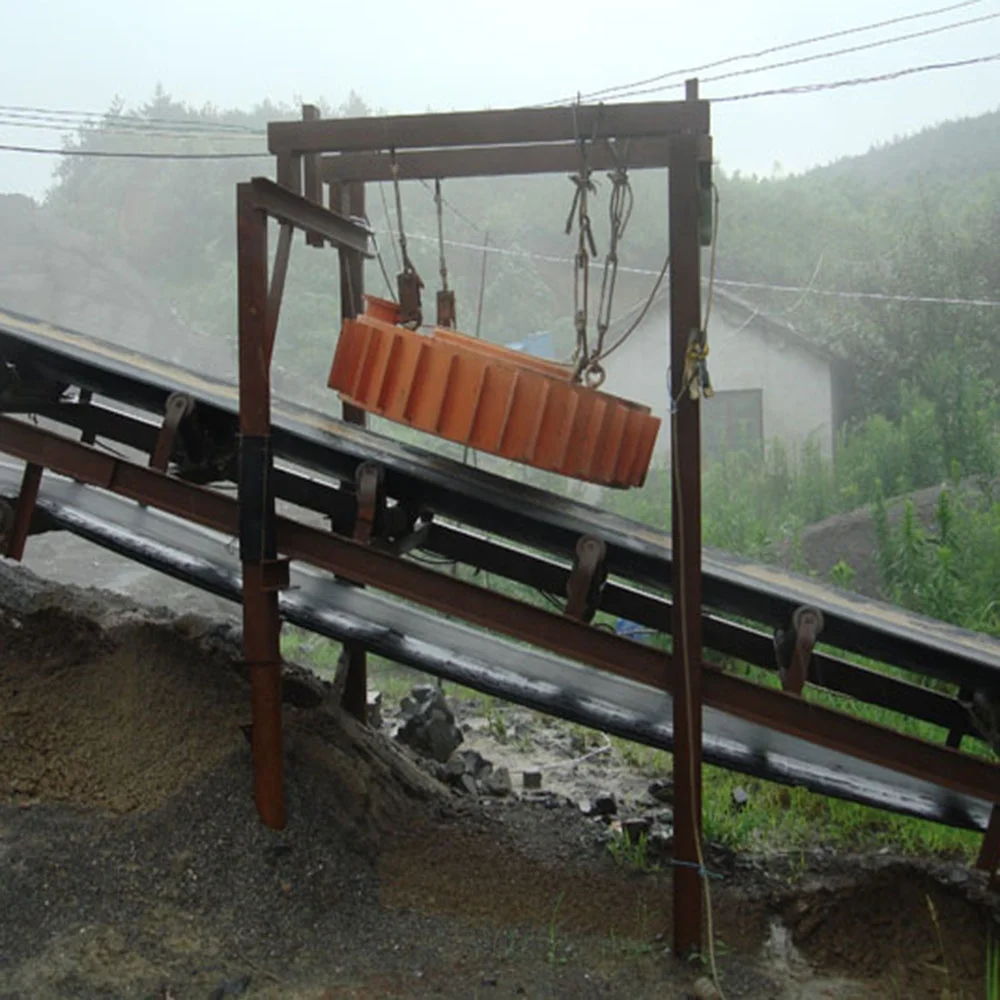

Photoes Of Chip Permanent Self Cleaning Dry And Wet Magnetic Separator Overband Conveyor Machine
