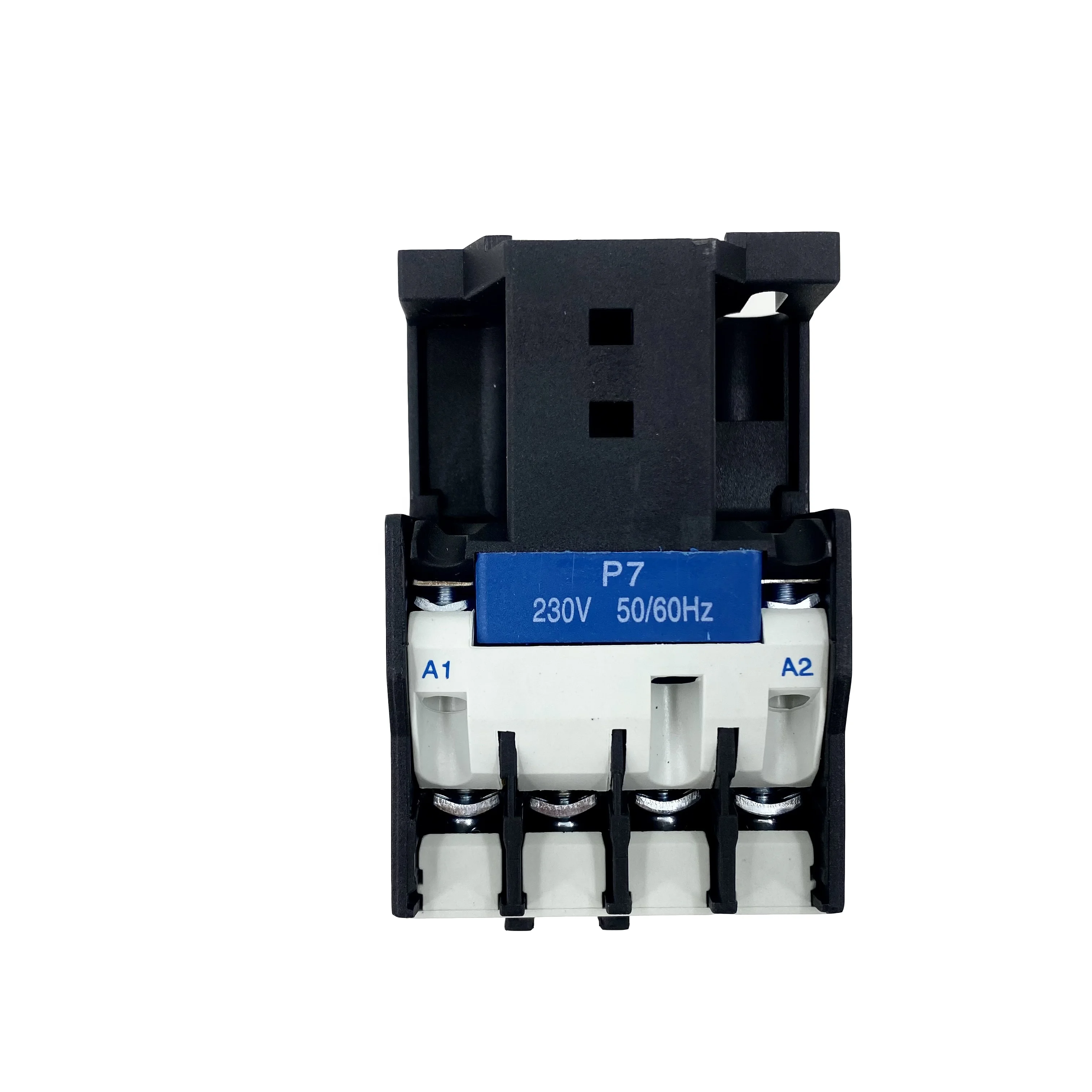

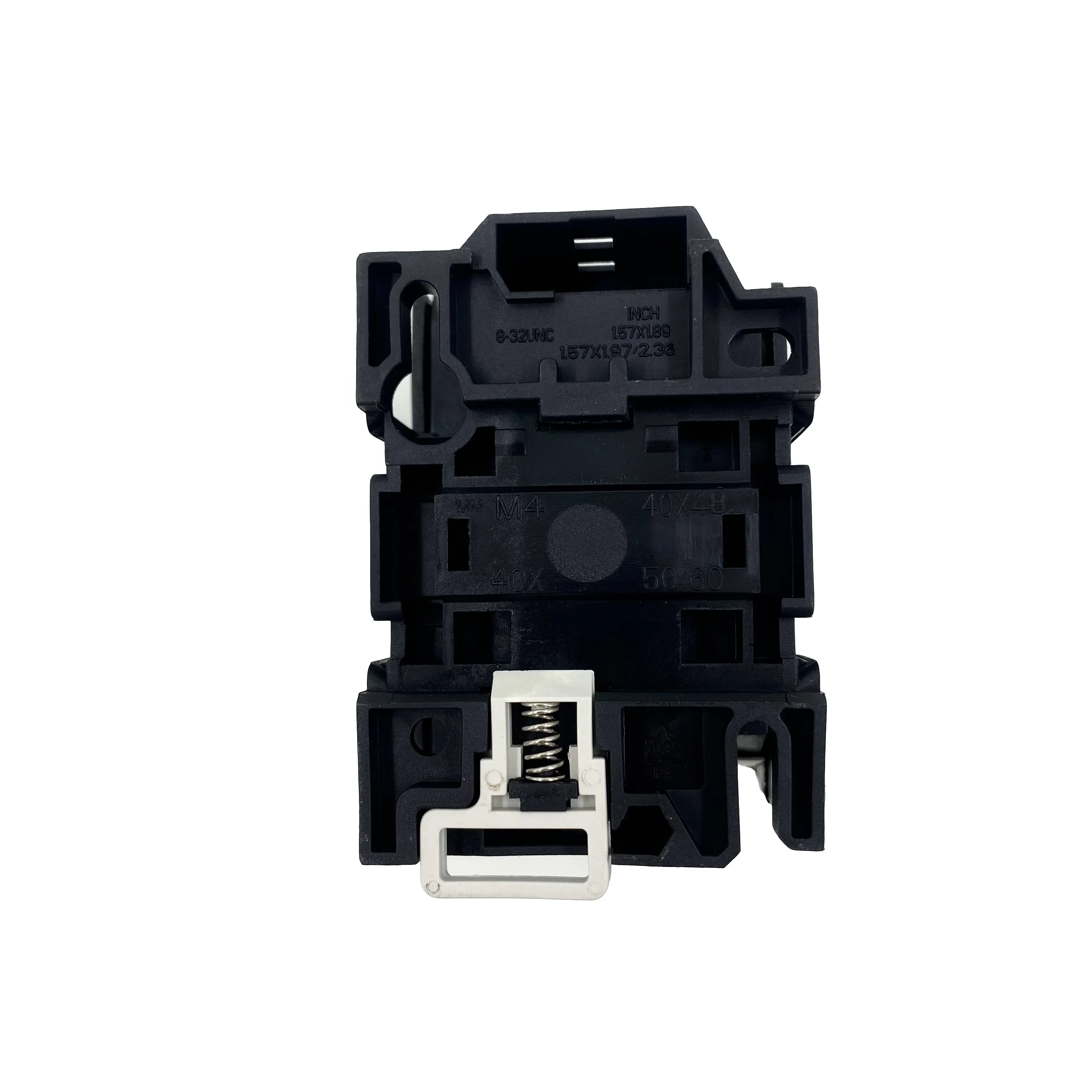

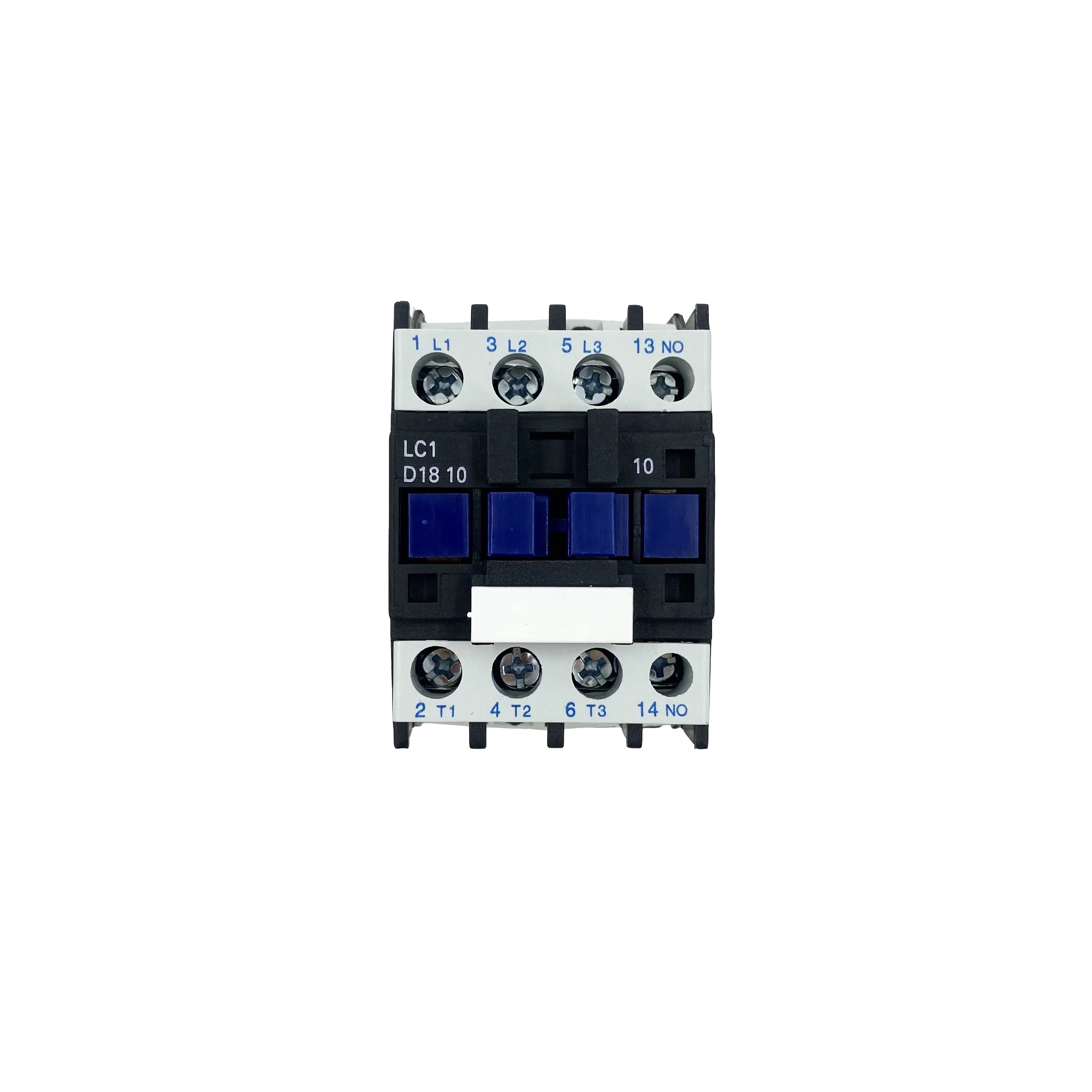

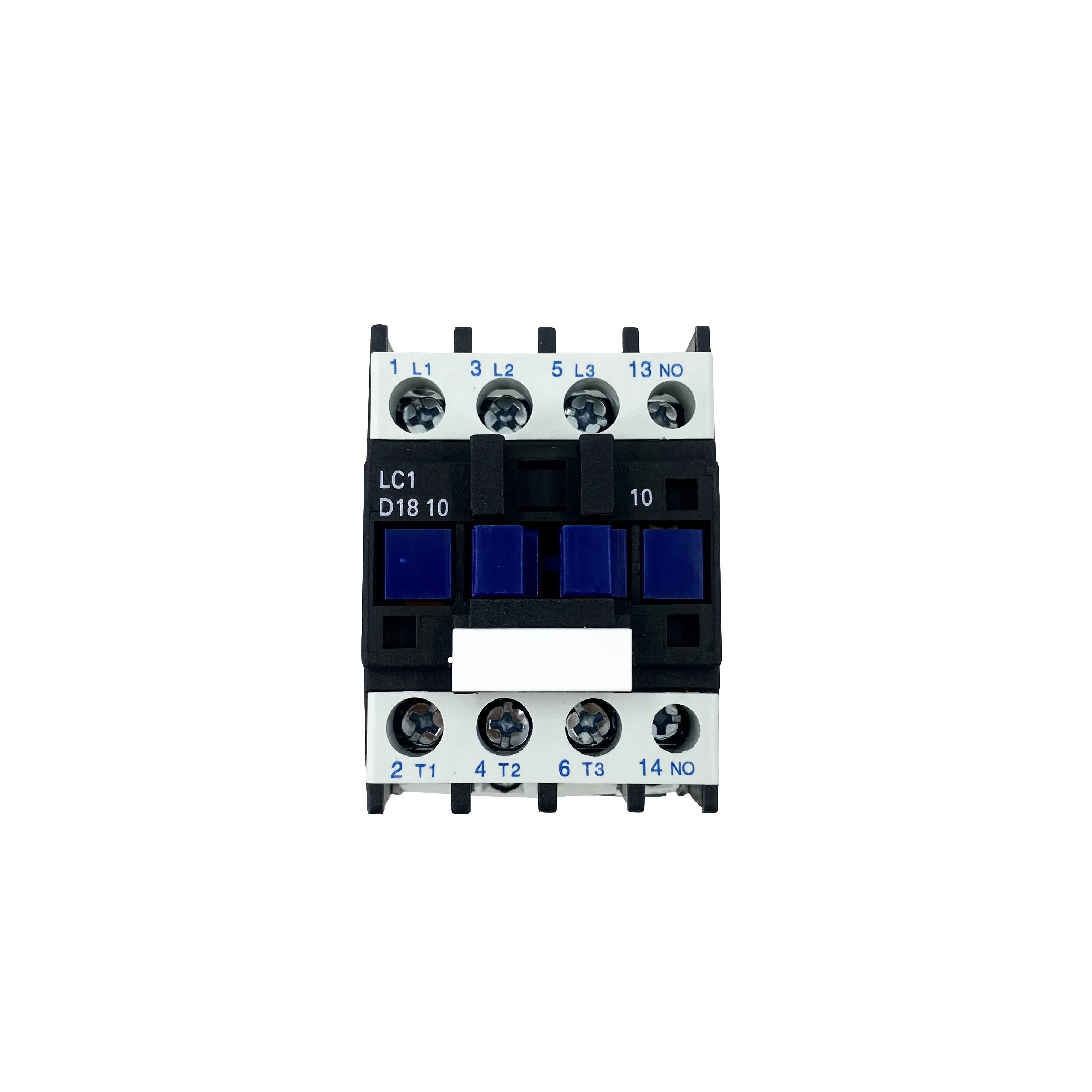

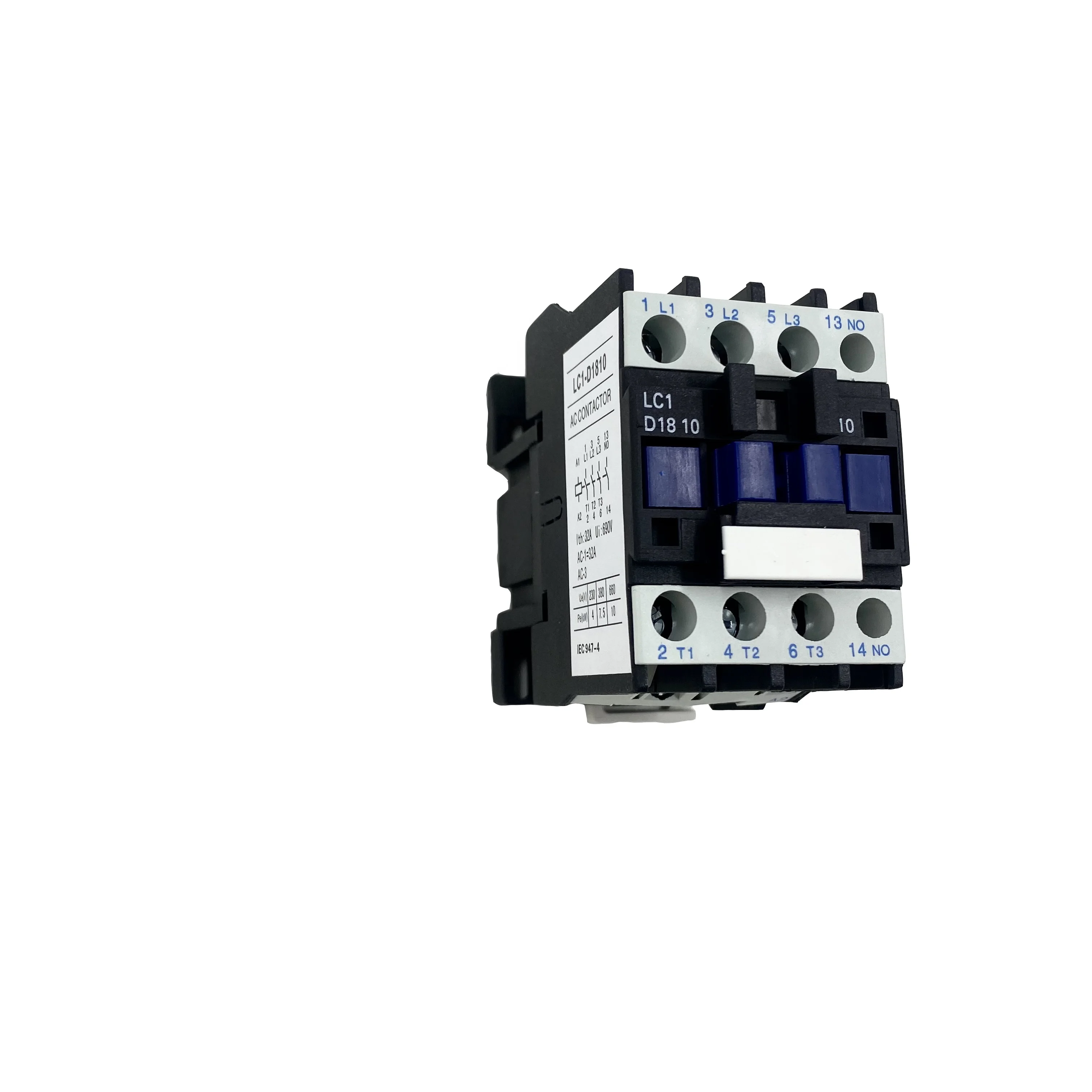

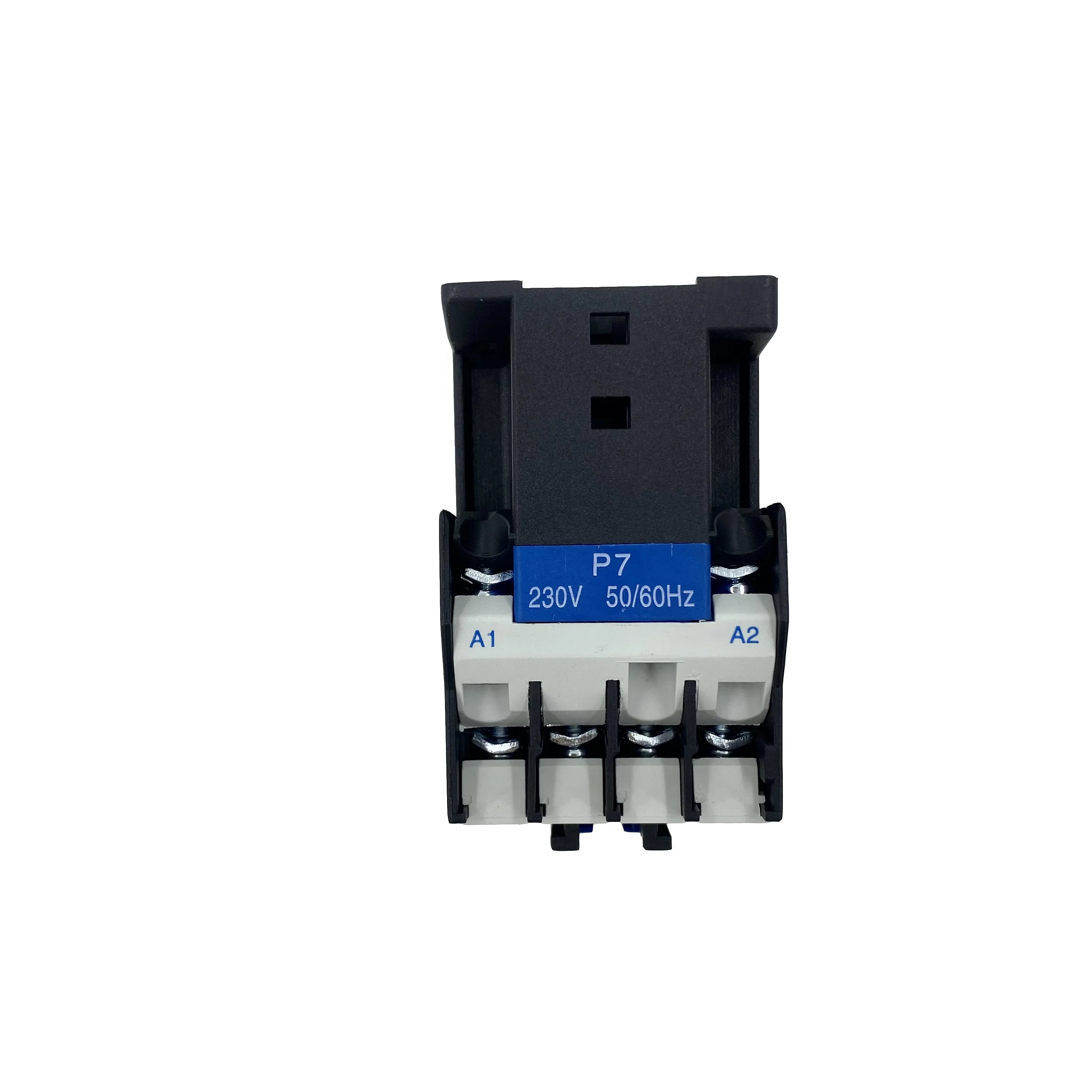

Магнитный контактор LC1D18 CJ2X 3 фазы 9A 12A 18A 25A 32A

Магнитный контактор LC1D18 CJ2X 3 фазы 9A 12A 18A 25A 32A

Категория: Contactors >>>
Поставщик: Zhejiang,CEE,Electric,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.60 $*	0.24 $*
Aug-18-2025	0.17 $*	0.77 $*
Jul-18-2025	0.71 $*	0.8 $*
Jun-18-2025	0.34 $*	0.42 $*
May-18-2025	0.40 $*	0.39 $*
Apr-18-2025	0.95 $*	0.90 $*
Mar-18-2025	0.1 $*	0.13 $*
Feb-18-2025	0.17 $*	0.55 $*
Jan-18-2025	0.54 $*	0.29 $*

Характеристики

LC1-D AC CONTACTOR, 9-95A

1. APPLICATION

Electromagnetic contactors, series LC1, are switching devices intended for remote start, shutdown and reversing of three-phase asynchronous motors with short-circuit rotor in AC network with frequency of 50/60 Hz and voltage of 660 V (utilization category AC-3) and for remote control of electric circuits with making current equal to rated load current (utilization category AC-1).
Jointly with thermal relays the contactors protect controlled electric motors from overloads of inadmissible duration and currents arising during loss of a phase.

2. SPEFICATION

Parameters					LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32
Rated conventional heating current (A) AC-1					25	25	32	40	50
Rated operational current (A)	400(380)V	AC-3	9	12	18	25	32
	400(380)V			AC-4	3.5	5	7.7	8.5	12
		690(660)V	AC-3	6.6	8.9	12	18	21
		690(660)V		AC-4	1.5	2	3.8	4.4	7.5
Rated insulation voltage (V AC)					690	690	690	690	690
Power of controlled 3-phase cage motor (AC-3)	kW	230(220)V AC	2.2	3	4	5.5	7.5
				400(380)V AC	4	5.5	7.5	11	15
				690(660)V AC	5.5	7.5	10	15	18.5
		hp	200 V AC	3	5	7.5	7.5	10
				240 V AC	3	5	7.5	10	15
				460 V AC	5	7.5	10	15	20
				600 V AC	5	7.5	10	115	20
Operating frequency (operations/h)	Electrical	AC-3	1200	1200	1200	1200	600
			AC-4	300	300	300	300	300
		Mechanical		3600	3600	3600	3600	3600
Electrical life (x10³ operations)	AC-3		1000	1000	1000	1000	800
Electrical life (x10³ operations)		AC-4		200	200	200	200	200
Mechanical life (x106operations)					10	10	10	10	8
Number of contacts					3P+NO/3P+NC

Parameters					LC1-D4011	LC1-D5011	LC1-D6511	LC1-D8011	LC1-D9511
Rated conventional heating current (A) AC-1					60	80	80	110	110
Rated operational current (A)	400(380)V	AC-3	40	50	65	80	95
	400(380)V			AC-4	18.5	24	28	37	44
		690(660)V	AC-3	34	39	42	49	49
		690(660)V		AC-4	9	12	14	17.3	21.3
Rated insulation voltage (V AC)					690	690	690	690	690
Power of controlled 3-phase cage motor (AC-3)	kW	230(220)V AC	11	15	18.5	22	25
				400(380)V AC	18.5	22	30	37	45
				690(660)V AC	30	37	37	45	45
		hp	200 V AC	15	20	20	25	30
				240 V AC	20	25	25	30	30
				460 V AC	25	40	40	40	50
				600 V AC	25	40	40	40	50
Operating frequency (operations/h)	Electrical	AC-3	600	600	600	600	600
			AC-4	300	300	300	300	300
		Mechanical		3600	3600	3600	3600	3600
Electrical life (x10³ operations)	AC-3		800	600	600	600	600
Electrical life (x10³ operations)		AC-4		150	150	150	100	100
Mechanical life (x106operations)					8	8	8	6	6
Number of contacts					3P+NO+NC

AUXILIARY PRODUCTS

The company design, manufacturer and market standardised industrial plugs and sockets acc. to IEC 60309-1-2, EN60309-1-2 for the global market.

A great number of products are certified by Intertek & TUV Rheinland & CQC.

The company hold various Third Party Certifications including TUV, SEMKO, CE, CB, EAC, CCC and meet applicable regulations such as RoHS and REACH.

COMPANY

CEE

Zhejiang CEE Electric is a specialized manufacturer of industrial plugs & sockets and distribution boxes for industrial applications. CEE also manufactures AC contactors and thermal overload relays.

A great number of products are certified by Intertek & TUV Rheinland & CQC. The company hold various Third Party Certifications including TUV, SEMKO, CE, CB, EAC, CCC and meet applicable regulations such as RoHS and REACH.

We are exporting to Europe, Africa, Russia, Australia, Southeast Asia and many other countries and regions.
