Поделиться:


Цена:596,78 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 709.29 $* 744.12 $*
Aug-16-2025 703.31 $* 738.77 $*
Jul-16-2025 590.34 $* 620.4 $*
Jun-16-2025 691.74 $* 726.81 $*
May-16-2025 602.53 $* 632.75 $*
Apr-16-2025 679.19 $* 713.57 $*
Mar-16-2025 673.13 $* 707.52 $*
Feb-16-2025 668.72 $* 701.99 $*
Jan-16-2025 662.50 $* 695.47 $*

Характеристики

Product name
floor heating electric mat




Material
Conductors-one or two bunch of Ni-Cr alloy
Insulation layer-FEP and TPEE,XLPE are optional
Shield:Aluminum-plastic tape+tinned copper or tinned copper braid
Outer sheath:PVC and FEP is optional
Screen:Fiberglass screen where the heating cable fixed on
Temperature control system:thermostat and other accessories
Thickness
3.6mm
Width
0.5m
Length
1-40m
Output/M2
130W,150W,200W
Total output
Customized in accordance with the room area
Details Images
T-cable or S-Cable
Heating element of the mat
Various output supplied
Thin and safe with zero EMF
Covered by strong enough sheath working under the cement for long

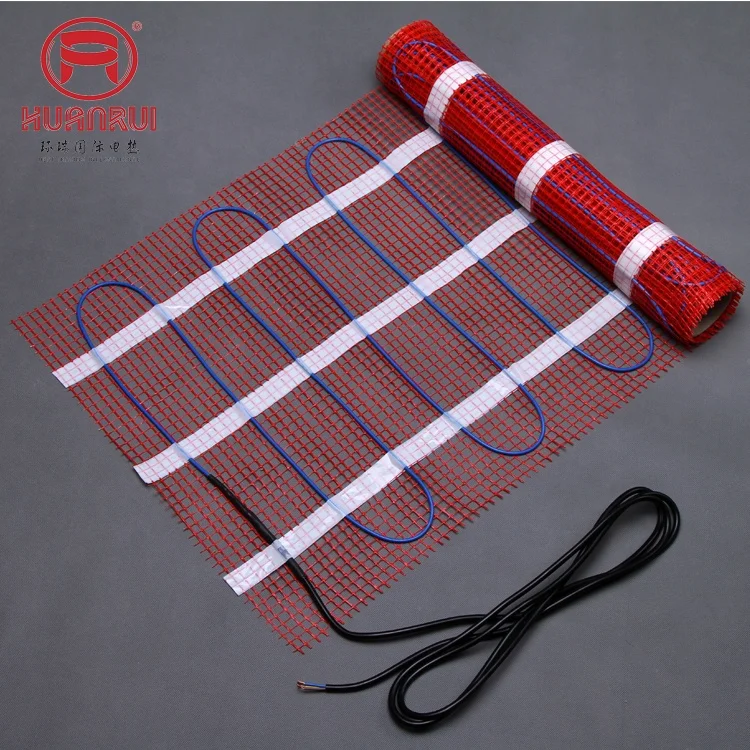

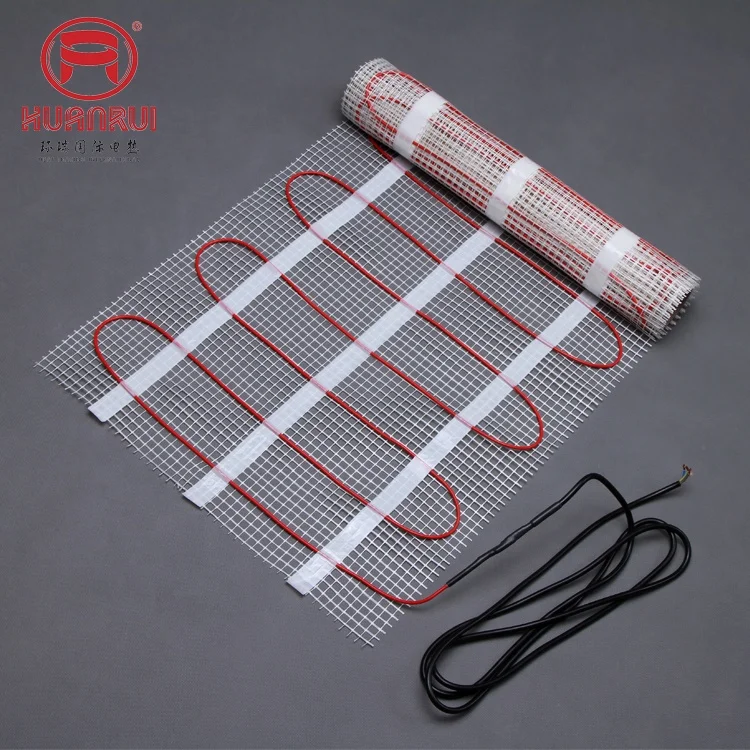

T-mat or S-mat
Convenient for installation.
Flexible and 100% screened
Width: 0.5 m self-adhesive mat
Length:different options for choice.
Temperature control system available

Temperature control system
Thermostat with temperature detectors,protected pipes and ect.
Keep heating until the temperature reach the set value,then stop.When the temperature drop,work again.
Product Paramenters
230V
Heating Area
Mat Dimensions
Output Power / Watts (150W/m2)
Current/Amps
Resistance/Ω
Part Number
m2
sq.ft.
m*m
in.*ft.



T-mat150-150
1
10.8
0.5*2
20*6.5
150
0.7
352.7
T-mat150-225
1.5
16.1
0.5*3
20*9.7
225
1
235.1
T-mat150-300
2
21.5
0.5*4
20*12.9
300
1.3
176.3
T-mat150-375
2.5
26.9
0.5*5
20*16.1
375
1.6
141.1
T-mat150-450
3
32.3
0.5*6
20*19.4
450
2
117.6
T-mat150-525
3.5
37.7
0.5*7
20*22.6
525
2.3
100.8
T-mat150-600
4
43.1
0.5*8
20*25.8
600
2.6
88.2
T-mat150-675
4.5
48.4
0.5*9
20*29.1
675
2.9
78.4
T-mat150-750
5
53.8
0.5*10
20*32.3
750
3.3
70.5
T-mat150-900
6
64.6
0.5*12
20*38.8
900
3.9
58.8
T-mat150-1050
7
75.3
0.5*14
20*45.2
1050
4.6
50.4
T-mat150-1200
8
86.1
0.5*16
20*51.7
1200
5.2
44.1
T-mat150-1350
9
96.9
0.5*18
20*58.1
1350
5.9
39.2
T-mat150-1500
10
107.6
0.5*20
20*64.6
1500
6.5
35.3
T-mat150-1800
12
129.2
0.5*24
20*77.5
1800
7.8
29.4
230V
Heating Area
Mat Dimensions
Output Power / Watts (200W/m2)
Current/Amps
Resistance/Ω
Part Number
m2
sq.ft.
m*m
in.*ft.



T-mat200-200
1
10.8
0.5*2
20*6.5
200
0.9
264.5
T-mat200-300
1.5
16.1
0.5*3
20*9.7
300
1.3
176.3
T-mat200-400
2
21.5
0.5*4
20*12.9
400
1.7
132.3
T-mat200-500
2.5
26.9
0.5*5
20*16.1
500
2.2
105.8
T-mat200-600
3
32.3
0.5*6
20*19.4
600
2.6
88.2
T-mat200-700
3.5
37.7
0.5*7
20*22.6
700
3
75.6
T-mat200-800
4
43.1
0.5*8
20*25.8
800
3.5
66.1
T-mat200-900
4.5
48.4
0.5*9
20*29.1
900
3.9
58.8
T-mat200-1000
5
53.8
0.5*10
20*32.3
1000
4.3
52.9
T-mat200-1200
6
64.6
0.5*12
20*38.8
1200
5.2
44.1
T-mat200-1400
7
75.3
0.5*14
20*45.2
1400
6.1
37.8
T-mat200-1600
8
86.1
0.5*16
20*51.7
1600
7
33.1
T-mat200-1800
9
96.9
0.5*18
20*58.1
1800
7.8
29.4
T-mat200-2000
10
107.6
0.5*20
20*64.6
2000
8.7
26.5
T-mat200-2400
12
129.2
0.5*24
20*77.5
2400
10.4
22
120V
Heating Area
Mat Dimensions
Output Power / Watts (12W/ft2)
Current/Amps
Resistance/Ω
Part Number
m2
sq.ft.
m*m
in.*ft.



T-mat1-120
0.93
10
0.5*1.9
20*6.1
120
1
120
T-mat1-180
1.39
15
0.5*2.8
20*9.1
180
1.5
80
T-mat1-240
1.86
20
0.5*3.7
20*12.2
240
2
60
T-mat1-300
2.32
25
0.5*4.6
20*15.2
300
2.5
48
T-mat1-360
2.79
30
0.5*5.6
20*18.3
360
3
40
T-mat1-420
3.25
35
0.5*6.5
20*21.3
420
3.5
34.29
T-mat1-480
3.72
40
0.5*7.4
20*24.4
480
4
30
T-mat1-540
4.18
45
0.5*8.3
20*27.5
540
4.5
26.67
T-mat1-600
4.65
50
0.5*9.3
20*30.5
600
5
24
T-mat1-720
5.75
60
0.5*11.1
20*36.6
720
6
20
T-mat1-840
6.5
70
0.5*13
20*42.7
840
7
17.14
T-mat1-960
7.43
80
0.5*14.9
20*48.8
960
8
15
T-mat1-1080
8.36
90
0.5*16.7
20*54.9
1080
9
13.33
T-mat1-1200
9.29
100
0.5*18.6
20*61
1200
10
12
T-mat1-1440
11.15
120
0.5*22.3
20*73.2
1440
12
10
240V
Heating Area
Mat Dimensions
Output Power / Watts (12W/ft2)
Current/Amps
Resistance/Ω
Part Number
m2
sq.ft.
m*m
in.*ft.



T-mat2-180
1.39
15
0.5*2.8
20*9.1
180
0.75
320
T-mat2-240
1.86
20
0.5*3.7
20*12.2
240
1
240
T-mat2-300
2.32
25
0.5*4.6
20*15.2
300
1.25
192
T-mat2-360
2.79
30
0.5*5.6
20*18.3
360
1.5
160
T-mat2-420
3.25
35
0.5*6.5
20*21.3
420
1.75
137.14
T-mat2-480
3.72
40
0.5*7.4
20*24.4
480
2
120
T-mat2-540
4.18
45
0.5*8.3
20*27.5
540
2.25
106.67
T-mat2-600
4.65
50
0.5*9.3
20*30.5
600
2.5
96
T-mat2-720
5.57
60
0.5*11.1
20*36.6
720
3
80
T-mat2-840
6.5
70
0.5*13
20*42.7
840
3.5
68.57
T-mat2-960
7.43
80
0.5*14.9
20*48.8
960
4
60
T-mat2-1080
8.36
90
0.5*16.7
20*54.9
1080
4.5
53.33
T-mat2-1200
9.29
100
0.5*18.6
20*61
1200
5
48
T-mat2-1320
10.22
110
0.5*20.5
20*67.1
1320
5.5
43.64
T-mat2-1440
11.15
120
0.5*22.3
20*73.2
1440
6
40
T-mat2-1680
13.01
140
0.5*26
20*85.4
1680
7
34.29
T-mat2-1920
14.86
160
0.5*29.7
20*97.6
1920
8
30
T-mat2-2160
16.72
180
0.5*33.4
20*109.8
2160
9
26.67
T-mat2-2400
18.58
200
0.5*37.1
20*121.9
2400
10
24
Application
Under floor and  wall heating mat
The main application of the mat will be underfloor or wall heating source.

Designed for installation into thin adhesive beds,leveling compounds or thin screed beds beneath tiled and wooden floor finish.

150W/M2 heating mats are suitable as a primary heating source.And 200W/M2 heating mat apply to high heat loss site such as conservatories.
The above are some of our cooperative customers.
At present, we not only sell products in the China market, our products also hot sale in North America, Europe, South America, the Middle East, etc..
Are you ready to be our distributor&wholesaler?Click the link as below to contact us.

If you already have suppliers,why not give yourself more choices to reduce financial risks and increase supply stability?We can help in many ways：
A.We can prepare raw material and product stock for fast delivery. B.Special products are available if your supplier cannot offer them. C.More competitive price. D.OA is acceptable after credit investigation. E.Factory and products third part inspection is no problem. F.Apply new certificate for you if needed
