Алюминиевая формовочная машина с холодной камерой литье под давлением для изготовления крышки вентилятора в
- Категория: Die Casting Machine >>>
- Поставщик: Jiangmen,Zhenli,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.5 $* | 0.67 $* |
| Aug-19-2025 | 0.1 $* | 0.80 $* |
| Jul-19-2025 | 0.29 $* | 0.8 $* |
| Jun-19-2025 | 0.77 $* | 0.48 $* |
| May-19-2025 | 0.53 $* | 0.46 $* |
| Apr-19-2025 | 0.24 $* | 0.34 $* |
| Mar-19-2025 | 0.2 $* | 0.98 $* |
| Feb-19-2025 | 0.11 $* | 0.97 $* |
| Jan-19-2025 | 0.14 $* | 0.53 $* |
Характеристики
Product Overview

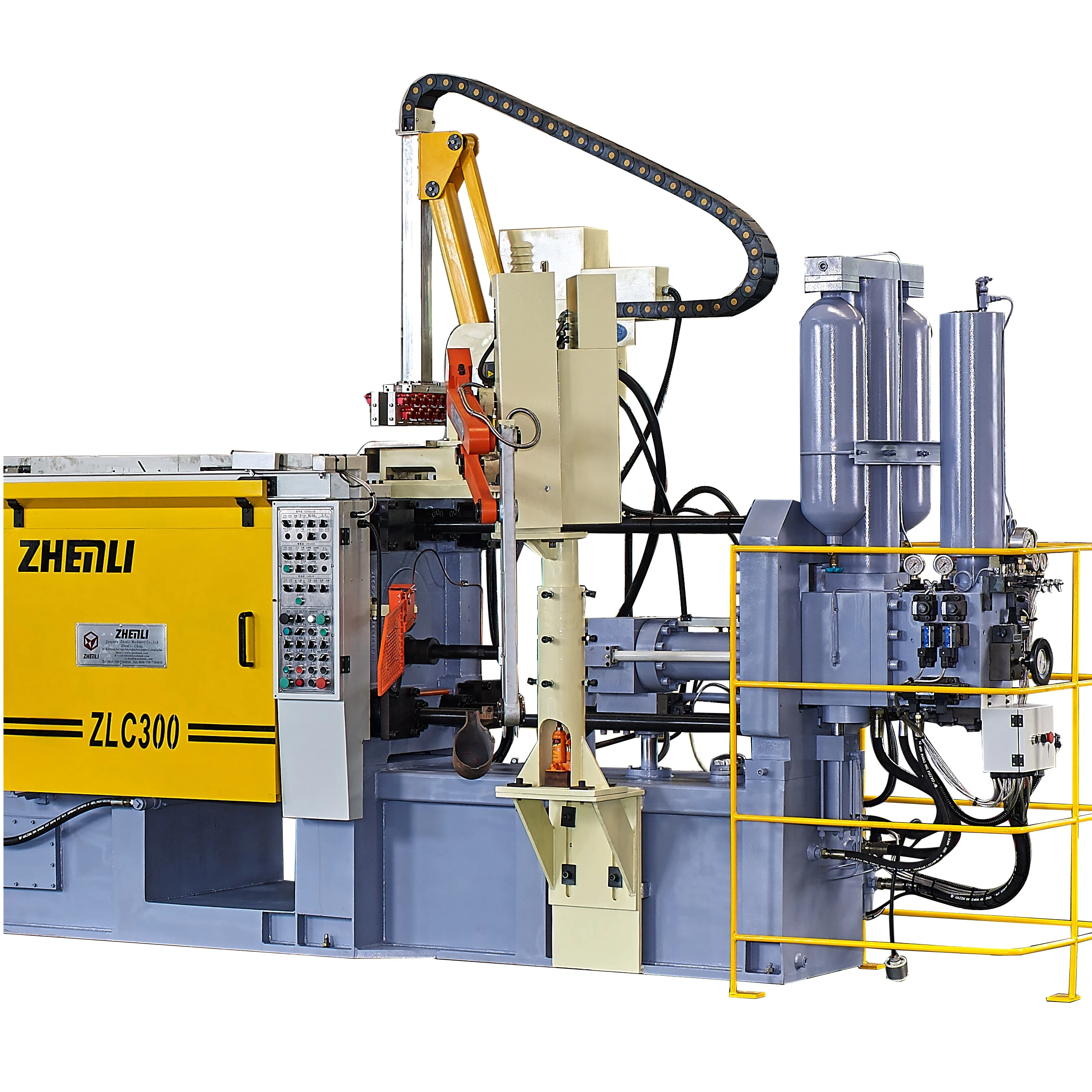

aluminum cold chamber die casting machine
With competitive technology and comprehensive strength, we present customer with the most suitabletegrated die-casting equipments.
Main Features:
Zhenli, s unique injection system makes injection more powerful and ensures the good quality of products
Pressure is set independently for injection and intensities accumulator, to ensure the stability of the injection pressure.
Injection system is in the structure of four bars, more stable and reliable
Maximum dry shot speed is more than 8m/s, and pressure building time is less than 20ms
Zhenli, s unique injection system makes injection more powerful and ensures the good quality of products
Pressure is set independently for injection and intensities accumulator, to ensure the stability of the injection pressure.
Injection system is in the structure of four bars, more stable and reliable
Maximum dry shot speed is more than 8m/s, and pressure building time is less than 20ms

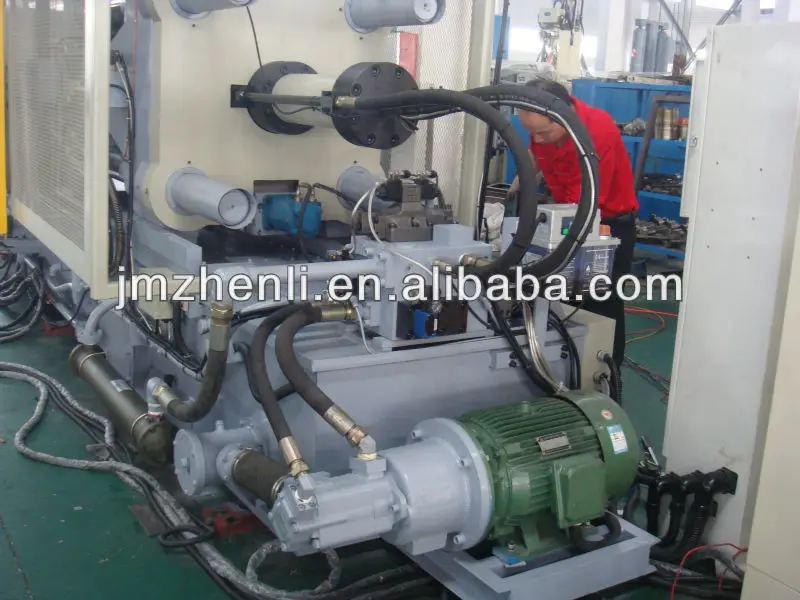

back side of the machine
full auto with the extractor and the conveyor for taking out the product from the mold and cooling the products.

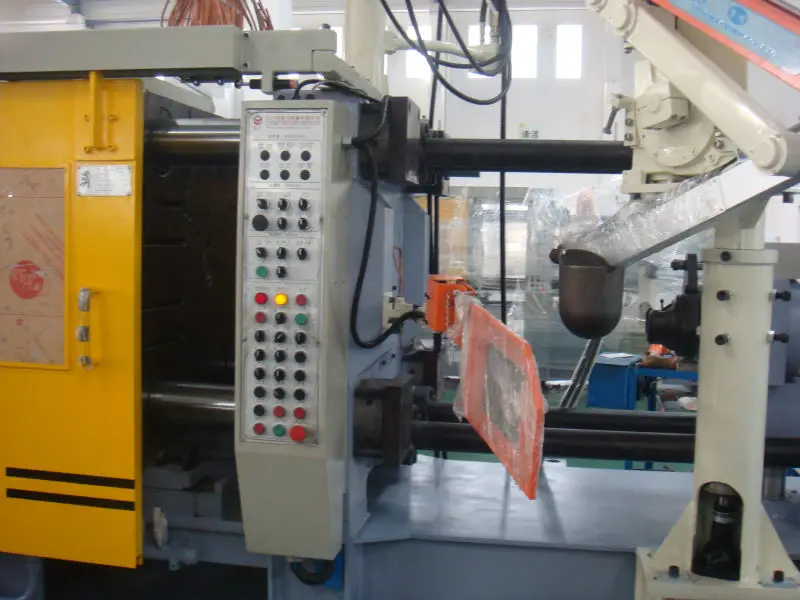

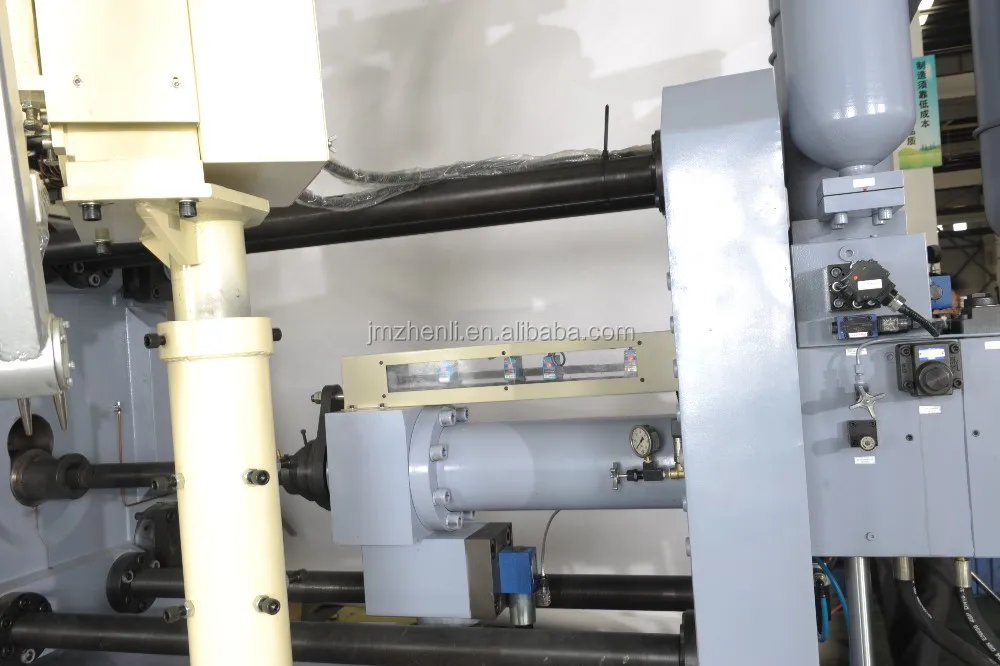

injection position adjustment
switch controlled, adjust the switch for changing the injection position and speed setting on the PLC controlled
PRODUCT SPECIFICATIONS
No | ITEM | UNIT | ZLC-300 |
1 | Clamping force | kN | 3000 |
2 | Die clamping stroke | mm | 470 |
3 | Ejection force | kN | 150 |
4 | Ejection stroke | mm | 110 |
5 | Die height (min-max) | mm | 250-650 |
6 | Die platen size (H*V) | mm | 860*875 |
7 | Space between tie bar | mm | 560*560 |
8 | Shot position | mm | 0,-125 |
9 | Shot strock | mm | 440 |
10 | Casting Force (intensify) | kN | 330 |
11 | Plunger diameter | mm | 50,60,70 |
12 | Injection weight (Aluminum) | kg | 1.5, 2.1, 2.9 |
13 | Casting pressure (intensify) | MPa | 170, 118, 87 |
14 | Casting Area | cm2 | 172, 252, 343 |
15 | Max Casting Area (40Mpa) | cm2 | 750 |
16 | Chamber Flange Diameter | mm | 110 |
17 | Height of pressure chamber flange | mm | 10 |
18 | Plunger penetration | mm | 165 |
19 | Main pump driving/Servo motor | kw | 18.5/30 |
20 | Hydraulic working pressure | MPa | 14 |
21 | Oil tank capacity | L | 750 |
22 | Machine diameter ( L*W*H) | mm | 6500*1700*2700 |
23 | Referential machine weight for uplifting | T | 11.8 |
PRODUCT CONFIGURATION
Main Features:
The Germany famous s-7 200 intelligent control system can control and monitor the data and status of each action , easy for operation and maintenance
The big LCD screen can realize the conversion of multiple languages , such as Chinese , English , Russian , portuguese and so on
Its powerful memory can store molding data , such as time , parameter , speed , pressure , stroke , mold thickness , options and so on
The control system is equipped with self-check and failure alarm function , which is convenient for troubleshooting
Die clamping system is equipped with electric ruler which is used for position test , and the accuracy can be reached 0.1 mm
The big LCD screen can realize the conversion of multiple languages , such as Chinese , English , Russian , portuguese and so on
Its powerful memory can store molding data , such as time , parameter , speed , pressure , stroke , mold thickness , options and so on
The control system is equipped with self-check and failure alarm function , which is convenient for troubleshooting
Die clamping system is equipped with electric ruler which is used for position test , and the accuracy can be reached 0.1 mm
servo system:
The energy saving rate of each shot is very high, 40%-70% higher than the traditional machines.
Servo system can response quickly, and the pressure change between 0 and 100% can reach 30ms, which can improve productivity by5%-12%.
Servo system can lower the hydraulic temperature and then reduce the use of cooling water by 30%, which can prolong the working lifeof hydraulic parts, reduce the noise and improve your working environment.
Servo system can response quickly, and the pressure change between 0 and 100% can reach 30ms, which can improve productivity by5%-12%.
Servo system can lower the hydraulic temperature and then reduce the use of cooling water by 30%, which can prolong the working lifeof hydraulic parts, reduce the noise and improve your working environment.
SALES AND SERVICE NETWORK
Company Profile
About us:
Located in Jiangsha Industrial District of Jiangmen City , China ' famous motorcycleproduction base , Jiangmen Zhenli Machinery Co , Ltd is a high-tech company specializingin R & D , design , production , and after-sale services . Since its foundation in 2002 , aftera decade ' s development and dedication , Zhenli has developed into a modern factorywith imported CNC machining center , gantry milling , planer , grinder , and other advancedequipment . The main products of Zhenli include " ZL " series of hot chamber die castingmachines , ZLC " series of cold chamber die casting machines , servo die castinmachines , real-time control die casting machines , magnesium alloy die casting machines ,and peripherals , etc .
Adhering to the business philosophy of Keeping Improvement and HighPerformance " and the faith of Innovation and Integrity " , in pursuit of high qualityreliance and reputation , Zhenli always places more emphasis on the technology andmanagement . Because of its advanced technology , high quality and effective managementZhenli' s hot chamber as well as cold chamber die casting machines have won the trustand love of our clients at home and abroad . Besides , our machines are widely appliedin the sectors of toys , appliances , building materials and hardware , industrial parts , autoparts , electronics , etc In a word , our machines almost can satisfy all kinds of production ofcastings .
Apart from professional equipment , a qualified R & D team , the stable performance andreliable quality of machines , Zhenli will provide excellent pre-sale and after-sale services .which makes Zhenli become a best-selling brand in the domestic and extemal market . Sofar , in addition to 30 provinces or cities in China , Zhenli' s die casting machines have beensold to more than 50 countries in Europe , South America , Africa , Southeast Asia and theMiddle East . and so on .
We love die casting machines , so we try to be professional ; we are professional , so weare excellent . It is our good hope to promote , by joint effort , both business and friendship toour mutual benefit.
Adhering to the business philosophy of Keeping Improvement and HighPerformance " and the faith of Innovation and Integrity " , in pursuit of high qualityreliance and reputation , Zhenli always places more emphasis on the technology andmanagement . Because of its advanced technology , high quality and effective managementZhenli' s hot chamber as well as cold chamber die casting machines have won the trustand love of our clients at home and abroad . Besides , our machines are widely appliedin the sectors of toys , appliances , building materials and hardware , industrial parts , autoparts , electronics , etc In a word , our machines almost can satisfy all kinds of production ofcastings .
Apart from professional equipment , a qualified R & D team , the stable performance andreliable quality of machines , Zhenli will provide excellent pre-sale and after-sale services .which makes Zhenli become a best-selling brand in the domestic and extemal market . Sofar , in addition to 30 provinces or cities in China , Zhenli' s die casting machines have beensold to more than 50 countries in Europe , South America , Africa , Southeast Asia and theMiddle East . and so on .
We love die casting machines , so we try to be professional ; we are professional , so weare excellent . It is our good hope to promote , by joint effort , both business and friendship toour mutual benefit.
CNC machining workshop
Tosh*ba processing machine
Inspection table and some processing machines
cold chamber die casting machine workshop
hot chamber die casting machine workshop
peripheral devices and cabinet workshop

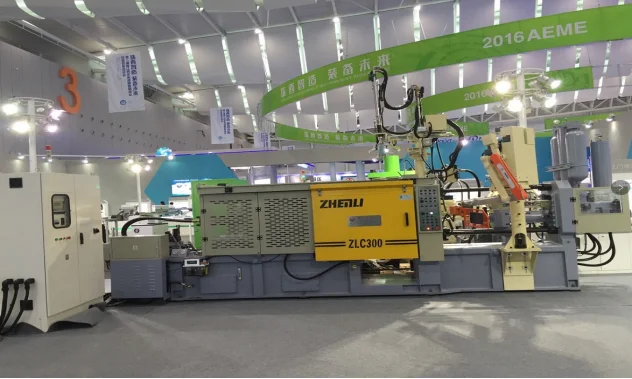

Exhibition in columbia
Exhibition in Pakistan
Exhibition in Russia
Exhibition in Uzbekistan
FAQ
Q1： Does it works auto?
A1：It can work full auto by equipped the preipheral devices, such as ladle, sprayer, extractor, ect
Q2: What kind of the furnace use for?
A2: We have 3 kinds of the furnace, electric, natural gas and diesel. We use the Japaness brand of the burner and we can customized the electric voltage for different countries.
Q3: how to choose the machine type?
A3: you should follow your product, the square of your product is the casting area of the machine, and the weight is about 1/3 less than the injection weight. If you have the mold, you can check the platen size can be used your mold or not.
Q4: I have the mold, but different with your size, can I use it?
A4: Yes, we are the manufacturer, we have the processing machines. We can following your design to process our machine parts.
