Упорный Шарикоподшипник из хромированной стали GCr15 51126 с ABEC1 ABEC3 ABEC 5 ABEC7
- Категория: Thrust Ball Bearing >>>
- Поставщик: Hefei,Rowiss,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.2 $* | 0.47 $* |
| Aug-19-2025 | 0.96 $* | 0.10 $* |
| Jul-19-2025 | 0.96 $* | 0.32 $* |
| Jun-19-2025 | 0.91 $* | 0.76 $* |
| May-19-2025 | 0.6 $* | 0.97 $* |
| Apr-19-2025 | 0.51 $* | 0.34 $* |
| Mar-19-2025 | 0.30 $* | 0.58 $* |
| Feb-19-2025 | 0.32 $* | 0.18 $* |
| Jan-19-2025 | 0.87 $* | 0.32 $* |
Характеристики
Product Description

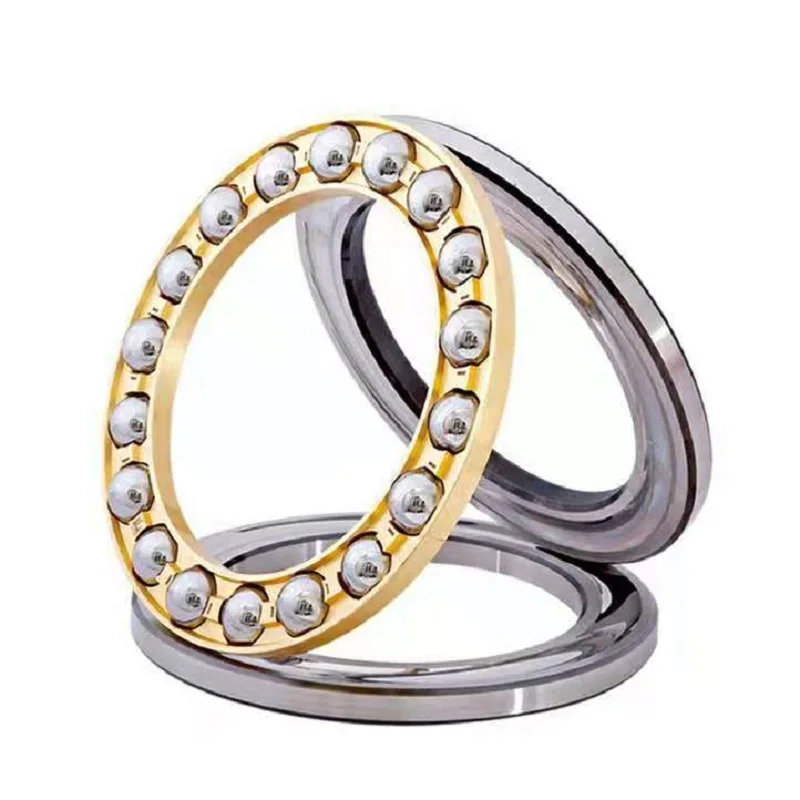

Thrust Ball Bearings.
Thrust ball bearings are divided into single and double direction types. The former is able to accommodate axial load in single direction, while the latter is able to accommodate it in both directions. Neither is able to application that involve radial load and high speed rotation.Bearings whose housing race back face is spherical (with spherical back face or aligning seat face) are designed with self aligning capability and can accommodate the effects of inaccurate mounting.
Single direction thrust ball bearing
51100 series, 51200 series, 51300 series, 51400 series
Double direction thrust ball bearing
52200 series, 52300 series, 52400 series
Other types of thrust ball bearing
53200 series, 53300 series,53400 series, 54200 series, 54300 series, 54400 series
FEATURES OF BALL THRUST BEARINGS
Consists of row of balls running between two grooved washer rings
The smaller bore ring is referred to as the shaft washer while the larger bore ring is called the housing washer
The ring faces are always mounted parallel to the shaft center line
The housing washer is made with either a flat or spherical back face
Thrust bearings with spherical faces and washers are self-aligning to compensate for mounting errors
Cages can be pressed steel , copper alloy, and a synthetic resin molded or machined resin cage
MAIN APPLICATIONS
Automobile steering pivots and machine tool spindles
5 benefits you must know?
1. Long life – high quality bearing steel is selected from China top 3 steel factories
2. High precision – all parts are machined by advanced equipments with the same standard
3. Low noisy – all bearings are inspected and passed by noisy test (higher 3-5% than industry standard)
4. Cost reduce – long life bearings can reduce your usage cost
5. Efficiency increase – long life bearings can improve your equipment efficiency
Single direction thrust ball bearing
51100 series, 51200 series, 51300 series, 51400 series
Double direction thrust ball bearing
52200 series, 52300 series, 52400 series
Other types of thrust ball bearing
53200 series, 53300 series,53400 series, 54200 series, 54300 series, 54400 series
FEATURES OF BALL THRUST BEARINGS
Consists of row of balls running between two grooved washer rings
The smaller bore ring is referred to as the shaft washer while the larger bore ring is called the housing washer
The ring faces are always mounted parallel to the shaft center line
The housing washer is made with either a flat or spherical back face
Thrust bearings with spherical faces and washers are self-aligning to compensate for mounting errors
Cages can be pressed steel , copper alloy, and a synthetic resin molded or machined resin cage
MAIN APPLICATIONS
Automobile steering pivots and machine tool spindles
5 benefits you must know?
1. Long life – high quality bearing steel is selected from China top 3 steel factories
2. High precision – all parts are machined by advanced equipments with the same standard
3. Low noisy – all bearings are inspected and passed by noisy test (higher 3-5% than industry standard)
4. Cost reduce – long life bearings can reduce your usage cost
5. Efficiency increase – long life bearings can improve your equipment efficiency
Specification
item | value |
Type | BALL |
Structure | Thrust |
Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Other |
Brand Name | ROWISS or OEM Brand |
Model Number | 51107 |
Precision Rating | ABEC1 ABEC3 ABEC 5 ABEC7 |
Seals Type | OPEN |
Number of Row | Single Row |
Place of Origin | China |
Product name | Thrust Ball Bearing |
Material | Chrome Steel GCr15 |
Cage | Steel Cage.copper Cage |
Precision | ABEC1 ABEC3 ABEC 5 ABEC7 |
Feature | High Precision Long Life |
Service | OEM Service.Design Service |
Application | Automotive.tractor.construction Machinery.rolling Mill |
MOQ | 100 |
Sample | Avaliable |
Delivery | 3-14 Days |
Packing & Delivery
1.Industrial packing+carton box+pallet
2.Single box+carton box+pallet
3.Packing as per customers' request
2.Single box+carton box+pallet
3.Packing as per customers' request
Company Profile
OUR DIFFERENCE:We offer not only good bearings, but also our knowledge.
What we do?
ROWISS bearing export high quality bearings for our customers all over the world with very good price since 2000. We serve our target market for agricultural, electrical, fluid, industrial transmission, material handling, auto industry for many years.
Our strength products include as below:
Ball bearings
Auto bearings
Pillow block bearings and bearing units
Taper roller bearings
Agricultural bearings
70% products are exported to North America, West Europe and Asia.
Why choose us?
3 professional joint venture bearing factories with 204300 square meters
10 years rich export experience and know how to do
183 rich experienced employee work for you
10 million USD export turnover for 42 countries in 2020
Custom made and small order are ok with prompt delivery
Complete quality assurance with ISO 9001, ISO 14000 and TS 16949
What we promise?
All bearings are 100% inspected in the same standard with 12 months warranty when sent out. If quality problems occur, we will compensate according to the actual loss when you submit the third party report to us (such as SGS and Lloyd's, etc).
All goods will be delivered on time when the order confirmed. If the order will be delayed, the penalty must be executed by 30USD each day up to 5% the order total amount.
All emails will be replied within 3 hours during working time, the enquiry and order must be handled within 24 hours (8:30AM - 5:30PM, Monday - Friday). If you have any complaints with our service, please send your email to us, we are at your disposal.
Don't worry, please contact us now!
What we do?
ROWISS bearing export high quality bearings for our customers all over the world with very good price since 2000. We serve our target market for agricultural, electrical, fluid, industrial transmission, material handling, auto industry for many years.
Our strength products include as below:
Ball bearings
Auto bearings
Pillow block bearings and bearing units
Taper roller bearings
Agricultural bearings
70% products are exported to North America, West Europe and Asia.
Why choose us?
3 professional joint venture bearing factories with 204300 square meters
10 years rich export experience and know how to do
183 rich experienced employee work for you
10 million USD export turnover for 42 countries in 2020
Custom made and small order are ok with prompt delivery
Complete quality assurance with ISO 9001, ISO 14000 and TS 16949
What we promise?
All bearings are 100% inspected in the same standard with 12 months warranty when sent out. If quality problems occur, we will compensate according to the actual loss when you submit the third party report to us (such as SGS and Lloyd's, etc).
All goods will be delivered on time when the order confirmed. If the order will be delayed, the penalty must be executed by 30USD each day up to 5% the order total amount.
All emails will be replied within 3 hours during working time, the enquiry and order must be handled within 24 hours (8:30AM - 5:30PM, Monday - Friday). If you have any complaints with our service, please send your email to us, we are at your disposal.
Don't worry, please contact us now!
FAQ
How to order?
If you want to order some bearings from ROWISS, please feel free to contact us:
Call to us by + 86 15555115239
Send your email to us by info@rowiss.com
Fill in order sheet on our website
How to pack your goods?
All goods will be well packed and sent to you on time, we provide some packages upon your request:
1.Industrial packing+carton box+pallet
2.Single box+carton box+pallet
3.Packing as per customers' request
How to pay?
ROWISS provide kinds of payment terms according to the total amount and your request, the payment terms include:
T/T (the order total amount<100000USD normally)
L/C (the order total amount>100000USD normally)
Cash, Paypal, Western Union, etc (normally for the sample, the freight and the mini order)
Other payment term can be discussed
What's the lead time?
The lead time depends on quantity and factory production status, we normally ship the goods to you:
Within 3-7 working days (if we have the ready goods in stock)
Within 7-45 working day (as per the actual order quantity )
How to delivery?
ROWISS must ensure that the goods can be delivered on time and unbroken to our customers. It depends on the cargo weight, value and customer requirements, we often offer four modes of transportion as below:
By courier
By sea
By air
By DDP (delivered duty paid)
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery
Guangzhou, Qingdao, Shanghai, Ningbo Port, etc as per customers' reqeust
If you want to order some bearings from ROWISS, please feel free to contact us:
Call to us by + 86 15555115239
Send your email to us by info@rowiss.com
Fill in order sheet on our website
How to pack your goods?
All goods will be well packed and sent to you on time, we provide some packages upon your request:
1.Industrial packing+carton box+pallet
2.Single box+carton box+pallet
3.Packing as per customers' request
How to pay?
ROWISS provide kinds of payment terms according to the total amount and your request, the payment terms include:
T/T (the order total amount<100000USD normally)
L/C (the order total amount>100000USD normally)
Cash, Paypal, Western Union, etc (normally for the sample, the freight and the mini order)
Other payment term can be discussed
What's the lead time?
The lead time depends on quantity and factory production status, we normally ship the goods to you:
Within 3-7 working days (if we have the ready goods in stock)
Within 7-45 working day (as per the actual order quantity )
How to delivery?
ROWISS must ensure that the goods can be delivered on time and unbroken to our customers. It depends on the cargo weight, value and customer requirements, we often offer four modes of transportion as below:
By courier
By sea
By air
By DDP (delivered duty paid)
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery
Guangzhou, Qingdao, Shanghai, Ningbo Port, etc as per customers' reqeust
