Характеристики
Product Description

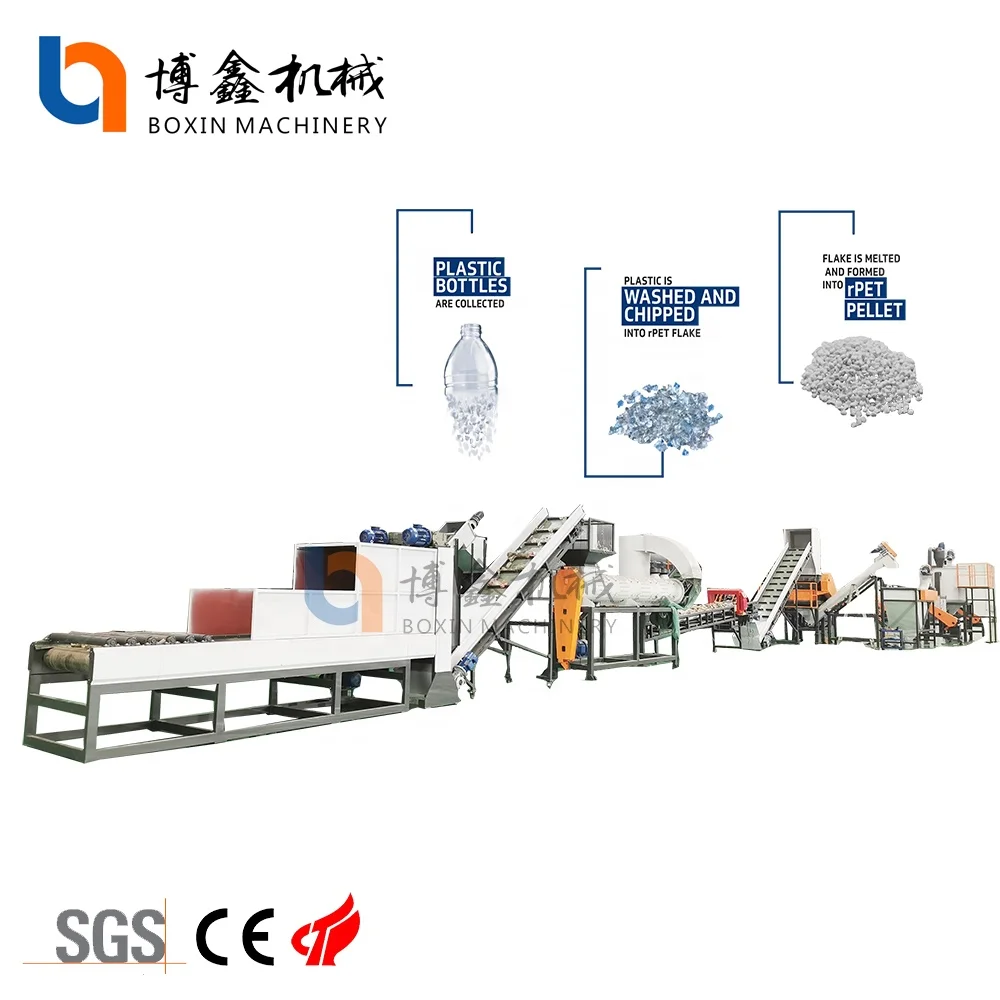

PET bottle flake washing recycling line mainly used to recycling waste PET bottle, flake, PVC and some other plastics. The whole
line is fully automatic and it has characteristics of high efficiency, low noise and easy operation.the humidity of final output
could be within 2%.It adopts hot water washing to get good quality. Various output capacities can be chosen: 300KG/H, 500kg/h,
1000kg/h, 1500kg/h 2000kg/h.3000kg/h
line is fully automatic and it has characteristics of high efficiency, low noise and easy operation.the humidity of final output
could be within 2%.It adopts hot water washing to get good quality. Various output capacities can be chosen: 300KG/H, 500kg/h,
1000kg/h, 1500kg/h 2000kg/h.3000kg/h
Input capacity | 500kg/h | 1000 kg/h | 2000 kg/h | 3000kg/h |
Workshop(M*M*M) | 42 (L)×10(W)×6(H) | 55(L)×15(W)×6(H) | 70(L)×18(W)×6(H) | 70(L)×30(W)×7(H) |
Ancillary staff | 6 | 8 | 12 | 12 |
Installation power | 156KW | 307KW | 420KW | 652KW |
Water consumption | 2Ton/h | 3.5Ton/h | 5 Ton/h | 18Ton first time then 2-3Ton/h |
Final product | Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm | Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max. 20oom Floatable contamination: less than 200ppm Total impurity: 320ppm | Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: Max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm | Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: Max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm |
De-baler
Usage: Unpacking the PET bottle block/bale
Label remover
Usage: Separate bottle labels
Rate:
Compressed bottle: 90-95%
Uncompressed bottle: 98%
Manual sorting platform
Metal detector and Automatic separation device
Usage: manual selection of material impurities
Usage: detect metal

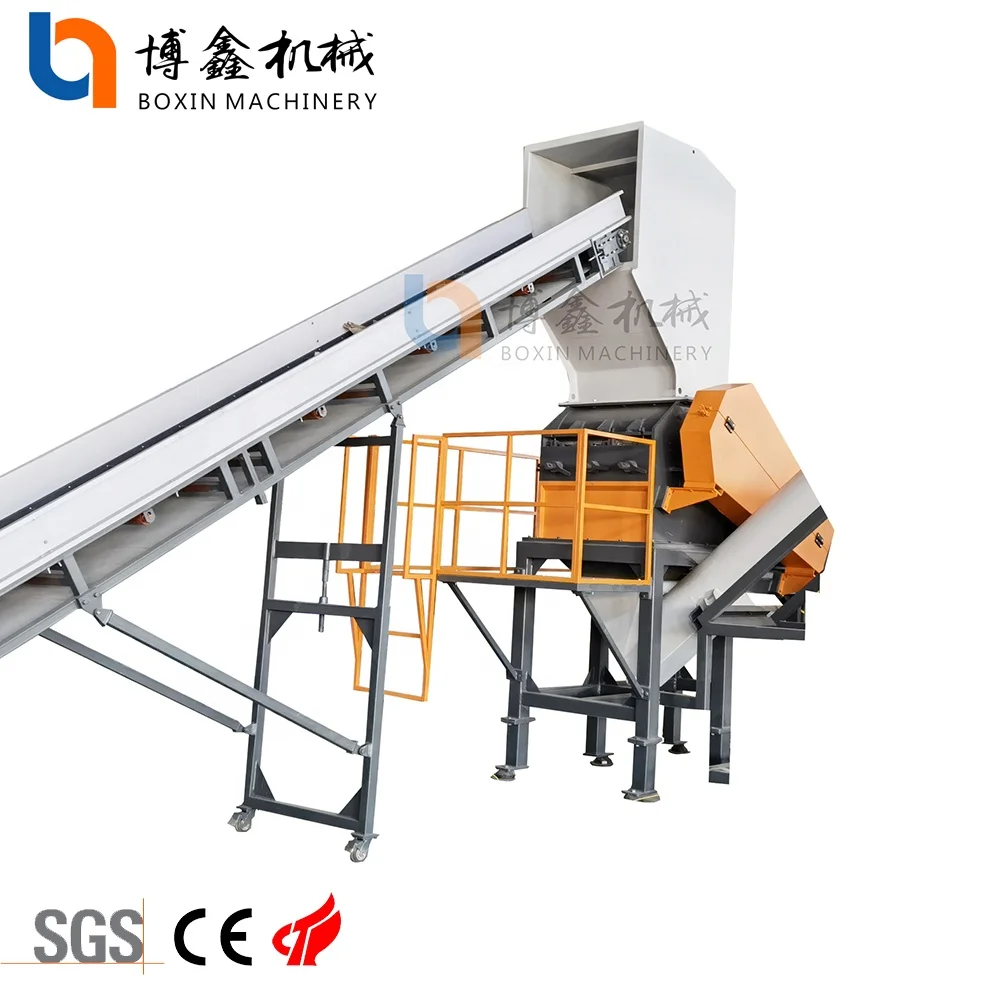

Crusher
Usage: crushing materials into small flakes
Upper hopper open: hydraulic
Float washing tank
Usage: remove labels, bottle caps, etc.
Body material: stainless steel
Body material: stainless steel
High speed de-watering machine
Usage: to remove oil and other impurities
Body material: stainless steel
Body material: stainless steel
Steam washer
Usage: Add chemicals and hot wash to remove oil, impurities and labels.
The part in contact with water is stainless steel 304. Steam boiler (the quotation price does not include the boiler, if necessary, it can be quoted separately) to produce steam, and the water temperature reaches 90-95℃. Carefully add caustic soda or other cleaning agents, and let the flakes stay in the hot washing boiler for 8-10 minutes. This kind of hot gas boiler can effectively remove impurities and separate labels and bottle caps, so the cleanliness of bottle flakes is greatly improved.
Body material: stainless steel
The part in contact with water is stainless steel 304. Steam boiler (the quotation price does not include the boiler, if necessary, it can be quoted separately) to produce steam, and the water temperature reaches 90-95℃. Carefully add caustic soda or other cleaning agents, and let the flakes stay in the hot washing boiler for 8-10 minutes. This kind of hot gas boiler can effectively remove impurities and separate labels and bottle caps, so the cleanliness of bottle flakes is greatly improved.
Body material: stainless steel
Friction washer
Usage: by injecting high-pressure water to effectively remove chemicals and impurities
Zig-zag label blower & Silo
Usage: Separate labels, dust, etc. from bottle flakes
Usage: Storage flakes
Our Advantage:
1.Final products have good quality. When process PET bottle, final products humidity below 1%, impurities100ppm,PVC label content 100ppm.
2.Parts which contact material use SUS304 stainless steel, thickness more than 3mm, ensure long service lift time and no second pollution to flakes.
3.World famous brand components applied on the production line- NSK bearing, Siemens contactor, Omron temperature, FUJI inverter, Siemens PLC control etc.
4. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
5.The whole production equipment is researched, design and manufactured by our company with CE certification, ISO9001
certification; it can be designed based on the dirty flakes, and make sure of the quality of the final products.
2.Parts which contact material use SUS304 stainless steel, thickness more than 3mm, ensure long service lift time and no second pollution to flakes.
3.World famous brand components applied on the production line- NSK bearing, Siemens contactor, Omron temperature, FUJI inverter, Siemens PLC control etc.
4. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
5.The whole production equipment is researched, design and manufactured by our company with CE certification, ISO9001
certification; it can be designed based on the dirty flakes, and make sure of the quality of the final products.
Company Profile
BOXIN Machinery is a creative company, focusing on the technology R&D of plastic recycling, and providing the equipment and solutions for plastic washing, recycling and granulating. BOXIN Machinery plastic recycling technology mainly applied in the field of waste plastic regrinding, washing and regranuling. Thanks to the R&D ability and well-understanding industries experience, BOXIN Machinery can provide the customized plastics recycling solutions to customers. Typical productions Machinery can provide are: plastic washing line for PET bottles, PP PE film bags, HDPE Bottles , Plastic pelletizing recycling line for clean PP PE material , plastic shredder and crushers etc. Advantage of Machinery: Specialized R&D team involved in plastics recycling industries more than 15 years; Ability to provide the customized plastic recycling solutions; Complete sales system covering the pre-sale, sales and after sales; Professional engineers will perform debugging and technical guidance.
Customer
Project in Pakistan
Project in Nigeria
Project in Ecuador
Certifications
