Китайский небольшой вакуумный насос воздушный компрессор воздуходувка типа корня
- Категория: Blower >>>
- Поставщик: Jiangsu,Huanchuan,Environment,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1713.81 $* | 1747.35 $* |
| Jul-17-2025 | 1389.38 $* | 1417.25 $* |
| Jun-17-2025 | 1686.20 $* | 1720.65 $* |
| May-17-2025 | 1673.91 $* | 1706.38 $* |
| Apr-17-2025 | 1336.33 $* | 1363.60 $* |
| Mar-17-2025 | 1646.60 $* | 1679.89 $* |
| Feb-17-2025 | 1632.5 $* | 1665.23 $* |
| Jan-17-2025 | 1619.21 $* | 1651.25 $* |
Характеристики

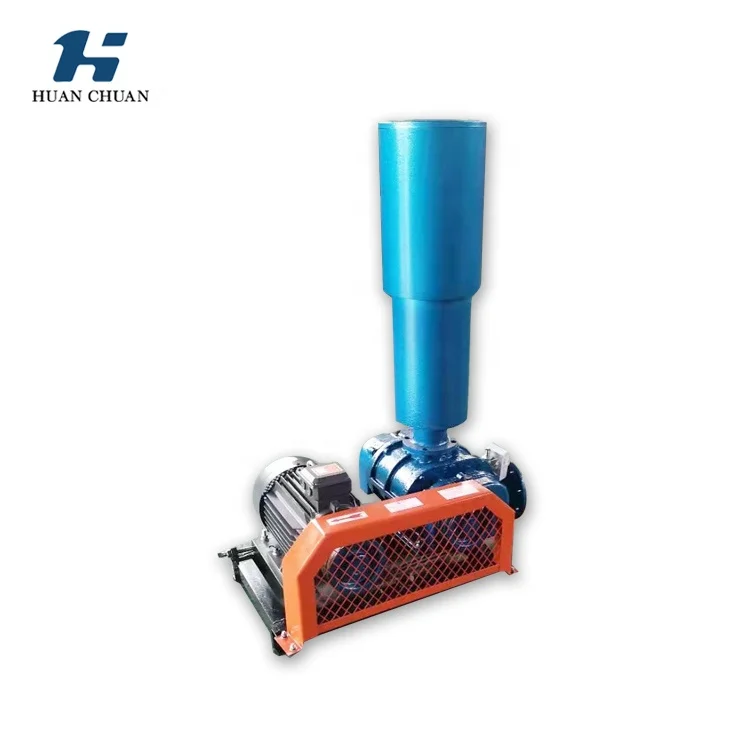

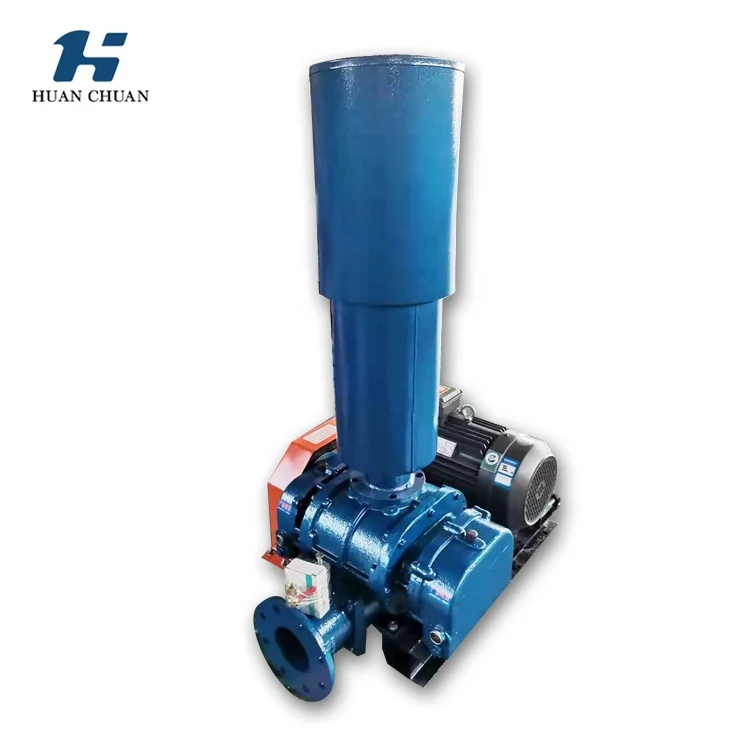

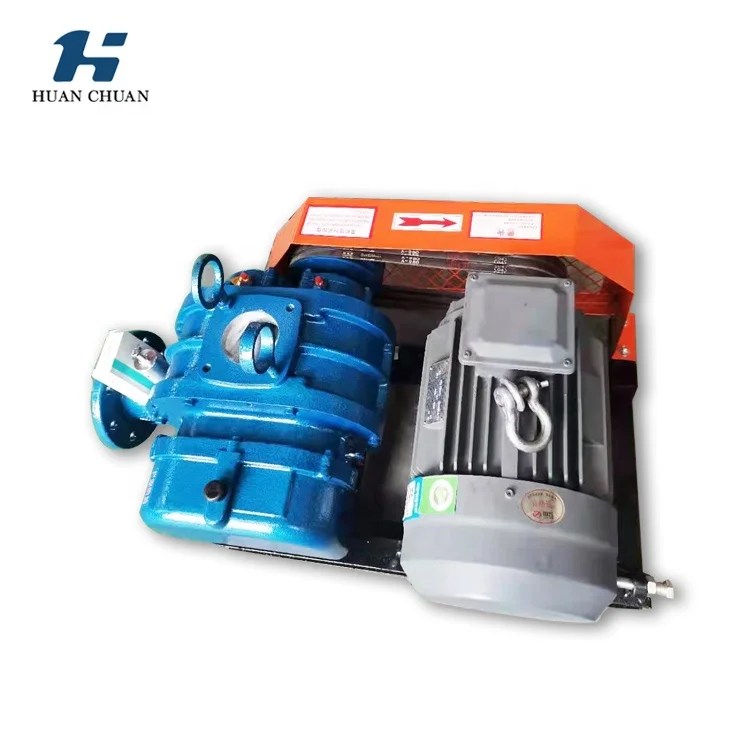

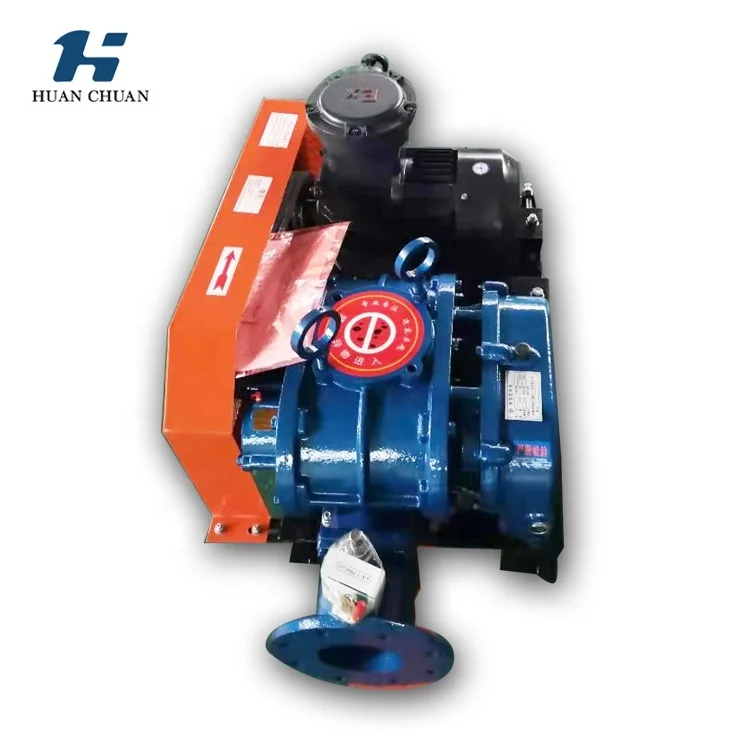

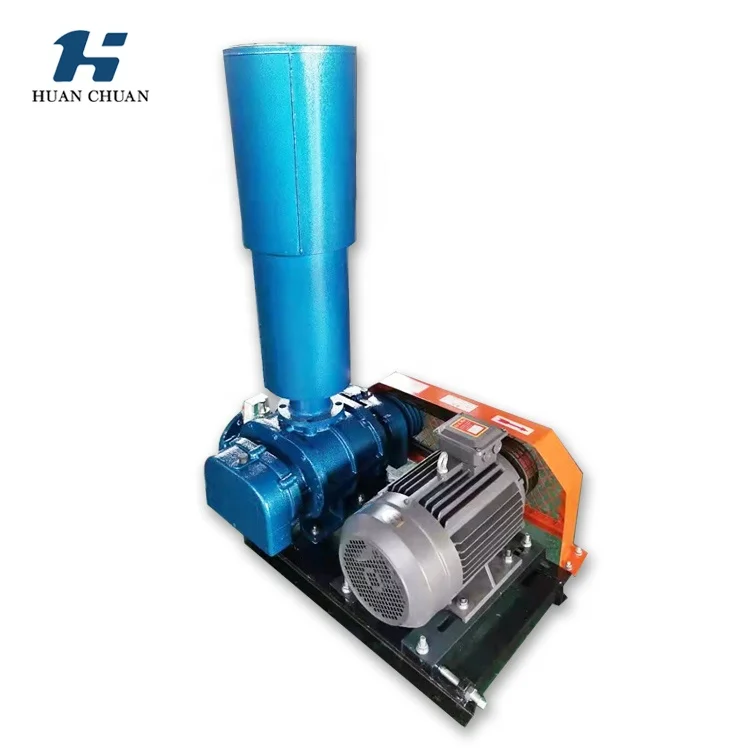

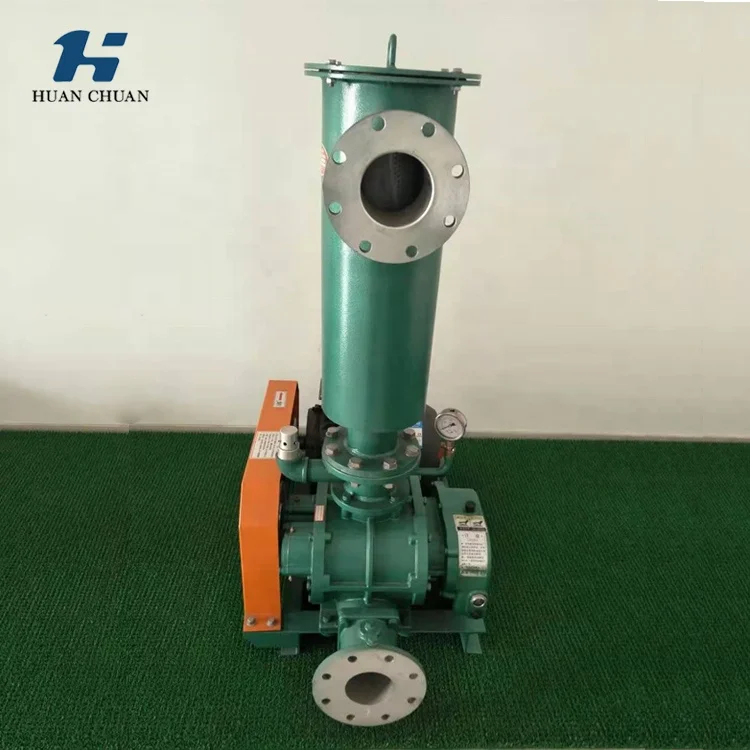

Fish farm use high pressure three lobe roots blower for sale
Root blower bore | 50-350A |
Air flow | 0.4-180m³/min |
Pressure | 0.1-1kgf/cm² |
Power | 0.75-350kw |
NO. | Name | Material | Quantity | NO. | Name | Material | Quantity |
1 | Casing | HT250 | 1 | 14 | Z Seal | Nitrile rubber | 1 |
2 | Impeller | HT250 | 2 | 15 | Gear | 20CrMnTi | 2 |
3 | Drive Shaft | 45 | 1 | 16 | Gear Lock Washer | Q235A | 2 |
4 | Driven Shaft | 45 | 1 | 17 | Gear Lock Nut | 35 | 2 |
5 | Side Cover(Drive Side) | HT250 | 1 | 18 | Gear Case | HT250 | 1 |
6 | Side Cover(Gear Side) | HT250 | 1 | 19 | Collar | 45 | 1 |
7 | Side Cover(Gear Side) | SUJ2 | 2 | 20 | End Plate | HT250 | 1 |
8 | Bearign(Drive Side) | SUJ2 | 2 | 21 | Parallel Key | 45 | 1 |
9 | Stop Ring(Gear Side) | Nitrile rubber | 2 | 22 | Drain Plug | 35 | 1 |
10 | Stop Ring(Drive Side) | Nitrile rubber | 2 | 23 | Oil Gauge | 1 | |
11 | Bearing Sleeve | 45 | 2 | 24 | Air Breather | 1 | |
12 | Bearing Cover(Drive Side) | HT250 | 1 | 25 | Grease Nipple | Brassiness | 2 |
13 | Bearing Cover(Driven Side) | HT250 | 1 | 26 | Gear Case Packing | Green shell paper | 1 |
-The helical construction uses the stator helical method that the screen lines of casing at the situation and discharge sides are cut to a helical shape, and the triangle suction and discharge port formed by a straight line of the rotor top is to be opened and closed gradually. Therefore, the suction and discharge ports of this type is not opened or closed at moments, which makes these blowers have an only limited operation sound and almost free from pulsations from discharge.
-The rotors are three-lobe straight type, so that the rotors can not interfere with each other, resulting from minor displacements in the thrust direction as in tile helical type. Therefore, the clearance between the rotors should be assured in the profile direction only and thus there is no necessity of an excessive clearance on account of displacements in the thrust direction as in case of the rotor helical type. From such reasons, these blowers have a very high efficiency, in comparison with the motor helical type of same dimensions.
-By adoption of an unique profile of rotor, the clearance between the motor can be heldto be constant, which makes the efficiency even higher.
-The precision of rotors is fully controlled and variation of precision between blowers are all most nil because the rotors are produced under the mass production control by utilizing a prenlsion NC maching. In addition, the motors are dynamically balanced in the fabrication stage already, so that these rotors are almost free vibrations as in the case of conventional rotors which are still unbalanced.
-The advanced driving gears are adopted not only to extend the use life but also to make noise lower. The gears are made in special Cr-Mo steel by hardening treatment and are made according with gear precision of JISI first- class. Therefore, the harmful disturbances to products from gears are avoided.
-The transport air is clean and is any oil-dust free oil lubrication is not needed in casing and the structure design prevent the bearing oil from entering the casing.
-With the establishment of quality management system and manufacturer management system, the aims of parts exchanging, less production cost and rapid delivery are realized. The blowers of right quantity are keeped in stock to make delivery in time.
Jiangsu Huanchuan Environment Engineering Co., Ltd. is a specialist supplier of fine bubble diffuser for waste water treatment. Based in Jiangsu Taizhou and supplying products across the world, yearly wastewater treatment project experience helps us to improve product persistently.
-Concentrate on fine bubble diffuser only.
-Our founder has over 10 years experience in rubber.
-As manufacturer, we have strong control in product quality and without middle man price.
-Philosophy of right product first, then right price.
Q: Hello! I have some questions that you need to help me answer, can I?
A: Yes, I am very happy to answer your question.
Q: What is the acceptable MOQ?
A: Two cartons for minimum order quantity.
Q: What is the delivery time?
A: For sample, we usually have stock, so the delivery time will be quite short. For normal order, the delivery time should be in two weeks.
Q: What is acceptable pay term?
A: T/T.
Q: Do you provide sample?
A: We can offer free sample for test, and customer needs to pay the freight charge.
Q:Thank you for your answer.
A: I am very happy to serve you!
