220 В Вибрационный двигатель для машины
US $22.00-$45.00
1 3 в 6000 об/мин 7 мм DC мини полая чашка Вибрационный
- Категория: Vibration Motor >>>
- Поставщик: Yichang,Flourishing,Import,&,Export,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.82 $* | 0.66 $* |
| Aug-20-2025 | 0.57 $* | 0.86 $* |
| Jul-20-2025 | 0.0 $* | 0.29 $* |
| Jun-20-2025 | 0.39 $* | 0.89 $* |
| May-20-2025 | 0.16 $* | 0.39 $* |
| Apr-20-2025 | 0.94 $* | 0.77 $* |
| Mar-20-2025 | 0.93 $* | 0.96 $* |
| Feb-20-2025 | 0.86 $* | 0.25 $* |
| Jan-20-2025 | 0.52 $* | 0.27 $* |
Характеристики
1.3v 7mm DC mini hollow cup vibration motor
Product Description

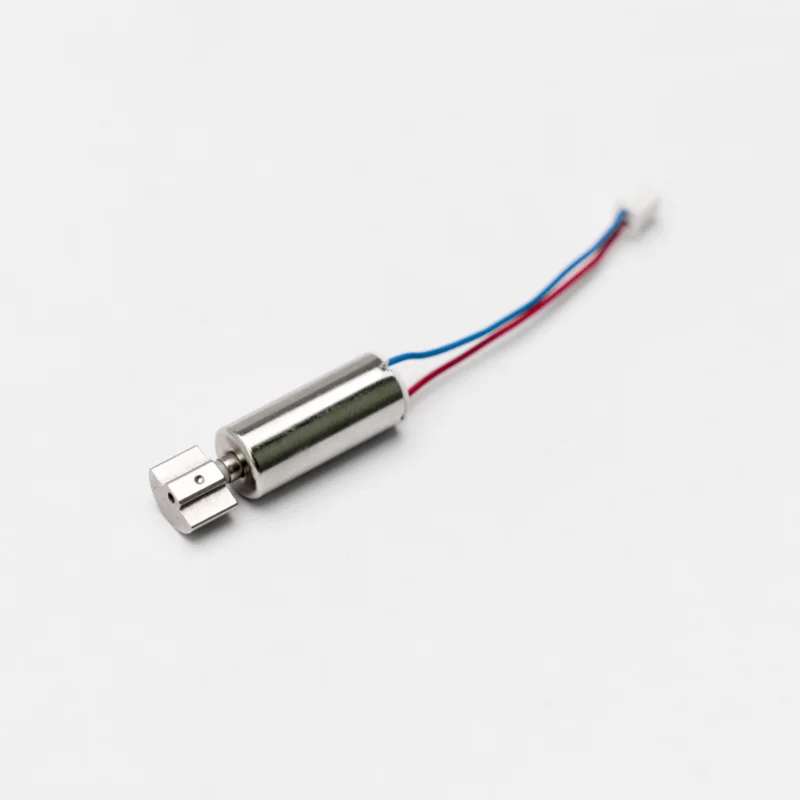

This is a well balanced hollow cup vibration motor, size in 7mm*16mm.
Based on a coreless design with brush communication and permanent magnet construction,
it offers a strong vibration amplitude at 1.3v with low noise, the rated speed is 6000 rpm.
It’s widely applied to sex toy, electric toothbrush, face massager, etc.
Motor Data
| Model | Size | Rated Voltage | Operating Range | Speed | Rated Current | Terminal Resistance | Starting Voltage | Stall Current |
| mm | V | V | r/min | mA | Ω | V | mA | |
| 008BY716 | Ø7x16 | 1.3 | 1.5~4.5 | 6000±10% | 40 | 9.5±10% | 0.5 | 125 Max |

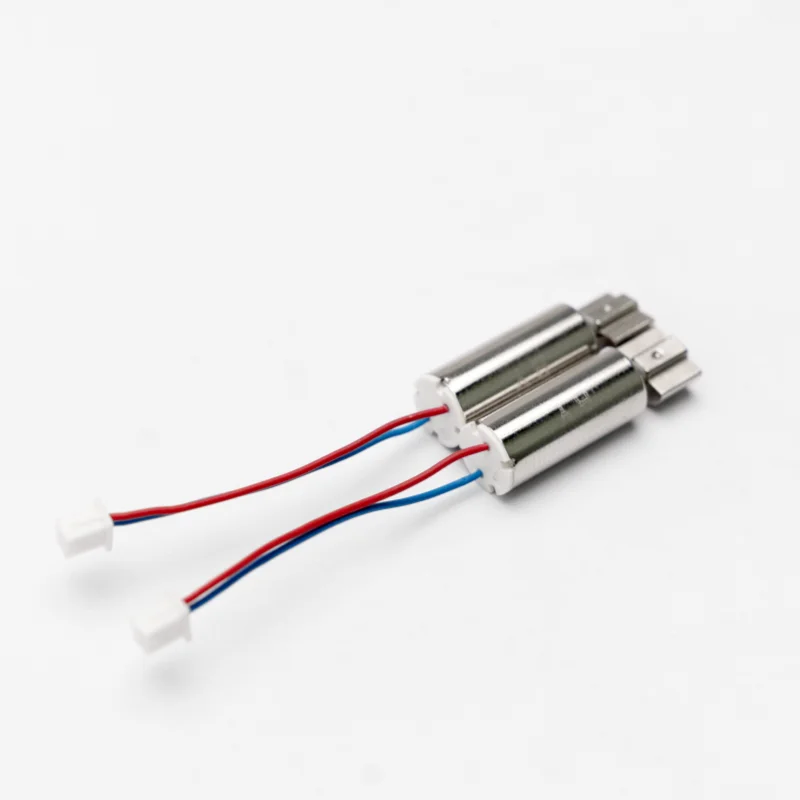

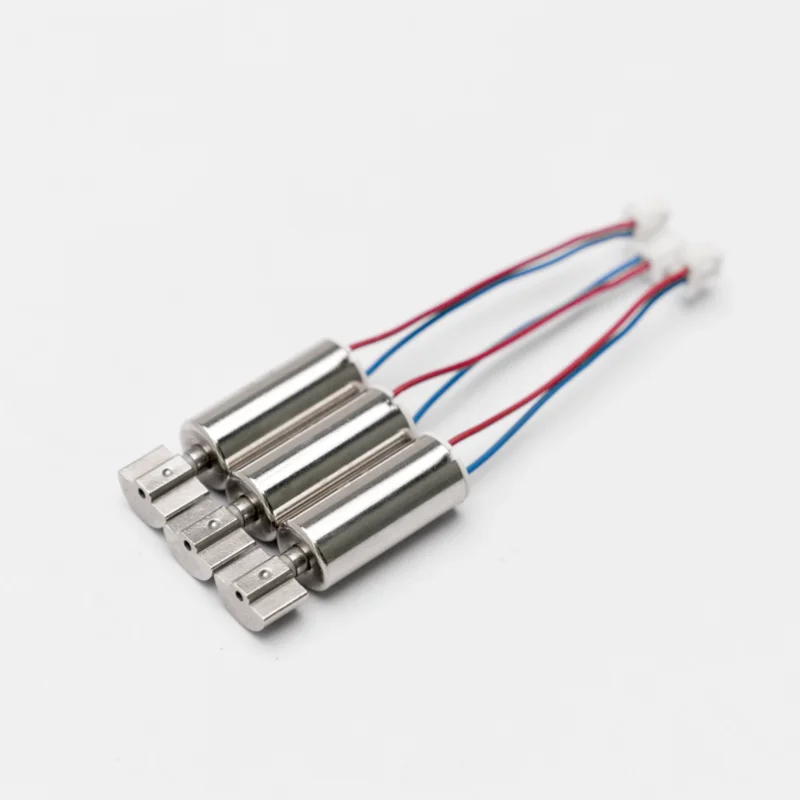

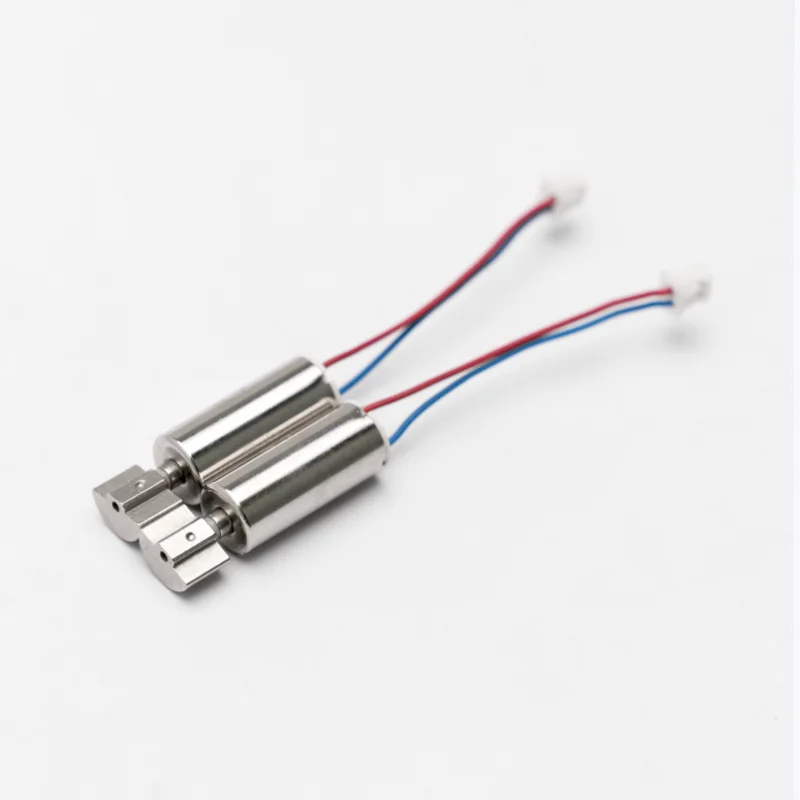

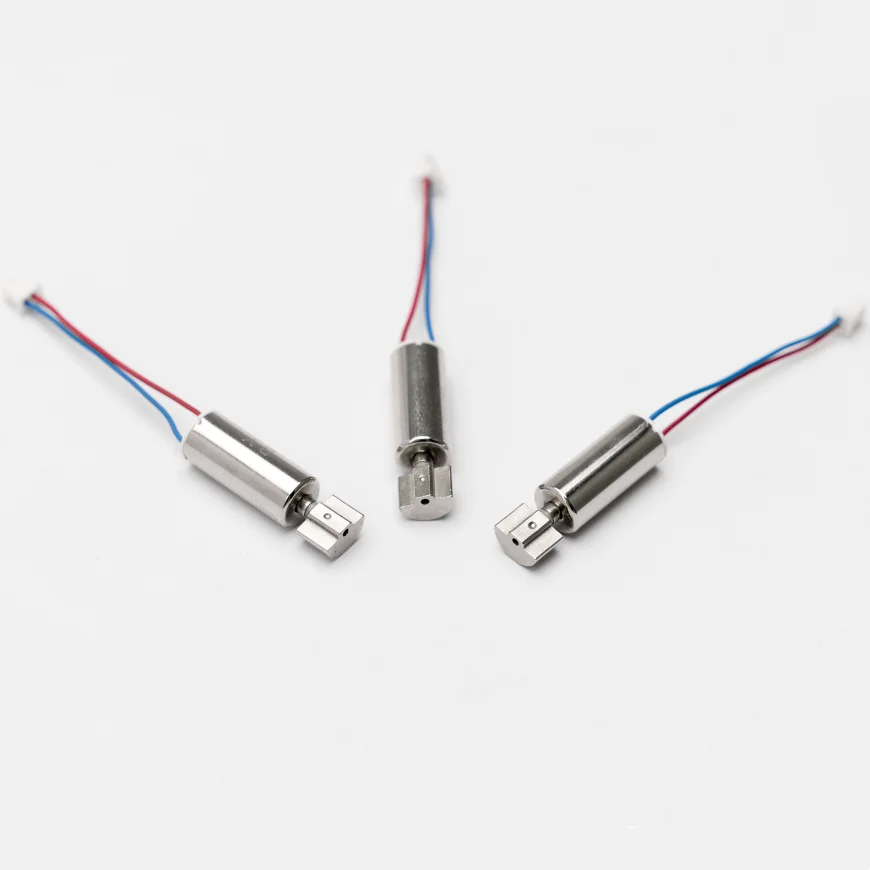

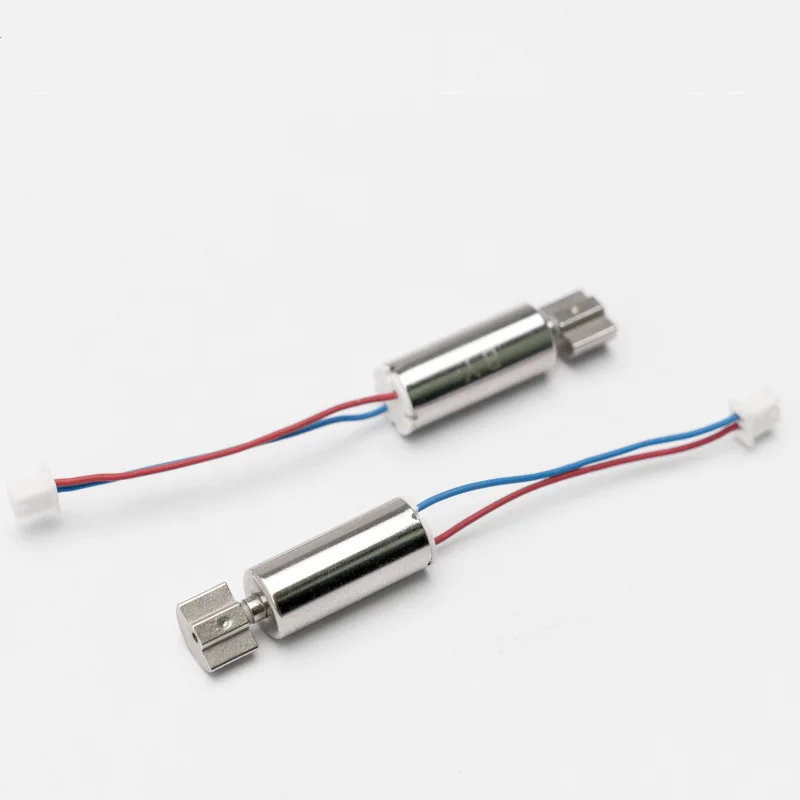

Detailed Images
Related Products
| Dia | Model | Size | Rated Voltage | Operating Range | Speed | Rated Current | Terminal Resistance | Starting Voltage | Stall Current |
| mm | mm | V | V | r/min | mA | Ω | V | mA | |
| Dia 4mm | JMM-1021 | Ø4x8 | 3.0 | 1.0~4.5 | 15000±10% | 80 | 29±5% | 1.0 | 100 Max |
| Dia 6mm | JMM-1406 | Ø6x10 | 1.5 | 1.0~2.0 | 11000±10% | 55 | 9.9±5% | 0.8 | 140 Max |
| JMM-1415 | Ø6x10 | 1.5 | 1.0~2.0 | 11000±10% | 50 | 10±5% | 0.8 | 140 Max | |
| JMM-1416 | Ø6x10 | 1.5 | 1.0~2.0 | 11500±10% | 50 | 10±5% | 0.8 | 140 Max | |
| JMM-1408 | Ø6x10 | 3.0 | 1.0~3.5 | 13000±10% | 55 | 31±5% | 0.8 | 100 Max | |
| JMM-1414 | Ø6x10 | 3.0 | 1.0~3.5 | 12500±10% | 35 | 40±5% | 1.0 | 70 Max | |
| JMM-1410 | Ø6x10 | 4.5 | 1.0~4.5 | 12000±10% | 45 | 67±5% | 0.8 | 65 Max | |
| JMM-1423 | Ø6x10 | 5.0 | 2.0~6.0 | 21000±10% | 60 | 31±5% | 0.8 | 140 Max | |
| JMM-1424 | Ø6x10 | 5.0 | 2.0~6.0 | 12000±10% | 45 | 67±5% | 0.8 | 75 Max | |
| JMM-1417 | Ø6x12 | 1.5 | 1.0~2.0 | 8500±10% | 35 | 17±5% | 0.8 | 90 Max | |
| JMM-1411 | Ø6x12 | 1.5 | 1.0~2.0 | 9000±10% | 40 | 12±5% | 0.8 | 120 Max | |
| JMM-1419 | Ø6x12 | 3.0 | 2.0~3.5 | 12000±10% | 45 | 24±5% | 1.0 | 100 Max | |
| JMM-1422 | Ø6x12 | 3.0 | 1.0~4.5 | 13000±10% | 40 | 22±5% | 1.3 | 160 Max | |
| JMM-1425 | Ø6x12 | 5.0 | 2.0~6.0 | 17000±10% | 110 | 24±5% | 1.0 | 200 Max | |
| JMM-1409 | Ø6x15 | 1.5 | 1.0~2.0 | 8200±10% | 65 | 12±5% | 0.8 | 120 Max | |
| Dia 7mm | JMM-1420 | Ø7x16 | 1.5 | 1.0~2.0 | 4500±10% | 34 | 24±5% | 0.8 | 60 Max |
