Мини-погрузчик на 1 8 тонн маленький трактор фронтальный погрузчик
- Категория: Loaders >>>
- Поставщик: Shandong,Daou,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 10710.46 $* | 11246.50 $* |
| Aug-17-2025 | 10620.14 $* | 11151.80 $* |
| Jul-17-2025 | 8910.85 $* | 9356.60 $* |
| Jun-17-2025 | 10440.10 $* | 10962.98 $* |
| May-17-2025 | 9090.29 $* | 9545.79 $* |
| Apr-17-2025 | 10260.2 $* | 10773.96 $* |
| Mar-17-2025 | 10170.59 $* | 10679.80 $* |
| Feb-17-2025 | 10080.94 $* | 10584.40 $* |
| Jan-17-2025 | 9990.2 $* | 10490.65 $* |
Характеристики
Product Description

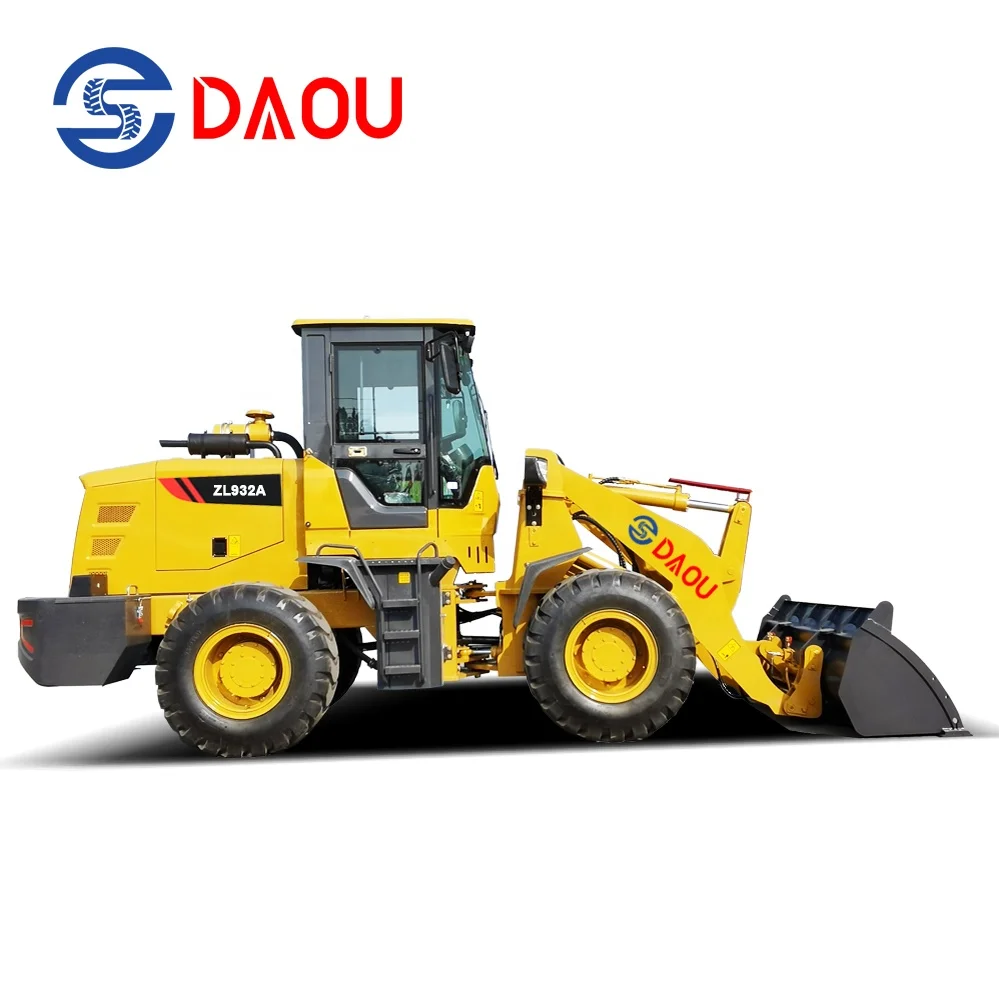

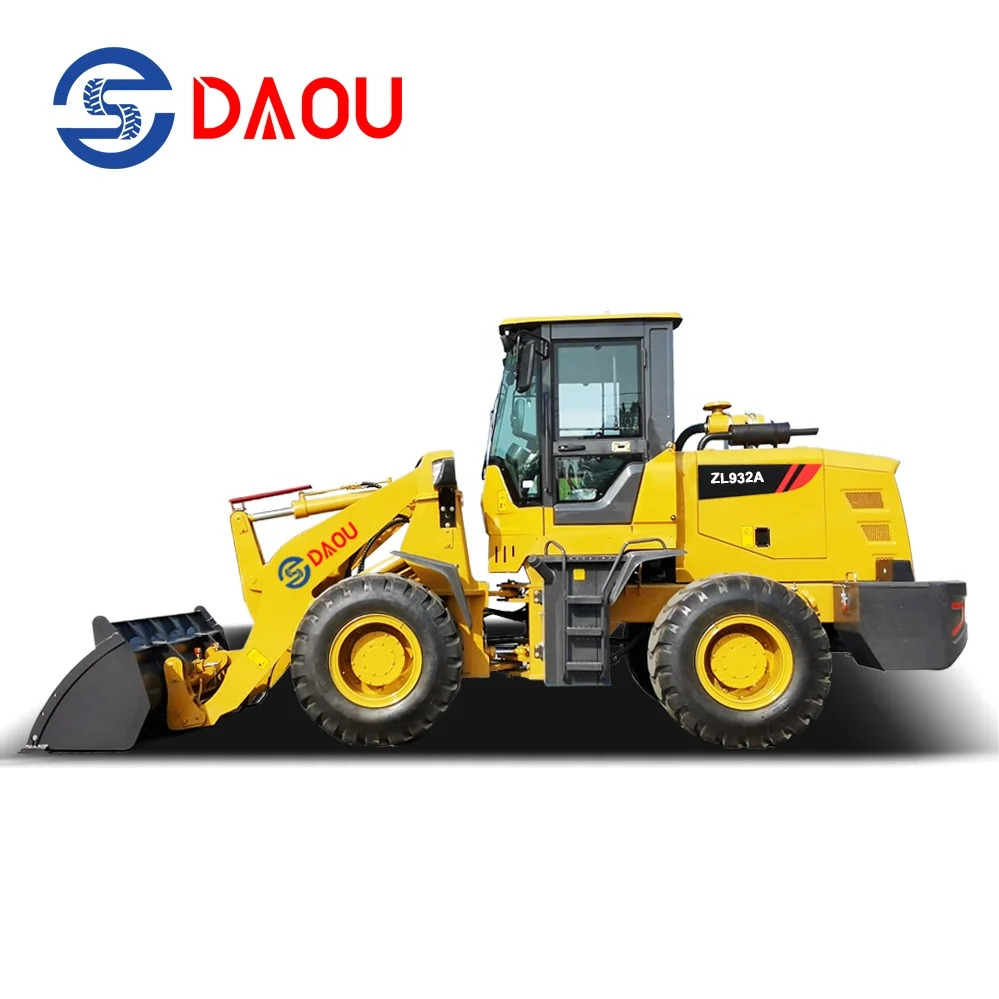

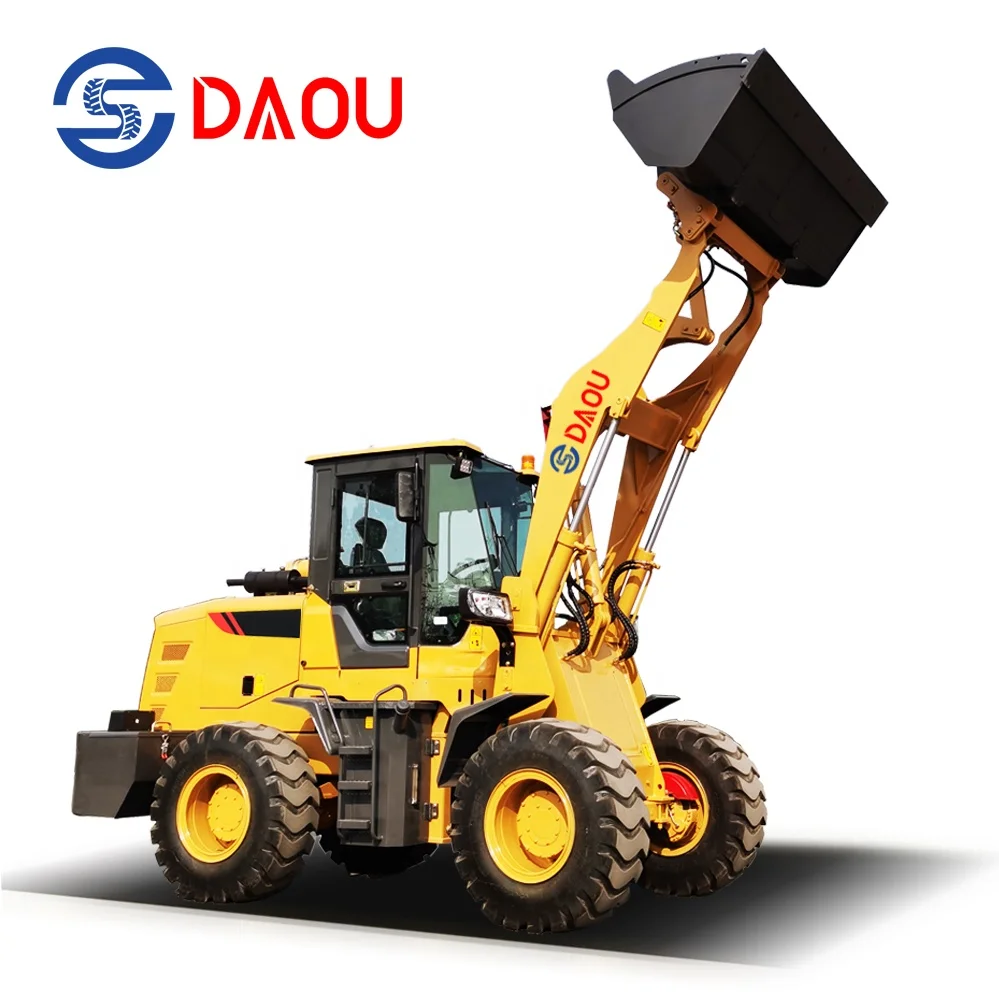

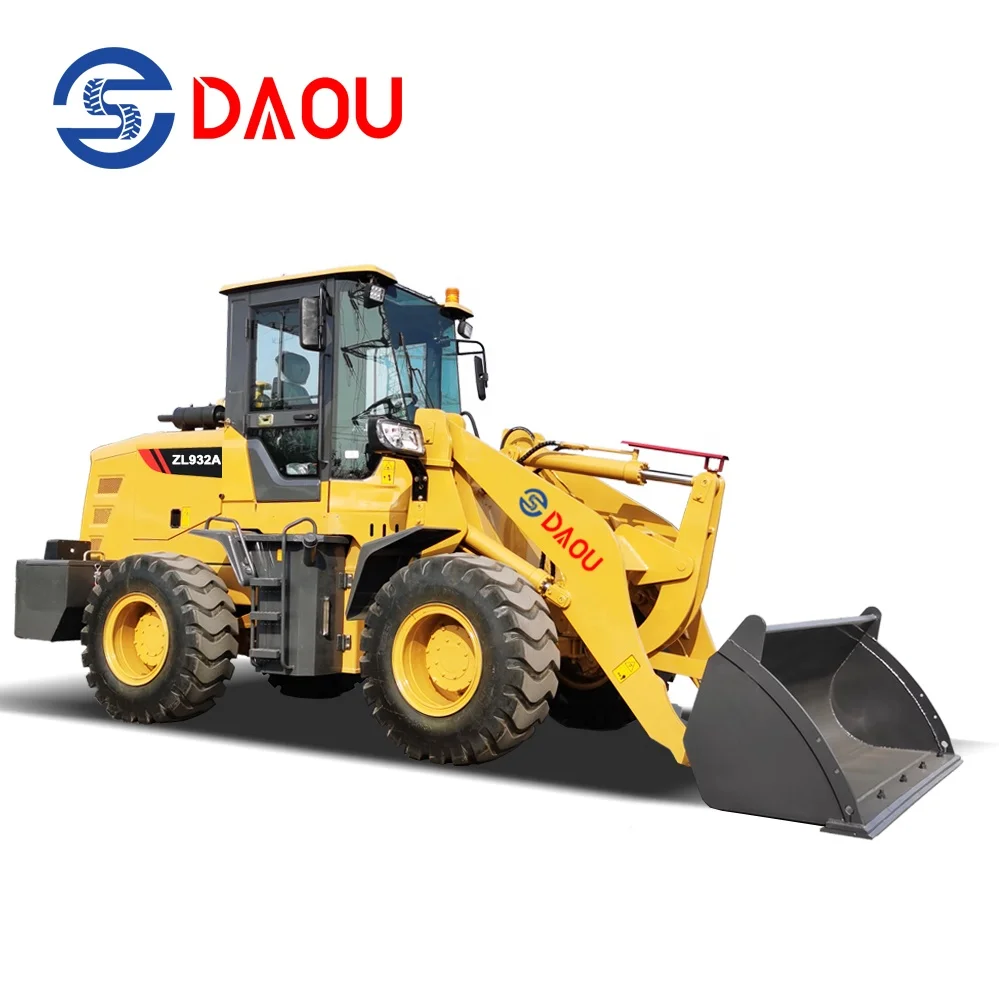

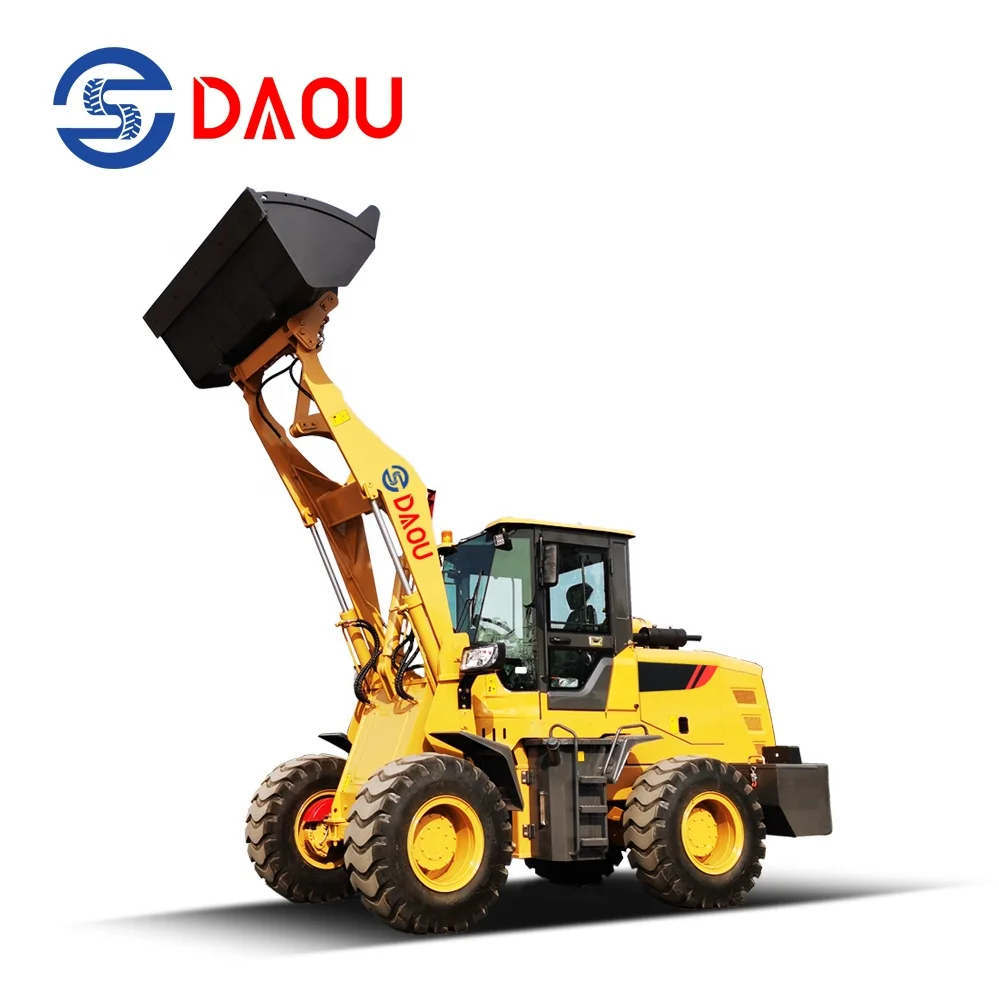

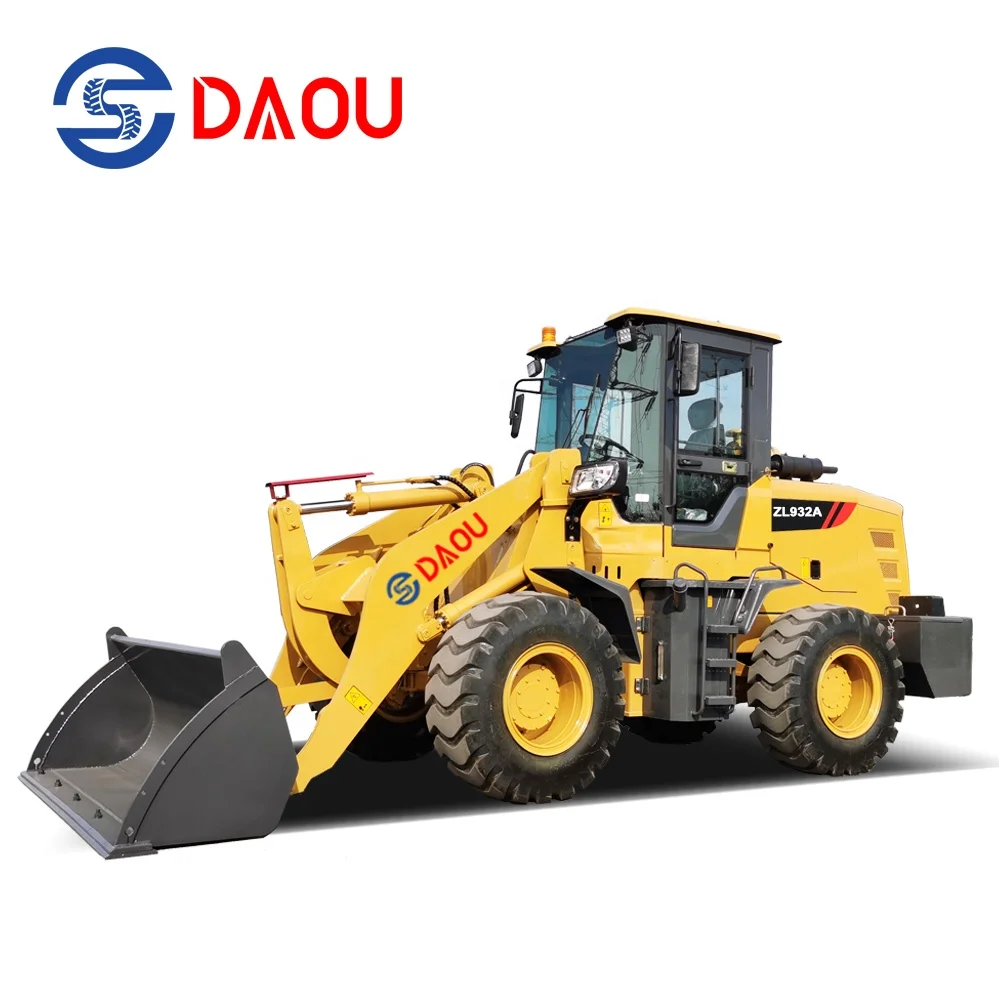

| Specification of ZL932A Wheel loader | ||
| Performance | Rated load | 1800KG |
| Overall weight | 4700kg | |
| Rated bucket capacity | 1m3 | |
| Maximum tractive force | 60KN | |
| Maximum breakout force | ≥70KN | |
| Maximum grade ability | 30℃ | |
| Maximum dump height | 3200mm | |
| Maximum dump reach | 1050m | |
| Overall dimension (L×W×H) | 5800×2080×2800mm | |
| Minimum turning radius | 5600mm | |
| Engine | Model | YN38GBZ |
| Type | inline , water cooling ,dry cylinder, injection | |
| No. of cylinder-bore/stroke | 4-102×115mm | |
| Rated power | 76kw--2400r/min | |
| Maximum torque | 280N.m | |
| Min fuel-consume ratio | ≤225g/kw.h | |
| Transmission system | Torque converter | 265 |
| Gearbox mode | Power shift normally engaged straight gear | |
| Gear shift | 4 forward shift , 4 reverse shift | |
| Maximum speed | 30km/h | |
| Drive axles | model | medium wheel reduction axle |
| Wheel base (mm) | 2160mm | |
| Wheel tread | 1600mm | |
| Minimum ground clearance | 320mm | |
| hydraulic system | System working pressure | 16MPa |
| bucket lifting time | ≤6s | |
| bucket falling time | ≤4.5s | |
| Total time for a single working cycle | ≤11.5s | |
| Function of leveling automatically | yes | |
| Brake system | Service brake | air over hydraulic disc brake on 4 wheels |
| Parking brake | manual parking brake | |
| Tyre | Type specification | 16/70-20 |
| Front tyre pressure | 0.4Mpa | |
| Rear tyre pressure | 0.35Mpa | |
| optional | quich hitch | |
| AC | ||
| joystick | ||
| pallet fork | ||
| 4 in 1 bucket | ||
| logfork | ||
