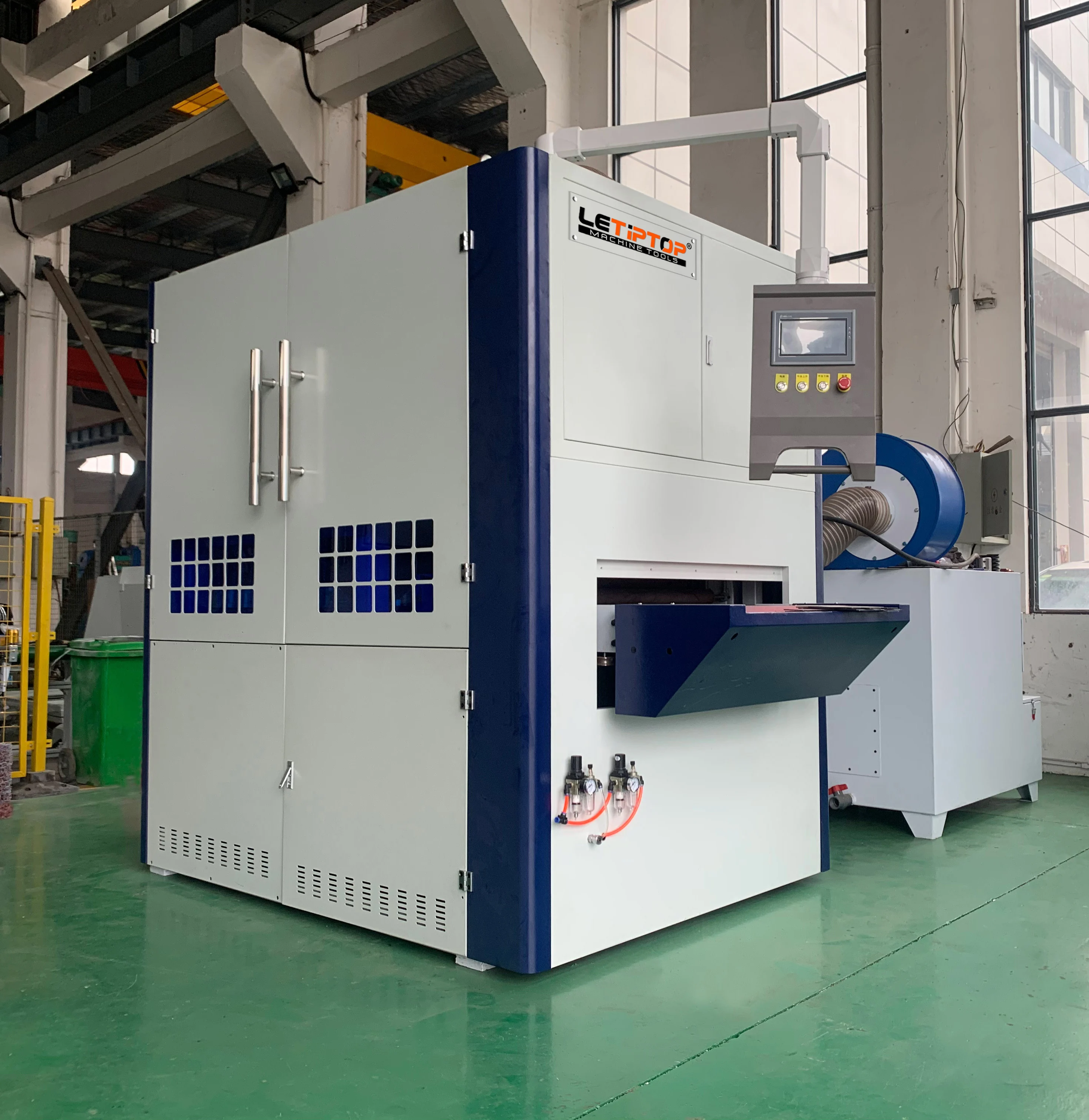

Китайская машина для удаления заусенцев LETIPTOP листового
- Категория: Chamfering Machines >>>
- Поставщик: Jiangsu,Tiptop,Machine,Tools,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 17850.59 $* | 18743.28 $* |
| Aug-19-2025 | 17700.18 $* | 18585.61 $* |
| Jul-19-2025 | 14850.10 $* | 15593.13 $* |
| Jun-19-2025 | 17400.27 $* | 18270.11 $* |
| May-19-2025 | 15150.45 $* | 15908.47 $* |
| Apr-19-2025 | 17100.6 $* | 17955.40 $* |
| Mar-19-2025 | 16950.35 $* | 17798.41 $* |
| Feb-19-2025 | 16800.30 $* | 17640.10 $* |
| Jan-19-2025 | 16650.42 $* | 17483.56 $* |
Характеристики
Deburring Machine
Model | DBR-600, DBR-800, DBR-1000 | ||
Max. Working Width | 600, 800, 1000mm | ||
Max. Working Thickness | 0.5-60mm | ||
Min. Processing Size | 50x50mm | ||
Chamfering | R0.1-R0.5mm | ||
Feeding Speed | 0.5-6m/min | ||
Rotary Brush Revolution Speed | 8-20r/s | ||
Rotary Brush Rotation Speed | 8-12r/s | ||
Size of Abrasive Belt (1 pc) | 1900×820 mm | ||
Size of Rotary Brush (4 pcs) | Φ300×300mm | ||
Height of Working Table | 860-980mm | ||
Machine Noise | ≤85dB | ||
Motor Power | Rotary Brush Revolution Motor | 1.5Kw | |
Rotary Brush Rotation Motor | 2.2Kw | ||
Abrasive Belt Motor | 7.5Kw(11Kw for DBR-1000) | ||
Feeding Conveyor Belt Motor | 1.5Kw | ||
Rotary Brush Lifting Motor | 0.37Kw | ||
Working Table Lifting Motor | 0.37Kw | ||
Vacuum Adsorption Motor Power | 15Kw | ||
Dust Collection | 3Kw | ||
Dust Collection Capacity | 2300m³/h | ||
Working Pressure | 0.6Mpa | ||
Overall Dimension (LxWxH) | 2900x1600x2250mm | ||
Machine Weight | 3000kg | ||
Abrasive Belt + Brushing Roller
Deburring
Grinding
No.4 Finish
Hairline Finish
Grinding
No.4 Finish
Hairline Finish
Abrasive Belt+ Rotary Brush
Deburring
Grinding
Edges Rounding
Grinding
Edges Rounding
Abrasive Belt + Rotary Brush + Polishing Belt
Deburring
Grinding
Edges Rounding
Polishing
Grinding
Edges Rounding
Polishing
WORKPIECE
