China factory wall box AC home charger for electric
- Категория: Wall-mounted Charging Stations >>>
- Поставщик: Guangzhou,Electway,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 774.13 $* | 813.73 $* |
| Aug-19-2025 | 767.46 $* | 805.82 $* |
| Jul-19-2025 | 644.12 $* | 676.27 $* |
| Jun-19-2025 | 754.22 $* | 792.22 $* |
| May-19-2025 | 657.95 $* | 690.99 $* |
| Apr-19-2025 | 741.4 $* | 778.94 $* |
| Mar-19-2025 | 735.56 $* | 772.40 $* |
| Feb-19-2025 | 728.15 $* | 764.66 $* |
| Jan-19-2025 | 722.24 $* | 758.32 $* |
Характеристики
Detail Specification
Fearture1. Ideal choices for residential, community, and commercial AC EV charger
2.Input : 7kW(CE:L1+N+PE, UL:L1+L2+PE), 22kW(L1+L2+L3+N+PE)
3.IP54 & IK10 for indoor/outdoor applications
4.Firmware updates via OCPP remote connection
5.Optional internet connection for server management
6.Optional RFID card reader for user identification and management
7.(Dynamic) Load balancing
Model | CHR 7/22(sockect) | CHR 7/22(No display) | |
Rated Input Voltage | 230VAC/Single Phase,380 VAC/ 3 phase | 240 VAC, 1-phase(AC Level 2) | |
Output AC Current | 32A | ||
Frequency | 50Hz/60Hz | ||
Ground Fault Protection | Lost input ground connection | ||
OCP | < 35.2 A | ||
OVP | >265VAC | ||
UVP | < 190 VAC | ||
Residual Current Device (Type B optional) | Type A:IΔn 30 mA, Type B:IΔn 30 mA+da 6mA Manual recovery after protection triggers | CCID 20 | |
Output Cable Length | 2~5m | ||
Regulation | IEC 61851-1: 2017, IEC 61851-21-2 | UL2202, UL2231-1/-2 | |
Charging Plug/ Sockect | IEC 62196-2:2016 type 2 plug, Type socket(shutter optional) | SAE J1772 Type 1 Plug/Socket | |
Thermal Protection | YES | ||
IP Degrees | YES | ||
IP Degrees | IP55/IK10 | ||
Storage Temperature | —40°~+70°C | ||
Operating Temperature | —20°~+50°C | ||
Humidity at Operation Condiction | 95%RH max | ||
Humidity at Storage Condiction | 95%RH max | ||
Communications | Wi-Fi(standard)/4G(optional) or (LAN optional) | ||
Backend Communication | OCPP 1.6 JSON/SOAP | ||

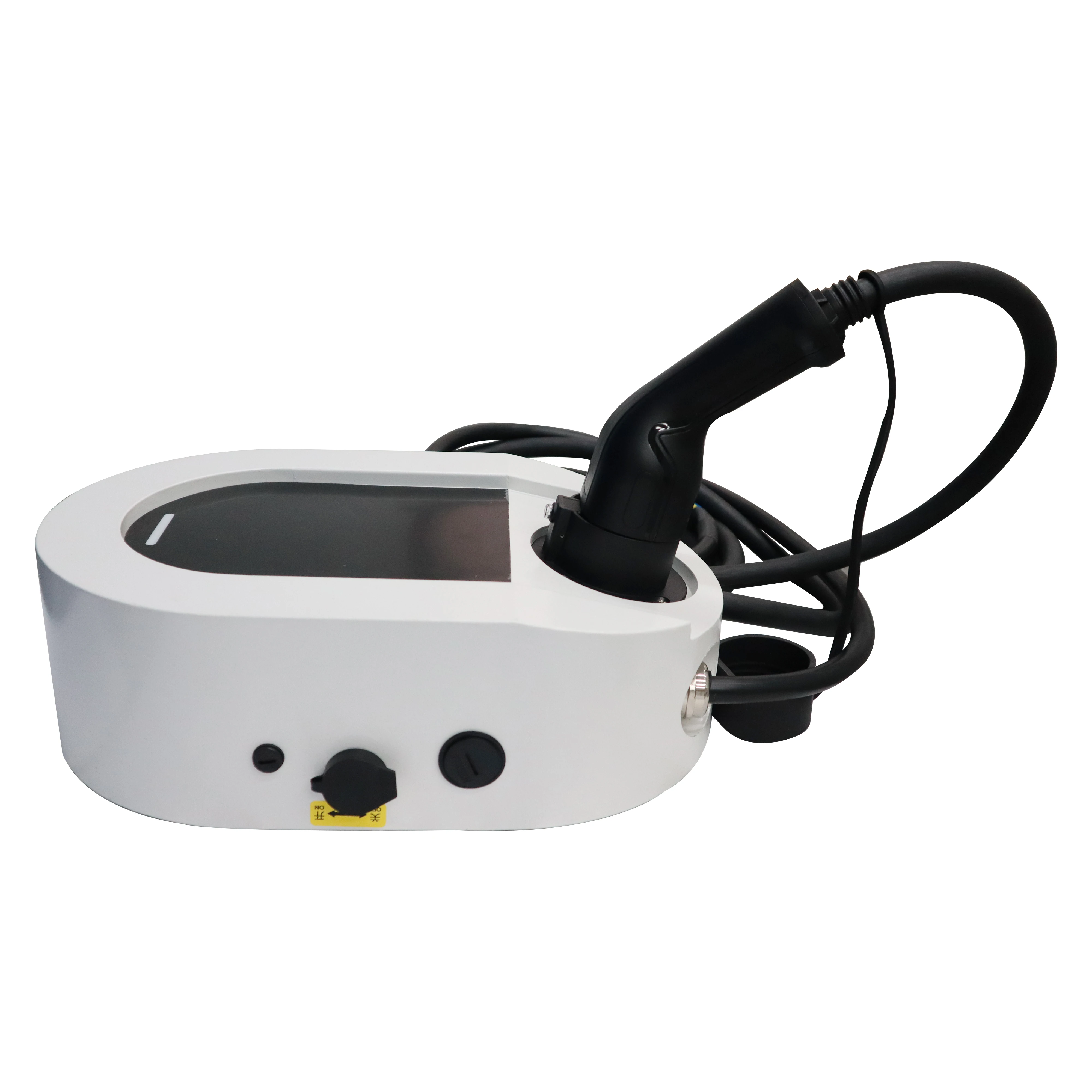

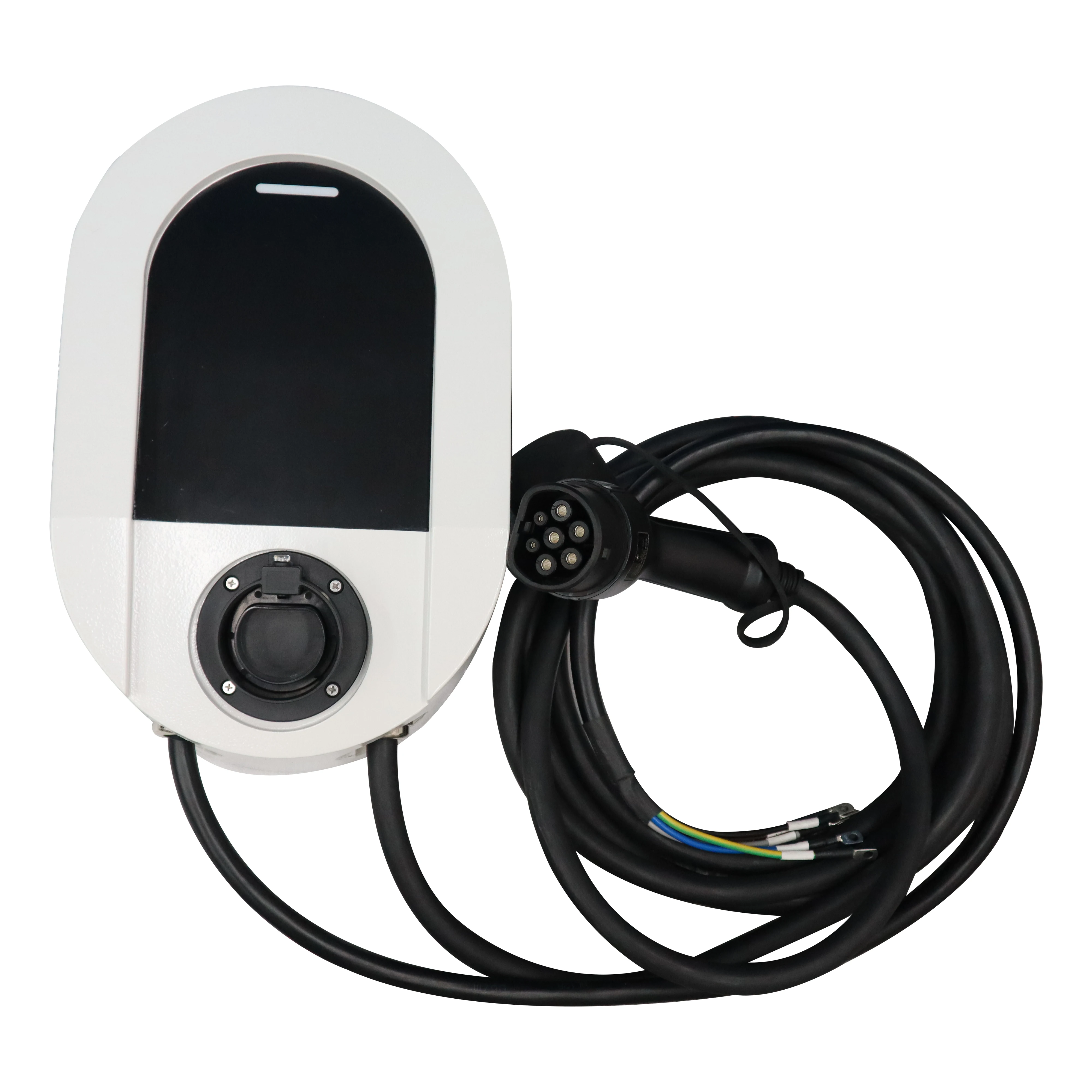

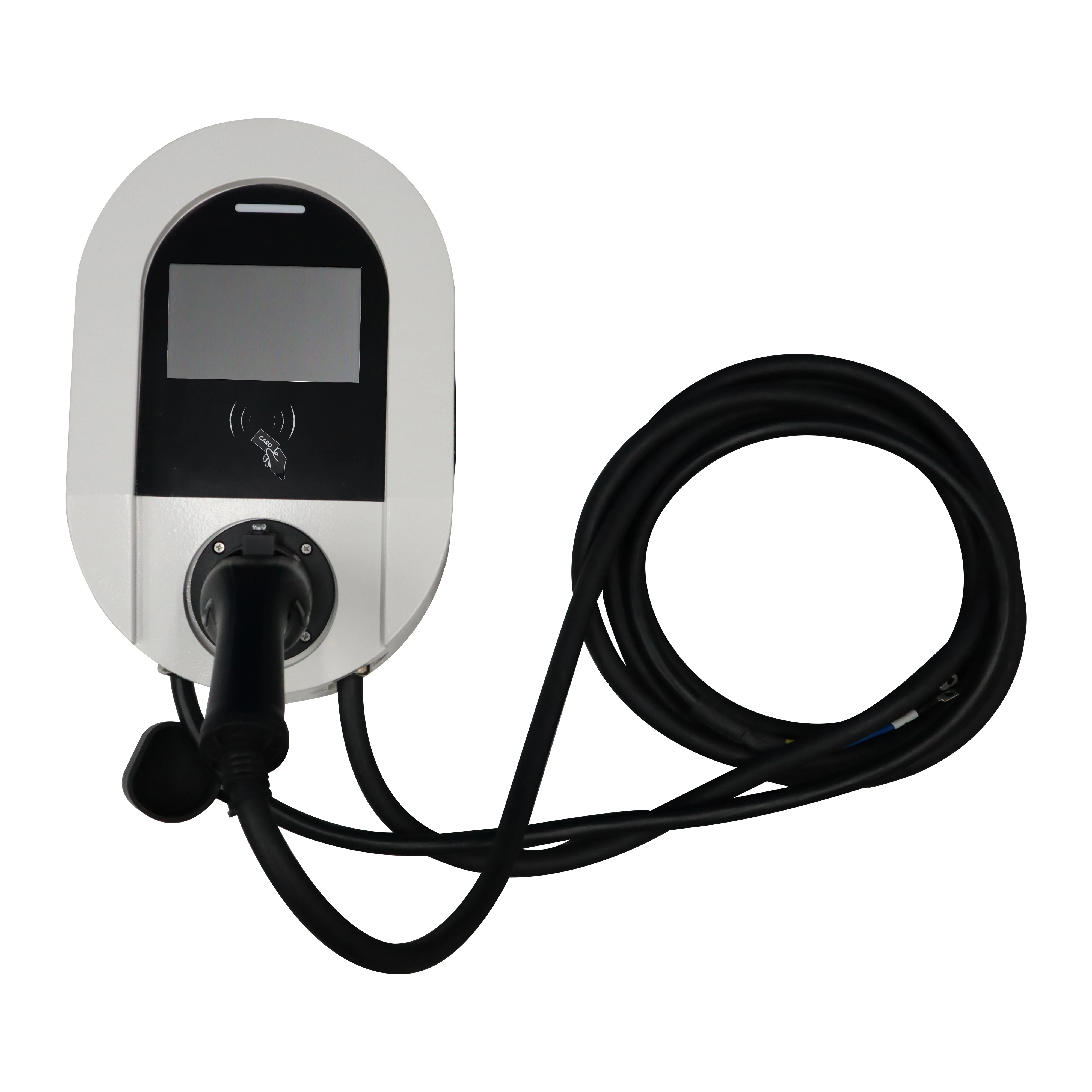

Detailed Images
Packaging & Shipping
1pcs per carton ,
Sending by Express TNT , Fedex , DHL or By air , By sea by Customized
Express Freight cost Prepaid or Collect are both ok !
Sending by Express TNT , Fedex , DHL or By air , By sea by Customized
Express Freight cost Prepaid or Collect are both ok !
