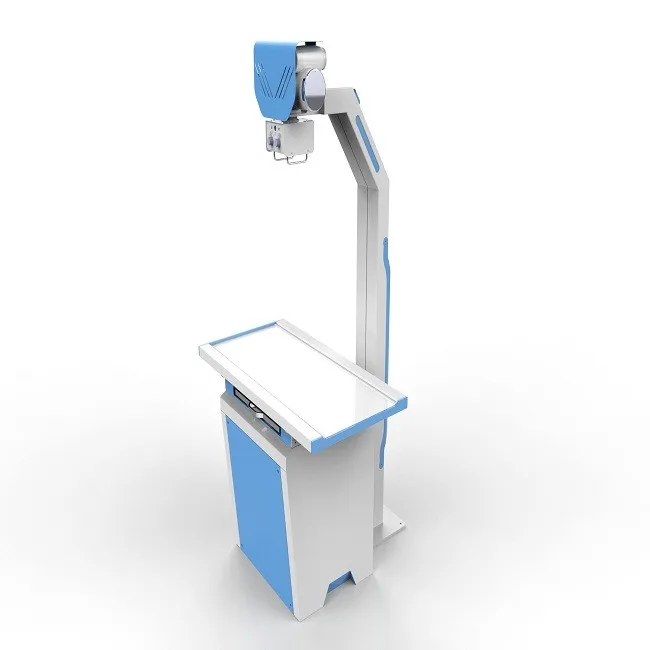

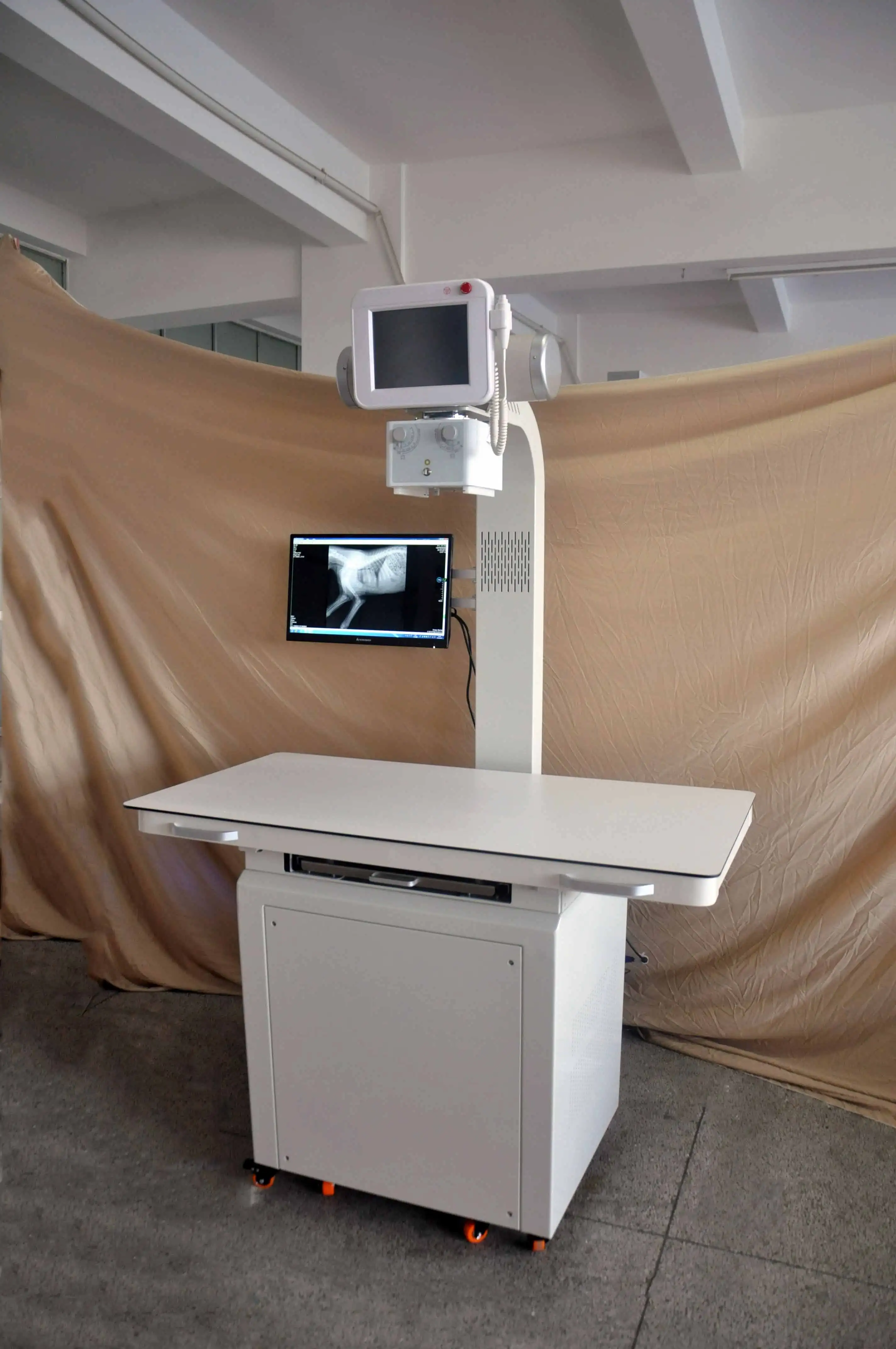

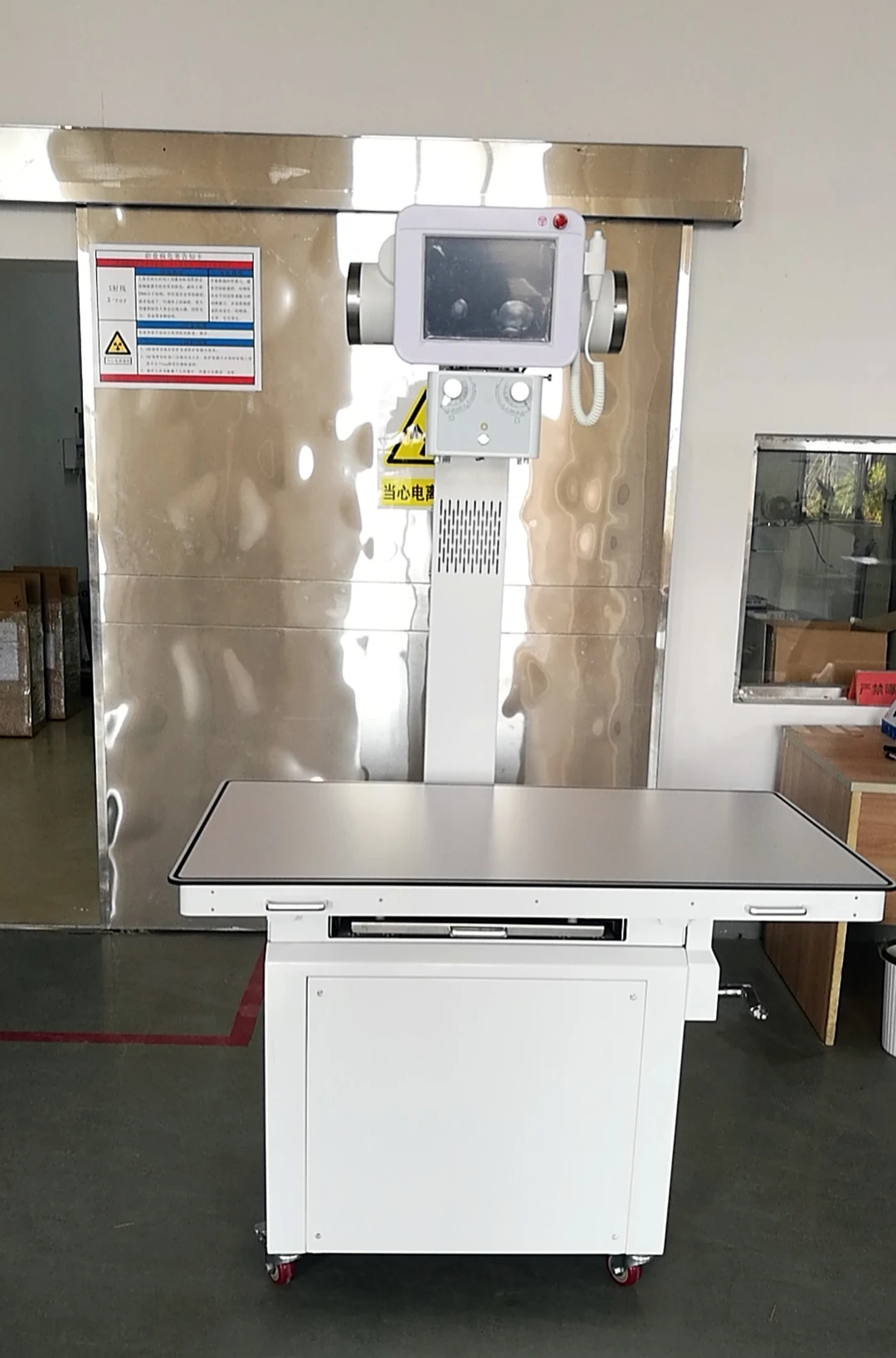

Veterinary High Frequency X-ray Machine for Pet Dog medical diagnosis

Veterinary High Frequency X-ray Machine for Pet Dog medical diagnosis MSLVX17

Maximum power output is 16 kW, tube current adjusting range is 32 mA ~ 200 mA, tube voltage regulating range is 40 kV ~ 120 kV, the current product range is 0.5 mAs ~ 200 mAs. This product has the following outstanding characteristics:

a) Analog and digital double loop with high-precision control mode
b) High precision of radiography time control
c) High precision tube current control
d) A variety of radiography setting modes, fast human body radiography program, simplify the operation.
e) Self-protection, fault self-diagnosis
f) Small volume, light weight, reduce installation space

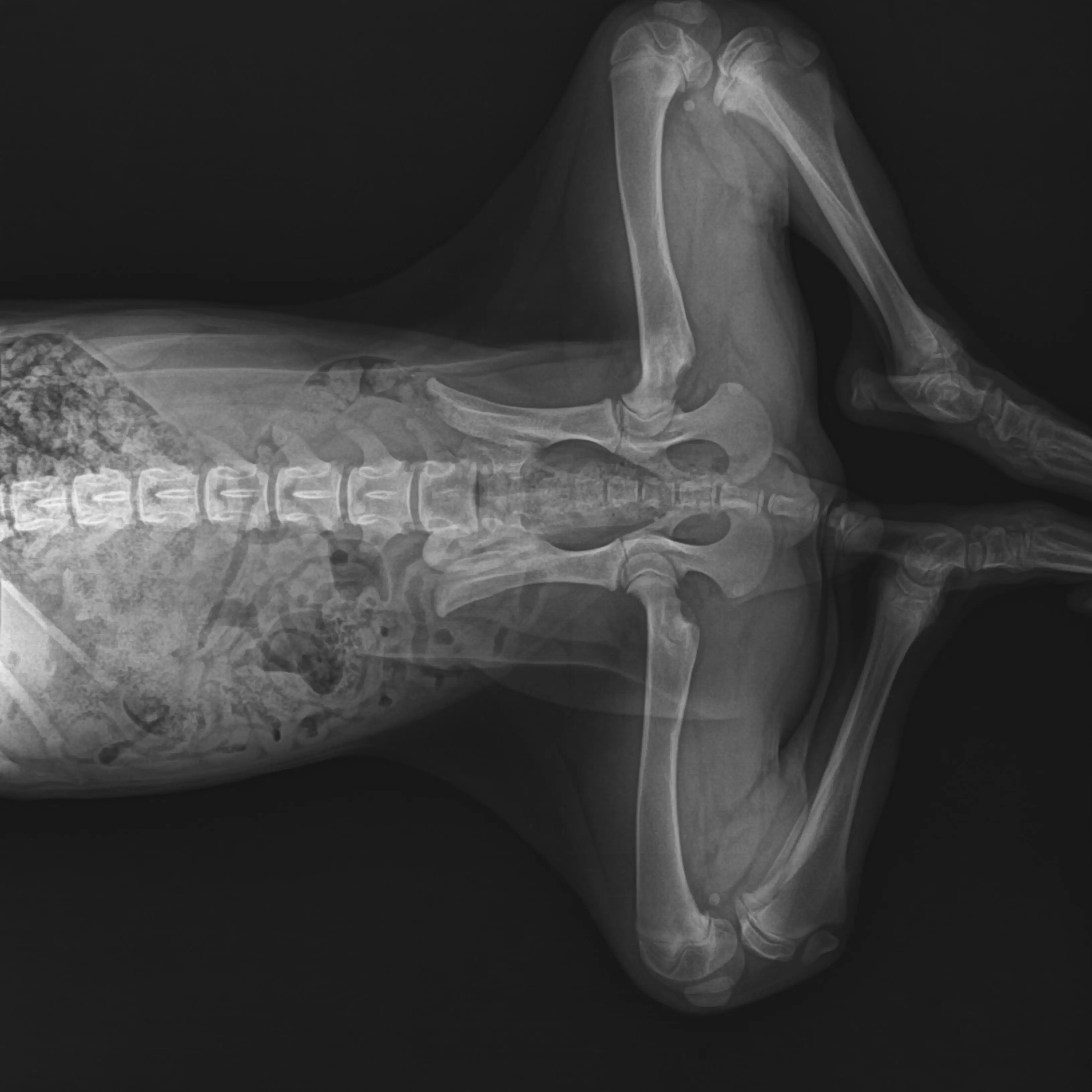

Beyond above characteristics, this product is widely used in pet hospitals and clinics as X-ray radiography diagnosis .

3.1 High frequency X-ray machine for medical diagnosis
3.1.1 Working conditions
a) Environmental temperature: +10℃ ~ +40℃;
b) Relative humidity: 30% ~ 75%;
c) Atmospheric pressure: 70kpa ~ 106kpa.

3.1.2 Transportation and storage conditions:
a) Environmental temperature:-20 ℃ ~ + 70 ℃;
b) Relative humidity: 10% ~ 100% (including condensing);
c) 50kPa ~ 106kPa.Atmospheric pressure: 50Kpa ~ 106Kpa.

31.3 Power requirements:
a) Power voltage: AC220V ± 22V;
b) Phase number:Single-phase three-wire system
c) Power frequency: 50Hz±1Hz;
d) Power inner resistance: less than 0.5 Ω;

3.1.4 Working system
Working system: Intermittent load and continuous run

3.1.5 Input power:≤25kVA.
3.1.6 Maximum output power
P= 100kV×160mA =16kW.
3.1.7 Nominal power:
100kV,160mA,0.1s,16kW.
3.1.8 Adjusting range of tube voltage and current
a) Tube voltage: 40 kV ~ 120 kV
b) Tube current: 32mA ~ 200mA
Notice: current and current-time product according to R' 10 number departments arrangement.
3.1.9 Range of current-time product: 0.5mAs ~ 200mAs
3.2 High frequency X-ray machine constituent parts
3.2.1 high frequency x-ray generator
a)Generator model:YJG16R-C1;
b)Over-current release characteristics:AC220V;

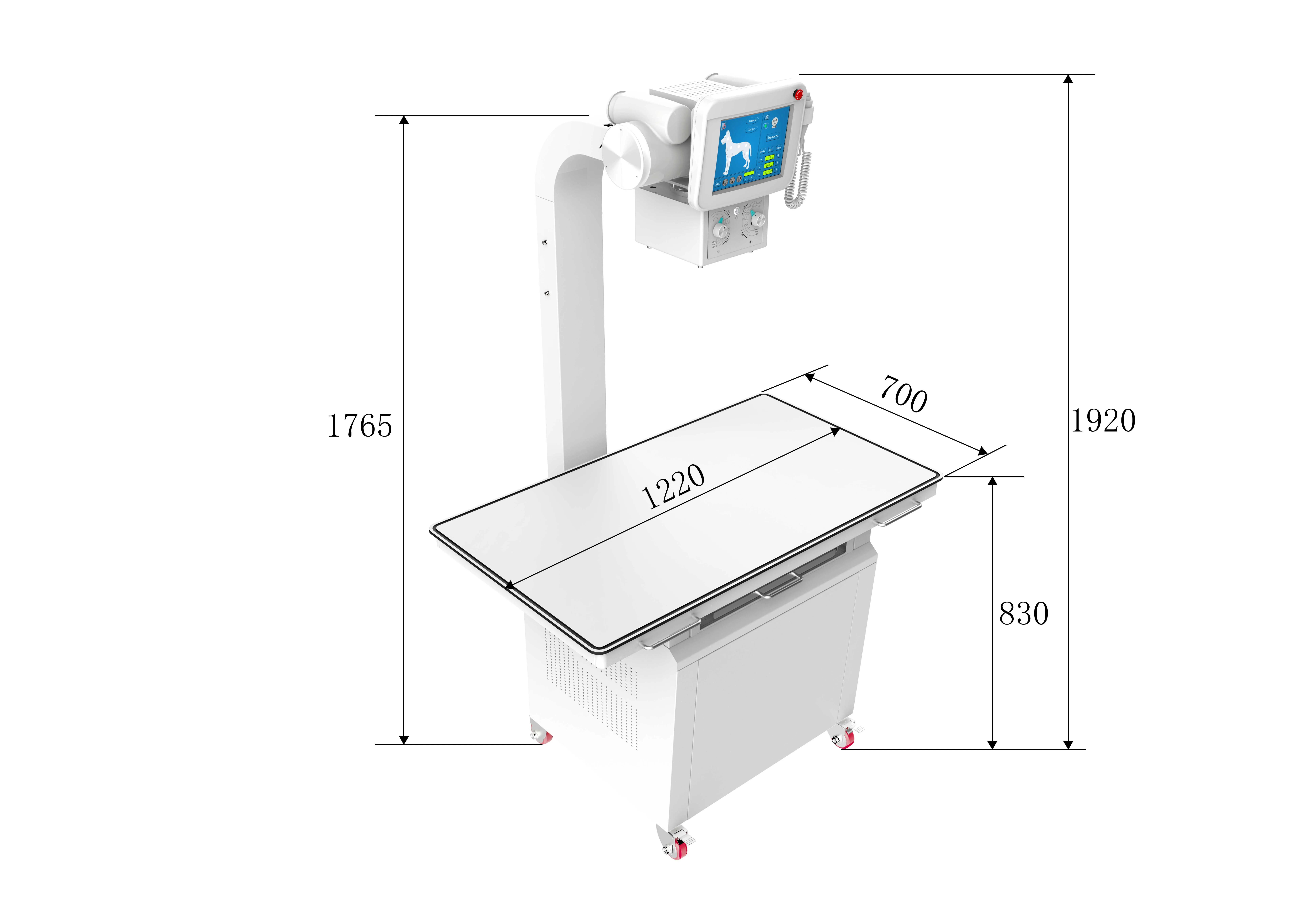

3.2.2Radiography bed
a)Bed size:1200 mm * 650 mm,more or less 10mm
b)Height of Stand:1860mm±10mm.
3.2.4 X-ray tube
a)Maximum working voltage: 125kV.
b)Nominal value: Small focus 1.0 mm ; Large focus 2.0 mm
c)Maximum power (0.1 S) : Small focus 20 kW; Large focus 40 kW
d)Anode speed: 2800 RPM/min
e)Maximum anode heat capacity: 100 kJ
