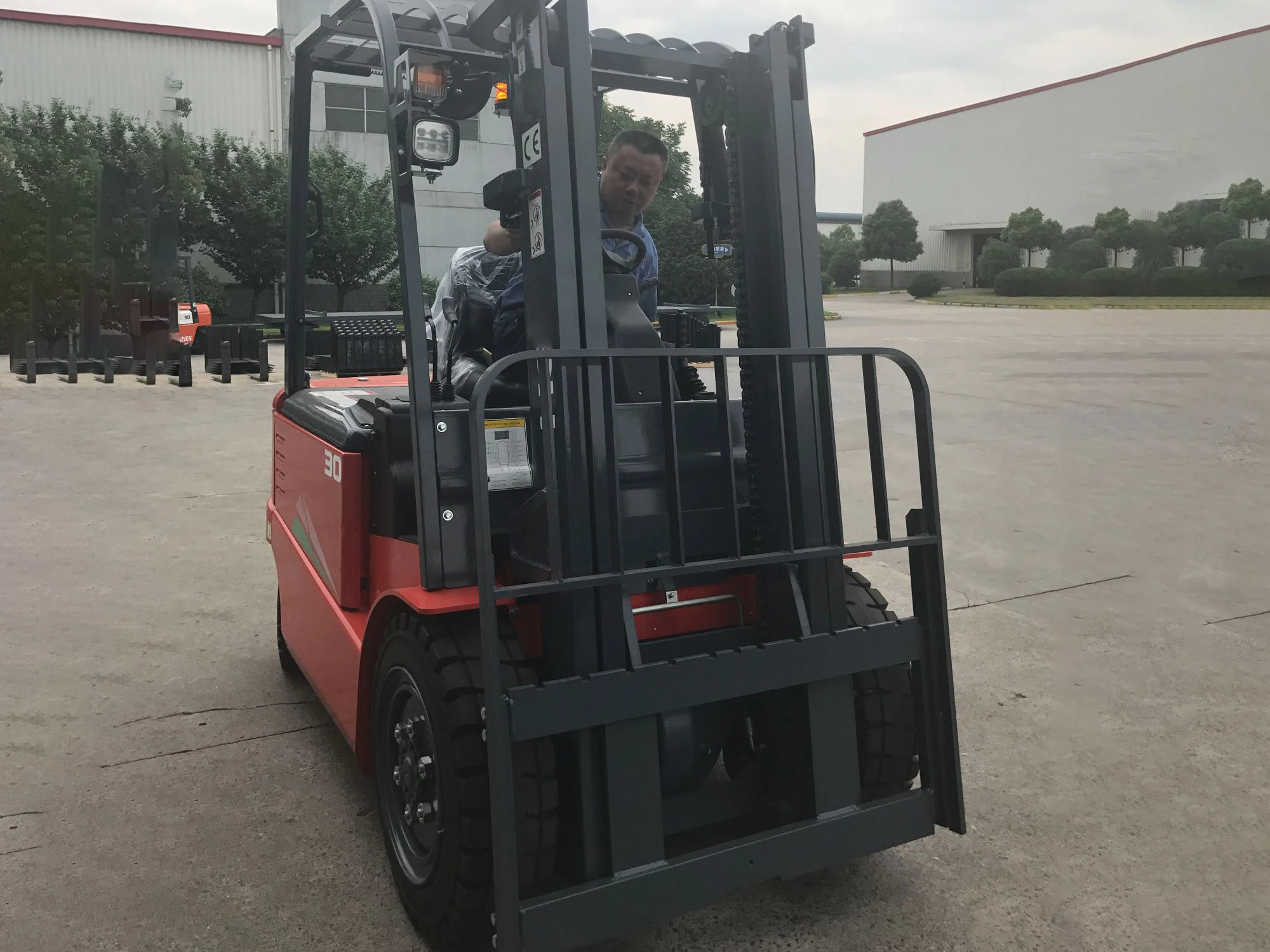

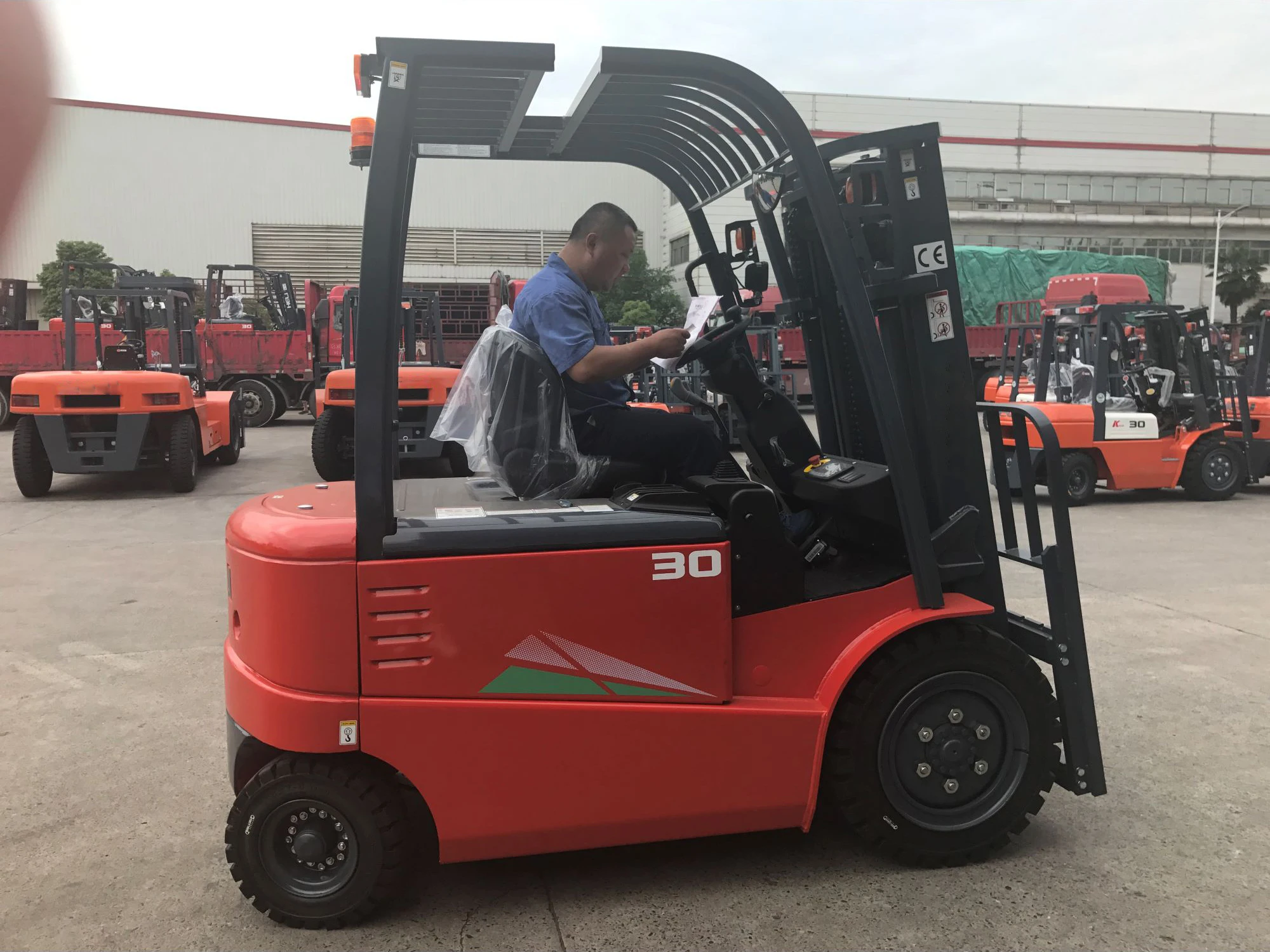

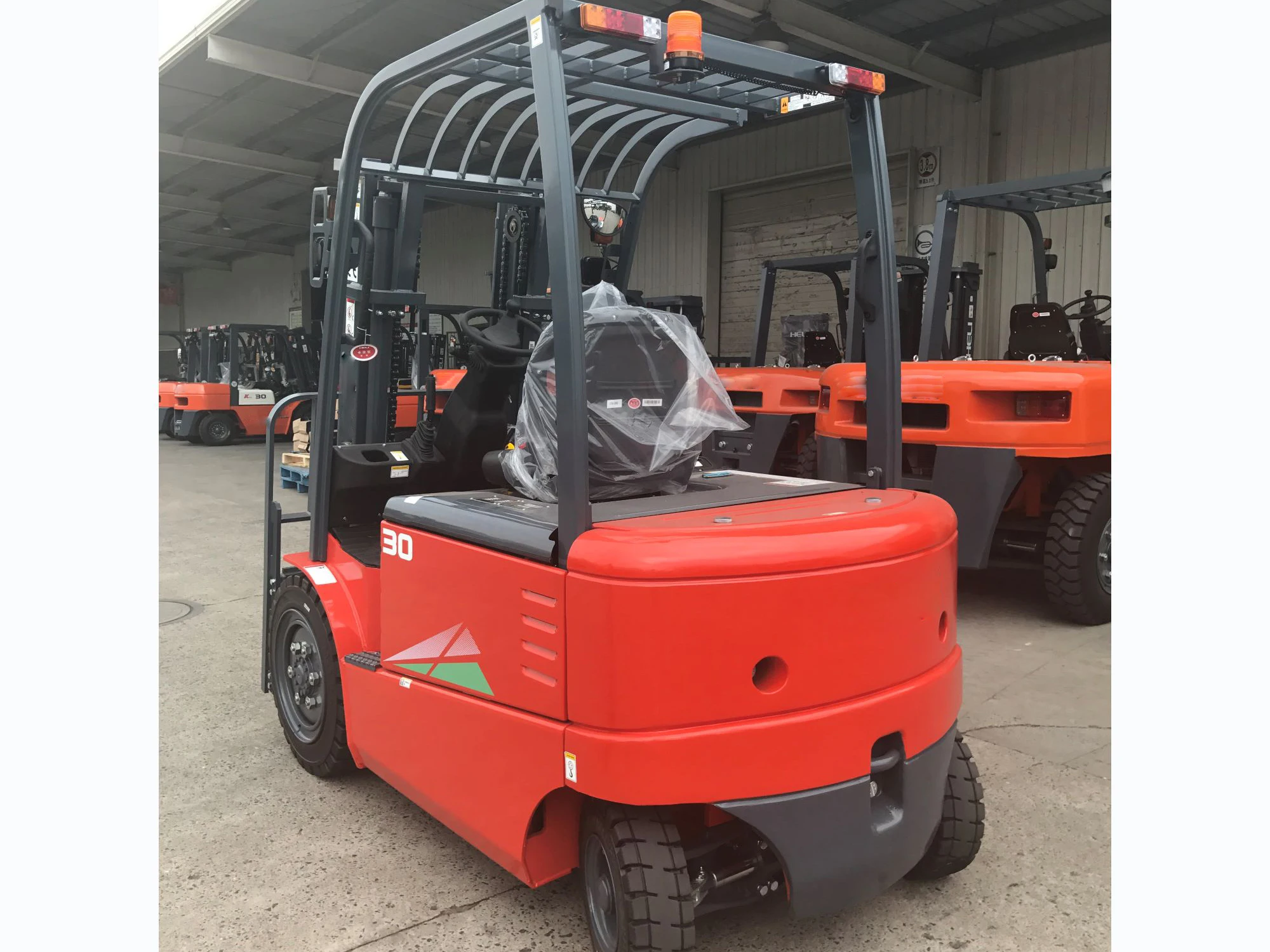

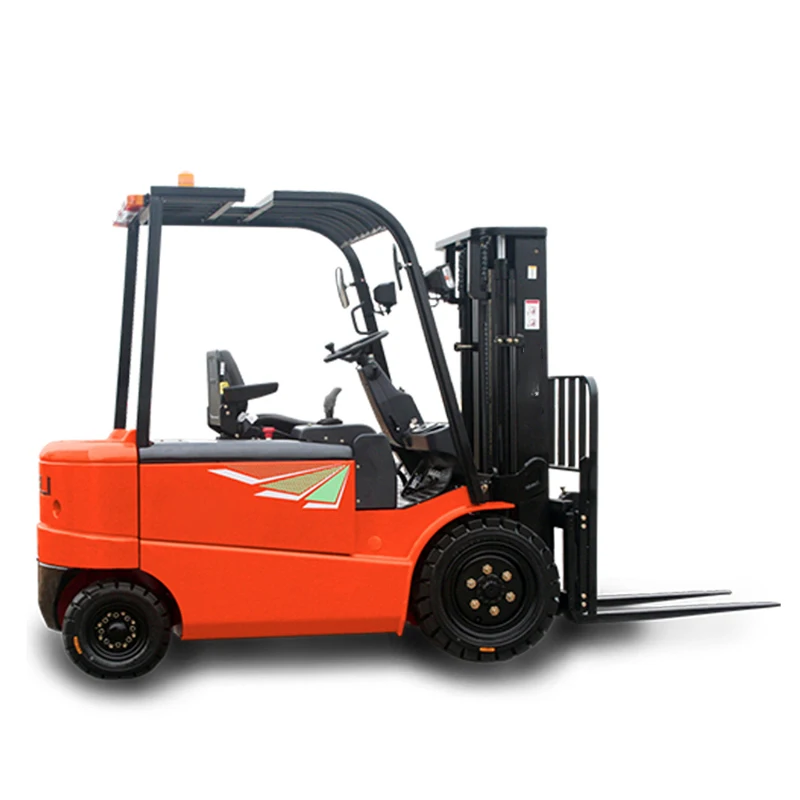

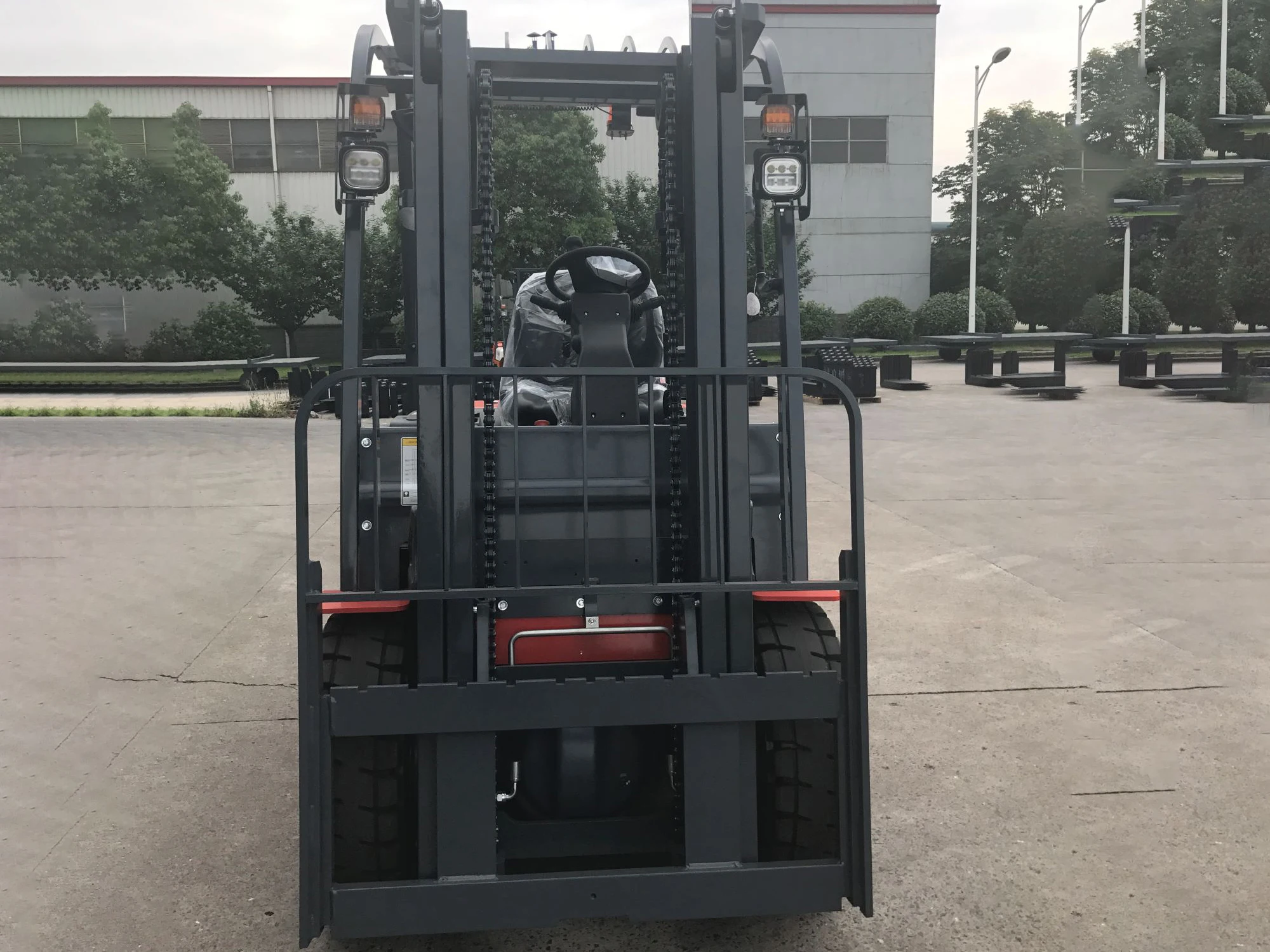

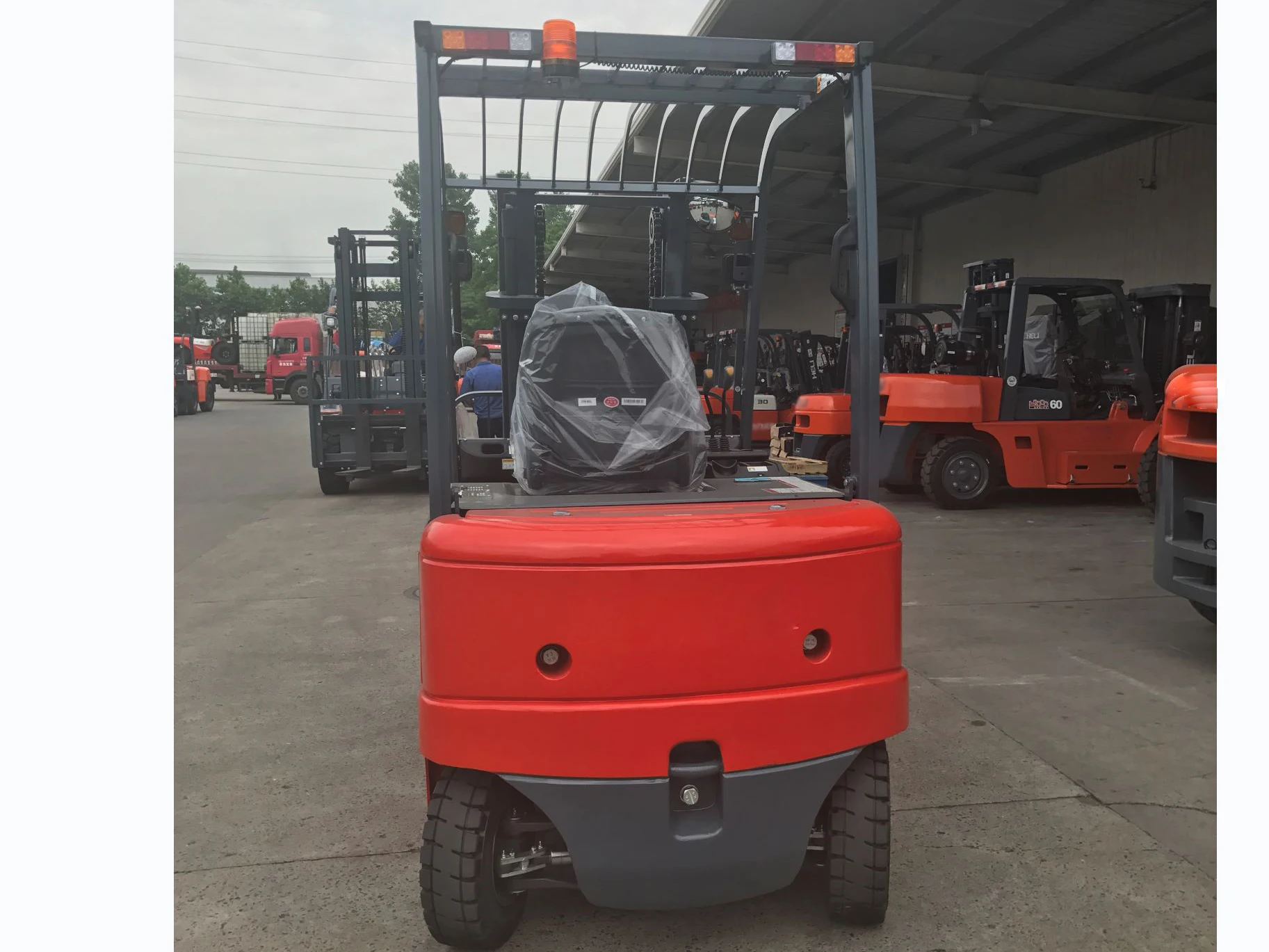

HELI 3 ton CPD30 with 3000mm Electric Forklift In Stock Optional Mast

Цена:8 000,00 $ - 11 000,00 $*

Количество:

Product Description

Green environmental protection:
Zero emission, low noise;
No heavy metals contained;
No drip corrosion, no acid mist volatilization.
Maintenance free
No need to replenish liquid and prevent dust;
No daily maintenance, no manual maintenance.
High efficiency and energy saving:
95% energy conversion rate, more efficient energy conversion and superior charge discharge performance;
It can be charged at any time, easy to operate, and has no effect on the battery life;
The battery does not need to be replaced, so the cost is saved and the operation is safe.
Suitable for high and low temperature operation
In the high and low temperature working environment between - 25 ℃ and 55 ℃, lithium battery has better performance than lead acid.
High security:
Vehicle safety protection design;
"Multi node security closed loop protection"
Charging "lock confirmation" function
"System wide emergency power off" function.

Parameter

Model			CPD10	CPD15	CPD20	CPD25	CPD30
Power type			Battery	Battery	Battery	Battery	Battery
Rated capacity		kg	1000	1500	2000	2500	3000
Load center	d	mm	500	500	500	500	500
Lift height	h2	mm	3000	3000	3000	3000	3000
Mast tilt angle (forward/backward)	α/β	Deg	6/12	6/12	6/12	6/12	6/12
Front overhang	L3	mm	425	425	483	483	485
Wheel-base	L4	mm	1370	1370	1500	1500	1700
Tread(front/rear)	b4/b5	mm	890/920	890/920	970/950	970/950	1000/970
Travel brake			Hydraulic-Foot pedal
Parking brake			Mechanical-Hand level
Lift speed(with/without load)		mm/s	260/400	260/400	260/400	260/400	280/420
Lower speed (with/without load)		mm/s	(with load),600 <(without load)>300
Travel speed (with/without load)		km/h	11/12	11/12	11/12	11/12	13/15
Max. gradeability (with load)		%	15	10	10	10	13
Max. Towing (with/without load)		kN	6/5	6.5/5.5	9.4/7.5	9.8/8	11/9
Weight Distribution with load(front/rear)			3350/500	3900/600	5250/720	5900/840	6920/1080
Weight Distribution without load(front/rear)			1200/1650	1300/1700	1720/2250	1825/2415	2150/2850
