GS-MI/D средней интенсивности двойной цвет авиация непроходимость свет
US $450.00-$480.00
Broadcast and TV Tower aviation obstruction strobe light ICAO Certified aircraft
- Категория: LED Aviation Obstruction Lights >>>
- Поставщик: Hunan,Chendong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.98 $* | 0.98 $* |
| Aug-18-2025 | 0.28 $* | 0.99 $* |
| Jul-18-2025 | 0.30 $* | 0.76 $* |
| Jun-18-2025 | 0.98 $* | 0.97 $* |
| May-18-2025 | 0.65 $* | 0.39 $* |
| Apr-18-2025 | 0.68 $* | 0.20 $* |
| Mar-18-2025 | 0.59 $* | 0.81 $* |
| Feb-18-2025 | 0.73 $* | 0.68 $* |
| Jan-18-2025 | 0.42 $* | 0.24 $* |
Характеристики
Product Description
Telecom pylon signaling night marker L864 2000cd red led flashing aviation obstruction warning light
Medium Intensity aviation obstruction light (MIOL) with multi LED type. In compliance with ICAO Annex 14 Type A, Type C and FAA L-864. As specified by Annex 14 of ICAO regulations, Medium Intensity Obstruction Light can be used to warn the presence of obstacles Above 45m height, such as telecommunication towers, wind turbines, chimneys, cranes, buildings and other structures.This beacon is the simplest device according to ICAO standards. It provides flashing red lightof intensity: ≥2000cd for Type B, ≥2000-20000cd for Type AB . In particular, the medium Intensity Lights with solar panel are used for night-time signalisation where the power supply does not arrive or where it is very weak.
For more details
emma@chendongtech.com
what'sapp :0086-13342512879
what'sapp :0086-13342512879
Skype: chendongtech1
Product Presentation
ITEM | Parameter |
Model | CM-13 |
Operating voltage | AC220V(other available) |
Power consumption | ≤8W |
Flashing frequency | Flashing |
Peak light intensity | ≥2000cd |
Light source | RED LED |
Lifespan | ≥500000 hours |
Emitting color | RED |
Beam angle | 360° horizontal beam angle ≥4° vertical beam spread |
Ingress protection | IP65 |
Lightning protection level | 15KA |
Light controlled sensitivity | 50lux |
Operating temperature | -55℃~55℃ |
Net weight | 2.5kg |
Wind load | 240km/h |
Net weight | 3KG |
Wind load | 240km/h |
Specification
* Cover of the light adopts PC with anti-UV which is high efficiency light transmission up to 90%, quite high impact resistance and fits the bad environment very well.
* House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high strength, resistance to corrosion.
* Use the special optical reflector design, the visual range further, angle more accurate, no light pollution.
* Light source adopts import high quality LED, lifespan up to 100,000 hours, low power consumption, energy efficiency and
environmental protection.
* Based on the single chip computer control, automatic identification sync signal, do not distinguish the main light and auxiliary light, and also could be controlled by the controller.
* Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the damage by error installation caused.
* Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level.
* The circuit of the light has surge protection, so that the light is suitable for a harsh environment.
* Integral structure, protection level of Ip65.
* GPS synchronizing function is available.

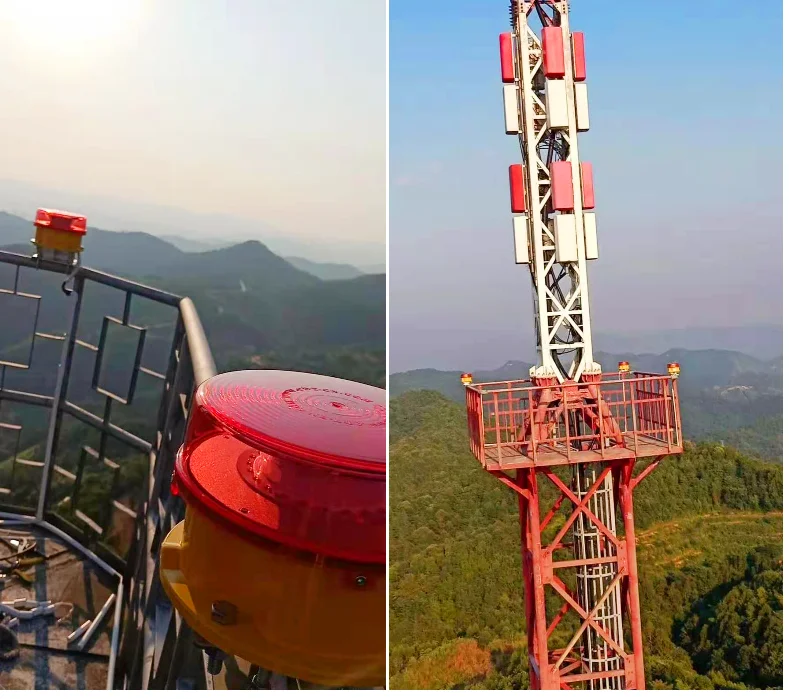

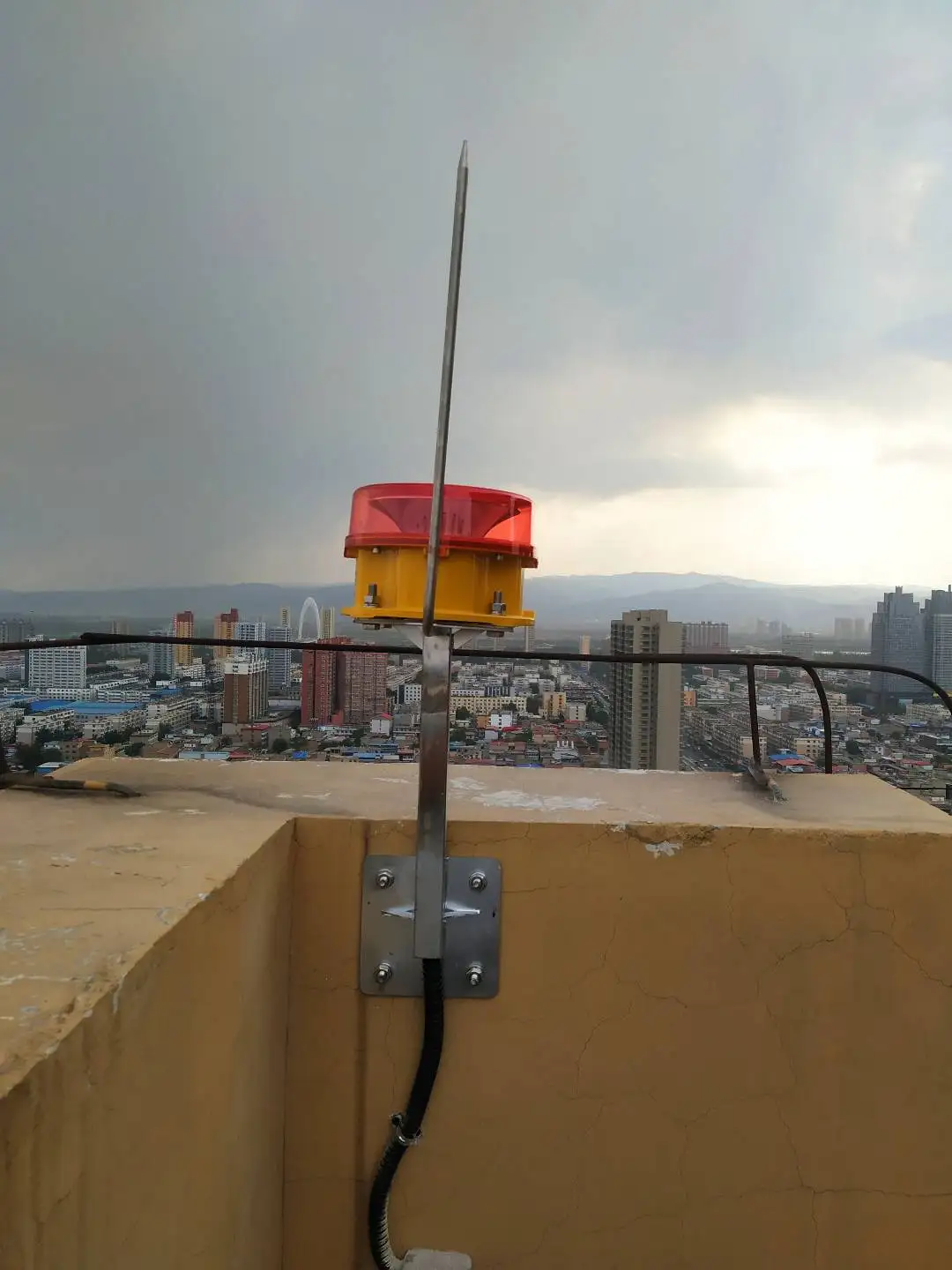

Installation Project
Related Products
Company Introduction
Hunan Chendong Technology Co.,LTD
OverView:
April 23rd,2012: Hunan Chendong Technology Co., Ltd (CDT) was found
2013: Approved by ISO9001, got Independent Import & Export Right, obtained many patents.
2014 : Moved to new self-proprietorial factory with over 3,000㎡ area.Approved ICAO certificate low intensity and Medium Intensity obstruction light.
2015: Has cooperated with more than 80 airports, and the sales of Low visibility Operations are the first one in the country.
2016: Exported to over 50 countries in the world, and cooperated with ZTE, State Grid Corporation of China , PEK, CR Power ,achieving more than RMB 50 million sales.
2017 : CDT Got CE certificate for All aviation obstruction lights,It has
meeted the Turkey market demand.
2018 : Approved ICAO certificate of Type A medium intensity,Type A high intensity,Type B High Intensity obstruction light.Attended
the Dubai Exhibition,Got CE Certificate for all helipad lights.
2019 : Attended the Dubai Airport Exhibition,Germany Airport Exhibition.and get the ICAO for Helipad lights.
2020 : Please look forward
Hunan Chendong Technology Co.,LTD Shorted as CDT a professional manufacturer for Green navigational aids products, mainly for aviation obstruction lights, helipad lightings and meteorological target lamp in China . CDT got ISO 9001:2008 certification the first year when established.As pioneer in China, our products are approved by ICAO and CAAC certificate. CDT keep acting as a solution provider for customers with specialty. And our products have been exported over 50 countries and areas all over the world.
OverView:
April 23rd,2012: Hunan Chendong Technology Co., Ltd (CDT) was found
2013: Approved by ISO9001, got Independent Import & Export Right, obtained many patents.
2014 : Moved to new self-proprietorial factory with over 3,000㎡ area.Approved ICAO certificate low intensity and Medium Intensity obstruction light.
2015: Has cooperated with more than 80 airports, and the sales of Low visibility Operations are the first one in the country.
2016: Exported to over 50 countries in the world, and cooperated with ZTE, State Grid Corporation of China , PEK, CR Power ,achieving more than RMB 50 million sales.
2017 : CDT Got CE certificate for All aviation obstruction lights,It has
meeted the Turkey market demand.
2018 : Approved ICAO certificate of Type A medium intensity,Type A high intensity,Type B High Intensity obstruction light.Attended
the Dubai Exhibition,Got CE Certificate for all helipad lights.
2019 : Attended the Dubai Airport Exhibition,Germany Airport Exhibition.and get the ICAO for Helipad lights.
2020 : Please look forward
