China Disc Brake Lathe Machine Car Cutting for All Cars

China Disc Brake Lathe Machine Car Cutting for All Cars

Категория: Other Vehicle Equipment >>>
Поставщик: Jinan,Quality,CNC,Machinery,&,Equipment,Co.,Ltd.

Цена:1 100,00 $ - 1 134,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	1309.41 $*	1374.83 $*
Aug-19-2025	1298.14 $*	1363.64 $*
Jul-19-2025	1089.56 $*	1143.13 $*
Jun-19-2025	1276.45 $*	1340.44 $*
May-19-2025	1111.34 $*	1167.5 $*
Apr-19-2025	1254.73 $*	1317.63 $*
Mar-19-2025	1243.91 $*	1305.21 $*
Feb-19-2025	1232.68 $*	1294.14 $*
Jan-19-2025	1221.89 $*	1282.1 $*

Характеристики

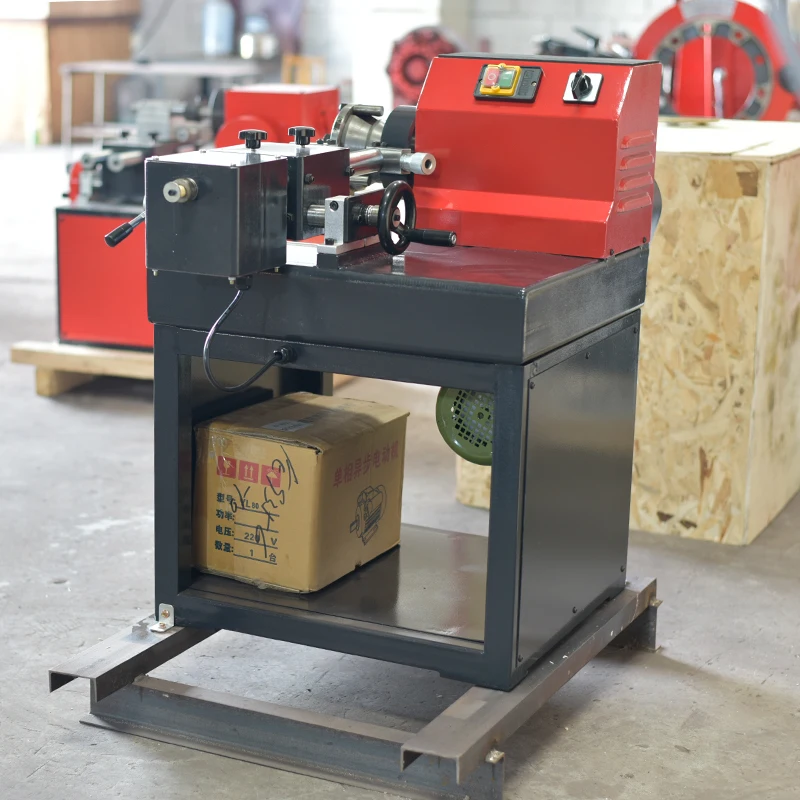

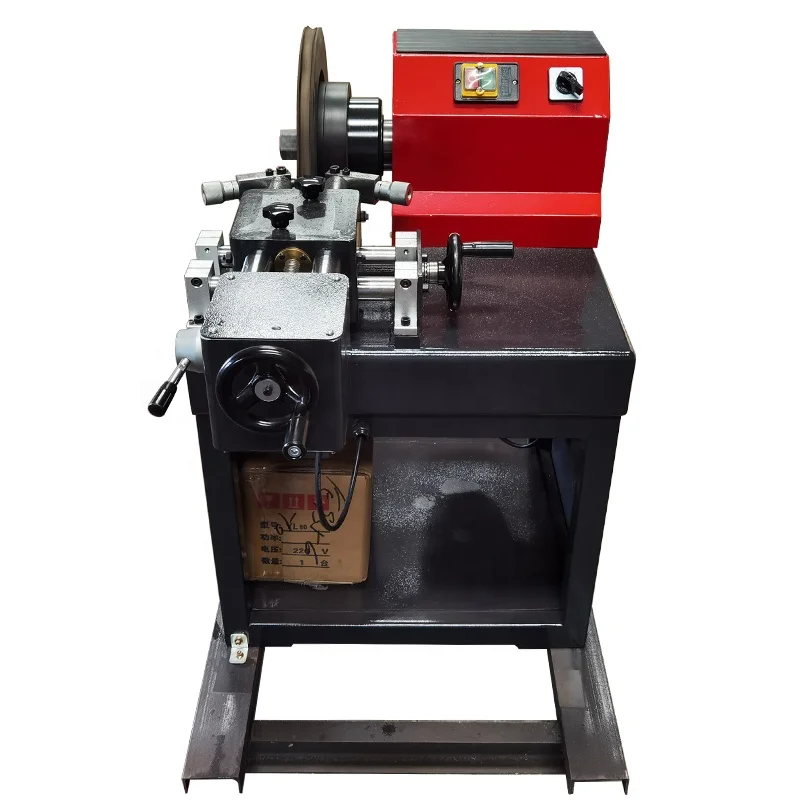

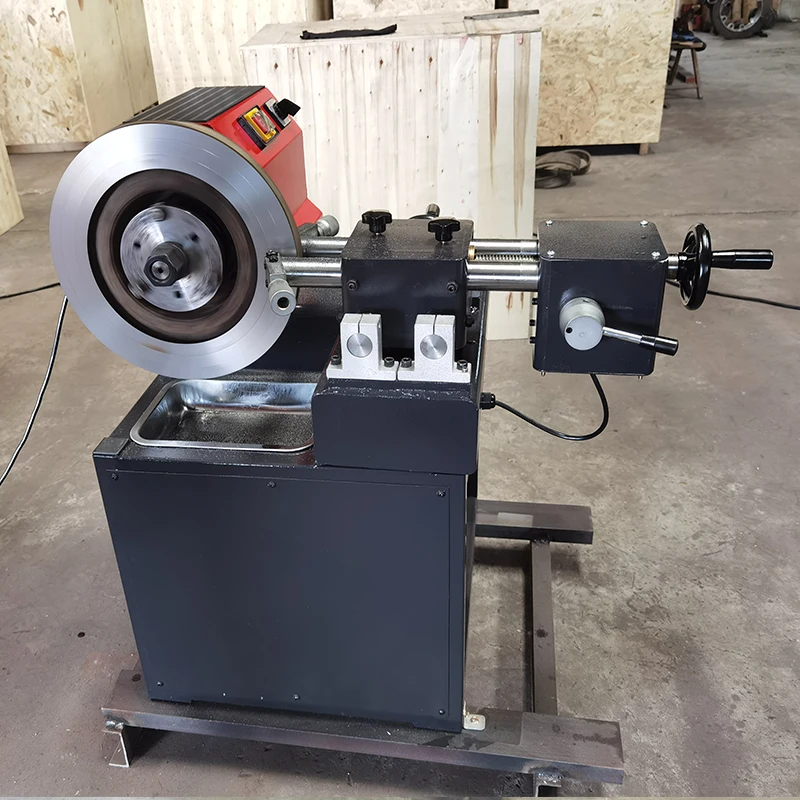

China Disc Brake Lathe Machine Car Brake Disc Cutting Machine

for All Cars C9340

General introduction:
C9340 brake disc lathe machine is suitable for processing the brake disc for almost all cars .We could connect the lathe machine with the brake disc by using the wheel screws directly, it has the features of convenient installation, and high processing precision.

Process Description:

C9340 brake disc cutting machine, this model adopts positive and negative cutting tool, tool bar, guide rail oil-free self-lubricating wear-resistant sleeve, machine rigidity is good, can realize fast processing, spindle drive is equipped with professional reducer, with higher precision. The feed mechanism is a self-locking position of the steel ball, so there is no need to tighten the tool bar. Equipped with magnetic work lights. The base is equipped with wheels on the original fixed foundation, which can be moved as per your need.

Advantages:

1. Max brake disc diameter: 400mm.

2. This brake disc lathe machine adopts auto feeding moving cutter via oil-free self-lubricating wear-resistant stainless steel ball screw.
2. Cutters with great rigidity, can achieve rapid processing of milling ( cutting).

3. Adopts professional three-phase asynchronous motor 750w, more powerful and high accuracy.

4. Heavy machine frame, gross weight 150kg, which can ensure that there is no vibration when the machine works at high speed for a long time.

5. The base can be installed universal wheels, the machine can move easily and flexibly.

Machine Parameters

1	Name	Brake Disc Cutting Machine for All Cars
2	Model	C9340
3	Max. cutting diameter	For brake disc: 400mm
4	Radial travel of tool (max.)	130mm
5	Rotational speed	93r/minute
7	Infinitely variable speed feed /feeding capacity	0.07mm/r
8	Motor power	750W
9	Machine / Package size (LWH)	755565760mm / 775585800mm
10	Net / Gross weight	150kg / 170kg
11	Electrical specifications	220v ± 10% / 1ph, 50hz
12	Producting time‘	18-20 days
13	Warranty	2 years (no man-made reasons)
