Линия электропередачи башня Q235 оцинкованная сталь восьмиугольный электрический полюс
- Категория: Power Distribution Equipment >>>
- Поставщик: Yixing,Hongxin,Illumination,Facilities,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 333.76 $* | 350.48 $* |
| Aug-18-2025 | 330.52 $* | 347.18 $* |
| Jul-18-2025 | 277.93 $* | 291.63 $* |
| Jun-18-2025 | 325.81 $* | 341.39 $* |
| May-18-2025 | 283.48 $* | 297.99 $* |
| Apr-18-2025 | 319.49 $* | 335.61 $* |
| Mar-18-2025 | 316.1 $* | 332.6 $* |
| Feb-18-2025 | 314.43 $* | 330.78 $* |
| Jan-18-2025 | 311.76 $* | 327.23 $* |
Характеристики
Product Description

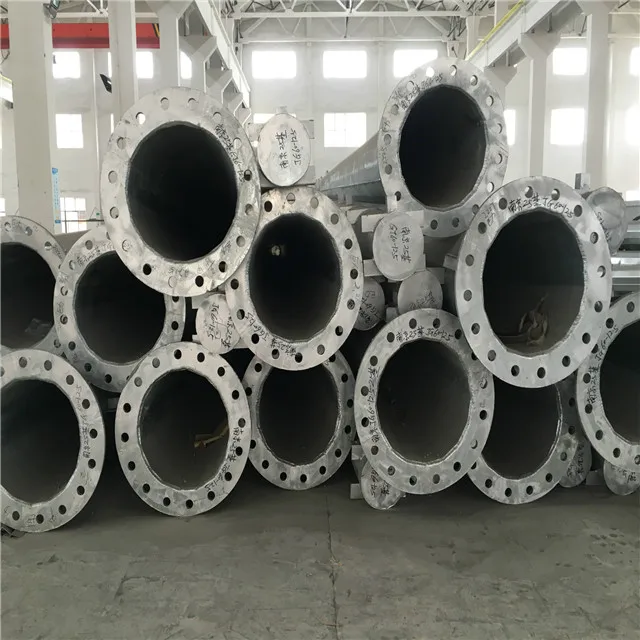

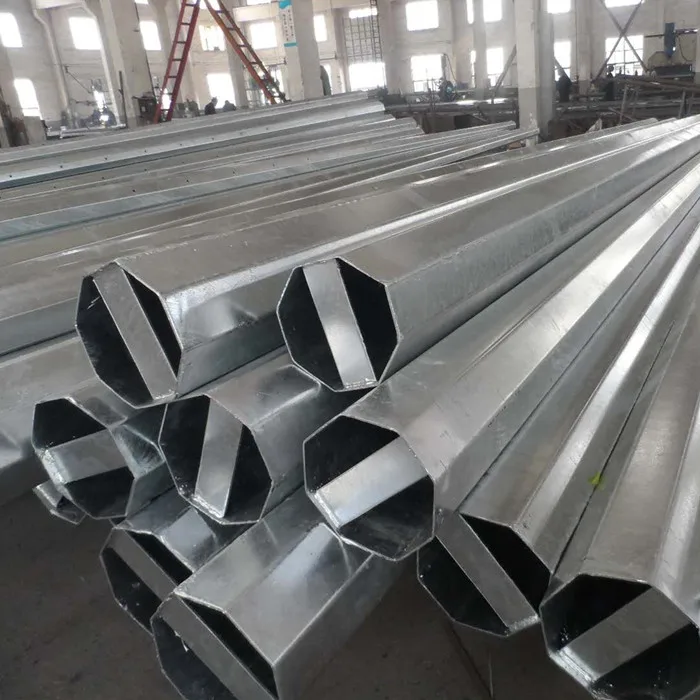

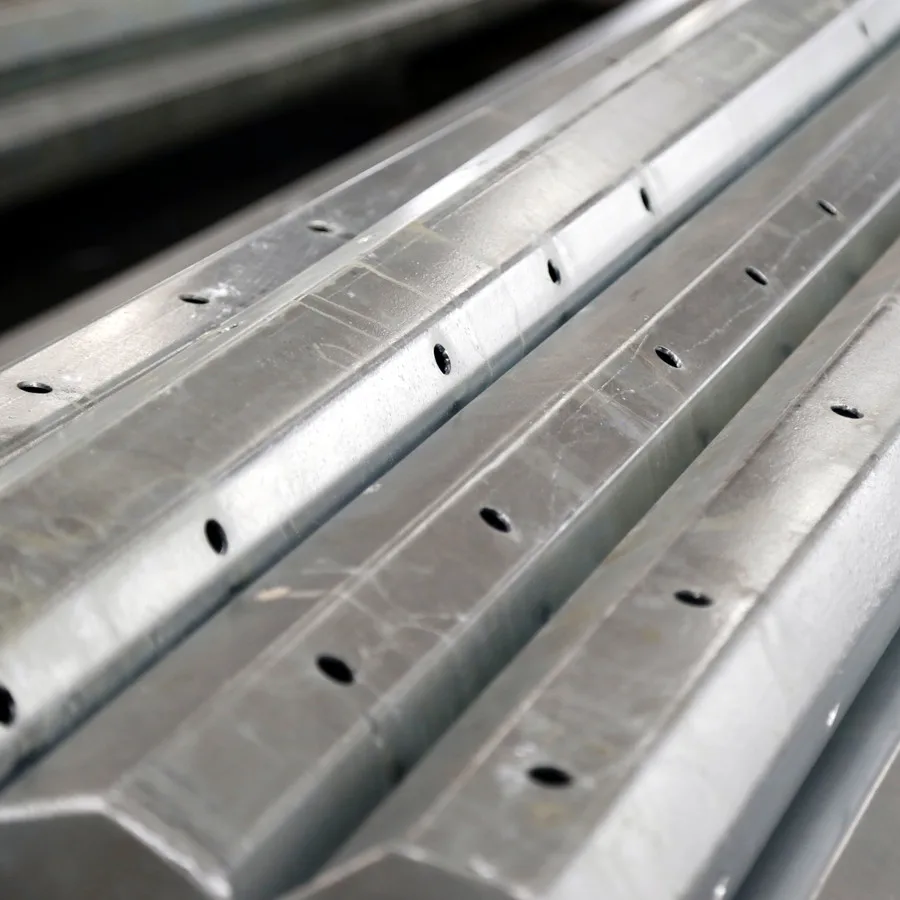

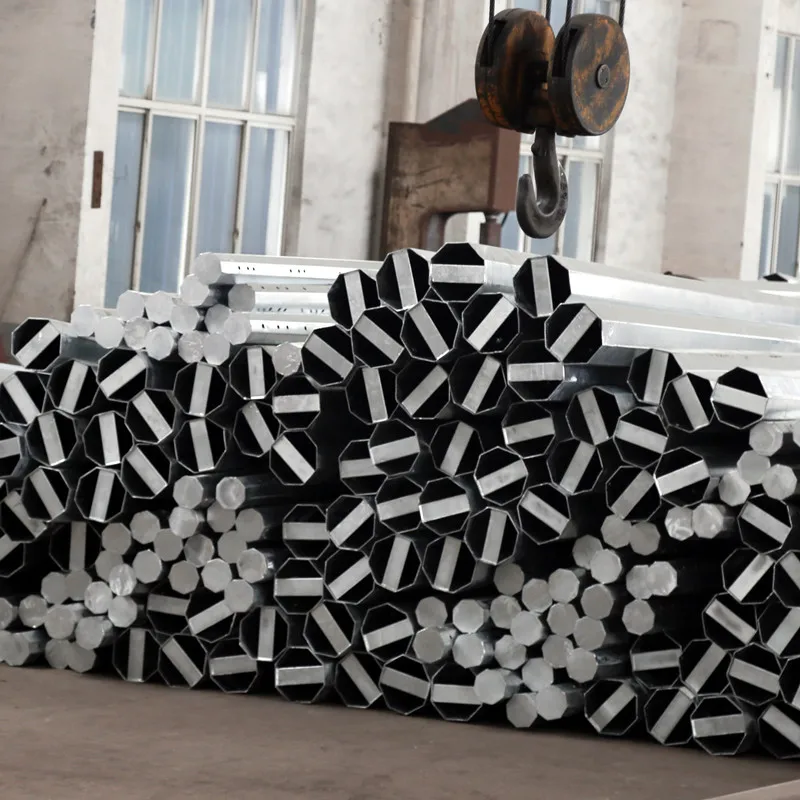

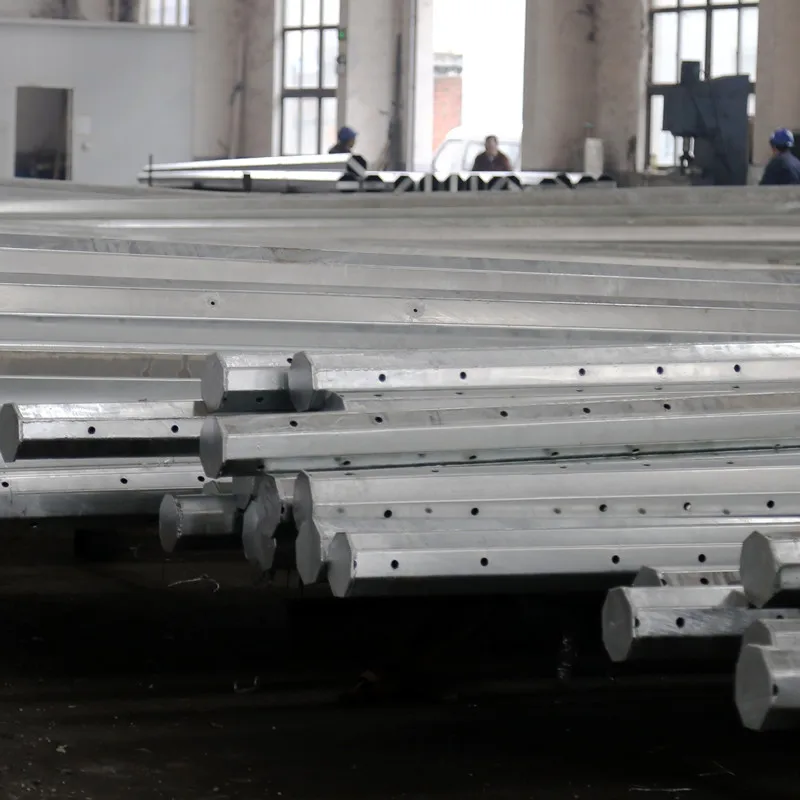

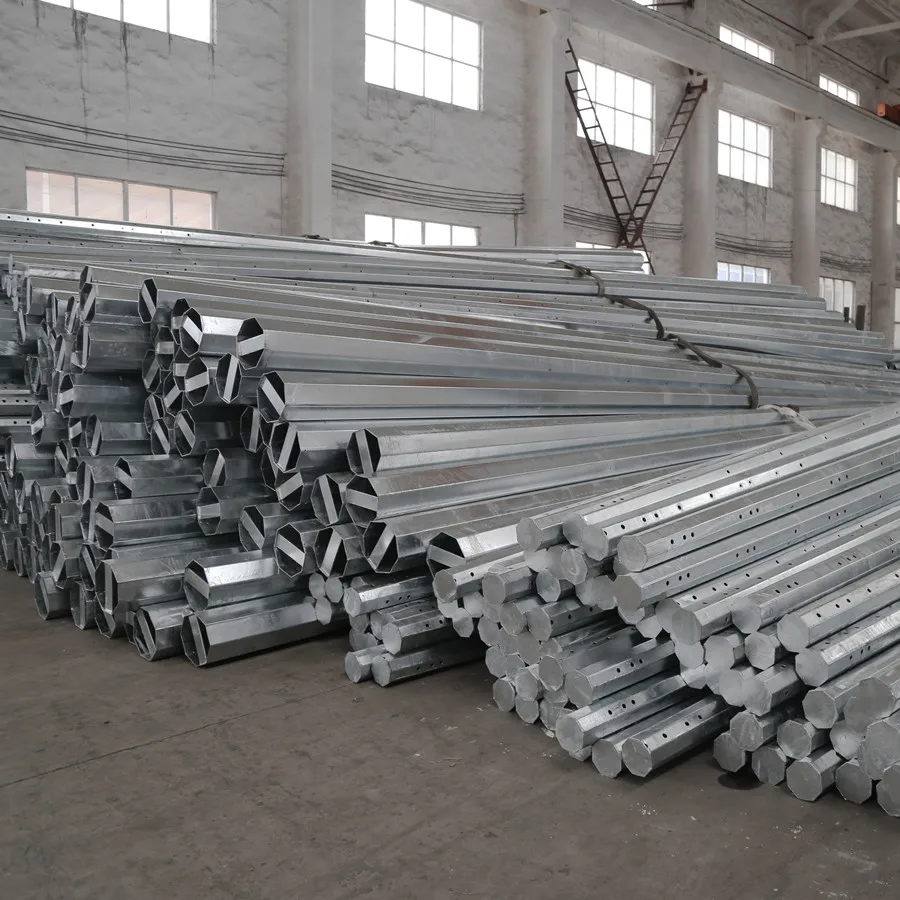

HONGXIN'S transmission electric galvanized steel electrical pole
Type | Straight Pole ,Tensile Pole ,Turn Pole |
Suit for | Power pole for electricity transmission line |
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52 |
Torlance of dimenstion | +- 2% |
Power | 35 KV ~550 KV |
Safety Factor | Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 |
Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
Marks | Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
Design of pole | Against earthquake of 8 grade |
Wind Speed | 160 Km/Hour . |
Minimum yield strength | 355 mpa |
Minimum ultimate tensile strength | 490 mpa |
Max ultimate tensile strength | 620 mpa |
Standard | ISO 9001 |
Length of per section | Within 14m once forming without slip joint. |
Welding | flaw testing.Internal and external double welding makes the welding good Welding Standard :AWS ( American Welding Society ) D 1.1 |
Thickness | 2.5mm to 30mm |
Production Process | Rew material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages→Delivery |
Company Information
Certifications
FAQ
Q1:How can I get the price of needed pole?
A:1.Please give the exactly dimensions such as height,thickness,material,top and bottom dia.We can give you a similar price according to your specification.
2.You can give a drawing.We can give you the price according to your drawing.
Q2:I am a small wholesaler, do you accept small order?
A:It's no problem if you are a small wholesaler,we would like to grow up with you together.
Q3:I am a designer,can you help me to produce the sample which I designed?
A:Our mission is to help customers to be successful.So it's welcome if we can help you solve problem and make your design come true.
Q4:Tell me about your company?
A:Yixing Hongxin Illumination Facilities Co.,Ltd,we have been a manufacturer and exporter of all kinds of steel poles,including street lighting pole,solar energy light pole,mid-hinged light pole,high mast pole and other steel products.
Q5:Do you have some special policies for Brand company?
A:Yes,we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year. So we can see how to support you for your products in your market.
Q6:Can you make Door to Door service? Because I don't know how to do customs clearance.
A:Yes.We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time and money.
