Характеристики
Product features

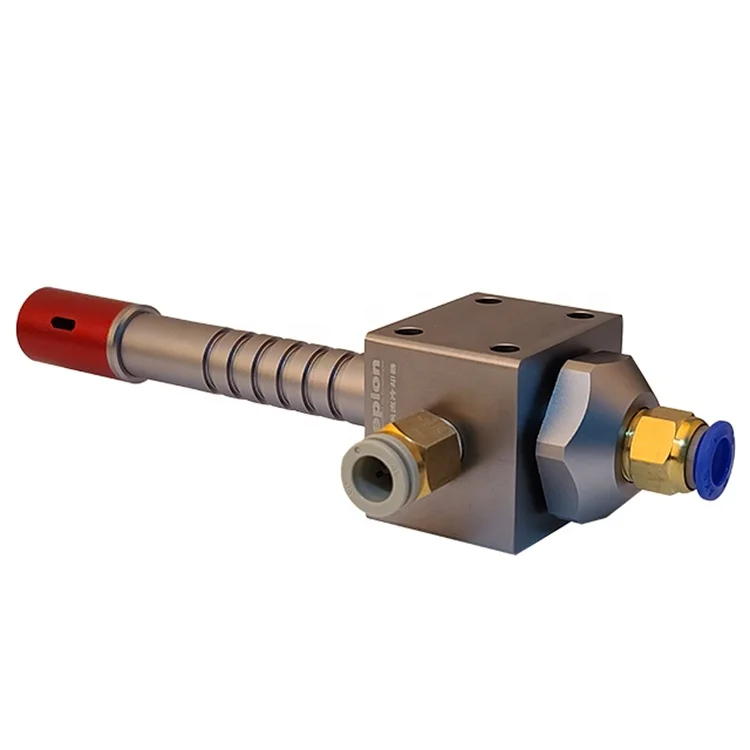

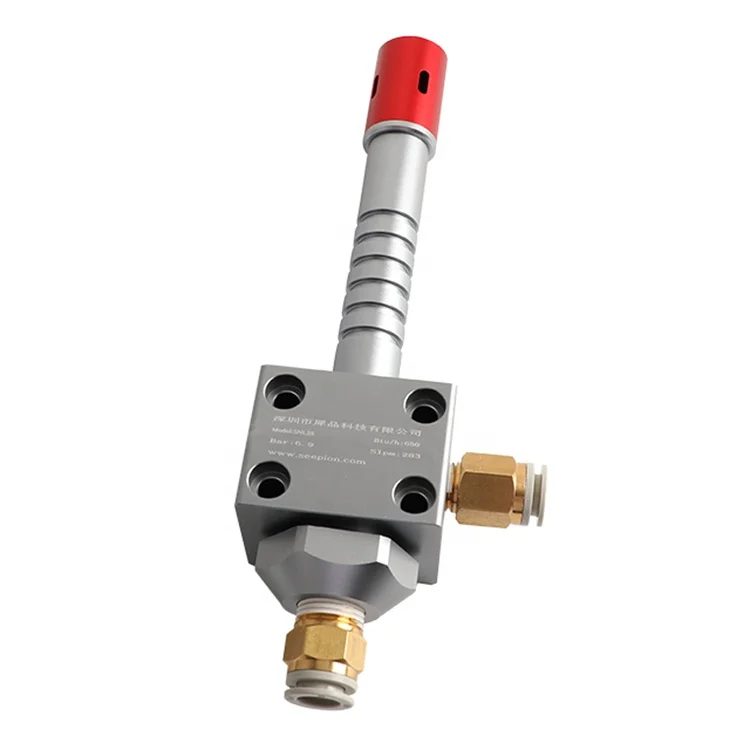

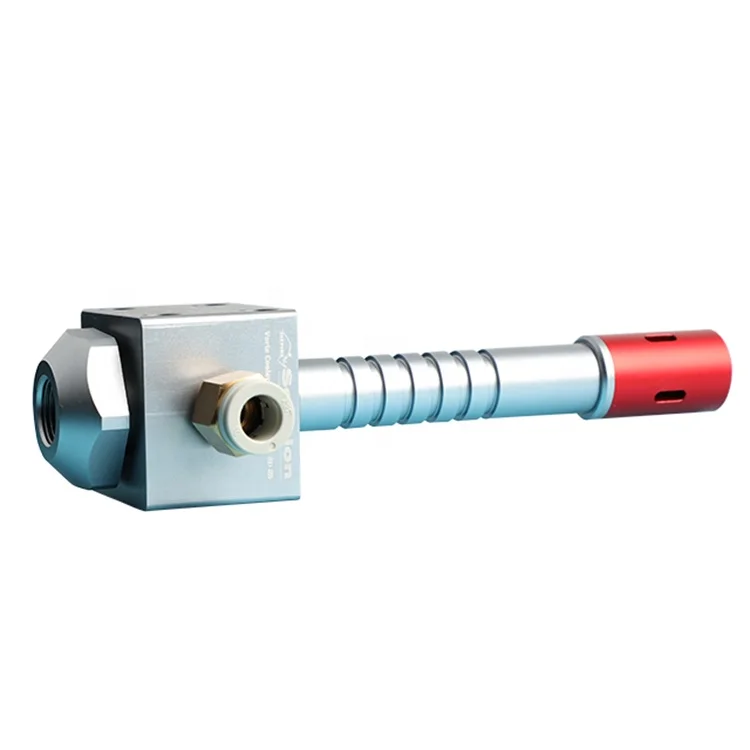

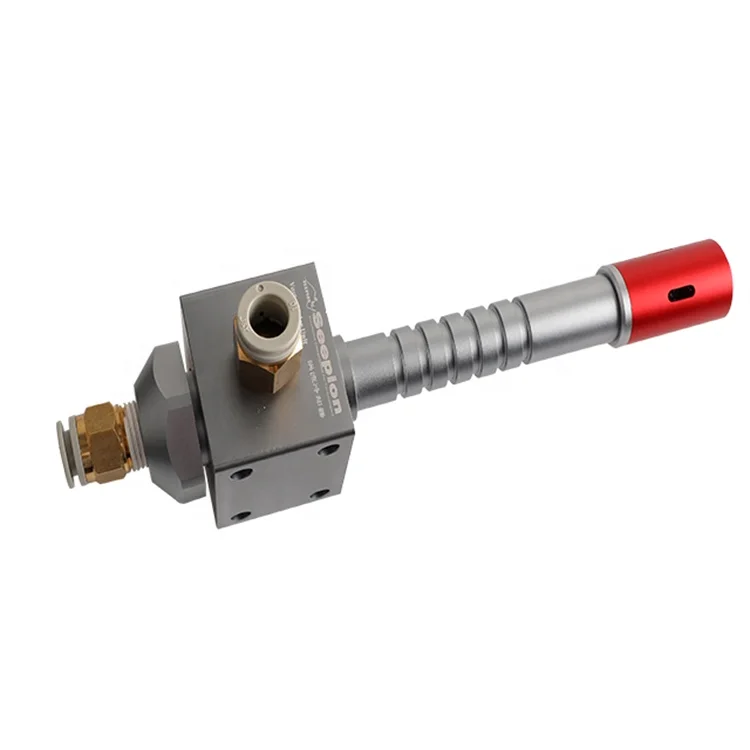

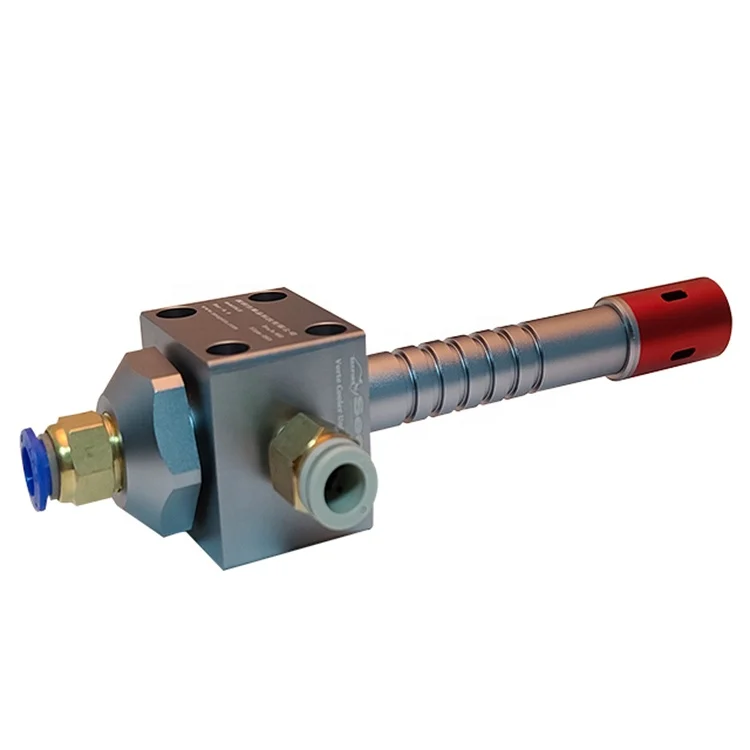

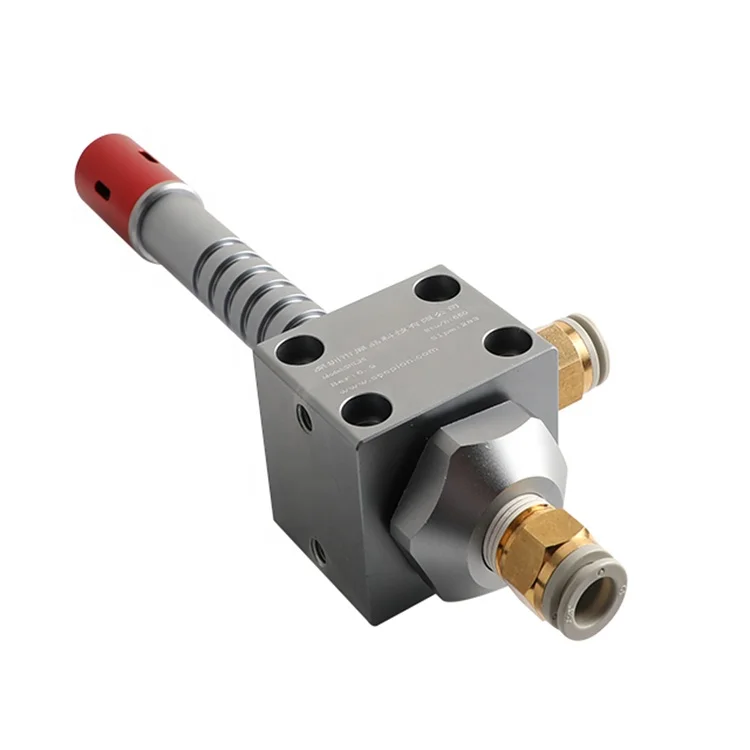

Aluminum alloy vortex tube cooler system
It can cool the compressed air temperature to - 46 ° to 60 ° without moving parts!
Only need compressed air / no electricity and refrigerant medium
Simple installation / instant cooling / long life
The compressed air enters the vortex tube through the input pipe, and flows to one side in a high-speed rotating way. In the process of this air flow movement, the outer air will be heated, on the contrary, the air in the inner layer will become cold (the coldness and heat is directly proportional to the flow rate). When the compressed air moves to one end, the cold air will return in reverse along the center of the vortex to form a cooling source
HOW A Vortex Tube Works
Compressed air (usually 5.0 ~ 7.0 bar) is injected into the vortex tube through the nozzle. After changing the 90 ° direction, it rotates at a high speed in the rotating chamber at the speed of 1008000 rpm and leads to one end of the hot vortex tube. Part of the hot air flows out through the control valve at the end of the vortex tube, and the remaining air flow continues to whirl in the center of the outer vortex The air flow of the external vortex turns into cold air flow and flows out of the vortex tube, while the air flow of the external vortex turns into hot air flow and flows out at the other end of the vortex tube.
Specification of small and medium vortex tubes
Micro vortex tube
Pipe diameter specification of connecting compressed air:
snal04-6mm
snal08-6mm
snal10-8mm
Medium vortex tube
Pipe diameter specification of connecting compressed air:
snal15-10mm
snal25-10mm
snal30-12mm
snal40-12mm
Product Presentation
VORTEX TUBE Size introduction and parameter
Note: our products have different specifications and different prices. Please contact customer service staff to confirm the price
when ordering.
Model-Aluminium | BAR | SCFM | SLPM | Btu/h | Kcal/h | Dimensions | dBa |
SNAL04 | 6.9 | 4 | 116 | 178 | 70 | Small | 55 |
SNAL08 | 6.9 | 8 | 225 | 550 | 140 | Small | 58 |
SNAL10 | 6.9 | 10 | 287 | 650 | 164 | Small | 60 |
SNAL15 | 6.9 | 15 | 423 | 1000 | 252 | Medium | 63 |
SNAL25 | 6.9 | 25 | 716 | 1700 | 425 | Medium | 65 |
SNAL30 | 6.9 | 30 | 853 | 2000 | 500 | Medium | 70 |
SNAL40 | 6.9 | 40 | 1130 | 2800 | 706 | Medium | 76 |
