Плоская проволока из меди и никеля 0 26*3

Цена:*

Количество:

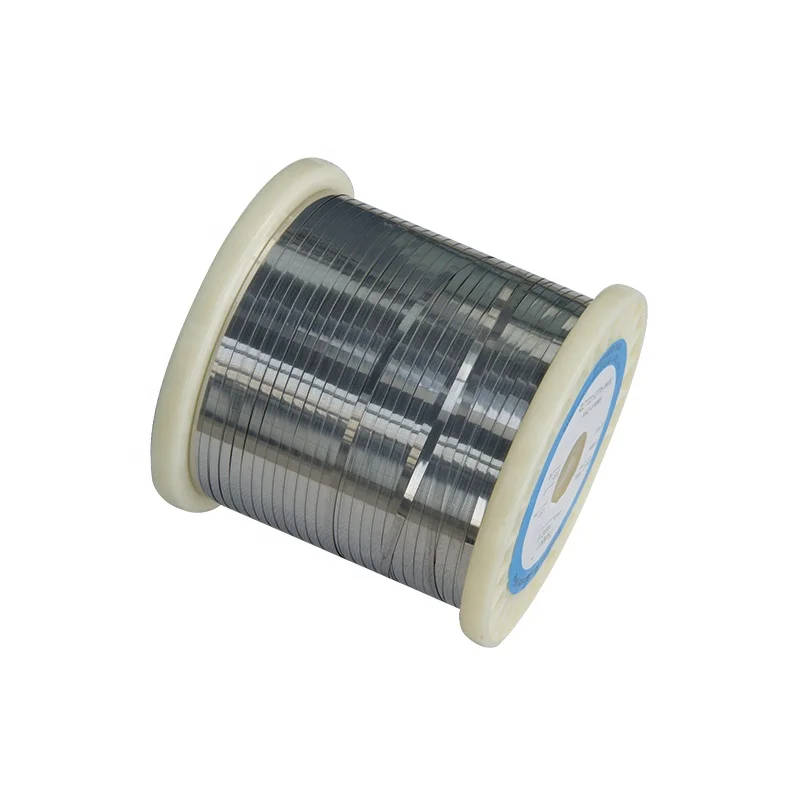

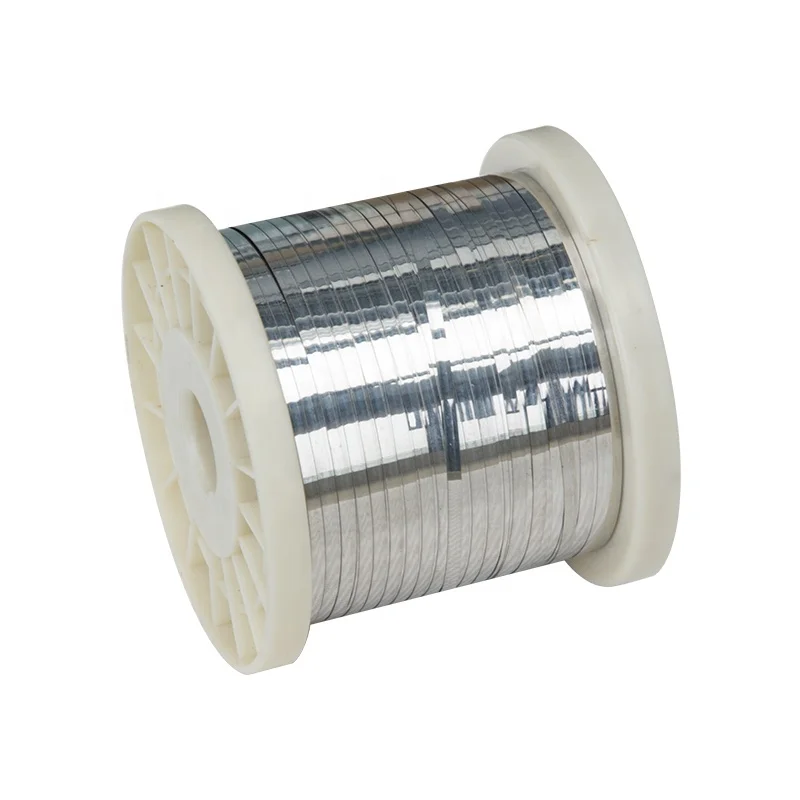

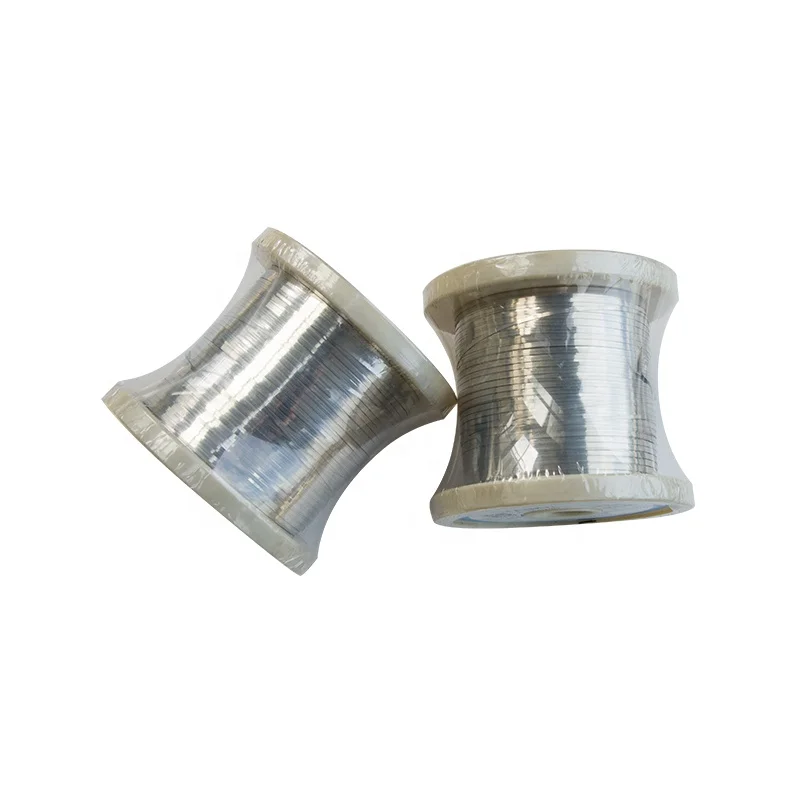

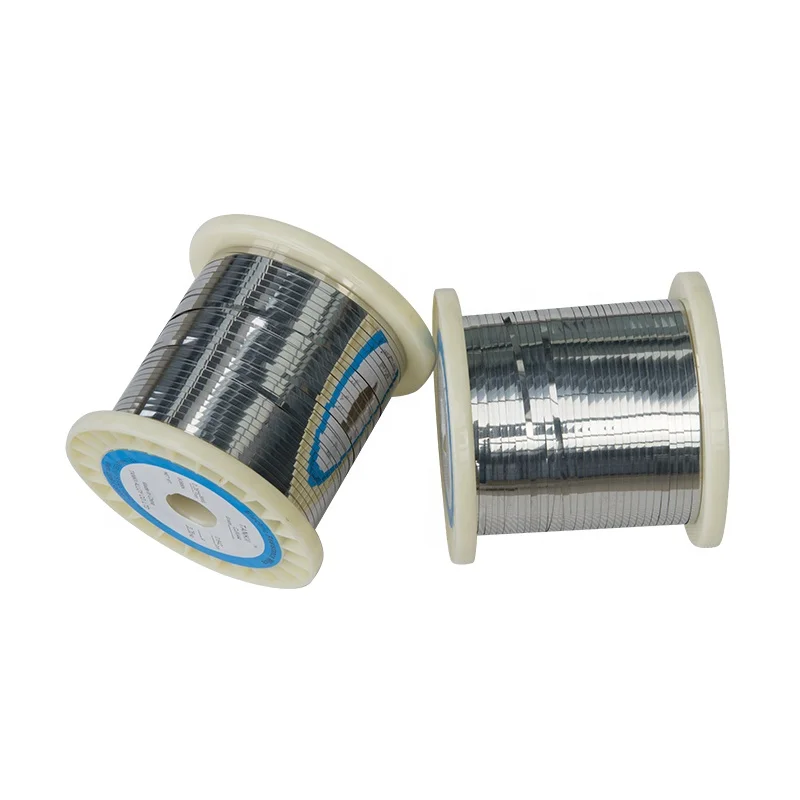

Copper nickel CuNi44 Ribbon 0.26*3mm

1. Characteristics:

1)Manufactured according to international quality. System (ISO9001)

2)Stable resistance and long-life span

3)Mill test certificate will be provided after production

4)Size range wire:.0.018-10mm ribbons: 0.05-0.2*2-6mm strips: 0.001-5*1-250mm

5)Good packing methods to keep goods no damage during delivery

6)Customized lable, packing, OEM service

7)24 hours after-sale service

. Applications

It could be used to make electric heating element in low-voltage apparatus, such as thermal overload relay, low-voltage circuit breaker, and so on.

. Main grades and properties

Type	Electrical resistivity (20degreeΩ mm²/m)	temperature coefficient of resistance (10^6/degree)	Dens ity g/mm²	Max. temperature (°c)	Melting point (°c)
CuNi1	0.03	<1000	8.9	/	1085
CuNi2	0.05	<1200	8.9	200	1090
CuNi6	0.10	<600	8.9	220	1095
CuNi8	0.12	<570	8.9	250	1097
CuNi10	0.15	<500	8.9	250	1100
CuNi14	0.20	<380	8.9	300	1115
CuNi19	0.25	<250	8.9	300	1135
CuNi23	0.30	<160	8.9	300	1150
CuNi30	0.35	<100	8.9	350	1170
CuNi34	0.40	-0	8.9	350	1180
CuNi40	0.48	±40	8.9	400	1280
CuNi44	0.49	<-6	8.9	400	1280
