Technical Parameters | Descriptions | Unit |

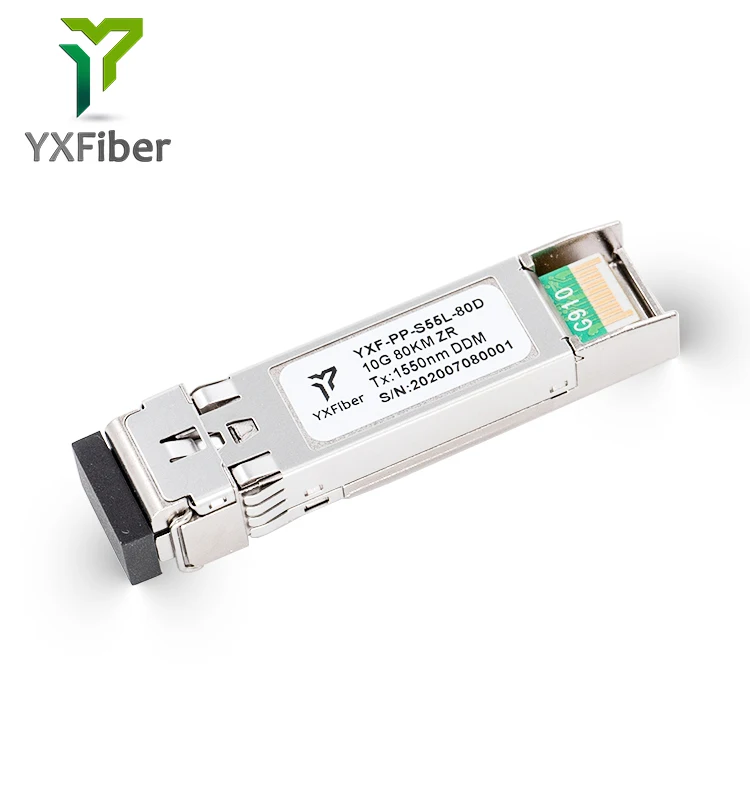

Model Number | YXF-PP-S55L-80D | |
Fiber type | SMF | |
Form Factor | DUAL SFP+ | |
Data Rate | 10 | Gbps |
Wavelength | 1550 | nm |
Distance | 80 | KM |
Sensitivity | <-23.0 | dBm |
Connector | LC | |
Laser | EML/PIN | |
DDM | Yes | |
Output Power | 0~4 | dBm |
Power Supply | 3.3 | V |
Temperature | 0~70 | °C |
Certificate | CE,ISO9001,FCC,SGS,ROHS | |
Warranty | 1 | Year |
Features :
1. SFP+ MSA package with duplex LC connector.
2. 2-wire interface for integrated Digital Diagnostic monitoring.
3. 1550nm EML Laser and PIN receiver.
4. Very low EMI and excellent ESD protection.
5. Power consumption less than 1.0W.
6. Hot-pluggable capability.
Advantages :
1. The transceiver is a low power, high performance, cost effective module supporting data-rate up to 10Gbps 80km transmission distance.
2. The low jitter and high sensitivity are extinguished advantages with 1550nm EML and PIN/TIA receiver.
3. The transceiver incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions.The devices are Class I laser safety compliant.
More about us, please visit: #
Whole products, please click: #
More SFP 1.25G, click: #
More SFP+ 10G, click: #
More Copper SFP products, welcome visit: #
Q1. Do you provide samples? Is it free or extra?
Yes, but we need to charge for samples, we will return sample fee in the later order
Q2. What is your MOQ and the lead time?
We do not have MOQ, 1sample is available
Lead time: 1~3 working days for samples, 3~5 days for mass
Q3. What is your terms of payment?
Pament≤5000USD, 100% in advance
Payment> 5000USD, 40%T/T in advance, balance before shipment
Q4. How about Precautions?
Storage in anti-static box
When used, please ensure that the voltage is normal and stable
Q5. What is your after-sales service?
All our customers can enjoy the after-sales service for the three years quality warranty, and lifetime technical support
Q6. Could I use our own logo and label?
Yes, we could provide OEM service and make the products with your own label
