SEAFLO DC 12V 24V 18 9 LPM 60PSI оптовая продажа электрический мембранный насос CE насосы 12v dc
- Категория: Pumps & Parts >>>
- Поставщик: Fujian,Aidi,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 39.94 $* | 40.93 $* |
| Jul-20-2025 | 32.73 $* | 33.57 $* |
| Jun-20-2025 | 39.89 $* | 40.80 $* |
| May-20-2025 | 38.45 $* | 39.8 $* |
| Apr-20-2025 | 31.64 $* | 32.72 $* |
| Mar-20-2025 | 38.68 $* | 39.93 $* |
| Feb-20-2025 | 38.55 $* | 39.38 $* |
| Jan-20-2025 | 37.44 $* | 38.32 $* |
Характеристики
SEAFLO Profile
Product Description
| Features & Benefits |
| 1.Flow rate up to 5.0 GPM [18.9 LPM] 3.Automatically turn on and off 5.Quiet operation 7.On demand use | 2.Can run dry without damage 4.Self priming & built-in check valve 6.Chemically resistant materials 8.Designed for spraying and fluid transfer |

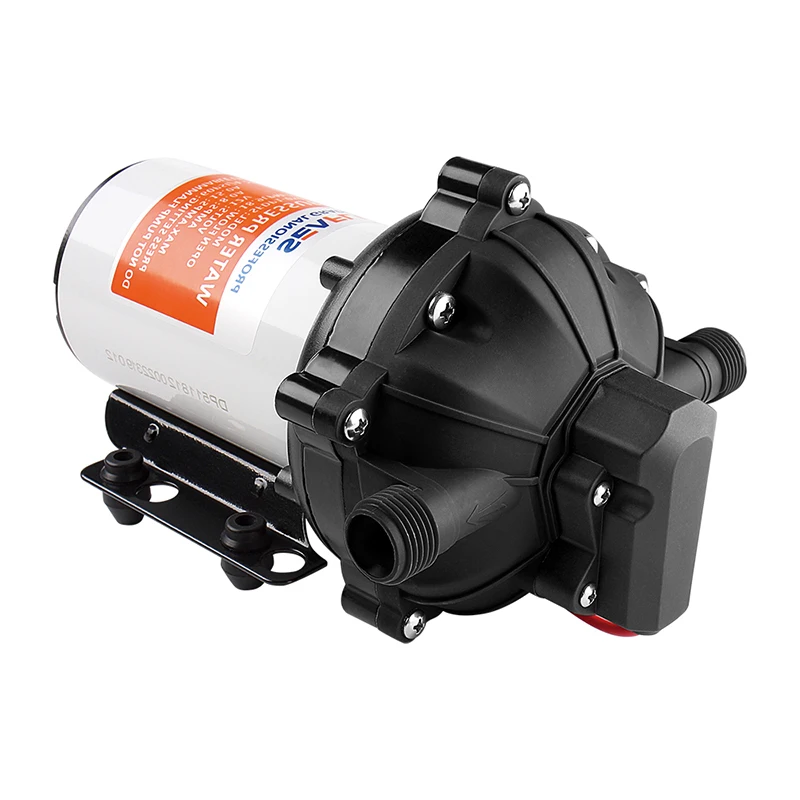

| Product Name | SEAFLO DC 12V 24V 18.9LPM 60PSI Agricultural Electric Spray Water Pump |
| Pump Type | 5 Chambers Positive Displacement Diaphragm Pump |
| Max Flow Rate | 5.0 GPM [18.9 LPM] |
| Max Pressure | 60 PSI [4.2 Bar] |
| Voltage | 12 VDC, and 24V, 115V, 230V are available |
| Max Amp | 17.0 A |
| Fuse | 25.5 A |
| Switch Type | On Demand [Cut-off Switch], and none switch is available |
| Diaphragm Material | Santoprene |
| Valve Material | Viton, and EPDM is available |
| Duty Cycle | Continuous |
| Self Priming | 6' [1.8 m] suction |
| Max Fluid Temp | 140 °F [60 °C] |
| Inlet & Outlet Port | 1/2"-14 MNPT Quick Connect, and contact us for more ports |
| Lead | 13" [33 cm] 14 AWG lead with 2-Pin connector |
The 51-Series is our Heavy-Duty water pump. It provides high volume water flow with reduced pump cycling, thanks to the large five-chamber diaphragm. These models are designed to run on water systems with no accumulator tank necessary, and up to five fixtures! It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 5.0 gallons per minute. The 51-Series pumps are self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened and closed. They are easy to install service and winterize.
| Product Show |
| Dimensions |
| Performance |
| Motor Heat Rise |
| Product Details |
Standard Pump Configurations
| Model | Voltage | Open Flow GPM [LPM] | Cut off Pressure PSI [BAR] | Max Draw | Diaphragm | Valve |
| SFDP1-030-060-51NEW | 12 V | 3.0 [11.5] | 60 [4.2] | 10.0 A | Santoprene | Viton |
| SFDP2-030-060-51NEW | 24 V | 3.0 [11.5] | 60 [4.2] | 5.5 A | Santoprene | Viton |
| SFDP1-040-060-51NEW | 12 V | 4.0 [15.0] | 60 [4.2] | 13.0 A | Santoprene | Viton |
| SFDP2-040-060-51NEW | 24 V | 4.0 [15.0] | 60 [4.2] | 7.0 A | Santoprene | Viton |
| SFDP1-050-060-51NEW | 12 V | 5.0 [18.9] | 60 [4.2] | 17.0 A | Santoprene | Viton |
| SFDP2-050-060-51NEW | 24 V | 5.0 [18.9] | 60 [4.2] | 9.0 A | Santoprene | Viton |
OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 70 PSI [4.8 Bar]; Open flow can be adjusted from 0.8 GPM [3.0 LPM] to 5.3 GPM [20.0 LPM]. Material can be adjusted according to your requirement.
Application
Packaging & Shipping
Package Infomation
 | Unit Pump Weight | 6.09 lbs [2.76 kg] |
| Selling Unit Size (L x W x H) | 11.18" x 6.26" x 5.51" [28.4 x 15.9 x 14.0 cm] | |
| Selling Unit Weight | 6.66 lbs [3.02 kg] | |
| Master Carton Qty | 6 pcs / carton | |
| Master Carton Size (L x W x H) | 19.69" x 11.81" x 11.20" [50.0 x 30.0 x 31.0 cm] | |
| Master Carton Weight | 42.51 lbs [19.28 kg] |
Company Information
More Products
FAQ
Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as Volvo, Bunnings etc.
Q: How can I pay for my order?
A: Please send order details to us. We will issue an order on Alibaba Trade Assurance, and send you the payment link.
Q: What is your terms of payment?
A: Payment≤3000USD, 100% in advance. Payment≥3000USD, 30% T/T in advance, balance against the copy of B/L. If you have another question, pls feel free to contact us.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
low pressure pump 12v high flow water pump washing machine small water booster pump pressure pump diaphragm pump
Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.
pumps diaphragm pump electric diaphragm pump diaphragm water pump diaphragm booster pump 12v diaphragm pump
Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.
diaphragm dosing pump micro diaphragm pump double diaphragm pump mini diaphragm pump 24v diaphragm pump
Q: What is your port of loading?
A: Xiamen port.
Q: Do you have oversea agents?
A: We dont have oversea agents for Agriculture and Industrial. But for SEAFLO pumps applied in Marine & RV, we have agents in USA, UK, Denmark, Spain, Australia, Turkey, Yemen, Lebanon etc.
Q: Can I get more info?
A: Please visit www.seaflo.com or www.seafloin.en.alibaba.com for more information.
