Молотковая мельница с дизельным двигателем для влажной молотковой мельницы переработки стеклянных бутылок золота камня


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 0.57 $* 0.33 $*
Aug-20-2025 0.9 $* 0.38 $*
Jul-20-2025 0.82 $* 0.29 $*
Jun-20-2025 0.70 $* 0.37 $*
May-20-2025 0.41 $* 0.0 $*
Apr-20-2025 0.20 $* 0.88 $*
Mar-20-2025 0.26 $* 0.72 $*
Feb-20-2025 0.38 $* 0.92 $*
Jan-20-2025 0.8 $* 0.32 $*

Характеристики



Product Overview

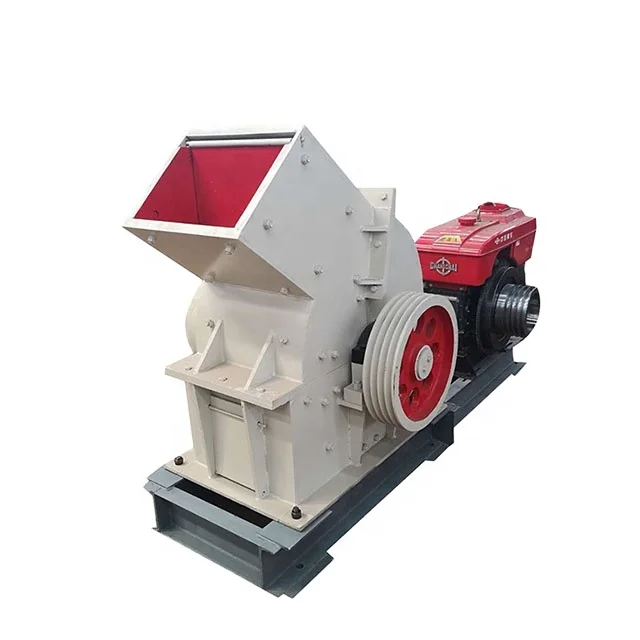

Hammer Mill (Hammer Crusher)- Diesel Engine Driving
Types of hammer mill is mainly used for crushing medium-hard or brittle materials with hardness not more than 300Mpa and 15% moisture,such as coal, cement,gypsum,alumen,brick,tile,limestone,etc.It has the features of simple structure, big crushing ratio, high production efficiency, uniform particle size, etc. This equipment can be adjusted to reach various discharged granularity as the customers' requests.






Hammer
Diesel Engine-Changchai
V-Belt + Anchor bolt


Working principle


Motor drives the rotor quickly in the crushing cavity. Raw materials enter the crusher through the feeding inlet and are impacted, cut and ground by high-speed hammer heads. There is a grate under the rotor assembly, so that materials with size smaller than the grate mesh will be screened out and others are left to be further hammered until they reach the standard size. The size of the final product can be adjusted by changing the grate, the gap between the rotor assembly and the grate can also be adjusted according to different requirements.


Compare :
The discharging granularity of grate bar is large, the output is high, and the gap between grate bars is 7-15mm (adjustable);
The discharge of screen plate is fine and the output is low. The diameter of screen hole can be customized (3-10mm);
However, the service life of screen plate is short.




Application




PRODUCT SPECIFICATIONS


Model
Feeding Size
 (mm)
Discharging Size
(mm)
Capacity (t/h)
Power
(kw)
Weight
(t)
Dimensions
(mm)
PCΦ400×300
≤200
≤25
5-10
11
0.8
900 × 670 × 860
PCΦ600×400
≤250
≤30
10-22
22
2.26
1200 × 1050 × 1200
PCΦ800×600
≤250
≤35
18-40
55
4.8
1310 × 1180 × 1310
PCΦ1000×800
≤350
≤35
25-50
75
5.9
1600 × 1390 × 1575


PRODUCT CONFIGURATION

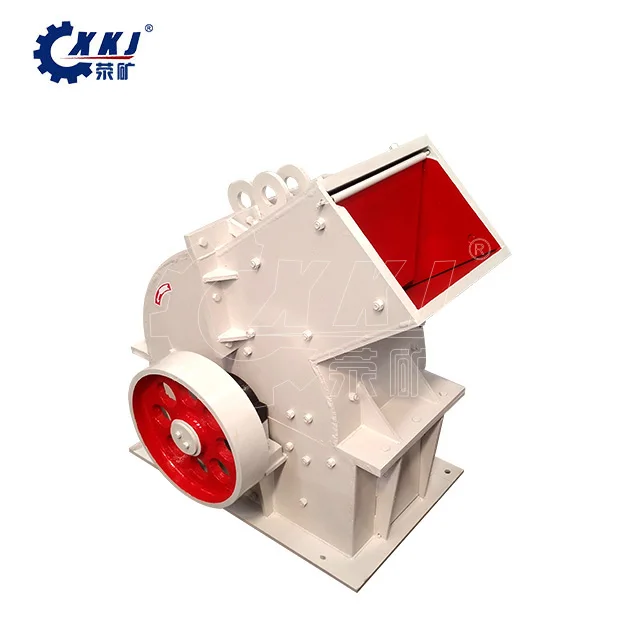

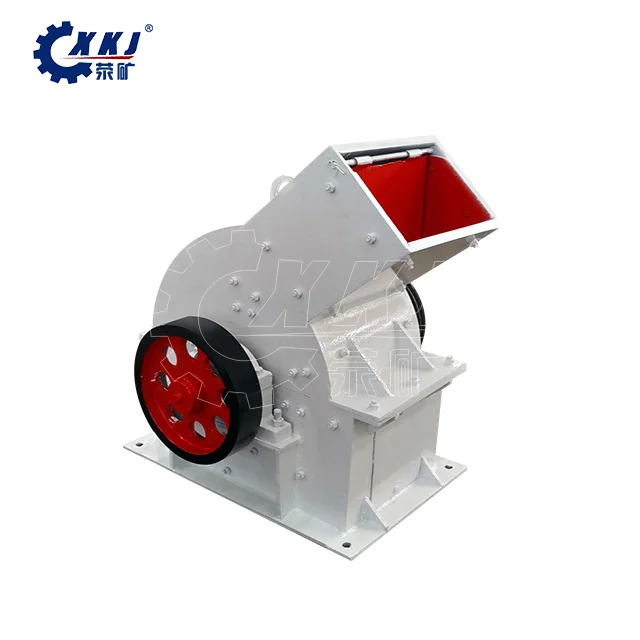

Driving by AC Motor
Maine machine -Hammer Mill

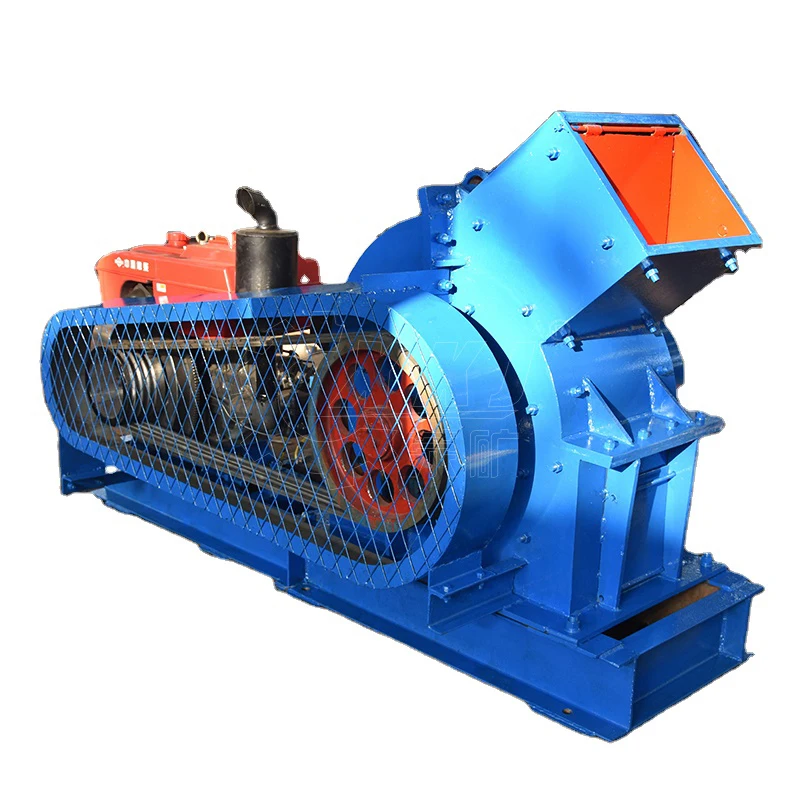

Driving by Diesel Engine

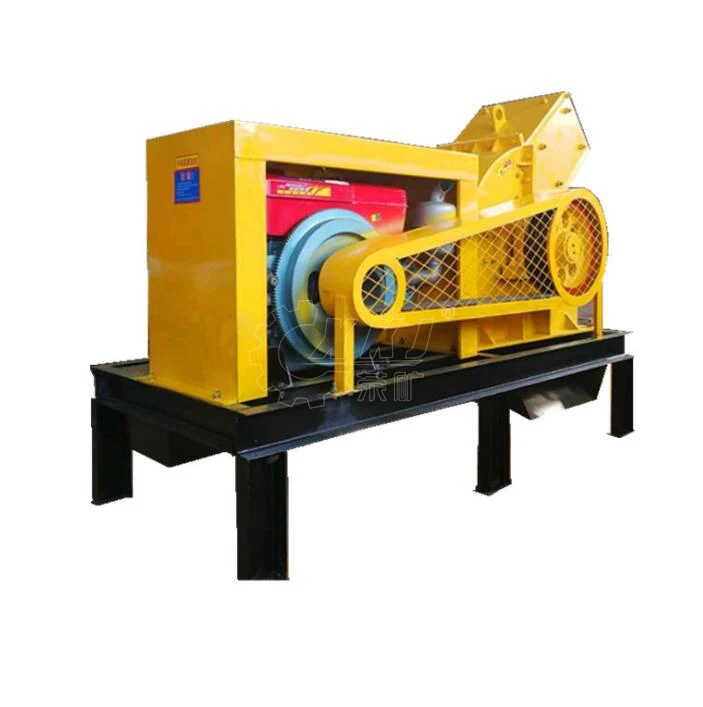

Mobile Hammer Mill --Latest Design.
Portable mobile hammer is suitable for outdoor operation, easy to move, simple to drag, driven by diesel engine, with belt automatic unloading, to meet the different needs of customers, if you like this design, please contact the sales consultant.


SIMILAR PRODUCTS




Company Profile


XKJ GROUP was founded in 1956. It was restructured in 1996, After decades of development and growth, it has developed into a leader in the processing and manufacturing of mining processing equipment. It is a company integrating design, development, production, sales and installation. The company covers an area of more than 60 acres, with a construction area of more than 10,000 square meters, and more than 60 sets (sets) of various types of processing equipment. XKJ GROUP has a production line with advanced technology . The company has 365 employees. Our factory cooperates with scientific research and design units to provide users with general contracting services for mineral processing experiments, project design, equipment selection and manufacturing, equipment installation and commissioning.




FAQ


Q1: Deliver Time
A1: 5-10 Working days

Q2: Any other question ?
A2:Please feel free to contact sales manager
