JQlase factory direct sales of high quality cut carbon steel and stainless laser cutting
- Категория: Laser Cutting Machines >>>
- Поставщик: Jinan,Jinqiang,Laser,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2380.37 $* | 2499.13 $* |
| Aug-19-2025 | 2360.37 $* | 2478.63 $* |
| Jul-19-2025 | 1980.33 $* | 2079.86 $* |
| Jun-19-2025 | 2320.68 $* | 2436.89 $* |
| May-19-2025 | 2020.44 $* | 2121.50 $* |
| Apr-19-2025 | 2280.32 $* | 2394.80 $* |
| Mar-19-2025 | 2260.77 $* | 2373.80 $* |
| Feb-19-2025 | 2240.38 $* | 2352.66 $* |
| Jan-19-2025 | 2220.67 $* | 2331.8 $* |
Характеристики
Product Description

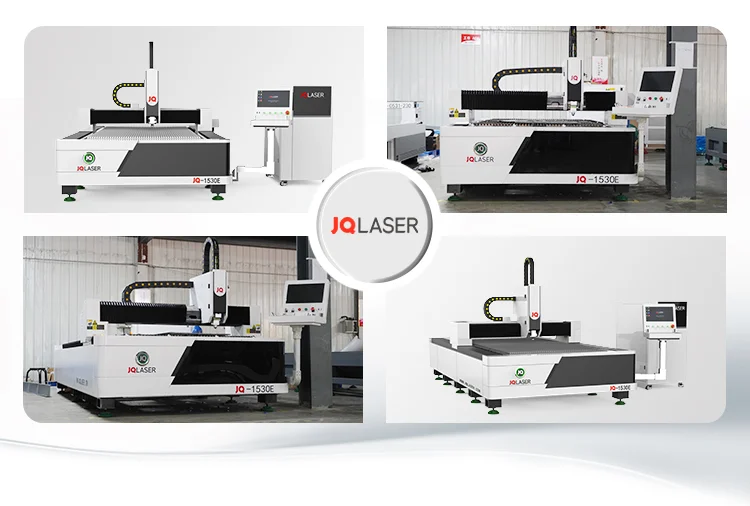

JQ1530E.laser cutting machine for Metal Cut
The main components of JQ-1530E series optical fiber flat cutting machine are: machine tool host, control system, laser, chiller,exhaust fan, etc.It is mainly used for ordinary carbon steel plates, stainless steel plates, aluminum alloy plates, copper plates, etc. The workpiece size is 1500X3000, and the maximum length is 3000mm.The machine bed is integrally welded and processed by annealing to eliminate internal stress. After rough machining, vibration aging is performed before finishing, which greatly improves the rigidity and stability of the machine tool and ensures the accuracy of the machine tool.
Our advantage
(1). High-rigidity and heavy-duty chassis to reduce vibration during high-speed cutting.(2). High-performance cast aluminum guide rails, after unlimited analysis, accelerate the arc cutting speed.
(3). High precision, fast speed, narrow cut, small heat-affected zone, smooth cutting surface and no burrs.
(4). The laser cutting head does not touch the surface of the material and does not scratch the workpiece.
(5). The slit is the narrowest, the heat-affected zone is the smallest, the local deformation of the workpiece is small, and there is no mechanical deformation.
(6). It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
(7). It can cut any hardness materials such as steel plate, stainless steel, aluminum alloy, cemented carbide, etc. without deformation
Parameter
1 | Model | JQ-1530E |
2 | Plane cutting width (length X width) | 3000x1500 mm |
3 | X-axis travel | 1550 mm |
4 | Y-axis stroke | 3050 mm |
5 | Z axis travel | 120 mm |
6 | X, Y axis positioning accuracy | ±0.05/1000mm mm |
7 | X, Y axis repeat positioning accuracy | ±0.03/1000mm mm |
8 | Acceleration | 1G m/s² |
9 | Maximum operating speed | 100 m/min |
10 | Maximum platform load | 900 kg |
11 | Host appearance (length, width and height) | 4500×3040×1650 mm |
12 | Laser power | 1000-3000 w |
13 | Control | system |
14 | Power supply requirement | 380v/50Hz |
Product details
Raytools laser cutting head
Auto-focus laser head-no manual operation is required, and the vertical height is automatically controlled, so as to realize the cutting operation of different sheet thicknesses
Bai Chusystem
The display operation unit provides good man-machine interface to display various operation information, and the operation panelwith function keys for machine operation
With rigidity and stabilityWelded bed
Auto-focus laser head-no manual operation is required, and the vertical height is automatically controlled, so as to realize the cutting operation of different sheet thicknesses
Sample
JQ1530E Fiber laser cutting equipment is suitable for stainless steel plate, low carbon steel plate, Carbon steel plate, alloy steel plate, spring steel plate, iron plate, galvanized iron plate, galvanized plate, aluminum plate, copper plate, brass plate, bronze plate, gold plate, silver plate, titanium plate, metal plate.
*WE SUPPORT FREE SAMPLES SERVICE！！
YOU CAN TELL US ABOUT METERIAL AND THICKNESS, GET SAMPLES FIRST!
Industry Application
JQlaser Fiber laser cutting machines are used in various industries, such as fitness equipment manufacturing, automobile manufacturing, medical equipment manufacturing, kitchenware and bathroom, steel and wood furniture, sheet metal processing, etc.
Certificate
We have passed CE certification, ISO9001 quality management system certification, Alibaba Jinpincheng Enterprise Certification and design patents and other international certifications.
Strictly control all aspects of incoming materials, processing, assembly, debugging, testing, packaging and transportation to ensure the performance and quality of laser products.
Strictly control all aspects of incoming materials, processing, assembly, debugging, testing, packaging and transportation to ensure the performance and quality of laser products.
Company Profile
.*11 years of factory production experience
* 24h after-sales quick solution
* 30,000+ cumulative customers nationwide
* 24h after-sales quick solution
* 30,000+ cumulative customers nationwide
Jinan JinQiang Laser CNC Equipment Co.,LTD

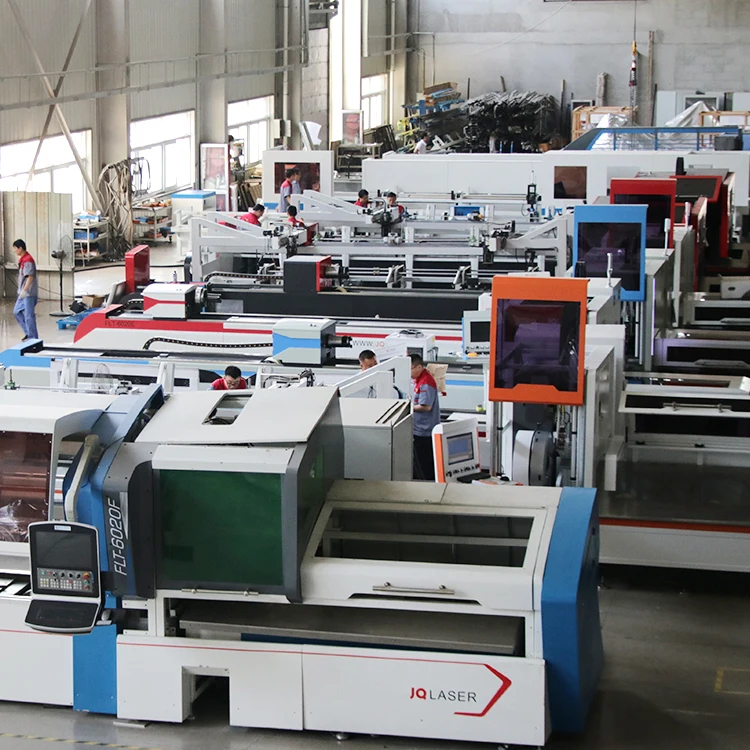

Jinan Jinqiang Laser Numerical Control Equipment Co., Ltd. was established in 2006. It is a high-tech industry focusing on the research and development, production and sales of laser application and sheet metal automation complete equipment. The company's products are divided into five series: tube laser cutting machine, sheet laser cutting machine, laser engraving, laser marking, and laser welding. Jinqiang Laser currently has more than 300 employees, and technology research and development and after-sales service account for more than 50%; we have a professional and fast-responding customer service team, providing 24-hour online and offline technical services in 12 languages. With reliable product quality, reasonable prices and perfect after-sales service system, JQ laser is now exported to more than 150 countries and regions around the world.
Exhibition display
Jinqiang Laser has traveled all over the world, participated in more than 300 exhibitions and served more than 20,000 customers。

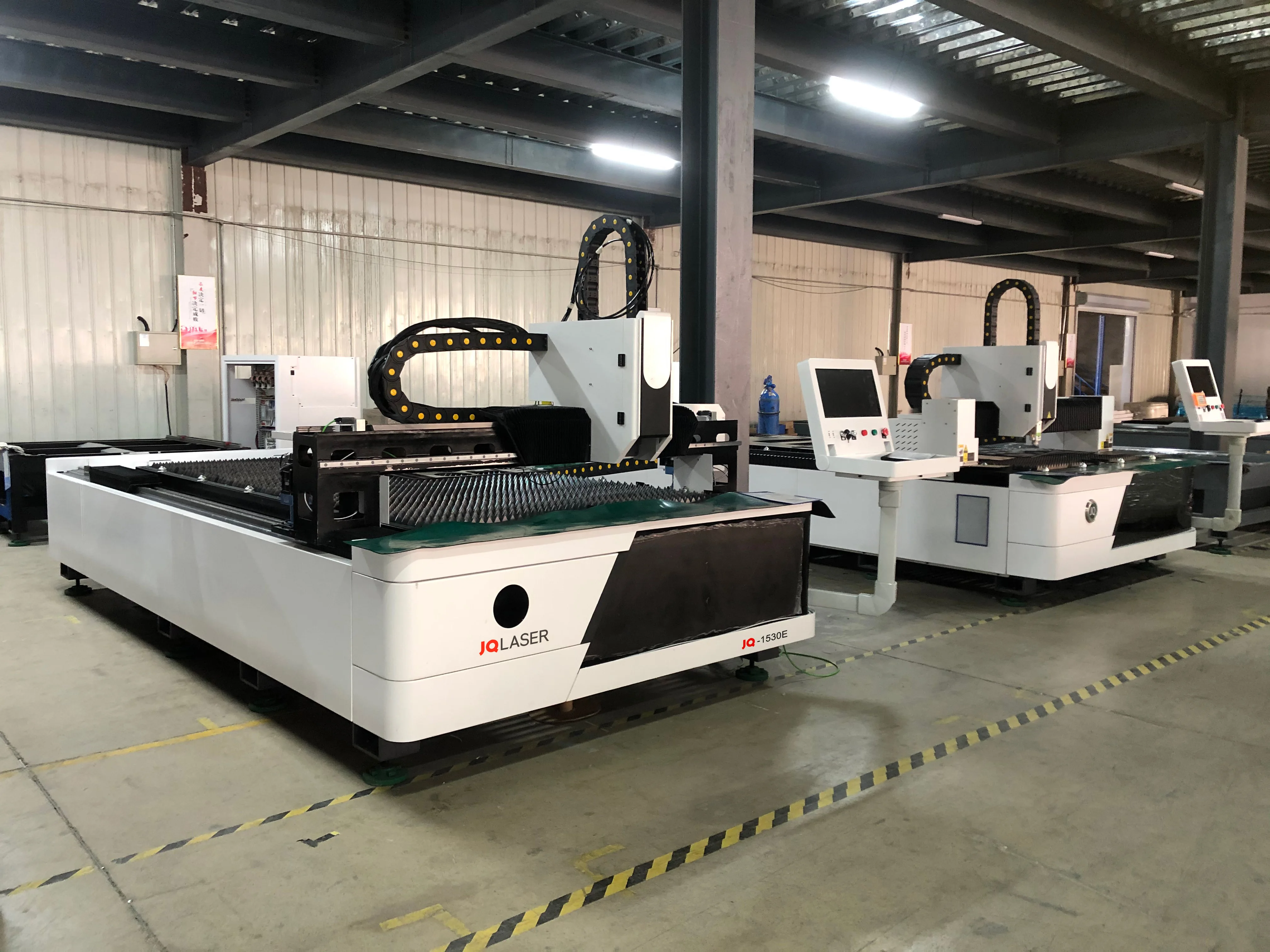

*About the installation and inspection of the fiber laser cutting machine before leaving the factory
We strictly control the quality of the fiber laser cutting machine, and achieve perfection in every detail. Let our customers rest assured to use our machines safely！
We strictly control the quality of the fiber laser cutting machine, and achieve perfection in every detail. Let our customers rest assured to use our machines safely！
After-sales service & customer visit:
We have a strong after-sales service team, which visits our customers regularly to provide customers with good after-sales service
1. The fiber laser cutting machine is guaranteed for 2 years, except for wearing parts;
2. Provide a large number of online and offline technical support online;
3. Fast spare parts and technical support;
4. Provide "Training Video", "Instruction Manual", "Operation Manual";
We have a strong after-sales service team, which visits our customers regularly to provide customers with good after-sales service
1. The fiber laser cutting machine is guaranteed for 2 years, except for wearing parts;
2. Provide a large number of online and offline technical support online;
3. Fast spare parts and technical support;
4. Provide "Training Video", "Instruction Manual", "Operation Manual";
FAQ
We provide customers with quality services
If you have a need or encounter a problem, please feel free to contact us, we have a 24-hour customer service online to serve you
