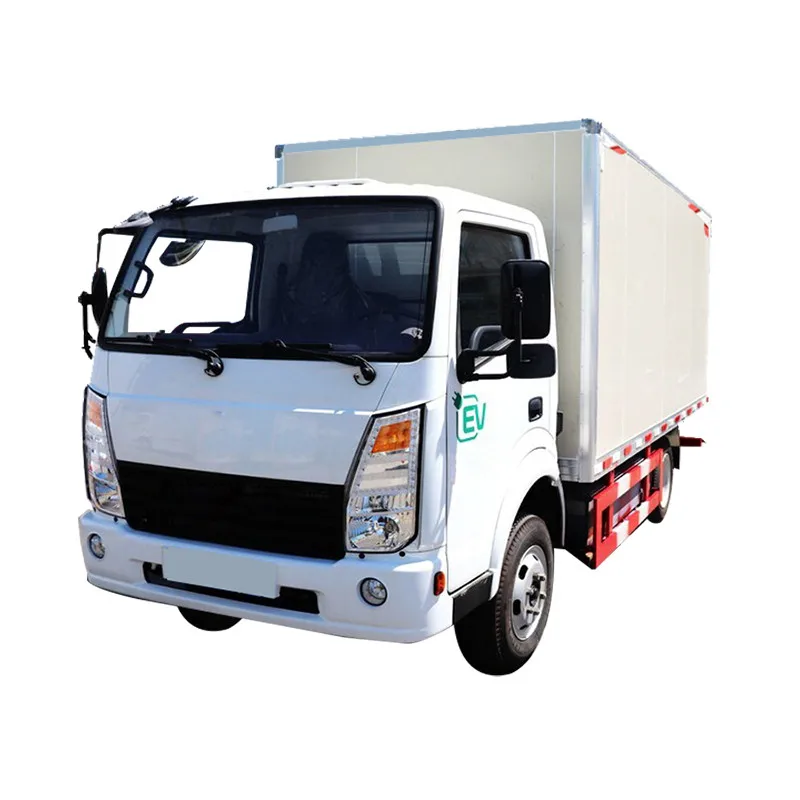

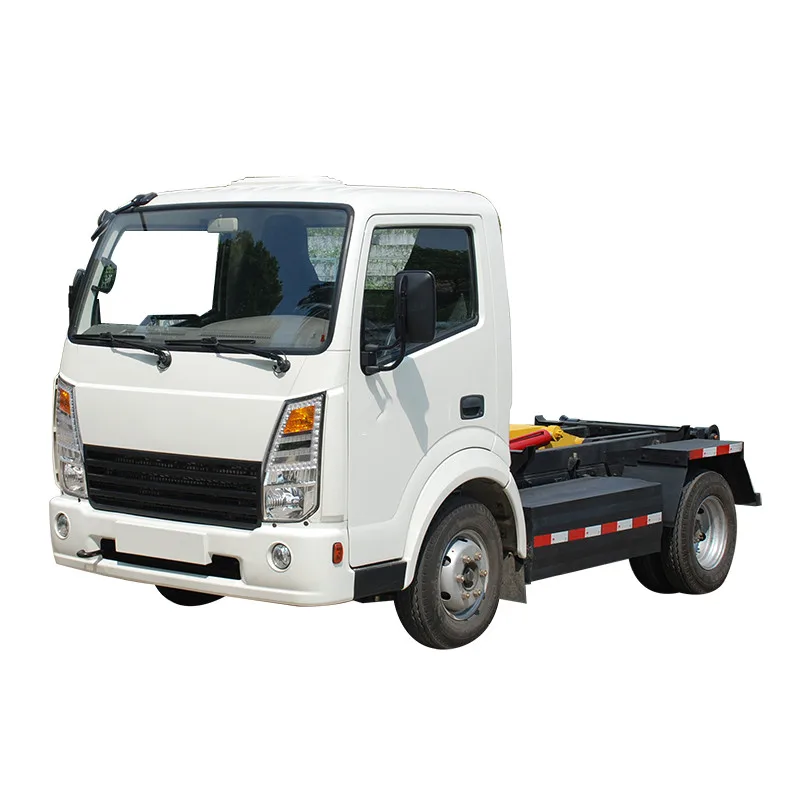

5-тонный популярный Электромобиль для городского транспорта форма CBU / CKD
- Категория: Other NEV Parts & Accessories >>>
- Поставщик: Hubei,Qixing,Truck,Cabin,Manufacturing,Limited,Company
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.24 $* | 0.51 $* |
| Aug-18-2025 | 0.38 $* | 0.59 $* |
| Jul-18-2025 | 0.44 $* | 0.83 $* |
| Jun-18-2025 | 0.93 $* | 0.60 $* |
| May-18-2025 | 0.87 $* | 0.8 $* |
| Apr-18-2025 | 0.29 $* | 0.65 $* |
| Mar-18-2025 | 0.35 $* | 0.30 $* |
| Feb-18-2025 | 0.37 $* | 0.47 $* |
| Jan-18-2025 | 0.97 $* | 0.73 $* |
Характеристики
Product Description
| QX5041 Electric truck chassis specification | ||||
| Model No. | QX5040BEV | |||
| Dimension & Weight | Overall | L | mm | 4,910 |
| W | mm | 1780 | ||
| H | mm | 2200 | ||
| Wheelbase | mm | 2,600 | ||
| Tread | FR | mm | 1498 | |
| RR | mm | 1475 | ||
| Ground Clearance | mm | 175 | ||
| Weight | Gross | kg | 5,000 | |
| Curb weight | kg | 2,170 | ||
| Rated Payload | kg | 2,500 | ||
| Minimum turning diameter | m | ≤11.5 | ||
| Chssis | Maximum Speed | KM/H | 120 | |
| Rear Axle Gear Ratio | 5.833 | |||
| Suspension | FR | Leaf spring with Telescopic cylinder shock absorber | ||
| RR | Leaf spring with Telescopic cylinder shock absorber | |||
| Brake Type | FR | Drum | ||
| RR | Drum | |||
| Steering Type | steering with hydraulic power assistant | |||
| Tyre | FR | 6.50-16LT | ||
| RR | 6.50-16LT | |||
| Spare Tyre | 1 | |||
| Standard Equipment | Exterior | Bumper | Body Color | |
| Side&Rear Step | With | |||
| Mud guard | Front & Rear | |||
| Cabin | single | |||
| Headlight | High quality Reflector | |||
| Interior | Room mirror | Anti-reflection | ||
| Door window | Power window | |||
| Door lock | Central lock | |||
| Seat | Leather, Reclinable | |||
| Seating capa | Person | 3 | ||
| Air conditioner | With | |||
| Safety Feature | Front Foglamp | With | ||
| Seat belt | Driver & passenger | |||
Company Information
We are Qixing Group, the biggest cabin and tanker manufacturer in central of China, the productions we are offering involving aluminum/steel fuel tanker semi-trailer, water tanker, milk tank, chemical liquid tank, cement tank ,LPG storage tank and LPG tank trailer. Meanwhile , we can provide different type of heavy duty cabin and light duty cabin,caravan, and so on.
With all design, production and test facilities, Qixing tanker and cabin products have been supplied to main China vehicle manufacture, transportation companies and exported to America, Russia, Ukraine, Brazil, Iran, Laos and other countries. In 2015, Qixing Group turnover is 1.5 billion USD, with 4000 employees.
